Product description: DDS Function Generator JDS6600 15 MHz - 2 channels
Two channelfunction generator with waveform generation up to 15 MHz, 200 MSa/s with 12 bit vertical resolution, 17 standard waveforms and 60 built-in 2048 point arbitrary waveforms. It has a set of modulating functions, a built-in frequency counter and a 2.4" TFT LCD display.
A power supply with type A plug is included. For proper use with E / F type sockets, an adapter must be used.
Example application
- Didactics - education
- The JDS6600 function generator offers higher measuring ranges than analogue generators.
- Allows students to become familiar with modern measuring equipment at a relatively low price
- Simulation of electrical waveforms
- Checking the correct functioning of electrical devices
- In combination with oscilloscope it allows to observe electrical waveforms
|
The software can be downloaded from the manufacturer's website. |
Specification
- Number of channels: 2
- Digital frequency synthesis DDS technology
- Output frequency: up to 15 MHz
- Sampling rate: 200 MSa/s
- Waveform length: 2048 pts
- Frequency resolution: 0.01 μHz
- Vertical resolution: 12 bits
- Waveforms: Sine, Square, Triangle, Pulse (duty-cycle correction),Batch Sine, CMOS, DC level, Half-wave, Full-Wave, Pos-Ladder, Neg-Ladder, Noise, Exponential Rise, Exponential Fall, Tone, Sinc Pulse, Lorentz Pulse, and 60 different user-defined waveforms.
- Sinusoidal range: 0 to 15 MHz
- Range - Rectangle: 0 to 16 MHz
- Triangle range: 0 to 16 MHz
- Spectrum - Pulse: 0 to 6MHz
- CMOS/TTL digital range: 0 to 6 MHz
- Arbitrary waveform: 0 to 6 MHz
- Modulation functions: SWEEP, frequency sweep, BURST periodic waveform parcel generation, PULSE, pulse generation function
- Other functions: frequency counter up to 100 MHz
- Standard interface: USB
- Number of arbitrary waveforms: 60
- Number of output waveform types: 15
- Display: 2.4" TFT LCD
Included:
- DDS function generator JDS6600
- USB cable
- AC adapter (plug type A)
- BNC-cable x 2

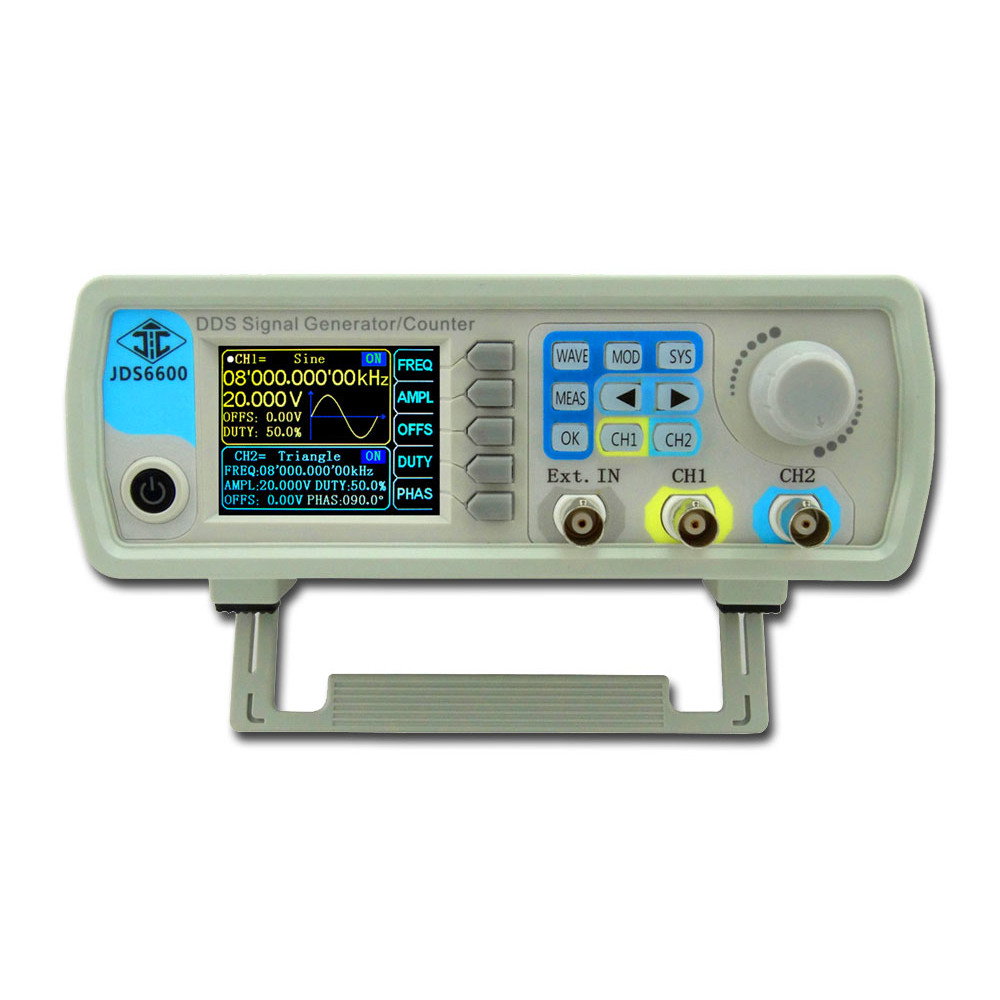

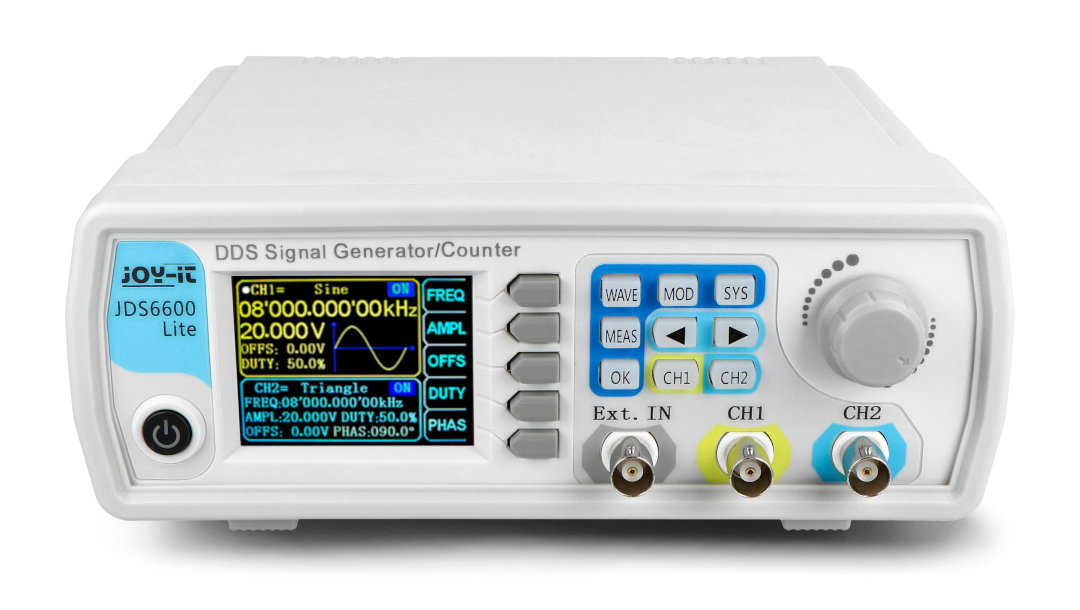

DDS JDS6600 15MHz Function Generator - 2 channels
The DDS JDS6600 is a two-channel function generator, which is perfect for both professionals and beginners in electronics (for example pupils or students).
The device is capable of generating waveforms with frequencies up to 15 MHz, offers sampling rates of 200 MSa/s with a (vertical) resolution of 12 bits. Everything is displayed on an economical 2.4″ TFT display.
DDS generator
Together with the generator you will receive a matching USB cable, power supply and BNC cable (with two crocodiles).
This is a very practical device, thanks to which you will be able to conduct serious scientific research, but also to recognize and repair a fault in home electrical and electronic equipment. Oscilloscopes are also very useful for this type of activity.
