Siglent SDG1062X Plus Function Generator - 60MHz - 2 channels
The Siglent SDG1062X Plus dual-channel function generator with 60 MHz bandwidth and 16-bit resolution is an advanced tool for generating arbitrary and function signals . TrueArb and EasyPulse technologies ensure low distortion and minimal jitter. Ideal for power supply testing, digital communications, and educational applications.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Siglent SDG1062X Plus function generator - 60MHz - 2 channels
The Siglent SDG1062X Plus generator from the SDG1000X Plus series is a premium device for electronics professionals, automation engineers, and system test engineers. Featuring two output channels , a maximum frequency of 60 MHz , 16-bit vertical resolution , and a sampling rate of 1 GSa/s , the device delivers faithful signal reproduction. Advanced TrueArb and EasyPulse technologies enable signal generation with minimal jitter and high precision. Support for multiple modulation types , pulse outputs, burst and sweep modes, and a WebServer make the SDG1062X Plus a comprehensive solution for laboratory and industrial testing.

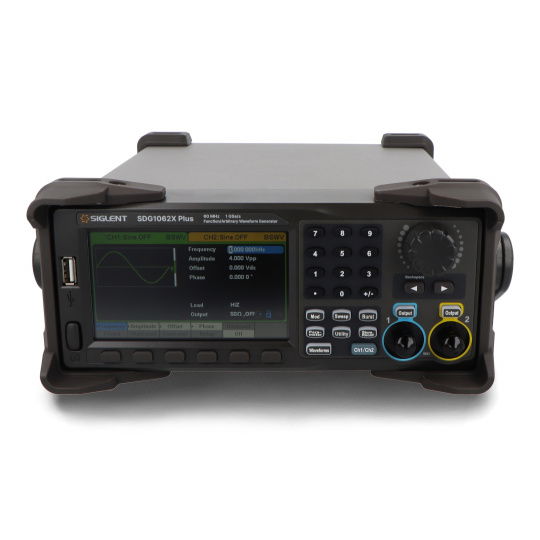

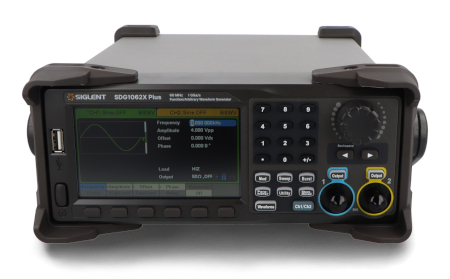

Siglent SDG1062X Plus function generator - 60MHz - 2 channels.
Generator with a maximum bandwidth of 60 MHz and a sampling rate of 1 GSa/s with 16-bit vertical resolution.
Main Features of Siglent SDG1062X Plus
- 2 output channels : independent control of signals on two channels
- Output bandwidth up to 60 MHz : allows the generation of a wide range of signals
- 1 GSa/s sampling rate : ensures high signal accuracy
- 16-bit vertical resolution : ensures low distortion
- EasyPulse and TrueArb technologies : precise generation of arbitrary and square wave signals
- PRBS, Sweep, Burst, Harmonics : Full control over test parameters
- Built-in WebServer : remote control via browser
- 4.3'' LCD display : clear user interface
Innovative TrueArb technology
TrueArb technology, implemented in the SDG1062X Plus, enables the generation of arbitrary waveforms with complete precision at every point. Unlike traditional DDS generators, TrueArb operates on a point-by-point architecture, eliminating interpolation errors and jitter , resulting in exceptional signal fidelity. This technology allows for the generation of signals ranging from 24 Mpts to 8 Mpts in length at sampling rates up to 250 MSa/s.
EasyPulse technology - pulse precision
Thanks to EasyPulse technology, the device can generate square and pulse waveforms with very low jitter. Pulse rise and fall times can be precisely adjusted (from 10 ns to 22.4 s), which is particularly useful for dynamic power component testing. The minimum pulse width is just 19.4 ns , and the control resolution is a mere 100 ps.

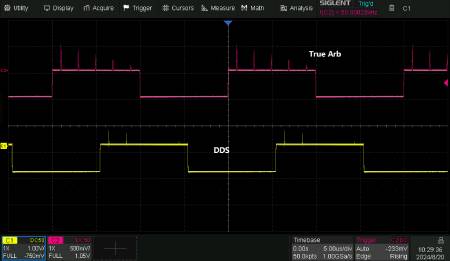

TrueArb generates arbitrary waveforms point by point.
The SDG1062X supports a wide range of analog and digital modulation types, including AM, DSB-AM, FM, PM, ASK, FSK, PSK, and PWM.
Advanced test and modulation functions
The SDG1062X Plus offers a wide range of test features , including signal sequence playback, PRBS pattern generation (up to 40 Mbps), multi-pulse outputs, and waveform merging. It supports a variety of analog and digital modulation types —including AM, FM, DSB-AM, ASK, PSK, FSK, and PWM—enabling simulation of complex communication and measurement environments.
Versatile connections and remote control

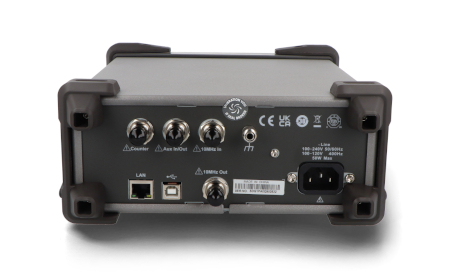

The generator is equipped with numerous communication interfaces: USB Host , USB Device , LAN (VXI-11) , and optional GPIB (via adapter). The built-in WebServer allows for full remote control of the device via a browser, greatly simplifying integration with test systems and measurement automation.
Siglent SDG1062X Plus Technical Specifications
- Output bandwidth: 1 μHz to 60 MHz
- Number of channels: 2
- Vertical resolution: 16 bit
- Sampling rate: 1 GSa/s
- Arbitrary Waveform Length: Up to 8 Mpts
- Max output amplitude: 20 Vpp (HiZ)
- PRBS: up to 40 Mbps
- Functions: Sweep, Burst, AM, FM, PM, FSK, PSK, PWM, PRBS, Harmonics, Waveform Combination
- Interfaces: USB Host, USB Device, LAN, optional GPIB
- Display: LCD 4.3''
- Power supply: 100 V to 240 V AC, 50/60 Hz
- Dimensions: 260.3 x 107.2 x 295.7 mm
- Weight: 3.48 kg
Contents of the set
- Siglent SDG1062X Plus generator
- Quick start guide
- Power cord
- USB cable
- Calibration certificate

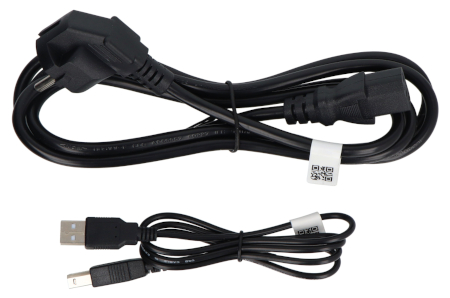

The kit includes a power cable and USB.
