Product description: 318C digital microscope - 1600x 12 MPx 28 LED - HD IPS 10.1'' screen + wireless remote control
The 318C digital microscope was designed for demanding users in electronics , equipment repair, jewelry, and education. The use of an industrial multifocal lens and a high-quality 12 MPx sensor allows for detailed images with resolutions up to 4032 x 3024 px for photos and 1920 x 1080 px for videos . The large 10.1-inch IPS screen with a wide 178° viewing angle allows for comfortable viewing without glasses. The microscope stores images and videos on a microSD card with a capacity of up to 128 GB , and thanks to the USB connection, it can be connected to a computer in real time. The stable metal base with a silicone soldering mat and an organizer for small parts make it a practical workstation for electronics and service technicians.

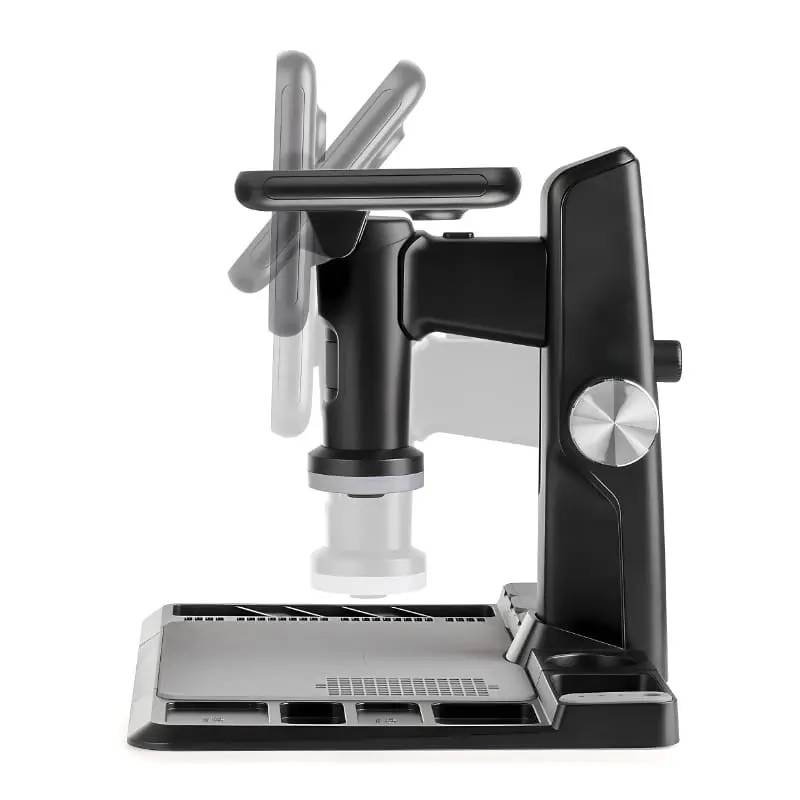

318C digital microscope - 1600x 12 MPx 28 LED - HD IPS 10.1'' screen + wireless remote control.

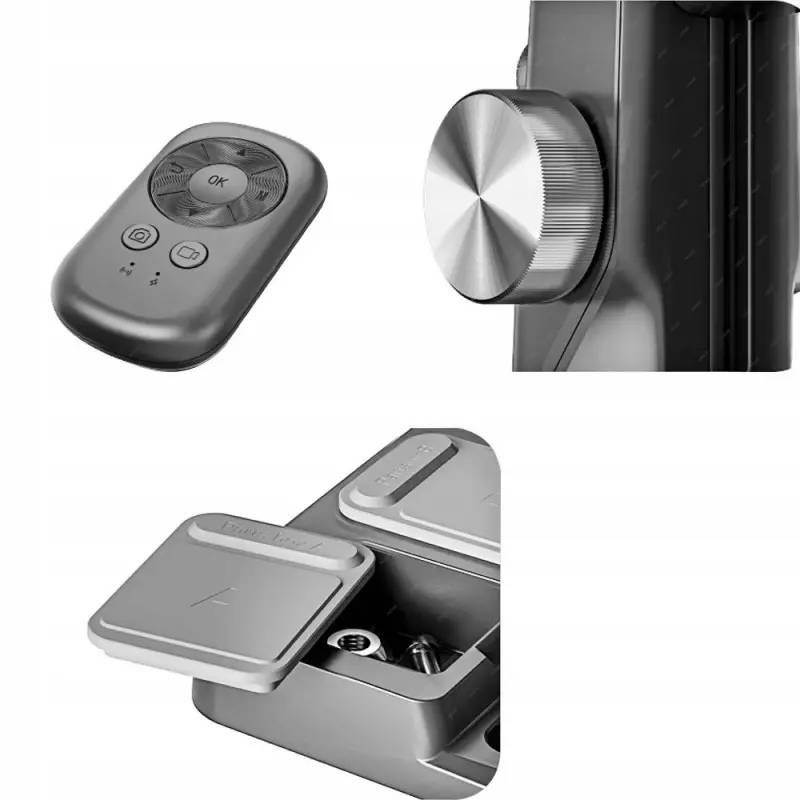

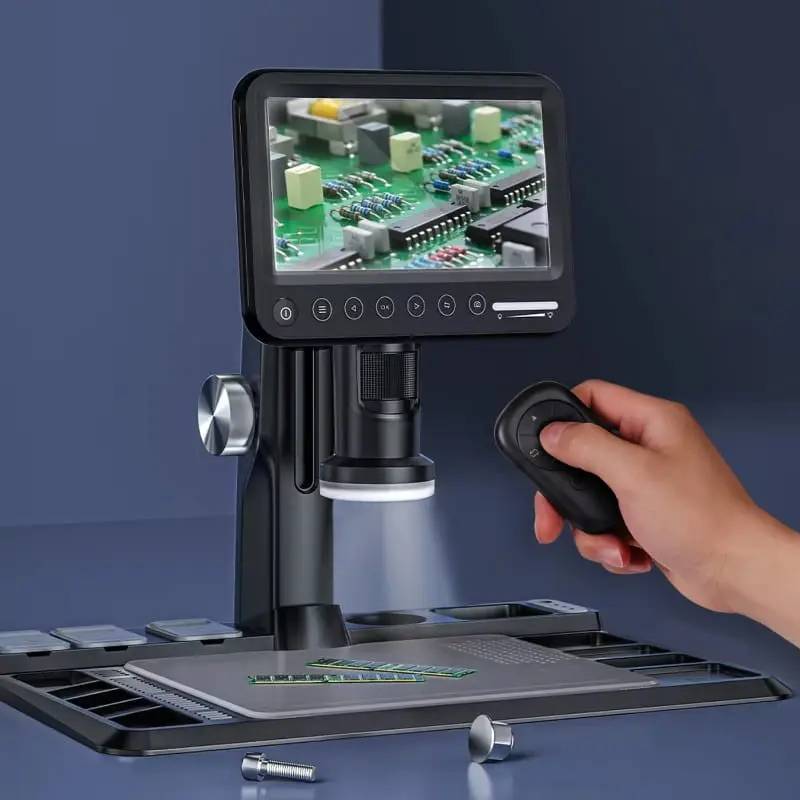

The included wireless remote control helps avoid vibrations when taking photos and recordings.
Main features of the microscope
- Magnification from 50x to 1600x : allows you to observe larger objects and the smallest details
- 12 MPx matrix : ensures high-detail photos and clear images during work
- 10.1'' IPS screen : guarantees wide viewing angles and comfortable image analysis

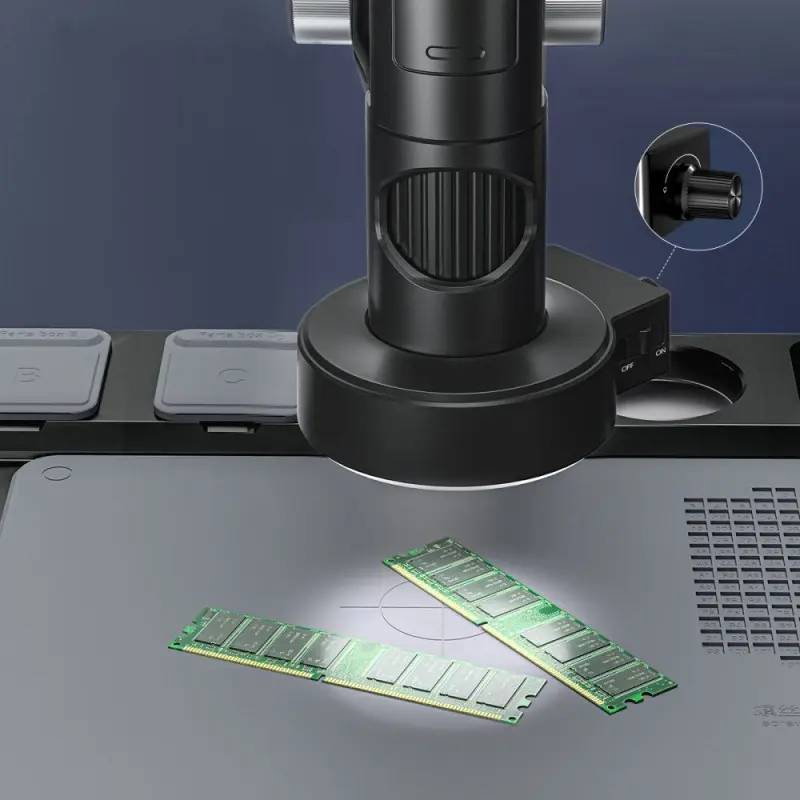

- 28 adjustable LEDs : allows you to adjust the lighting to the working conditions
- Touch control and 2.4G remote control : makes operation easier and reduces vibrations when taking photos
- Photo and video recording : allows you to document your observations in JPG and MOV formats
- 3000 mAh battery : provides up to 2 hours of operation without external power supply
- Supports microSD cards up to 128 GB : allows you to store a large amount of content
- Compatibility with Windows and MacOS : allows you to work comfortably on your computer
Applications of the digital microscope in electronics and service

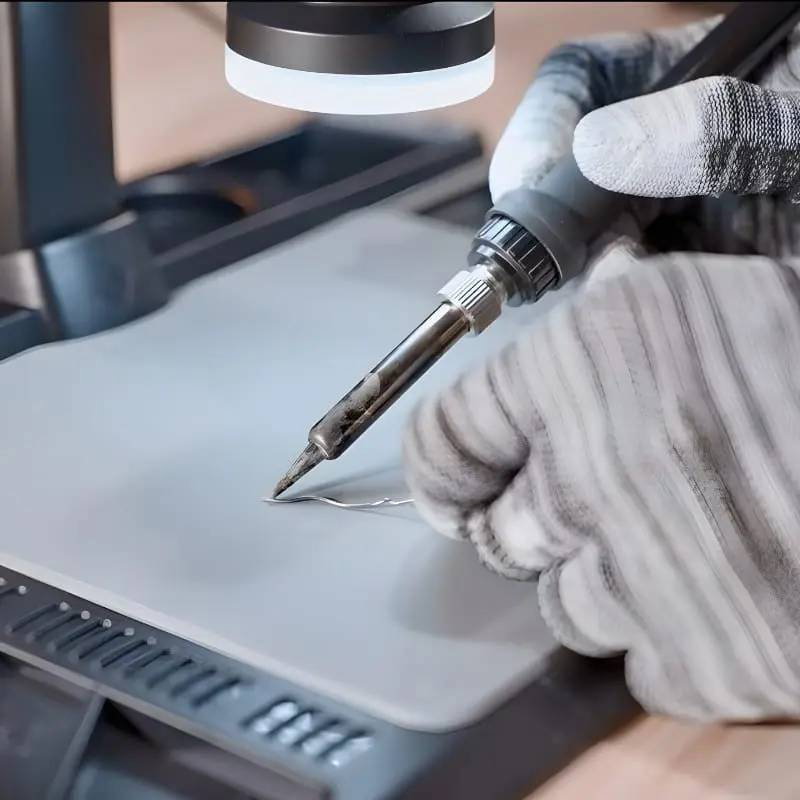

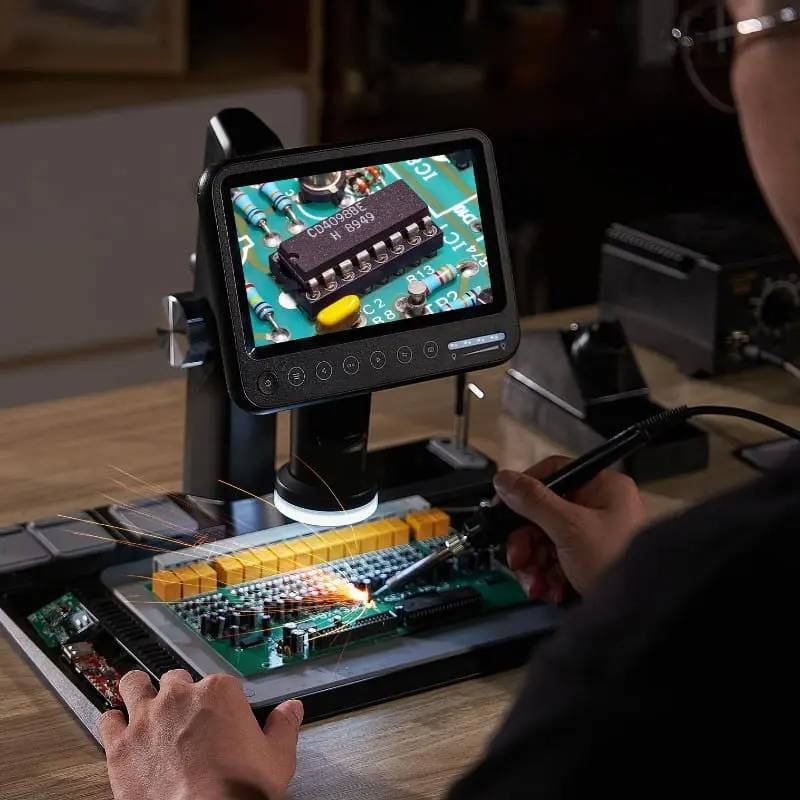

This microscope is ideal for soldering SMD components, diagnosing PCB damage, and inspecting the quality of electronic connections . Its long working distance and stable base facilitate precise service work. The ability to display images on an IPS screen or computer monitor allows you to conveniently analyze details without excessive eye strain. This solution is particularly appreciated by electronics service technicians and laboratory technicians. The parfocal lens and industrial-grade optical system ensure high image sharpness throughout the entire viewing range. Special optical coatings improve light transmission and color reproduction. Adjustable LED illumination This allows for optimal working conditions regardless of ambient lighting. This ensures that observed objects remain clearly visible even when working with very small details.

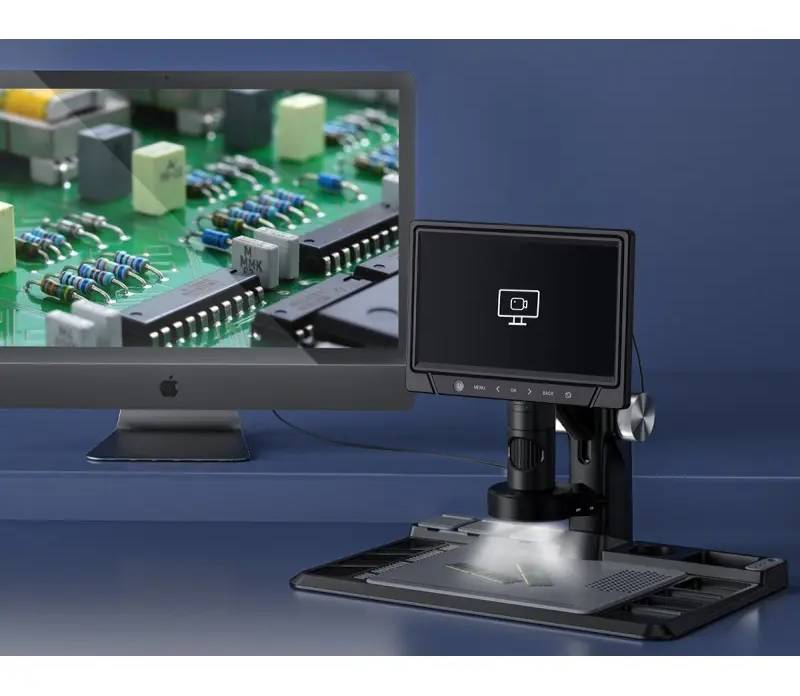

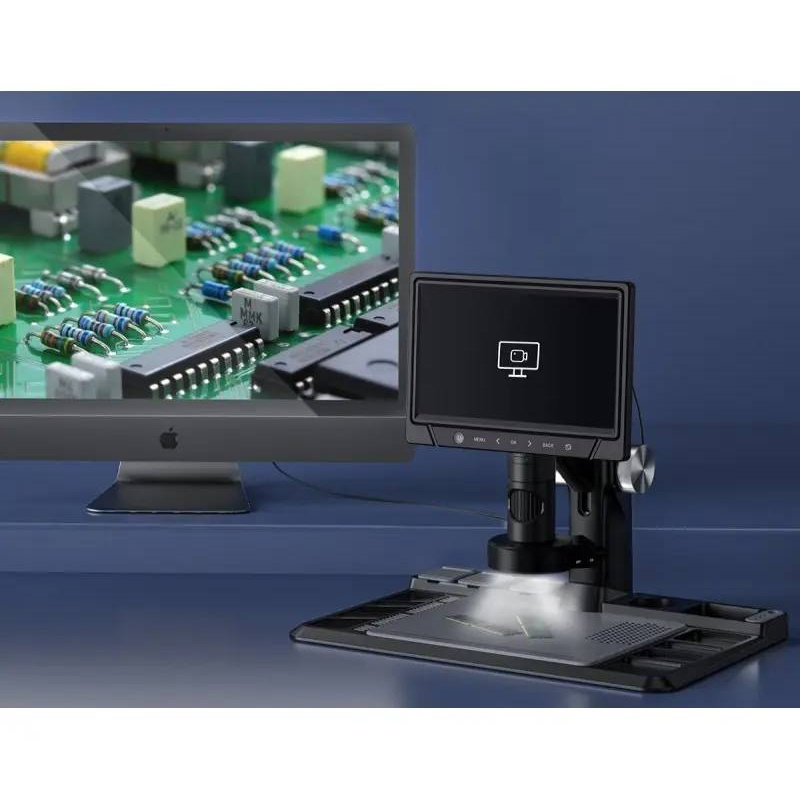

Objects can be observed on the built-in IPS screen or live on a computer screen.

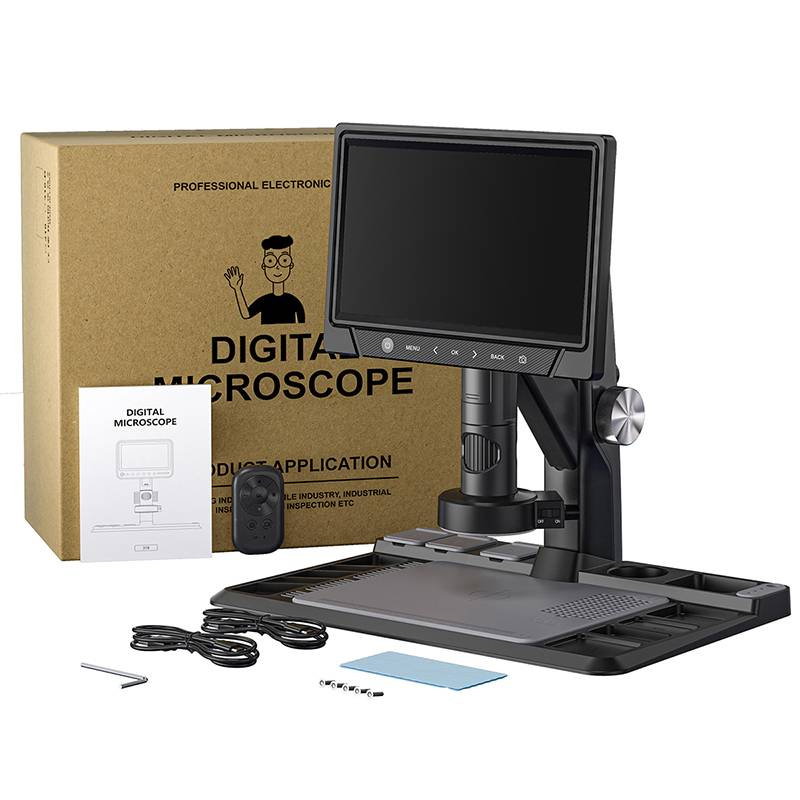

Elements included in the set.
Technical specifications of the digital microscope
- Model: 318C
- Matrix: 12 MPx
- Magnification: from 50x to 1600x
- Screen: IPS LCD 10.1''
- Screen viewing angle: 178°
- Video resolution: 1920 x 1080 px
- Photo resolution: 4032 x 3024 px
- Focus range: 30 mm to 90 mm
- Control: touch and 2.4G wireless remote control
- Lighting: 28 LEDs with adjustable brightness
- Supported memory cards: microSD up to 128 GB
- Photo format: JPG
- Video format: MOV
- Battery: 18650 Li-Ion 3000 mAh, 3.7 V
- Working time: about 2 hours
- Charging time: about 3 hours
- Power supply: USB Type-C 5V/2A
- Compatible systems: Windows XP / Vista / 7 / 8 / 10 / 11, MacOS 11.0 or later
- Base dimensions: approximately 365 x 260 mm
- Monitor dimensions: approximately 250 x 174 mm
Contents of the set
- Inskam 318C Digital Microscope
- Work stand
- Silicone soldering mat resistant to 600°C
- 2.4G wireless remote control
- USB cable
- Microfiber cloth
