Water / gas ball valve actuator WiFi ATLO-V1-TUYA
A servo- based controller that allows remote opening or closing of a water or gas ball valve . It can be connected to another device or sensor to create a fully automated system. The device communicates via Wi-Fi , and thanks to a mobile app, it can be controlled from anywhere in the world.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: WiFi water/gas ball valve actuator ATLO-V1-TUYA
A servo- based controller that allows remote closing or opening of a water or gas ball valve . It can be connected to another Tuya device or sensor to create a fully automated system. It allows the water or gas valve to be closed in the event of, for example, flooding or the detection of harmful gas leaks. The device communicates via Wi-Fi and can be controlled from anywhere in the world using a mobile app.
Main features of the valve actuator
- Easy to install, without interfering with the existing installation
- Remote control via WiFi network
- Possibility of manual control using a button on the housing or a clutch in the event of a power failure
- Easy integration with the application
- Waterproof housing
- Powered by 12V
- Controlled by schedule, timer or depending on other devices or sensors

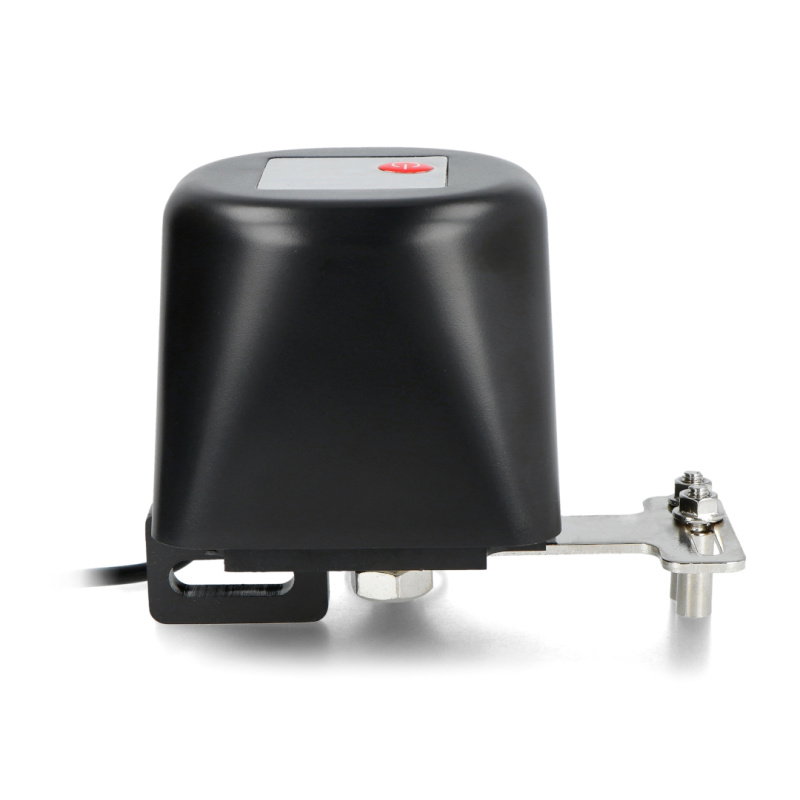

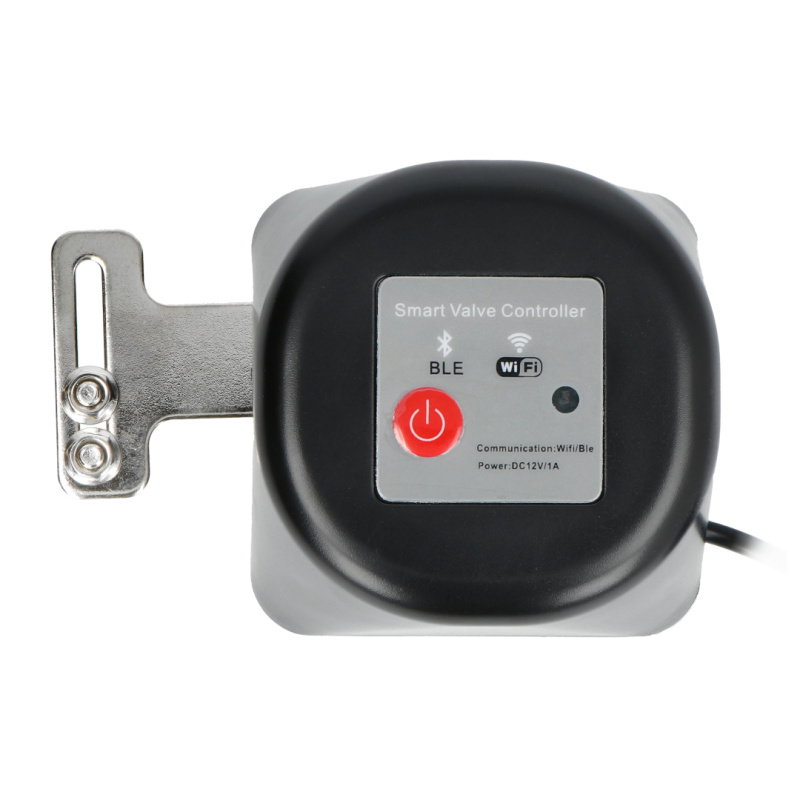

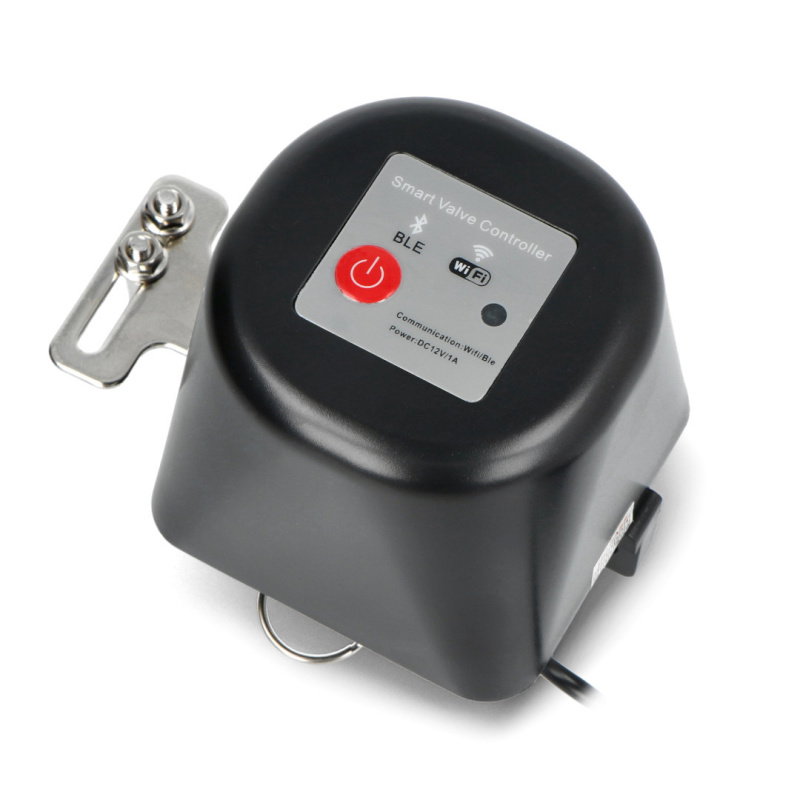

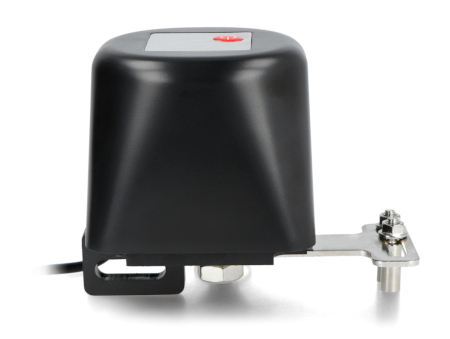

WiFi ball valve actuator.
Distribution of elements on the actuator.
Controlling the gas or water supply according to a schedule or timer. Application example.
- Automatic garden watering
- Wide range of applications in agriculture
- Automatic shut-off of water supply when the sensor detects flooding
- Automatic shutdown of the gas supply when the sensor detects a leak

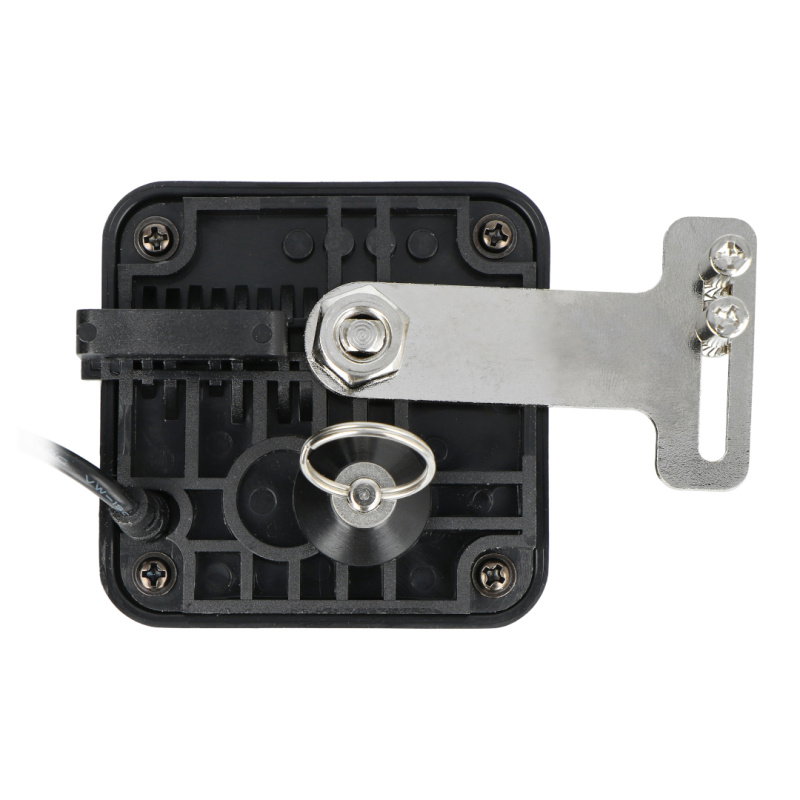

Description of actuator components
| No. | Description |
|---|---|
| 1 | Actuator arm |
| 2 | Clutch allowing manual shifting of the lever |
| 3 | Bracket mounting screw |
| 4 | Clamp mounting bracket |
| 5 | Mounting clamp |
Water/Gas Valve Actuator Specifications
- Communication protocol: WiFi 2.4 GHz
- Antenna: built-in
- Communication range: up to 30 m
- Status indicator: LED
- Power supply voltage: 12 V DC 1A (power supply included)
- Valve pressure: 1.6 mpa
- Valve opening/closing time: 5 to 10 seconds
- Torque: 30 to 60 kgf
- Operating temperature: -20°C to 60°C
- Operating humidity: 0% to 80% RH
- Housing dimensions: 80 x 70 x 70 mm
- Weight: 350 g
The set includes
- WiFi Water/Gas Valve Actuator
- Mounting elements
- Charger

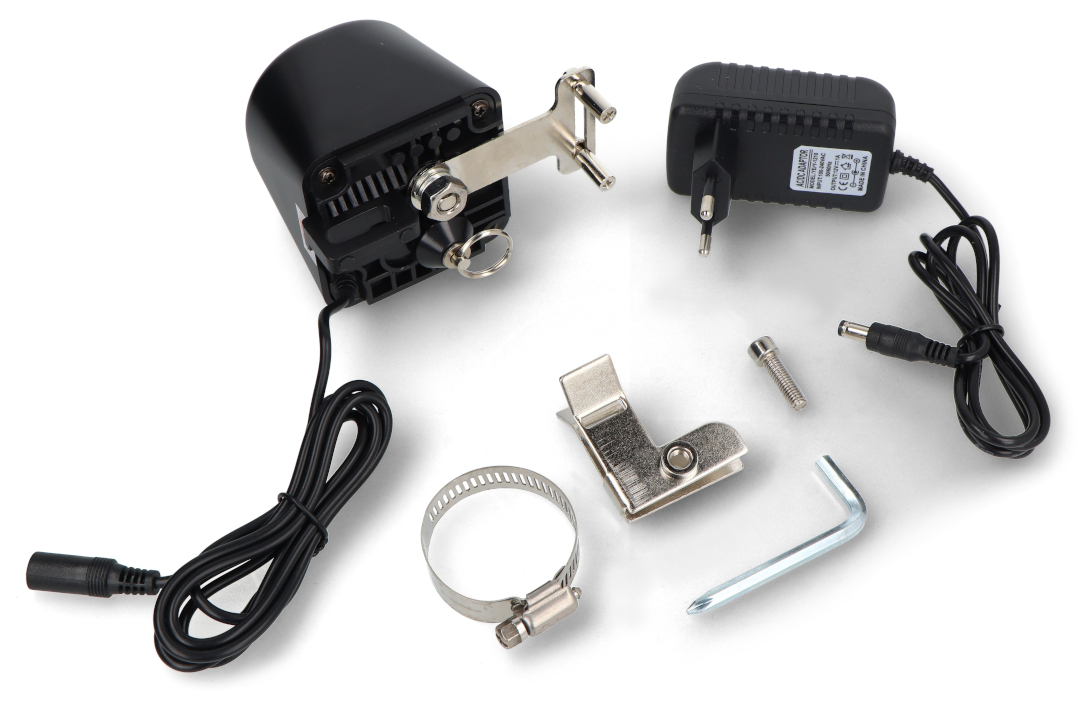

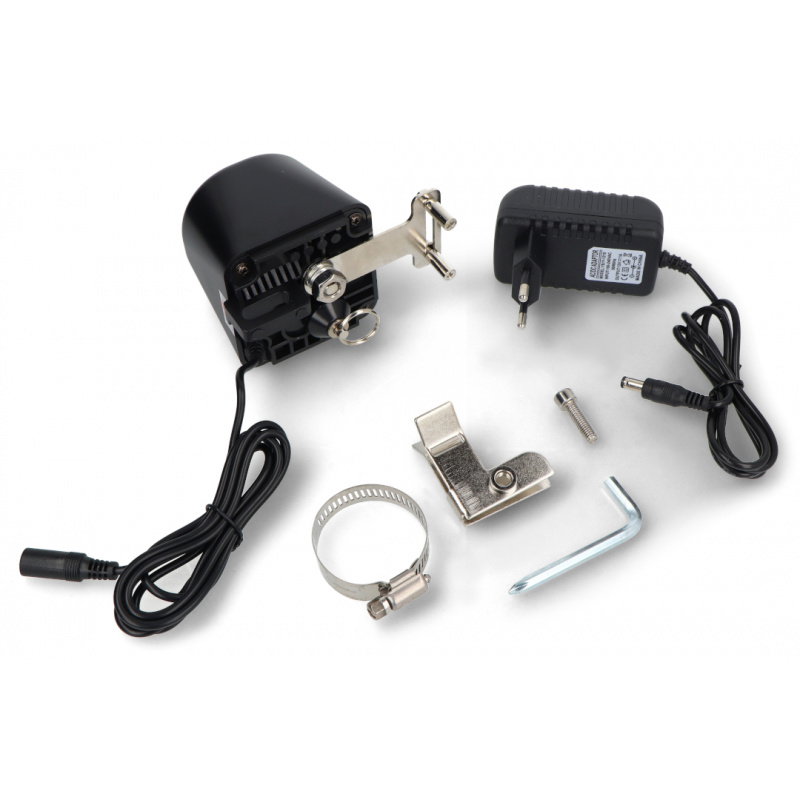

Contents of the set.
Useful links
| Name | Value |
|---|---|
| Smart Home | Valve |
| Communication | WiFi |
| Width | 12 cm |
| Height | 7 cm |
| Depth | 13 cm |
| Weight | 0.55 kg |
