Chassis Rectangle 4WD 4-wheel robot chassis with DC Motor Drive
Transparent, universal platform that allows to build e.g. a line follower or a sumo robot. You can use any controller including Arduino with Motor Shield to control it.
We could not load the price.
The promotional price does not combine with quantity discounts.

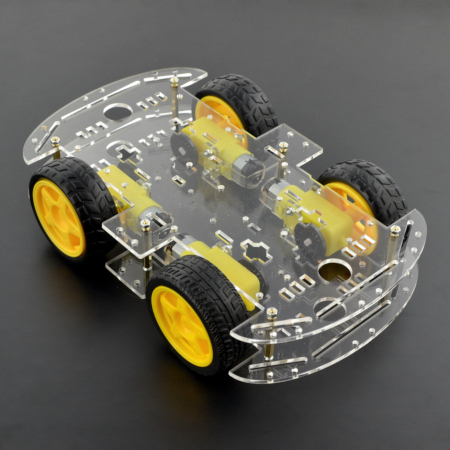

Product description: Chassis Rectangle 4WD 4 wheel robot chassis
Transparent platform for building a robot It comes with four DC motors with 65mm diameter wheels. The chassis components are made of acrylic and have mounting holes to mount various sensors, controllers (including Arduino, Baby Orangutan, Raspberry Pi) and more.
To run the robot, simply assemble the platform, bolt on the motors, attach the wheels, and add any robot controller (e.g. Arduino Uno with Motor Shield). The power source can be AA (stick) batteries, a suitable basket to mount them can be found in our offer, as well as sensors that can extend the capabilities of the robot.
The kit includes
- Two mounting platforms
- Four wheels with 65 mm diameter tires
- Four DC motors with gears
- Metal and plastic components (screws, nuts, etc.)
- Randomly, the kit may include a basket for four AA-type batteries (R6)
Kit requires self-assembly |
Specifications of the robot chassis
- Motor supply voltage: 6 V max
- Torque: 0.8 kg*cm (0.78 Nm)
- No-load motor rotation: 90 +/- 10 rpm
- Motor current consumption without load: 190 mA (max. 250 mA)
- Motor current consumption at shaft standstill: 1 A
- Wheels
- Diameter: 65 mm
- Width: 30 mm
- Plastic rims with rubber tires
- Structure dimensions: 255 x 160 x 65 mm
Useful links
| Name | Value |
|---|---|
| Chassis - wheels | 4 |
| Chassis - type | wheel |
| Chassis + drive | yes |
| Chassis + driver: | no |
| Width | 28 cm |
| Height | 3.8 cm |
| Depth | 16.8 cm |
| Weight | 0.55 kg |
