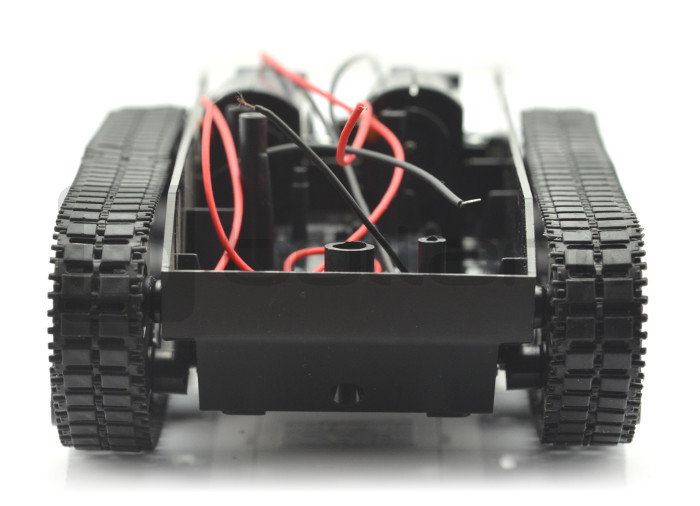

Light Damping Balance Tank - Track Chassis with Shock Absorption and DC Motor Drive
Battery operated track platform with shock absorption and all-wheel drive. It allows you to install a control system (e.g. Arduino board) and various sensors and modules in a very simple way.
We could not load the price.
The promotional price does not combine with quantity discounts.
Description
Track platform, works with AA batteries, with actuator in the form of two DC motors. Large surface with holes to install varioussensors(e.g.distance measurement),modulesand actuators (e.g. robotic arm).
The kit can be controlled using any system microcontolled motor driver, for example, the Arduinomodule with a connectedunit TB6612. Power supply is facilitated by the batteries container (batteries sold separately)with wired outputs.
Dimensions
- Complete chassis:
- Length: 180 mm
- Width: 97 mm
- Height: 45 mm
- Diameter of wheels: 20mm
Includes:
Includes
- 2 x motors class 130: with a supply voltage from 3 V to 8 V
- Current consumption at idle: CA. 200 mA
- Current consumption during power tracks: approx. 500 mA
- Suspension: shock absorption up to 0.7 cm
- Ready to use
- Built-in switch
- Weight: 166 g
| Name | Value |
|---|---|
| Chassis - wheels | 2 |
| Chassis - type | tracked |
| Chassis + drive | yes |
| Chassis + driver: | no |
| Width | 20.3 cm |
| Height | 5.8 cm |
| Depth | 13 cm |
| Weight | 0.204 kg |
