Description
The devastator is a tracked platform to build a mobile robot. In addition to the chassis, the set includes two metal DC motors and tracks along with necessary mounting devices. Elements of the chassis are made of aluminum that provides high durablility. The boards have holes allowing to mount various sensors, controllers, for example,Romeo,ArduinoRaspberry Pi manufacturer.

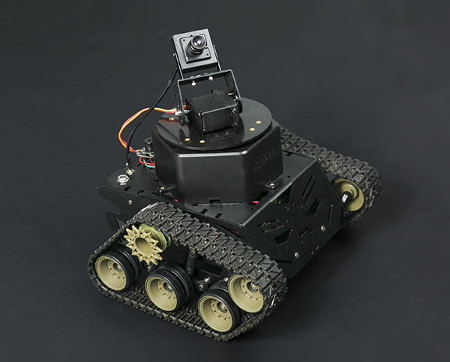

This is a newer version of the popularDevastator. It has the following improvements:
- The new form has a greater number of modules
- Modular wires - no soldering needed
- The plastic engines have been replaced by more resistant - metal
- Increased speed and torque
- Increased payload from 1.5 kg to 3 kg
- New suspension to overcome the most difficult areas
The platform is simple to install, the set includes illustrated instruction. In order to start robot, you just need to fold the chassis and add any robot controller (for example, compatible with the Arduino system,Romeo V2isequipped with the driver of motors L298). In our offer, we also havesensorsthat can extend the robot's capabilities. The devastator is also compatible withIntel Edison.
|
Set requires self-assembly, included is user manual. |
Specification
- Engines with gear
-
- Supply voltage of motors: from 2 V to 7.5 V
- Rated voltage: 6 V
- Gear: 45:1
- The shaft is D-shaped: diameter of 4 mm
- No-load speed (6V): 133 rpm
- No-load current (6 V): 0.13 A
- Torque (6V): 4.5 kg*cm (0,44 Nm)
- Design
- Load capacity: 3 kg
- The diameter of the tracks: 43 mm
- Maximum speed: 36 cm/sec
- The sizes of the whole design: 225 x 220 x 108 mm
- The mass of the whole design: 1.3 kg
