Product description: Nvidia Jetson Nano Dev Kit - ARM Cortex A57 4x 1,43GHz, Nvidia Maxwell + 4GB RAM + 16GB eMMC - Waveshare 21802
The Nvidia Jetson Nano Dev Kit is an alternative solution from Waveshare to the original Jetson Nano B01 . The board is equipped with the Nvidia Jetson Nano module, which is based on a quad-core ARM Cortex A57 clocked at 1.43 GHz and an Nvidia Maxwell graphics processor with 128 CUDA cores . Jetson Nano has 4 GB of DDR4 RAM , while the Dev Kit board expands the internal memory by 16 GB through the eMMC module. On the board you can find an Ethernet Gigabit port, 4x USB 3.0, HDMI, DisplayPort, GPIO, I2C, I2S, SPI, UART, 2x camera connectors and a microSD card slot . The set also includes a USB 3.2 pendrive with a capacity of 32 GB.
Nvidia Jetson Nano Dev Kit - alternative to Nvidia Jetson Nano B01 .

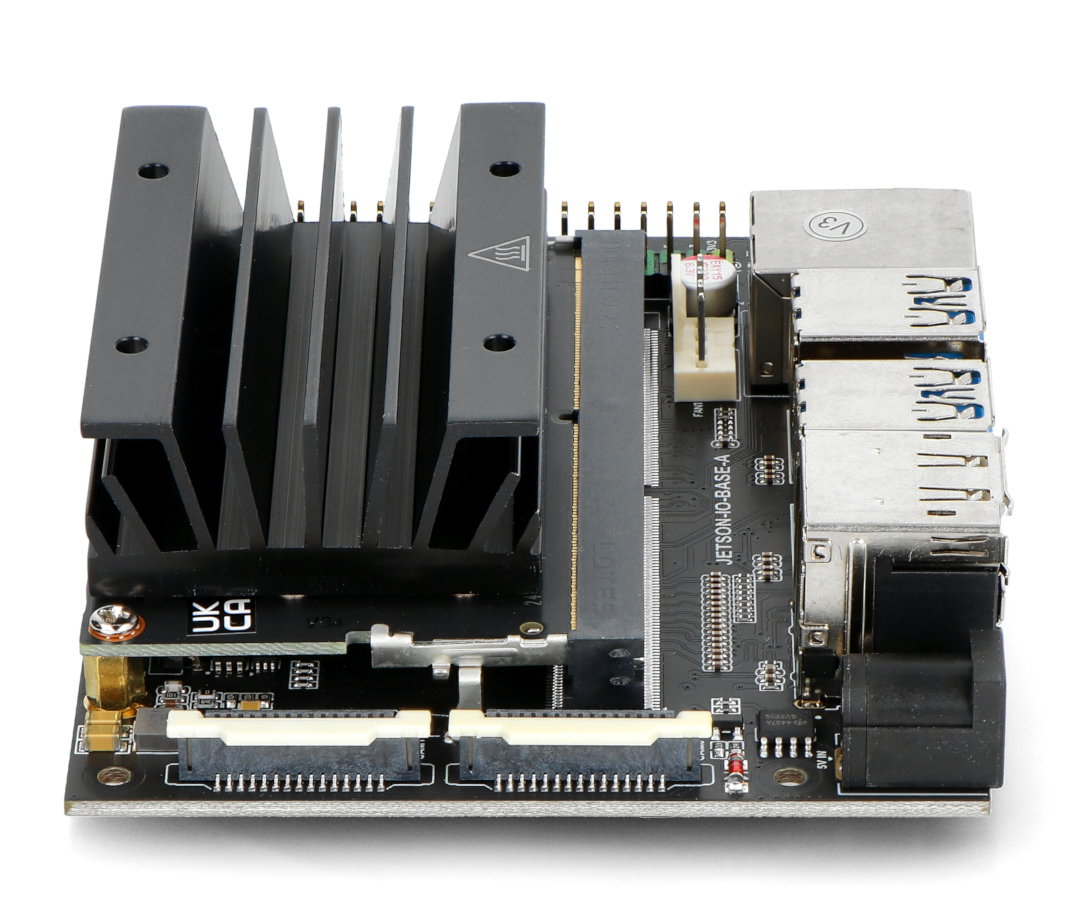

The module is equipped with two CSI camera connectors.Purpose of the Nvidia Jetson Nano minicomputer
Nvidia Jetson Nano is a very efficient minicomputer designed to implement artificial intelligence in all kinds of applications. The device allows you to run multiple neural networks in applications that perform operations in the field of image classification, object detection and segmentation, and voice command processing. Jetson Nano will find a solution in applications related to automation, robotics and artificial intelligence.
What do I need to run Nvidia Jetson Nano?
- Power supply - 5 V / 2 A via microUSB cable or DC 5.5 / 2.1 mm connector
- HDMI cable - to connect the device with the display
- Mouse and keyboard - to enter the necessary data and operate the system
- Internet connection - software download
Communication in Nvidia Jetson Nano
The minicomputer is equipped with communication interfaces that can also be found in standard PC or Raspberry Pi computers:
- Four USB 3.0 connectors - allow you to connect peripherals such as a mouse, keyboard or WiFi network adapter. It is also possible to increase the number of available USB ports by using USB Hubs .
- Gigabit Ethernet port , - socket for connecting a minicomputer to the Internet via RJ45 patch cord, the module also supports PoE power supply.
- GPIO - input / output connectors to which we can connect, among others LEDs, buttons, motor drivers. Among them there are also pins that support interfaces: I2C, I2S, SPI and UART.
- MicroSD slot - a slot intended for a storage medium.
- Two camera connectors - allow you to connect cameras compatible with the Raspberry Pi camera connector.

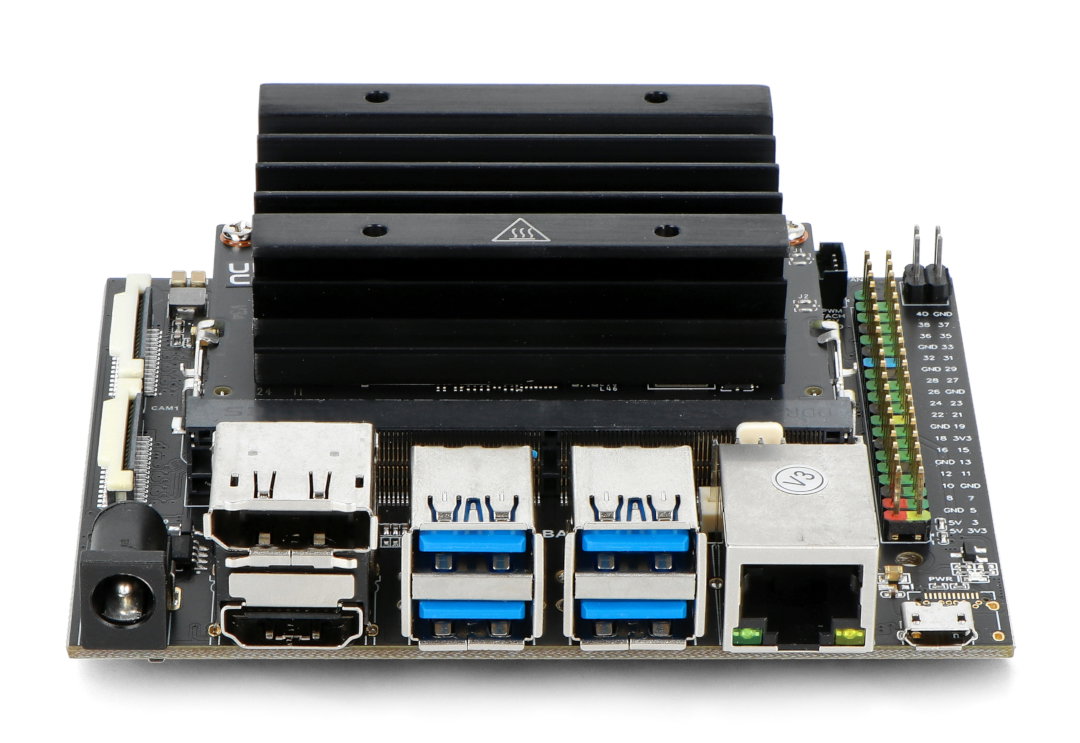

Nvidia Jetson Nano Dev Kit - ARM Cortex A57 4x 1.43GHz, Nvidia Maxwell + 4GB RAM + 16GB eMMC - Waveshare 21802.

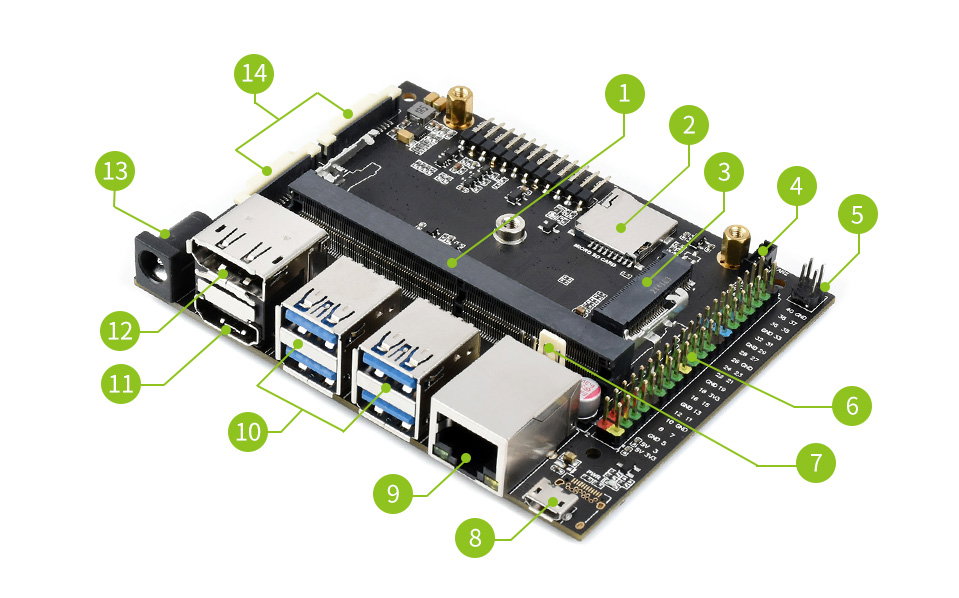

The distribution of elements on the board.The distribution of elements on the Nvidia Jetson Nano Dev Kit board
- SODIMM socket for connecting the Nvidia Jetson Nano module
- MicroSD memory card slot
- M.2 key E connector
- 1.25mm fan connector
- PoE pins (PoE module not included)
- Leads GPIO 40-pin
- 2.54mm fan connector
- MicroUSB port to power the board with 5 V or to transfer data
- 10/100/1000 Base-T Gigabit Ethernet port
- 4x USB 3.0 port
- HDMI port
- DisplayPort connector
- DC 5.5 / 2.1 mm power socket
- 2x MIPI CSI camera connector
| Nvidia Jetson Nano specification and comparison | ||
|---|---|---|
| Model | Nvidia Jetson Nano Developer Kit B01 | Nvidia Jetson Nano Dev Kit |
| GPU | 128 Maxwell cores | 128 Maxwell cores |
| CPU | ARM Cortex A57 Quad-Core @ 1.43 GHz | ARM Cortex A57 Quad-Core @ 1.43 GHz |
| RAM | 4 GB 64-bit LPDDR4 25.6 GB / s | 4 GB 64-bit LPDDR4 25.6 GB / s |
| Internal storage | MicroSD memory card (not included) | 16 GB eMMC + 32 GB USB flash drive MicroSD memory card (not included) |
| Video encoder | 250 MP / s 4x 1080p @ 30 fps [HEVC] | 250 MP / s 4x 1080p @ 30 fps [HEVC] |
| Video decoder | 500 MP / s | 500 MP / s 1x 4K @ 60 fps [HEVC] 2x 4K @ 30 fps [HEVC] 4x 1080p @ 60 fps [HEVC] 8x 1080p @ 30 fps [HEVC] |
| Camera | 2x MIPI CSI-2 DPHY lines | 2x MIPI CSI-2 DPHY lines |
| Communication | Gigabit Ethernet M.2 key E | Gigabit Ethernet M.2 key E |
| Display | HDMI DisplayPort | HDMI DisplayPort |
| USB | 4x USB 3.0 microUSB 2.0 | 4x USB 3.0 microUSB 2.0 |
| Extension interfaces | GPIO, I2C, I2S, SPI, UART | GPIO, I2C, I2S, SPI, UART |
| Other | 260-pin connector | 260-pin connector |
| Dimensions | 100 x 80 x 29 mm | 100 x 80 x 29 mm |

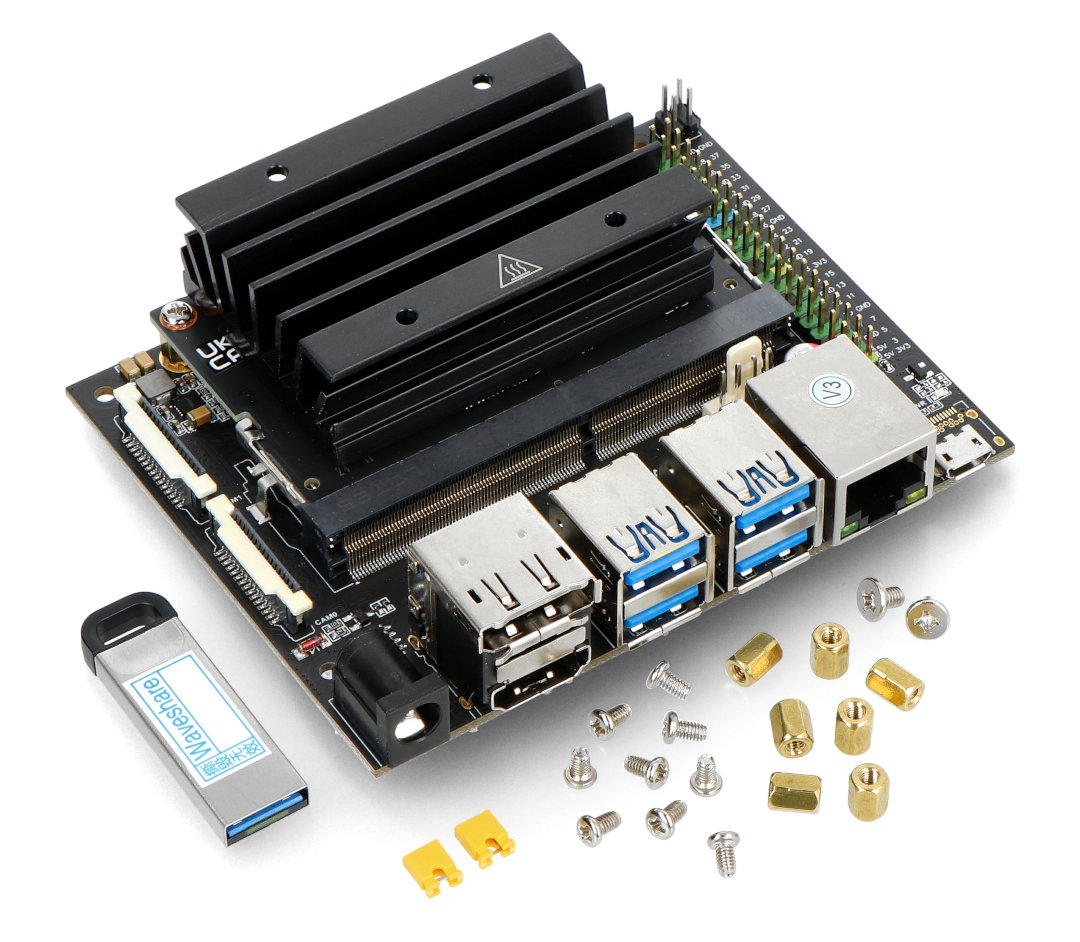

Kit contents
- Jetson Dev Kit expansion board
- Nvidia Jetson Nano module
- Official Nvidia Heatsink
- USB 3.2 flash drive with a capacity of 32 GB
- A set of screws, spacers and jumpers
Kit contents.
