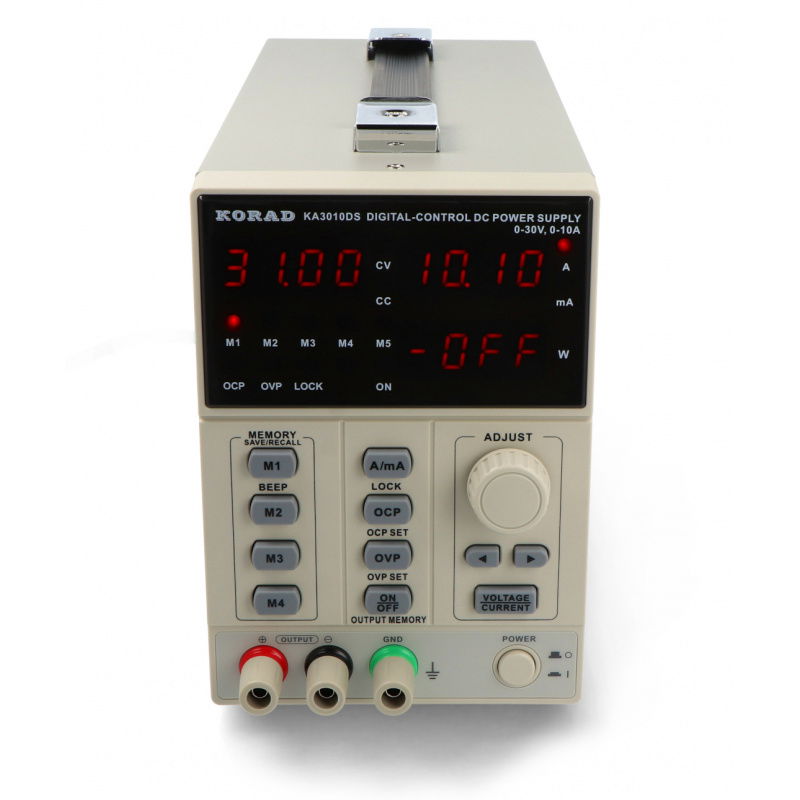

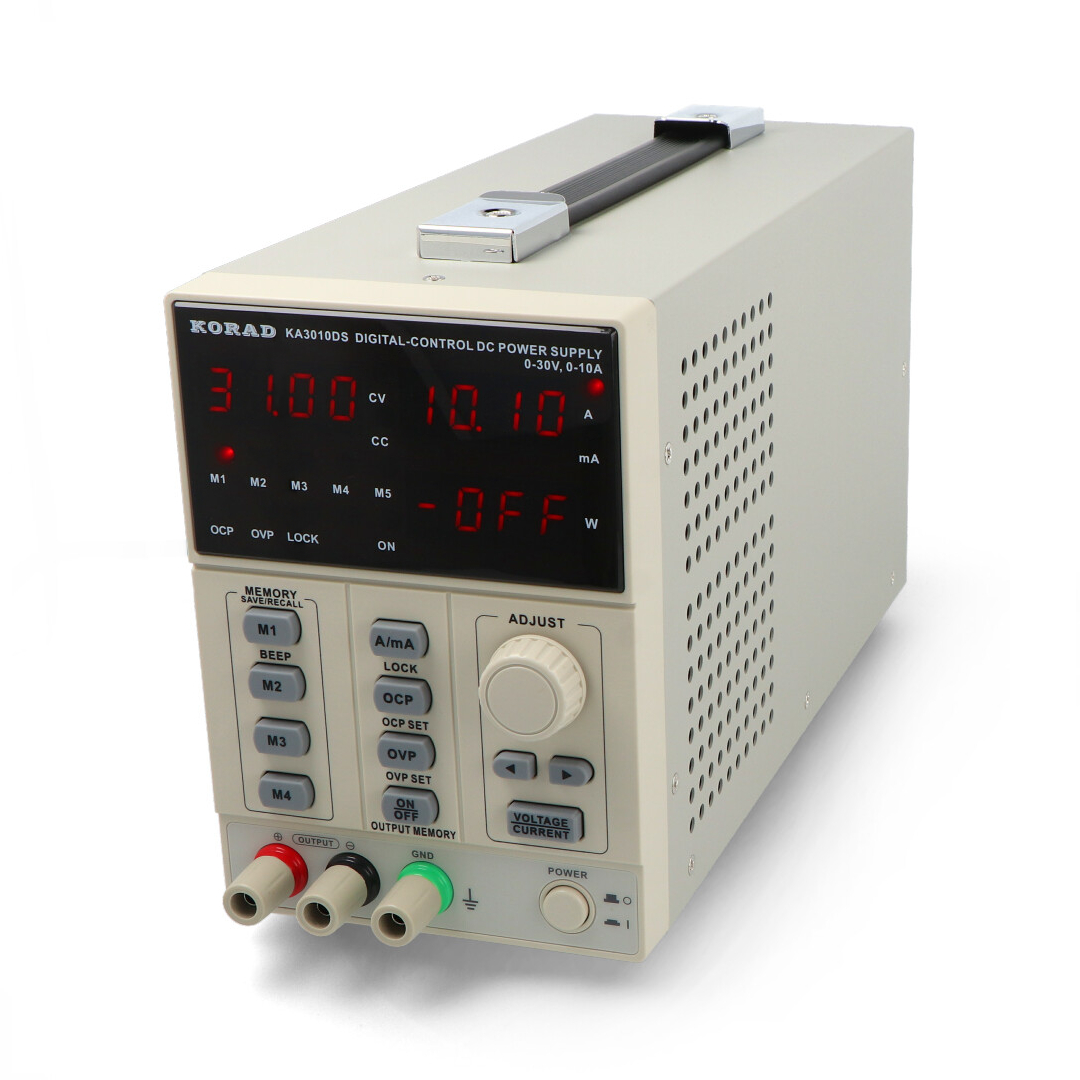

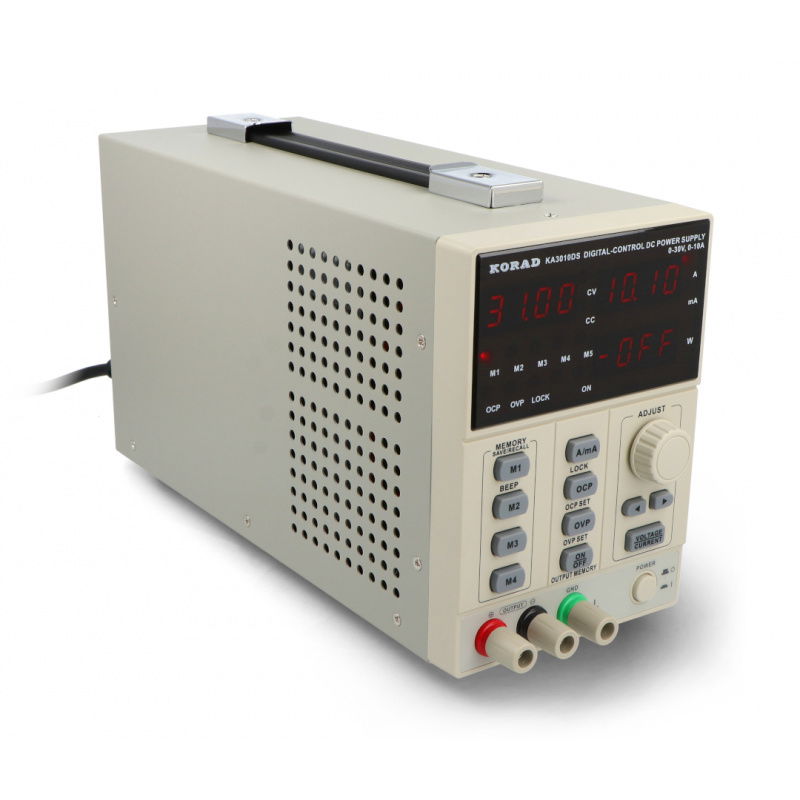

Product description: Korad KA3010DS 0-30 V 10 A laboratory power supply
The Korad KA3010DS is a precise, programmable DC laboratory power supply designed for service, workshop, hobby, and professional lab applications. The device offers smooth voltage regulation from 0 V to 30 V and output current regulation up to 10 A , providing up to 300 W of power. The power supply utilizes a linear (transformer) design, ensuring stable operation, low ripple, and high reliability under continuous load. Digital control and clear LED displays provide the user with full control over operating parameters—both during setup and in real time. The device is equipped with CV (voltage stabilization) and CC (current stabilization) functions, OVP/OCP protection, a keyboard lock, and built-in memory for settings. Constant, active PWM cooling ensures optimal operating temperature and long device life.

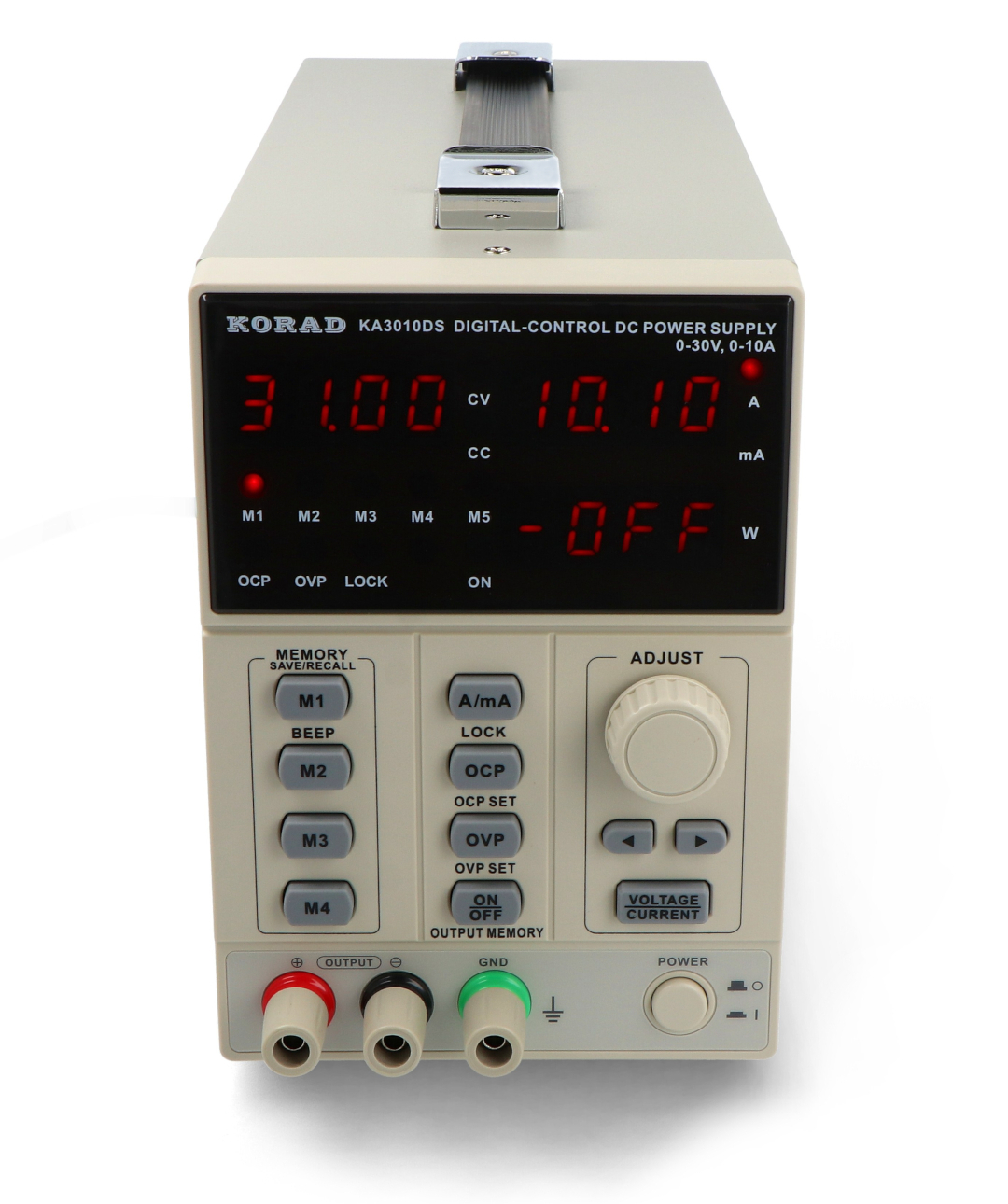

Korad KA3010DS 0-30 V 10 A laboratory power supply.

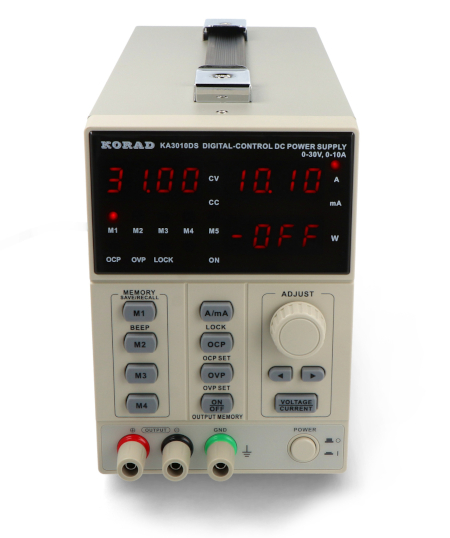

The Korad KA3010DS is a precise, programmable DC laboratory power supply designed for service, workshop, hobby and professional laboratory applications.Special features
- Adjustable voltage from 0 V to 30 V and current from 0 A to 10 A - full control over the power supply of devices
- High power - 300 W - stable operation even under heavy loads
- Digital control with pulse generator - precise and convenient parameter adjustment
- Large LED displays - voltage with an accuracy of 0.01 V, current with an accuracy of 0.001 A
- CV and CC operating modes - voltage or current stabilization
- Short circuit protection - automatic disconnection of the output in the event of a short circuit
- OVP / OCP functions - protection against overvoltage and current
- 4 memory cells (M1-M4) - quick saving and recall of settings
- Keyboard lock (LOCK) - protection against accidental change of values
- Linear (transformer) design - high stability and low interference
- Active PWM cooling - the fan starts from the start and adjusts its speed to the temperature
- Small dimensions and stable housing - ideal for workshops and laboratories
Practical applications
- Electronics service and device repair - the Korad KA3010DS power supply is perfect for service work, providing stable power to motherboards, modules and electronic systems
- Laboratory and measurement work - the device is used in school and technical laboratories, where it is used for experiments and research of analog and digital systems.
- Prototyping and DIY projects - ideal for powering Arduino, ESP, and STM32 microcontroller prototypes, as well as radio modules, motors, servos, and high-power LED lighting
- Battery and cell testing - enables charging of batteries with current control, testing BMS systems and checking cell capacity in cooperation with external meters
The device offers smooth voltage regulation in the range from 0 V to 30 V and output current regulation up to 10 A, providing power of up to 300 W.
Constant, active cooling with PWM ensures appropriate operating temperature and long device life.Technical specifications of the Korad KA3010DS power supply
- Model: KA3010DS
- Operating voltage range: 0 V to 30 V
- Output current range: 0 A to 10 A
- Operating modes: CV - voltage stabilization, CC - current stabilization
- Voltage regulation: ≤0.1% + 20 mA
- Current regulation: ≤0.1% + 20 mA
- Resolution: voltage 10 mV, current 1 mA
- Accuracy (25°C ± 5°C): Voltage ≤0.5% + 20 mV, Current ≤0.5% + 20 mA
- Ripple (20 Hz to 20 MHz): Voltage ≤2 mV rms, Current ≤5 mA rms
- Temperature coefficient: ≤150 ppm + 10 mV / ≤150 ppm + 5 mA
- Response time: ≤100 ms
- Power supply type: linear (transformer)
- Protection: OVP, OCP, short circuit protection
- Power and cooling: active, PWM fan
- Operating conditions: temperature from 0°C to 40°C, humidity ≤80% RH, altitude ≤2000 m above sea level
- Storage conditions: -10°C to 70°C, humidity ≤70% RH
- Dimensions: 110 x 156 x 260 mm
- Weight: 8.3 kg

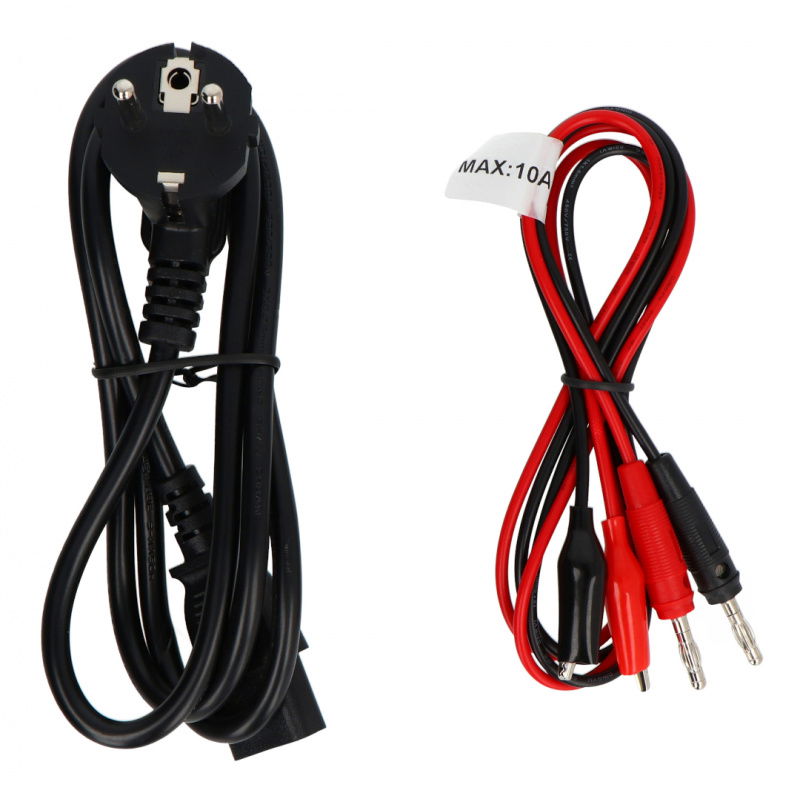

Contents of the set
- Korad KA3010DS laboratory power supply
- Mains power cord
- User manual
