Product description: Korad U206 0-60V 5A laboratory power supply
The Korad U206 laboratory power supply offers the ability to adjust the voltage in a wide range from 0 V to 60 V and the current from 0 A to 5 A , making it perfect for measuring electronic and electrical devices that require higher values of these parameters. The values are adjusted using knobs, and the device itself has a built-in LED display that allows easy reading of current settings. Additionally, the power supply is equipped with protection against overload and overheating , which ensures safety for both users and tested devices. It also offers two built-in 24W USB ports for fast charging of smaller devices. Korad U206 is a versatile laboratory power supply that can be used in many different applications.
Our offer also includes other Korad products .

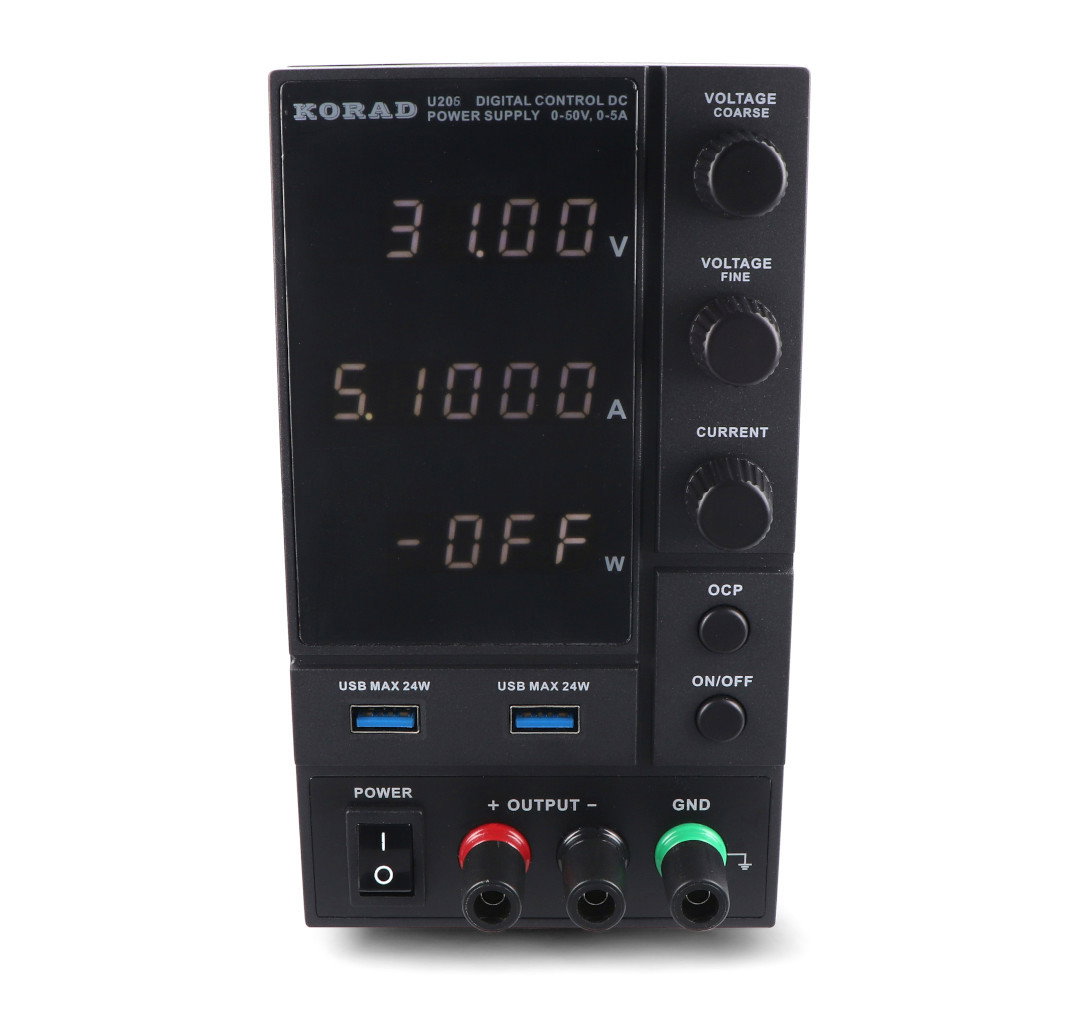

Korad U206 laboratory power supply 0-60V 5A
The power supply has two built-in 24 W USB ports for charging devices.
Main features of the laboratory power supply
- It provides smooth regulation of voltage from 0 V to 60 V and current from 0 A to 5 A
- Enables coarse voltage regulation in 1 V steps and fine adjustments in the range from 0.01 V to 0.1 V
- Displays the current value with an accuracy of 0.1 mA
- It offers two built-in 24W USB ports for fast charging of smaller devices
- It has an LED display to display the current values of voltage, current and power
- It is equipped with protection against overload and over temperature
- It can remember the set parameter values after turning off the device
- Also includes built-in ON/OFF and OCP output switches
Applications of laboratory power supplies
Laboratory power supplies are an irreplaceable tool in many areas where a stable power source is required. They are used to test, design and repair electronic devices. They are useful, among others, in research laboratories, where they are used to conduct various types of experiments requiring precise control of voltage and current. In addition, they are also used in the electronics industry and repair services - they are necessary for diagnosing and repairing electronic equipment.
Check out other models of laboratory power supplies available in our store!

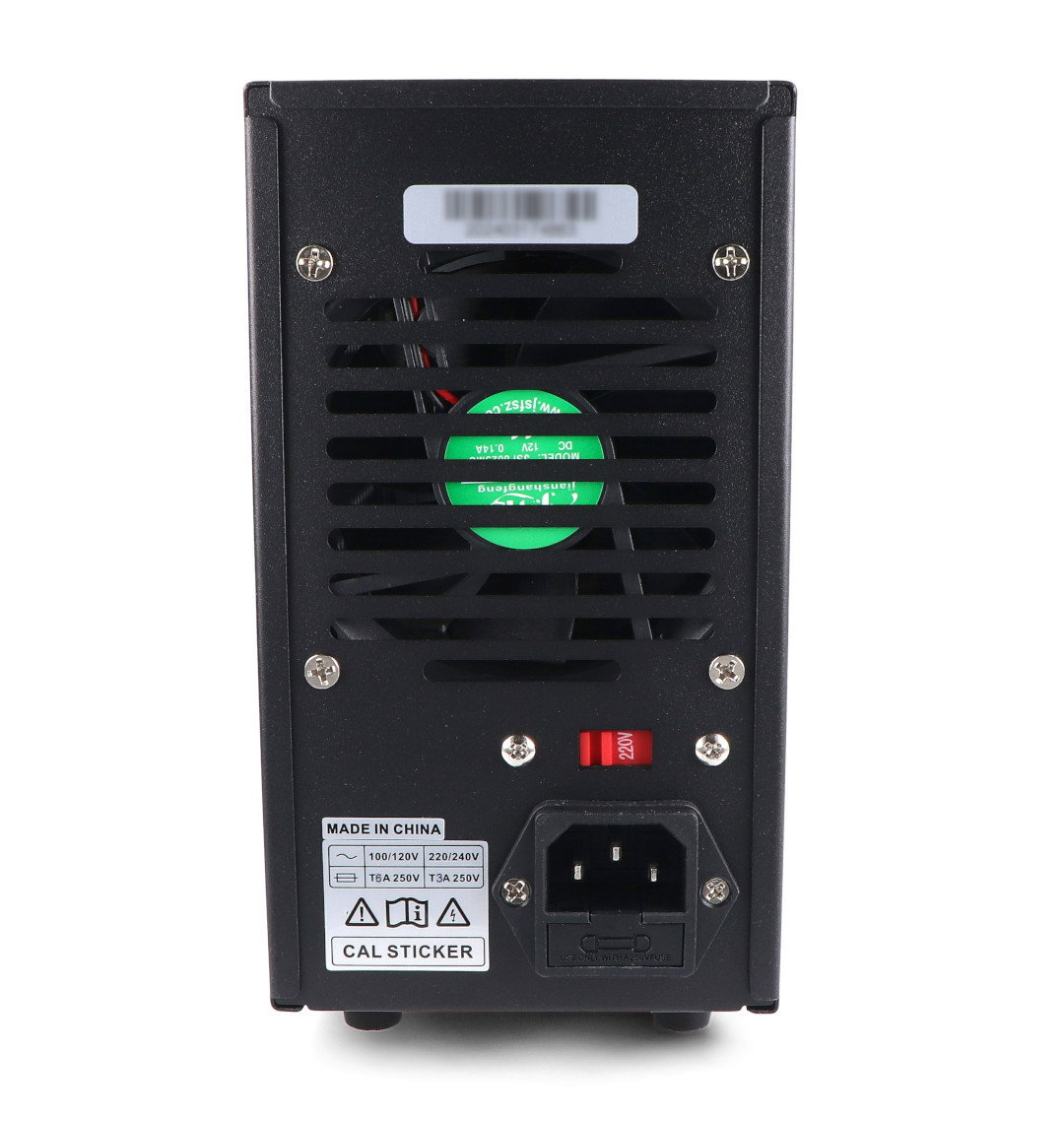

The device has built-in protection against overload and excessive temperature increase.

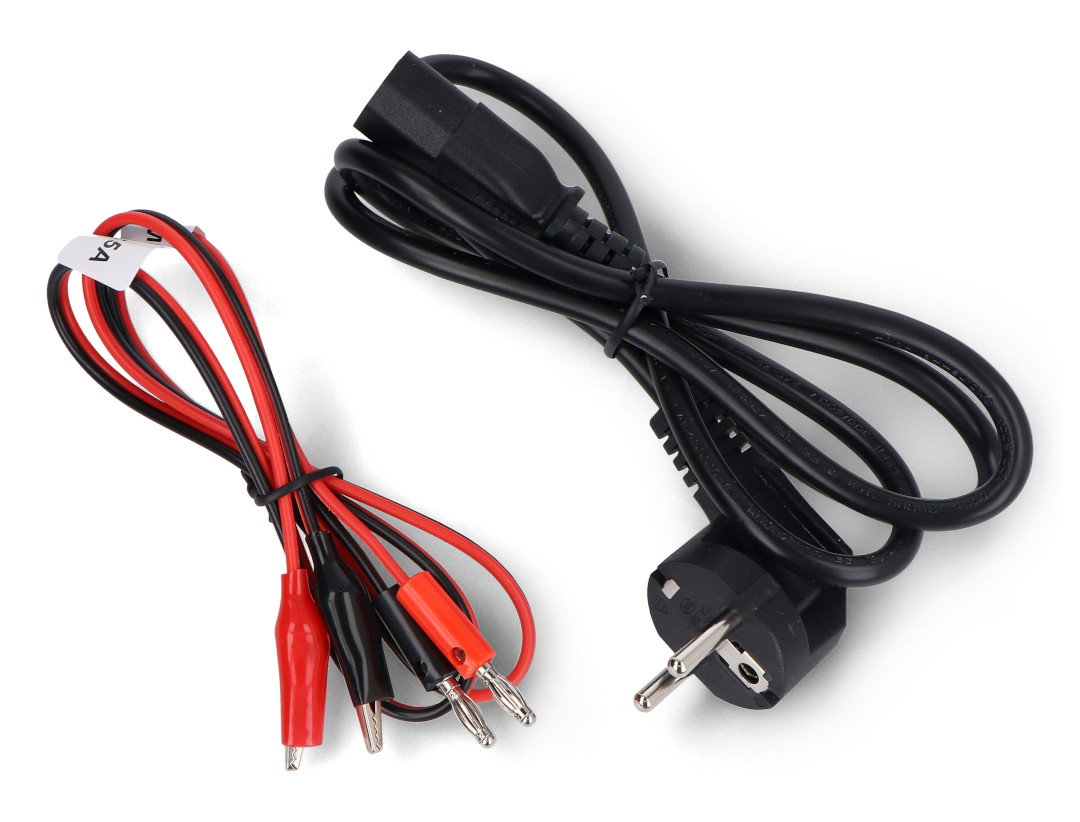

Cables included in the set.
Technical specifications of the Korad power supply
- Voltage range: 0V to 60V
- Current range: 0 V to 5 A
- Parameter adjustment
- Voltage: ≤0.01% + 2mV
- Current: ≤0.1% + 2 mA
- Parameter setting accuracy:
- Voltage: 10 mV
- Current: 1 mA
- Setting accuracy:
- Voltage: ≤0.5% + 10 mV
- Current: ≤0.5% + 10 mA
- Output voltage ripple:
- Voltage: ≤20mVrms
- Intensity: ≤20 mArms
- Dimensions: 231 x 95 x 168 mm
- Weight: 2.5 kg
Set contents
- Korad U206 laboratory power supply
- Power cord
- User manual
