Product description: Korad U202 0-30V 5A laboratory power supply
Korad U202 is a high-class laboratory power supply that is used to precisely supply electricity to a wide range of electronic and electrical devices. It is characterized by smooth voltage regulation from 0 V to 30 V and current from 0 A to 5 A , enabling precise adjustment of the power supply parameters to the connected component. It has two built-in USB ports that allow you to quickly charge devices with a maximum power of a single port up to 24 W, as well as an LED display that allows you to read voltage, current and power values. The Korad U202 power supply is also equipped with protection against overload and excessive temperature increase , which guarantees safe use and protection of connected devices.
Our offer also includes other Korad products .
Korad KA3005DS laboratory power supply 0-30 V 5 A.
The power supply has two built-in 24 W USB ports for charging devices.
Main features of the laboratory power supply
- Provides smooth voltage regulation from 0 V to 30 V and current from 0 A to 5 A
- Enables coarse voltage regulation in 1 V steps and fine adjustments in the range from 0.01 V to 0.1 V
- Displays the current value with an accuracy of 0.1 mA
- It is equipped with two 24W USB ports for fast charging of mobile devices

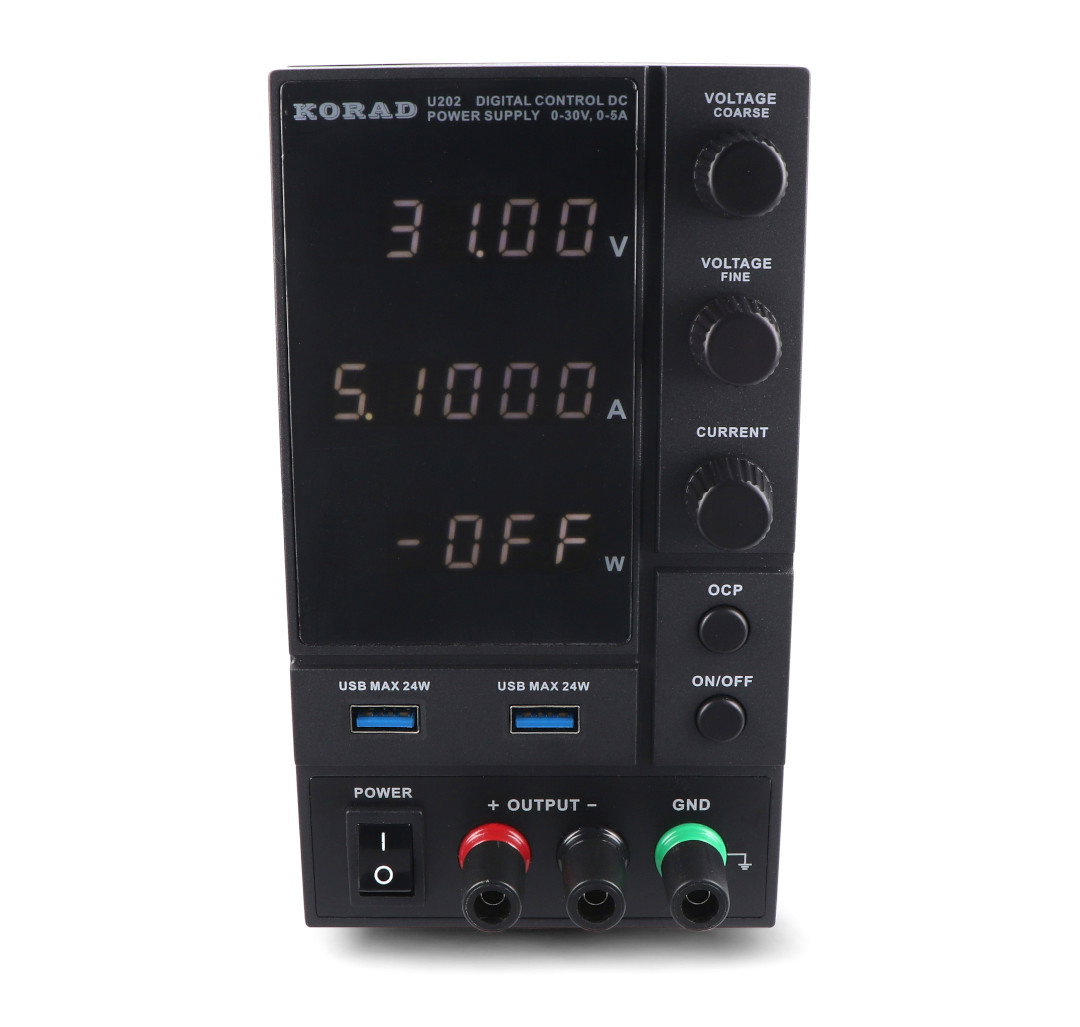

- It has an LED display presenting current voltage, current and power values with high accuracy
- Offers protection against overload and over temperature
- Remembers the last set values after turning off the device
- Includes ON/OFF output switch and OCP
Applications of laboratory power supplies
Laboratory power supplies are an irreplaceable tool in many areas where a stable power source is required. They are used to test, design and repair electronic devices. They are useful, among others, in research laboratories, where they are used to conduct various types of experiments requiring precise control of voltage and current. In addition, they are also used in the electronics industry and repair services - they are necessary for diagnosing and repairing electronic equipment.
Check out other models of laboratory power supplies available in our store!
The device has built-in protection against overload and excessive temperature increase.

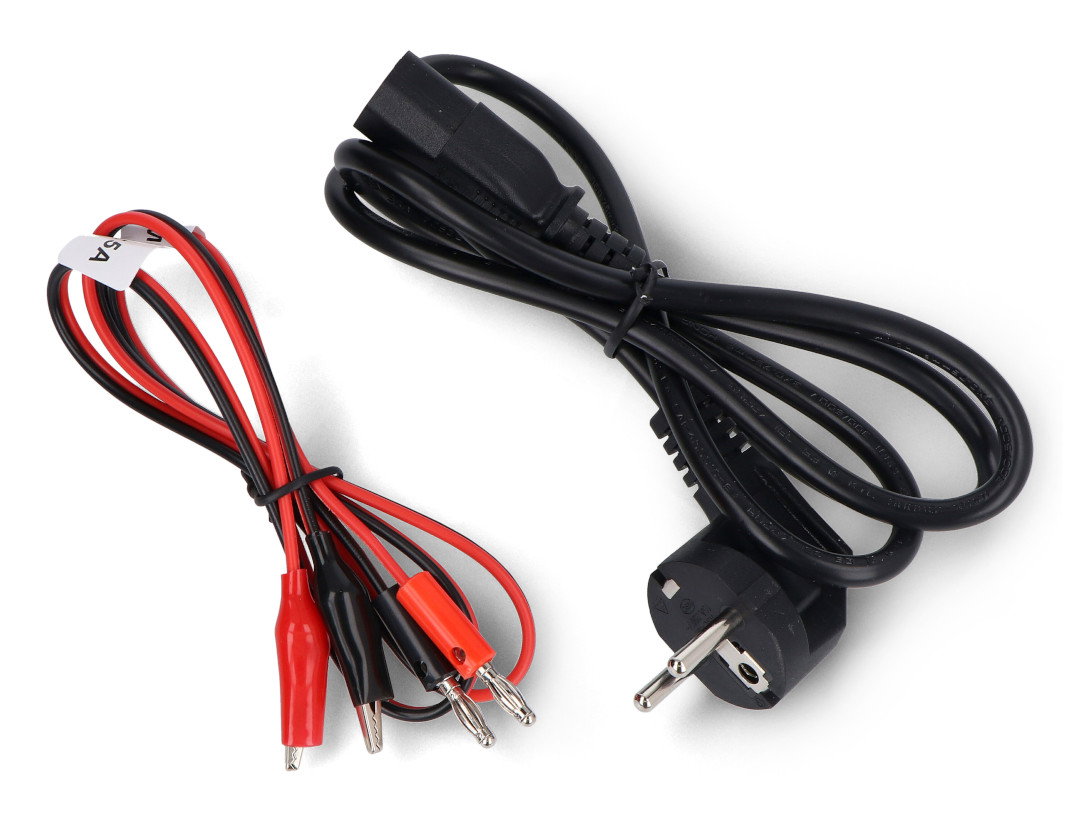

Cables included in the set.
Technical specifications of the Korad power supply
- Voltage range: 0V to 30V
- Current range: 0 V to 5 A
- Parameter adjustment
- Voltage: ≤0.01% + 2mV
- Current: ≤0.1% + 2 mA
- Parameter setting accuracy:
- Voltage: 10 mV
- Current: 1 mA
- Setting accuracy:
- Voltage: ≤0.5% + 10mV
- Current: ≤0.5% + 5 mA
- Output voltage ripple:
- Voltage: ≤20mVrms
- Intensity: ≤10 mArms
- Dimensions: 231 x 95 x 168 mm
- Weight: 1.9 kg
Set contents
- Korad U202 laboratory power supply
- Power cord
- User manual
