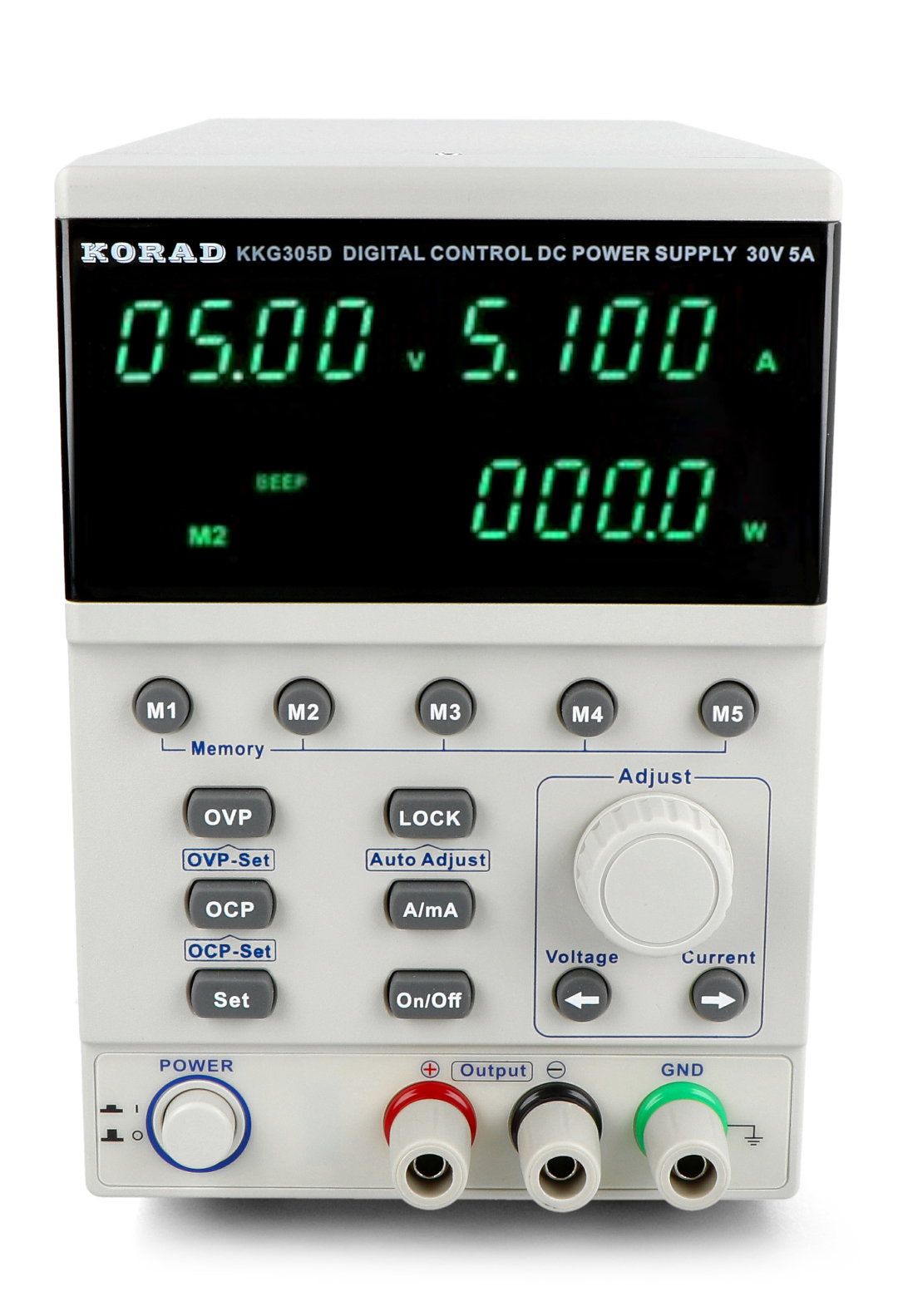

Laboratory power supply Korad KKG305D 0-30V 0-5A
The Korad laboratory power supply is characterized by smooth voltage regulation in the range from 0 V to 30 V and current in the range from 0 A to 5 A. The device can operate in the following modes: C. V. - DC voltage of output and C.C. - DC load. It is cooled by a fan that runs continuously, and its speed depends on the load. The product is also equipped with clear displays allowing for comfortable observation of parameters.
We could not load the price.
The promotional price does not combine with quantity discounts.
Botland is an official distributor of Korad products. Korad is a respected maker of high quality laboratory power supplies known for precision, reliability and modern design. The company offers a wide range of adjustable supplies, ideal for electronics, automation and education. Korad products are valued by professionals and hobbyists for stable operating parameters and intuitive handling. Botland carries original Korad power supplies to give your projects a dependable source of power.
Product description: Laboratory power supply Korad KKG305D 0-30 V 0-5 A
The laboratory power supply is an absolute must-have when running and repairing electronics. The Korad power supply is characterized by smooth voltage regulation in the range from 0 V to 30 V and current in the range from 0 A to 5 A. It is cooled by a fan that runs continuously, and its speed depends on the load. The product is also equipped with clear displays allowing for comfortable observation of parameters.
The main functions of the power supply:
- The device can operate in the following modes:
- C. V. - DC voltage of output
- C. C. - DC load
- The system is equipped with protection from surges and overloadsHas two kinds of protection:
-
- OVP (overvoltage protection)
- OCP (overcurrent protection)
- The PSU has a 5 storages to save current, voltage and operation modes
- Has the accuracy of indications of the current up to 3 decimal places
- Equipped with a digital screen display showing all functions used
- Cooled by a built-in fan
Laboratory power supply Korad KKG305D 0-30 V 0-5 A.
Laboratory power supply Korad KKG305D 0-30 V 0-5 A.
Power supply specification
- Voltage range: 0V to 30V
- Current range: 0 A to 5 A
- Parameter adjustment
- Voltage: ⩽ 0.01% +2 mV
- Current: ⩽ 0.1% +5 mA
- Accuracy of parameter setting:
- Voltage: 10 mV
- Current: 1 mA
- Accuracy of settings
- Voltage: 0.5% + 20 mV
- Currents: 0.5% + 5 mA
- Ripple of the output voltage
- Voltage: + 2mVrms
- Current: + 3 mArms
- Overload protection
- The device can work in the following modes:
- CV - constant output voltage
- CC - constant current load
- Fan cooling
- Easy to read digital displays
Included
- Laboratory power supply Korad KKG305D

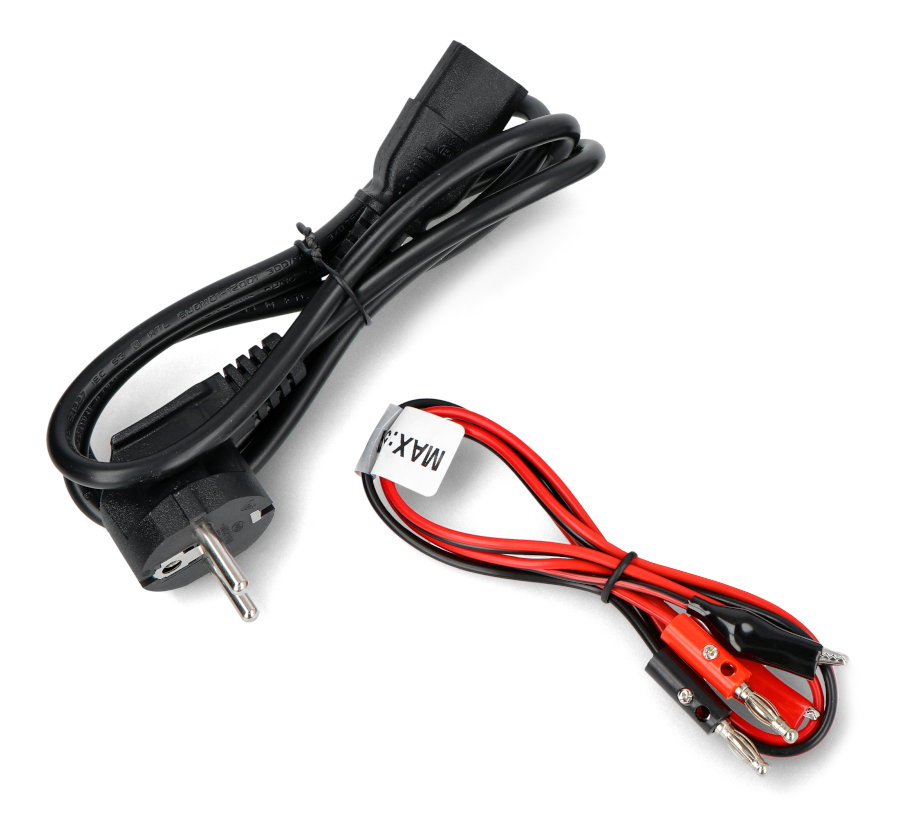

- Power cord
- Banana-crocodile test leads
- User manual
Additional accessories included.
| Name | Value |
|---|---|
| Voltage output from | 0 V |
| Output voltage to | 30.0 V |
| Nominal power | 150 W |
| Current | 5 A |
| Power supply - type | laboratory |
| Power supply - Plug | crocodile clips |
| Width | 32 cm |
| Height | 25 cm |
| Depth | 20 cm |
| Weight | 5.3 kg |
