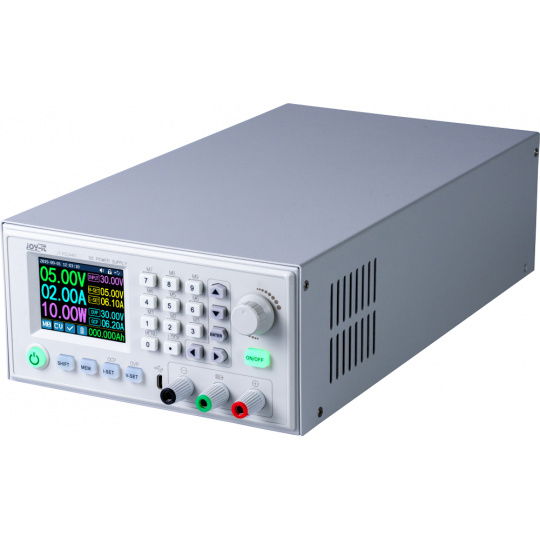

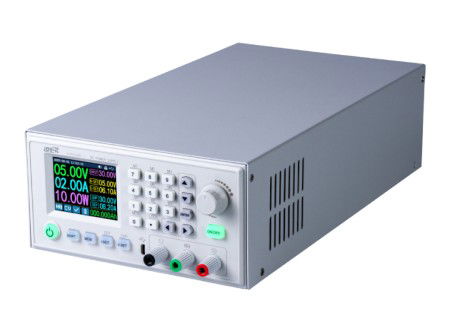

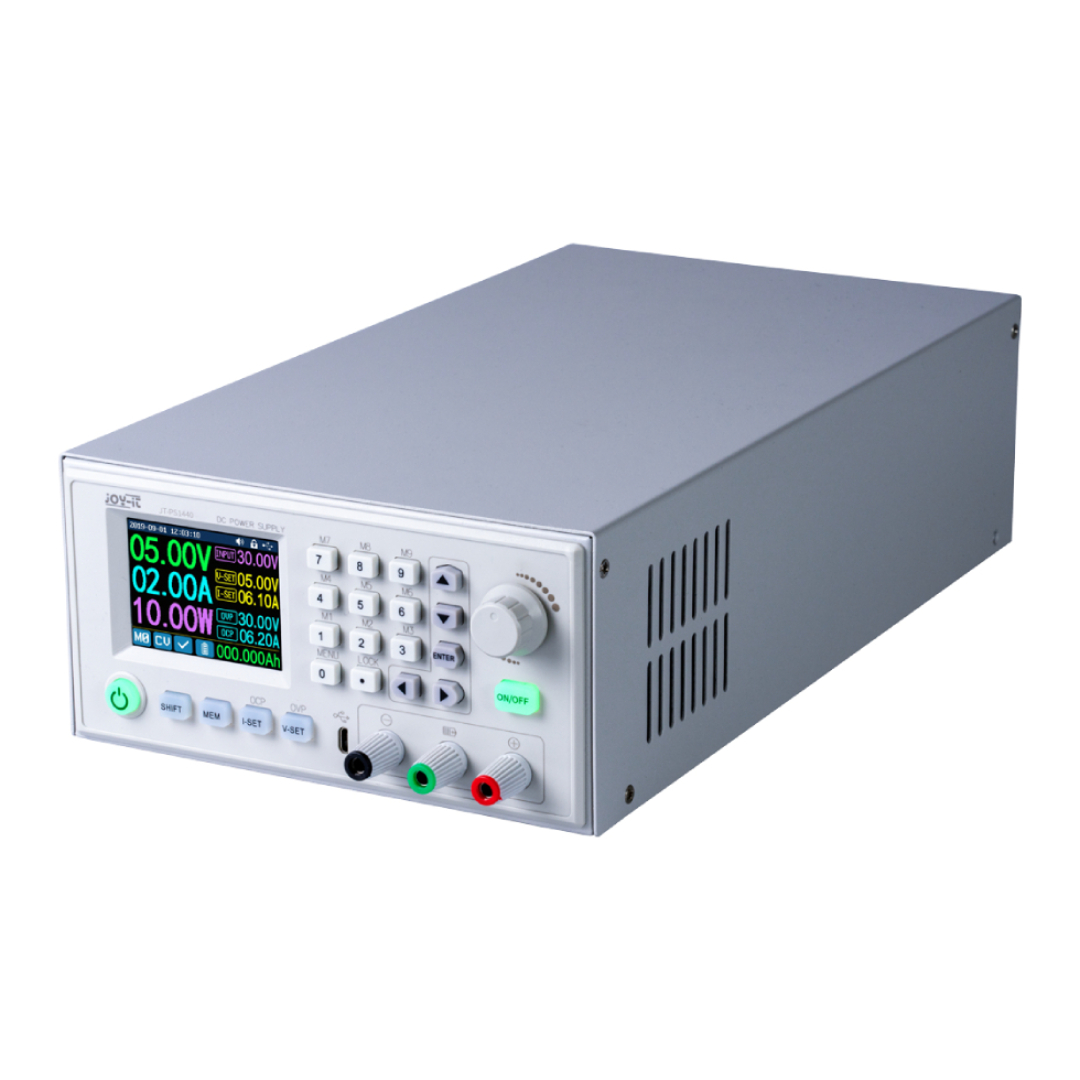

Product description: Joy-IT PS1440-C 60V 24A laboratory power supply
The JT-PS1440-C is a programmable laboratory power supply designed for precision electronic applications. The device allows you to generate a DC voltage in the range of 0.01 V to 60 V and a current from 0.01 A to 24 A , providing an output power of up to 1440 W. Thanks to the intuitive control panel with a 2.4'' color display , it is possible to easily set parameters and save up to 9 individual configurations . Numerous safety functions and a battery charging mode make the JT-PS1440-C power supply a reliable tool in any professional work environment.

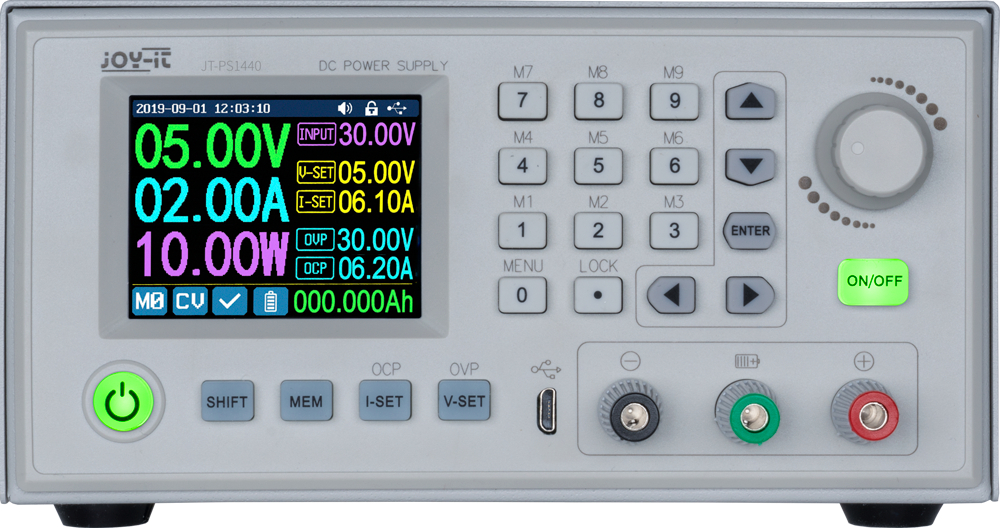

Joy-IT PS1440-C 60V 24A laboratory power supply.
The JT-PS1440-C is a programmable laboratory power supply designed for precision electronic applications.
Special Features
- Output voltage range: 0.01 to 60 V : enables a wide range of electronics applications
- Output current up to 24 A : allows powering devices with high power consumption
- Up to 1440 W output power : excellent performance in a compact design

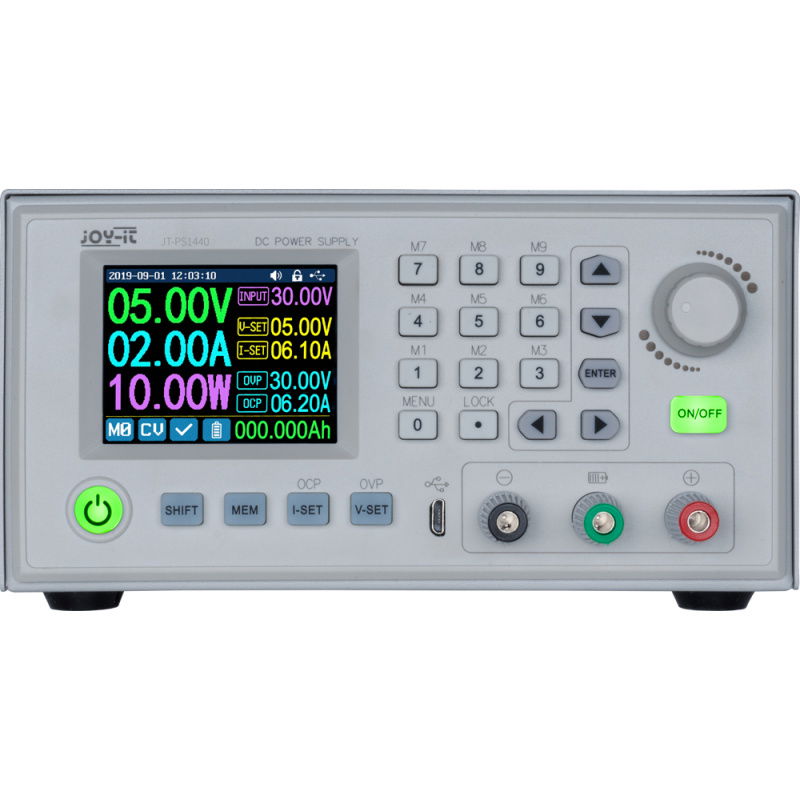

- 2.4'' colour display : clear presentation of operating parameters
- Programmable memory : 9 sets of settings can be saved and recalled
- OVP / OTP / OCP protection : overvoltage, overheating and overload protection
- Battery charging : dedicated function supporting service and testing
- High measurement accuracy : ±0.3% of output voltage, ±0.5% of current
- NTC - temperature sensor : automatic monitoring of operating conditions
Practical applications

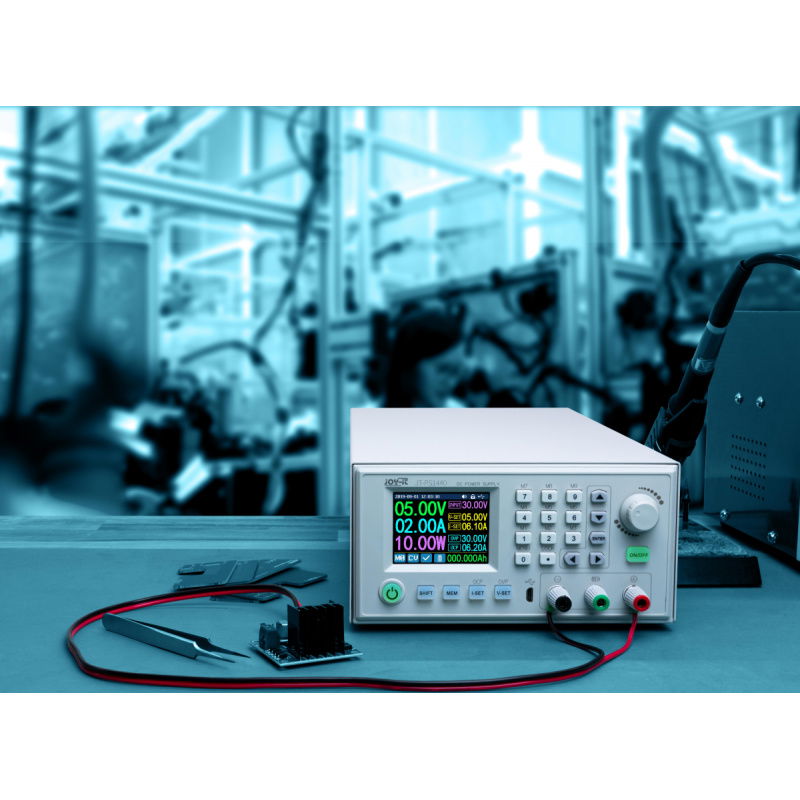

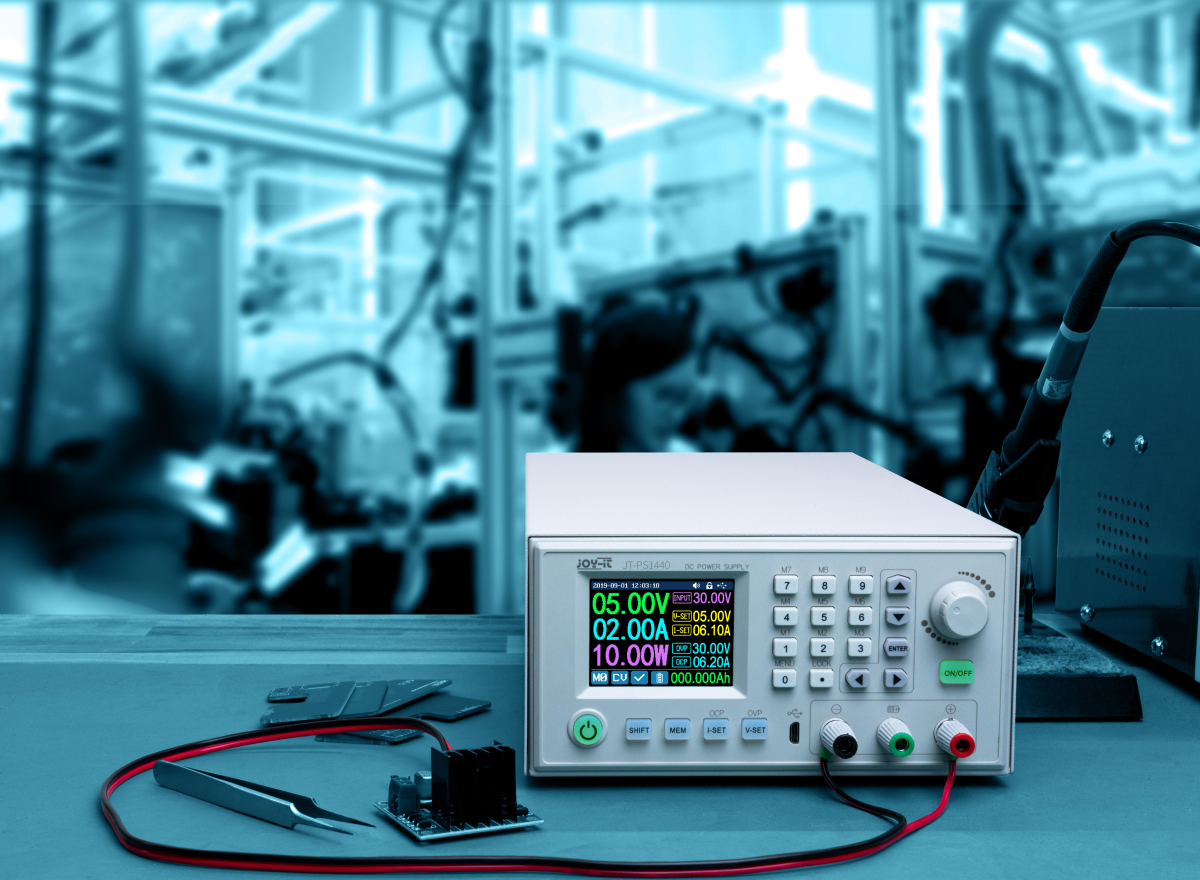

The programmable power supply JT-PS1440-C can be used in professional research and development laboratories, as well as in service workshops or technical university laboratories. It is ideal for testing and powering electronic systems, charging batteries, as well as in calibration and production processes . Thanks to the possibility of saving parameters and intuitive operation, the device significantly shortens the configuration time and increases work efficiency.
Power Supply Technical Specifications
- Output voltage: 0.01 to 60 V
- Output current: 0.01 to 24 A
- Output power: up to 1440 W
- Output voltage accuracy: ±0.3% + 3 digits
- Output Current Accuracy: ±0.5% + 5 digits
- Voltage/Current Resolution: 0.01V/0.01A
- Operating mode: step-down (6 levels)
- Battery charging function: yes
- Screen: Color LCD, 2.4 inches
- Adjustments: knob + keyboard
- Security: OVP, OCP, OTP
- RTC: Integrated Real Time Clock
- Temperature sensor: NTC
- Output Ripple: 100 mV VPP (12 V), 150 mV VPP (24 V)
- Operating temperature range: -10°C to 40°C
- Dimensions: 170 x 93 x 340 mm
Kit Contents
- JT-PS1440-C Programmable Laboratory Power Supply
- Power cord
