Product description: Power supply 3in1 Korad KA3305D 2x 0-30V/0-5A + 1x 5V/3A
KA3305D is a triple stabilized laboratory power supply with programmable memory and smooth voltage regulation in the 2x range from 0 to 30 V and current in the range from 0 to 5 A and one 5 V / 3 A output.
Korad KA3305D Power Supply Specifications
- Voltage range: 2 x 0 - 30 V
- Current range: 2 x 0 - 5 A
- Additional channel: 5V/3A
- Parameter adjustment
- Voltage: =< 0.01% +5 mV
- Parameter setting accuracy:
- Voltage: 10 mV
- Current: 1 mA
- Output voltage ripple
- Voltage: =< 2 mVrms
- Intensity: =< 3 mArms
- Response time
- Voltage rise: =< 100 ms (10% rated load)
- Voltage drop: =< 100 ms (10% rated load)
- Size: 380 x 250 x 140 mm
- Weight: 9.1 kg

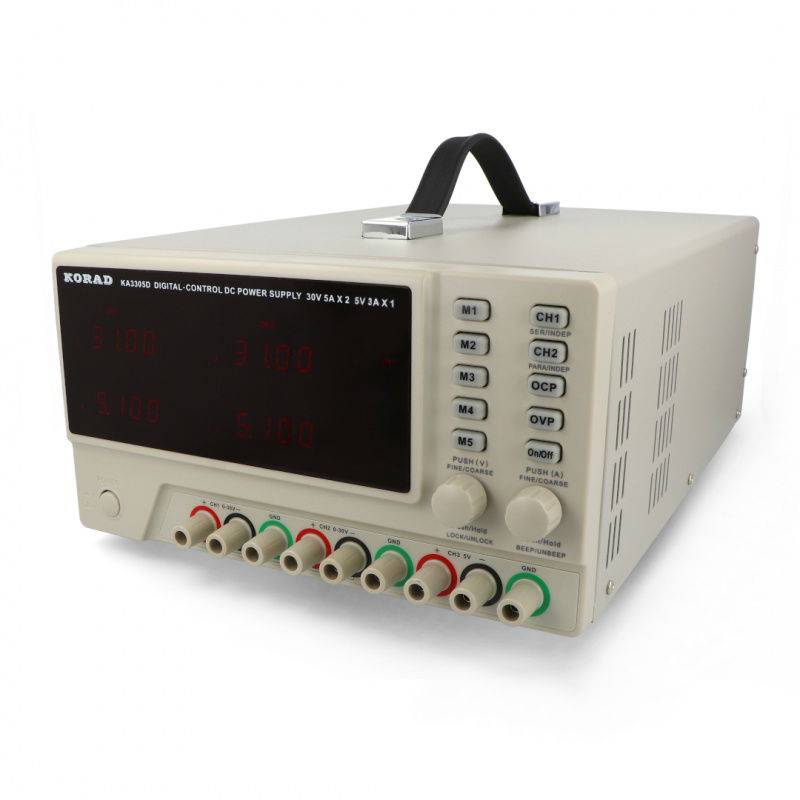

Korad KA3305D 3in1 power supply.

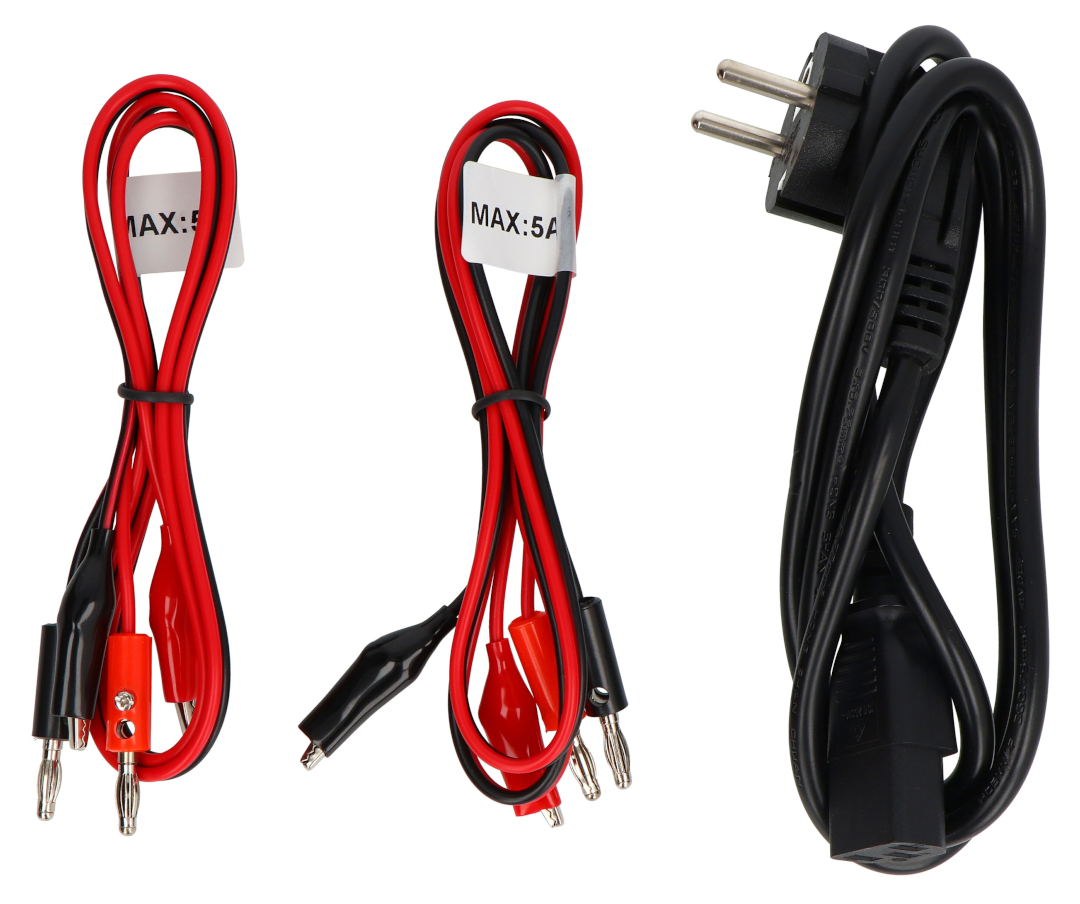

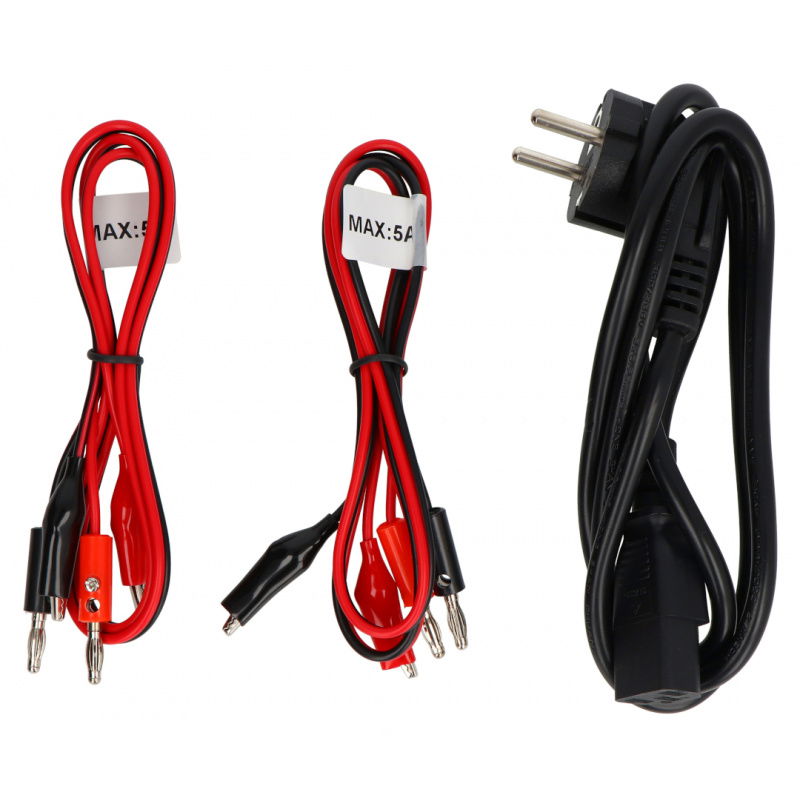

The power supply comes with two sets of crocodile clips and a power cord.
Included in the set:
- Korad KA3305D laboratory power supply
- Power cord
- 2 x set of crocodile clips with a load capacity of up to 5 A
- User manual
Main functions of the power supply:
- 2 channels with parameters 0-30 V and 0-5 A
- 1 channel with parameters 5 V and 3 A

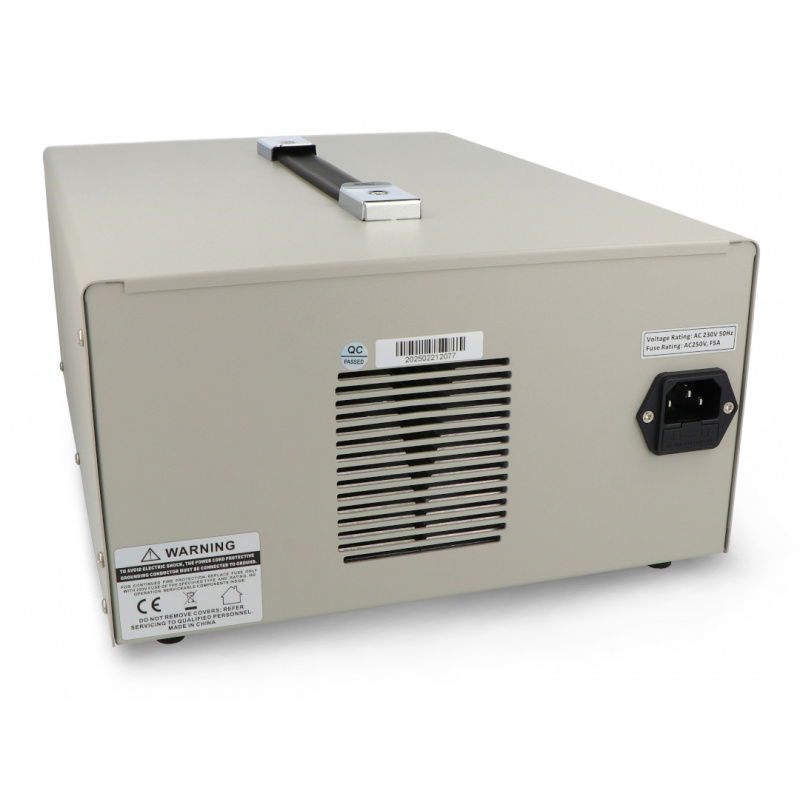

- Transformer-based design
- 5 memories for saving current, voltage and operating modes per channel
- Key lock
- The device can operate in the following modes:
- CV - constant output voltage
- CC - constant load current
- The system is equipped with short circuit and overload protection.
- The power supply has 5 memory profiles for saving current, voltage and operating modes.
- Information by sound signal
- Series connection (60V/5A)
- Parallel connection (30V / 10A)
- Transformer-based power supply design
- It has a reading accuracy of 10 mV / 1 mA
- It has two types of security:
- OVP (overvoltage protection)
- OCP (overload protection).
Advanced power supply for demanding users

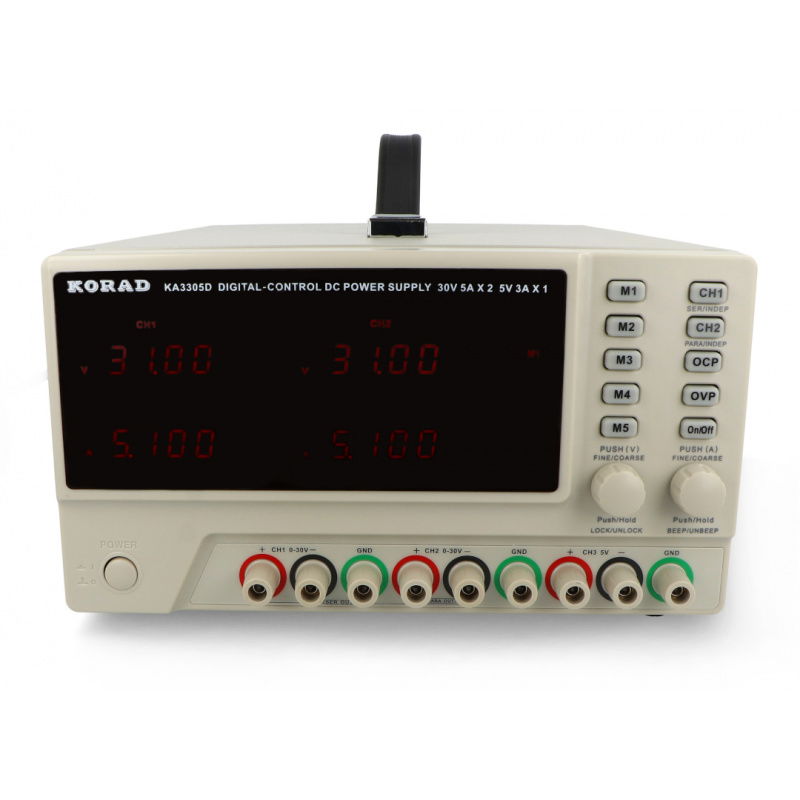

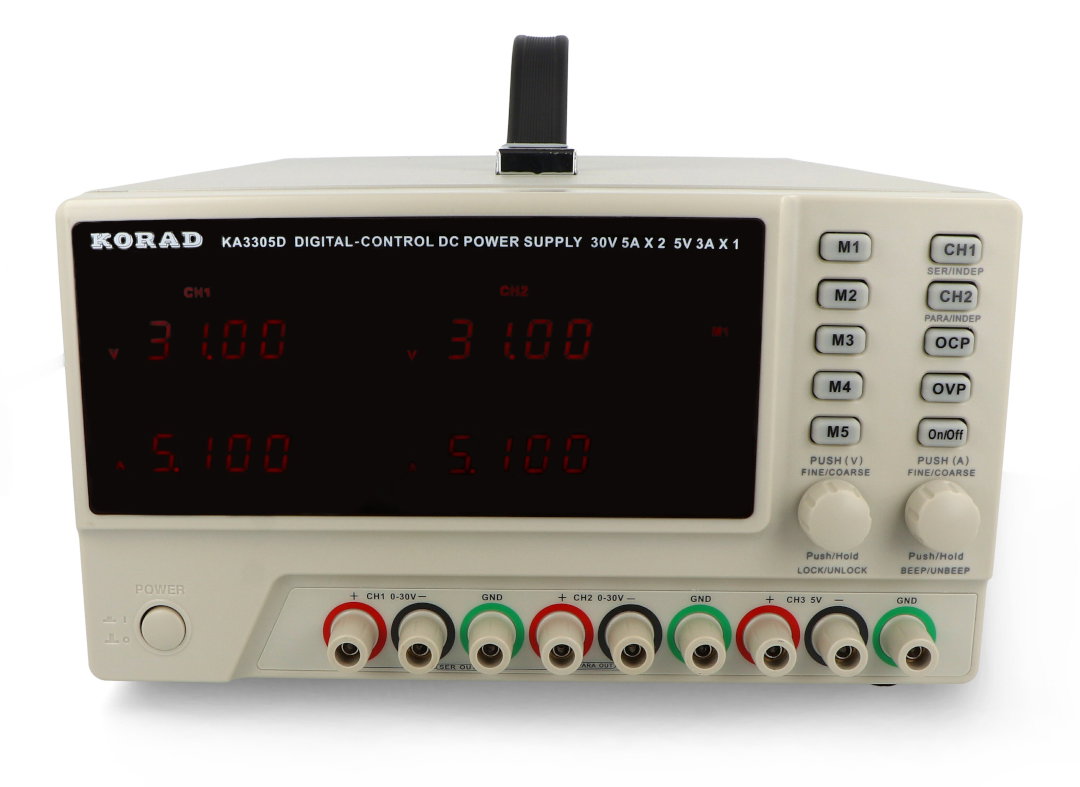

The Korad KA3305D 3-in-1 Power Supply (2x 0-30V/0-5A + 1x 5V/3A) is a triple laboratory power supply with digital programming of the most frequently used settings. Two knobs with pushbuttons allow for smooth adjustment of output parameters, allowing you to switch between coarse and fine adjustment.
The 10-button keypad allows you to save up to 5 of your most useful sets of settings, and also allows you to select the operating mode of the main outputs (serial, parallel or independent), enable or disable the current or voltage limiting functions (OCP/OVP, respectively), and (de)activate all outputs simultaneously with a single button press.
Power supply functions and parameters
The Korad KA3305D 3-in-1 power supply features two main 0-30V/0-5A outputs and one constant voltage 5V/3A output (non-adjustable). This allows for convenient powering of digital and analog single-supply systems without occupying any of the main outputs – these can be used to power more demanding components of the device.
Series connection doubles the maximum output voltage (up to 60V @ 5A), while parallel operation doubles the allowable current load (up to 10A @ 30V). Like other laboratory power supplies of this type, the KA3305D model is based on a mains transformer.
