Product Description: Yihua 3010D Laboratory Power Supply 30V 10A
Yihua 3010D is a laboratory power supply with smooth voltage regulation in the range from 0 V to 30 V and current in the range from 0 A to 10 A. Equipped with knobs for coarse and fine adjustment of parameters and two displays.
Highlights of the Yihua 3010D
- Overload and short circuit protection
- Two working modes:
- CV (Constant Voltage) - stabilization of the output voltage
- CC (Constant Current) - stabilization of the output current

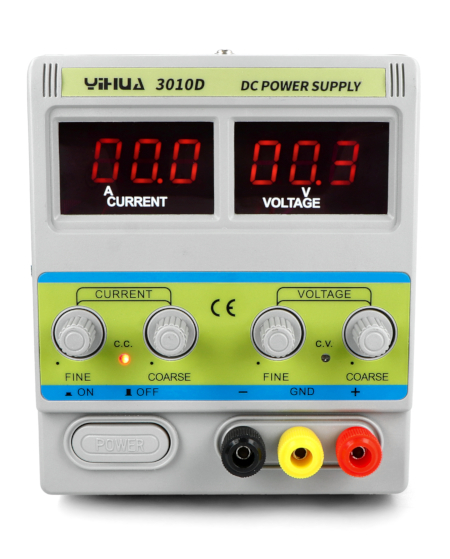

- Two displays for easy reading of indications
- Built-in fan

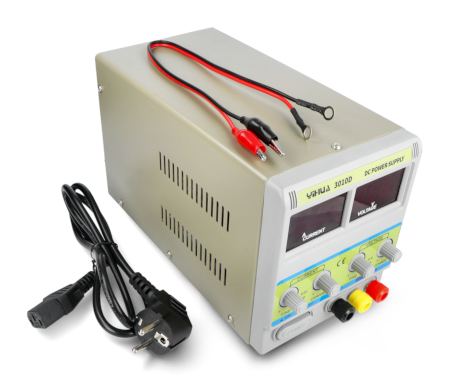

Laboratory power supply Yihua 3010D 30 V 10 A.
Yihua 3010D power supply specification
- Supply voltage: 220V AC ± 10%, 50 / 60Hz
- Working environment - temperature: -10 ° C to 40 ° C
- Working environment - humidity: RH <90%
- Storage - temperature: -10 ° C to 40 ° C
- Storage - humidity: RH <80%
- Voltage stabilization :
- The output voltage is adjustable from 0 V to 30 V (linear stabilization system)
- Voltage stabilization factor: 0.01% + 2 mV
- Load stabilization factor: 0.01% + 2 mV
- Recovery time: 100 μs
- Ripple and noise: 0.5 mVrms (effective value)
- Current stabilization:
- The output current is adjustable from 0 A to 10 A (linear stabilization system)
- Current stabilization factor: 0.1% + 3 mA
- Load stabilization factor: 0.2% + 3 mA
- Ripple and noise: 2 mArms (effective value)
- Dimensions: 250 x 130 x 155 mm
- Weight: 7 kg
Kit contents
- Laboratory power supply Yihua 3010D 30 V 10 A: 1 pc.
- Test leads: 2 pcs.
- Power cord: 1 pc
