nRF5340-DK - development kit - Bluetooth/Thread/ZigBee/Matter/NFC - Nordic Semiconductor
Nordic Semiconductor's nRF5340-DK is an advanced development kit for developing IoT devices and wireless applications based on the nRF5340 SoC . The board supports Bluetooth 5.4, Bluetooth LE Audio, Thread, ZigBee, Matter, NFC, and 2.4 GHz protocols . The kit includes a SEGGER J-Link OB programmer, an NFC antenna, external memory, and Arduino Uno Rev3-compatible connectors.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: nRF5340-DK - development kit - Bluetooth / Thread / ZigBee / Matter / NFC - Nordic Semiconductor
The nRF5340-DK is Nordic Semiconductor's professional development kit designed for prototyping IoT devices, automation systems, wearable electronics, and industrial applications. At the heart of the board is the nRF5340 SoC , which combines a powerful 128 MHz Arm Cortex-M33 application processor with a low-power 64 MHz Arm Cortex-M33 network processor. The platform supports multiple wireless communication standards, including Bluetooth 5.4, Bluetooth LE, LE Audio, Thread, ZigBee, Matter, NFC, ANT, and 802.15.4 . The kit includes a built-in SEGGER J-Link OB programmer and debugger, four programmable buttons, four LEDs, a Li-Po connector, a CR2032 battery holder, and current consumption measurement pins. Compatibility with Arduino Uno Rev3 allows for easy expansion of the board's functionality with additional shields and modules. The nRF5340-DK works with the nRF Connect SDK , which integrates the Zephyr RTOS, drivers, examples, and protocol stacks.

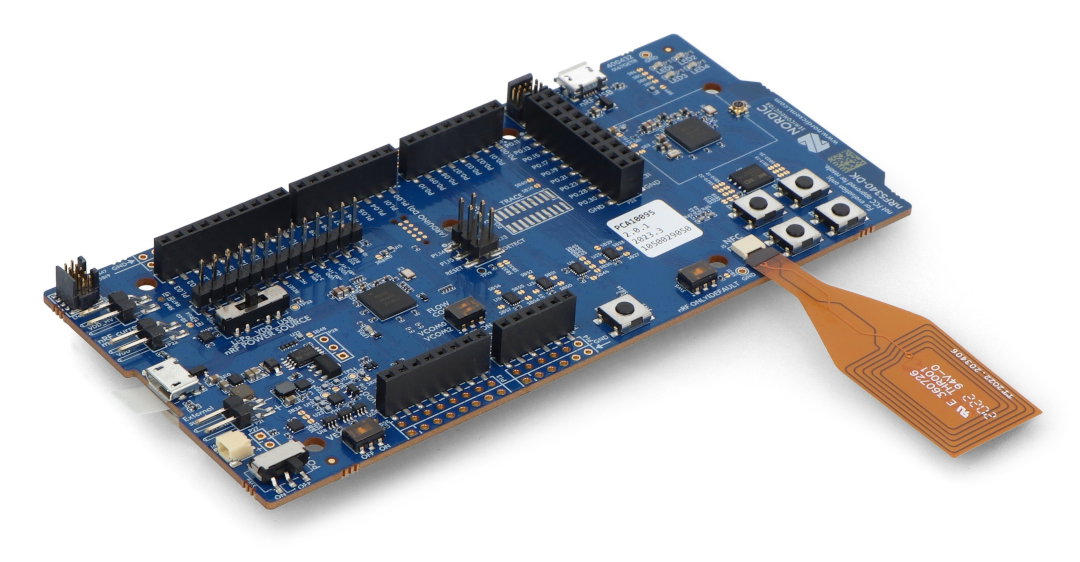

nRF5340-DK - development kit - Bluetooth / Thread / ZigBee / Matter / NFC - Nordic Semiconductor.
Physical compatibility with the Arduino Uno Rev3 standard allows for easy connection of a wide range of external shields.
Main features of the nRF5340-DK board
- Dual-core nRF5340 SoC : Equipped with a 128 MHz Arm Cortex-M33 application processor and a 64 MHz Arm Cortex-M33 network processor
- Multi-protocol support : Supports Bluetooth 5.4, Bluetooth LE, Bluetooth mesh, Thread, ZigBee, Matter, NFC, ANT, 802.15.4 and 2.4GHz protocols
- Advanced security : uses Arm TrustZone, Arm CryptoCell-312, root-of-trust, and secure key storage
- Built-in SEGGER J-Link OB : allows programming and debugging of the nRF5340 and external target systems
- Compatibility with Arduino Uno Rev3 : allows for quick connection of popular shields and expansion modules
- Extensive interfaces : provides GPIO, PWM, SPI, UART, USB, I2S, QSPI, PDM, TWI and ADC
- Flexible power supply : supports power supply from USB, external source, Li-Po battery or CR2032 battery
- Energy consumption measurement : has dedicated pins for power consumption analysis, e.g. with Power Profiler Kit II
- User Elements : Includes four programmable buttons and four programmable LEDs
- 2.4 GHz antenna and NFC : allows testing of radio communication and NFC-A tag functions

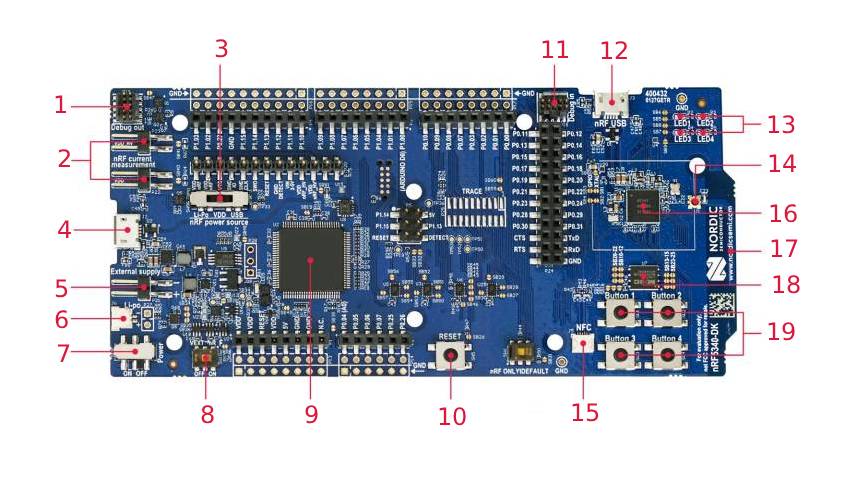

Nordic nRF5340-DK development board components
- Debug out
- Current measurement pins
- Power source switch
- USB connector of the SEGGER J-Link programmer
- External power source
- 3.7V Li-Pol battery connector
- Power switch
- Direct power switch
- SEGGER J-Link OB programmer/debugger
- Reset button
- Debug in
- USB nRF connector
- Programmable LEDs (1-4)
- RF SWF Port
- NFC antenna connector
- nRF5340 SoC
- 2.4 GHz PCB Antenna
- External memory
- Programmable buttons (1-4)
Elements located on the board.
The kit can operate in a wide voltage range (from 1.7 V to 5 V).
Practical applications of the nRF5340-DK kit
The nRF5340-DK kit is ideal for developing IoT devices, smart home systems, and industrial applications requiring stable and energy-efficient wireless communication. Support for Matter, Thread, and ZigBee allows you to design devices compatible with popular home automation ecosystems. Bluetooth LE, LE Audio, and location-aware features enable the development of advanced audio accessories, sensors, beacons, and asset tracking systems. The platform is also suitable for designing wearable electronics, medical devices, professional lighting systems, and energy-efficient measurement nodes. A built-in debugger , programmable user elements, and measurement pins accelerate testing and optimization of finished projects. The nRF Connect SDK provides a complete development environment for embedded applications based on the Zephyr RTOS .
Technical specifications of the nRF5340-DK board
- Supported chip: nRF5340 SoC
- Application processor: Arm Cortex-M33 128 MHz with FPU and DSP
- Application processor memory: 1 MB Flash, 512 kB RAM
- Network Processor: Arm Cortex-M33 64 MHz
- Network Processor Memory: 256 KB Flash, 64 KB RAM
- Wireless protocols: Bluetooth 5.4, Bluetooth LE, Bluetooth mesh, Thread, ZigBee, Matter, NFC, ANT, 802.15.4, 2.4 GHz proprietary
- Operating frequency: 2.4 GHz
- Bluetooth features: LE Audio, Direction Finding, 2 Mbps, Advertising Extensions, Long Range
- Interfaces: GPIO, PWM, SPI, UART, USB, I2S, QSPI, PDM, TWI
- ADC: 12-bit, 200 ksps
- Security: Arm TrustZone, Arm CryptoCell-312, secure key storage
- Programmer/debugger: SEGGER J-Link OB
- Antennas: 2.4 GHz PCB antenna, NFC antenna
- Programmable elements: 4 buttons, 4 LEDs
- Power supply: 1.7 V to 5 V
- Power sources: USB, external power supply, Li-Pol battery, CR2032 battery
- Operating temperature: up to 105°C
- Compatibility: Arduino Uno Rev3
- Software: nRF Connect SDK, Zephyr RTOS
Kit contents
- nRF5340-DK Development Kit
- NFC antenna

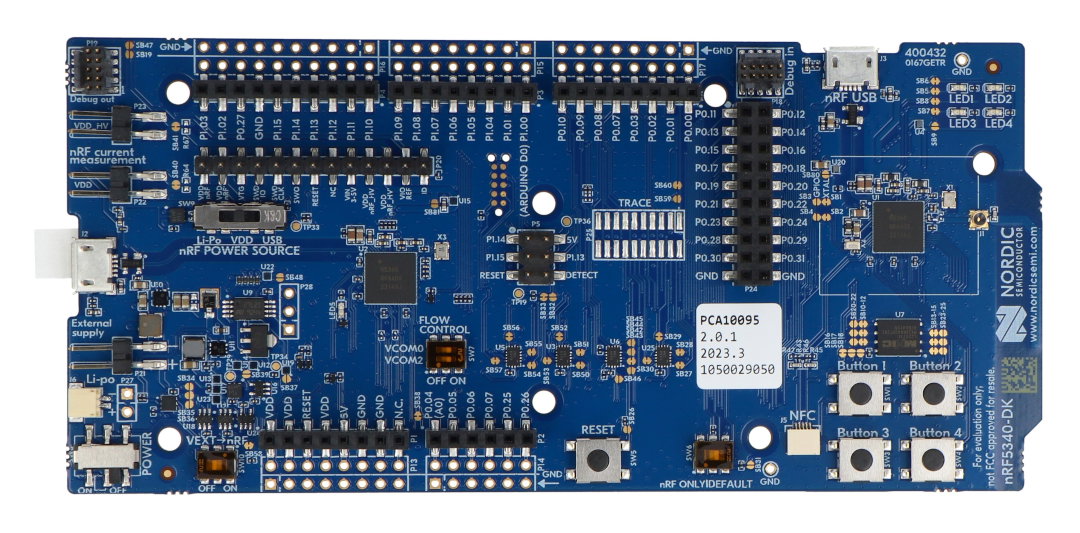

The board has 4 programmable buttons and 4 LEDs for quick testing of input/output functions.
Useful links
| Name | Value |
|---|---|
| Voltage to | 1.7 V |
| Voltage from | 5.0 V |
| UC - Microcontroller | nRF5340 |
| UC - Core | Cortex M33 |
| UC - Flash | 256 kB |
| UC - RAM | 64 kB |
| UC - Digital pins | 48 |
| UC - freq | 64 MHz |
| UC - PWM | 4 |
| UC - USB | 1x USB |
| UC - Bluetooth | yes |
| UC - I2C | yes |
| UC - UART | yes |
| UC - SPI interface | yes |
| Communication |
|
| Width | 14 cm |
| Height | 2 cm |
| Depth | 7 cm |
| Weight | 0.069 kg |
