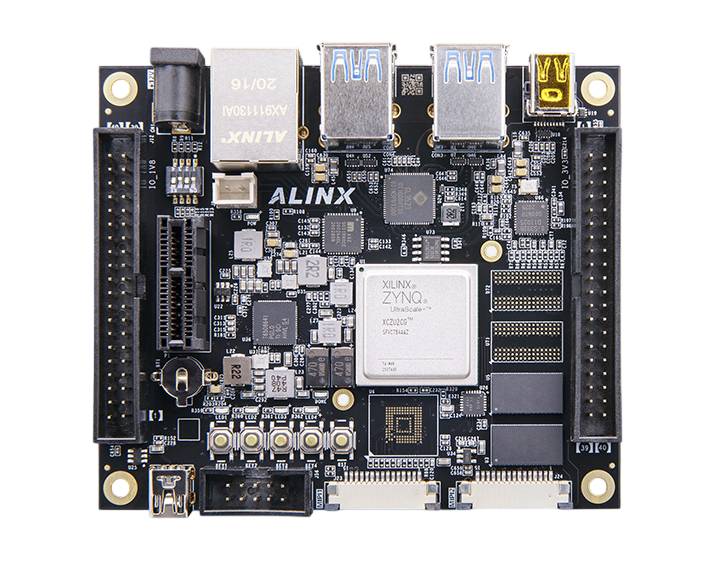

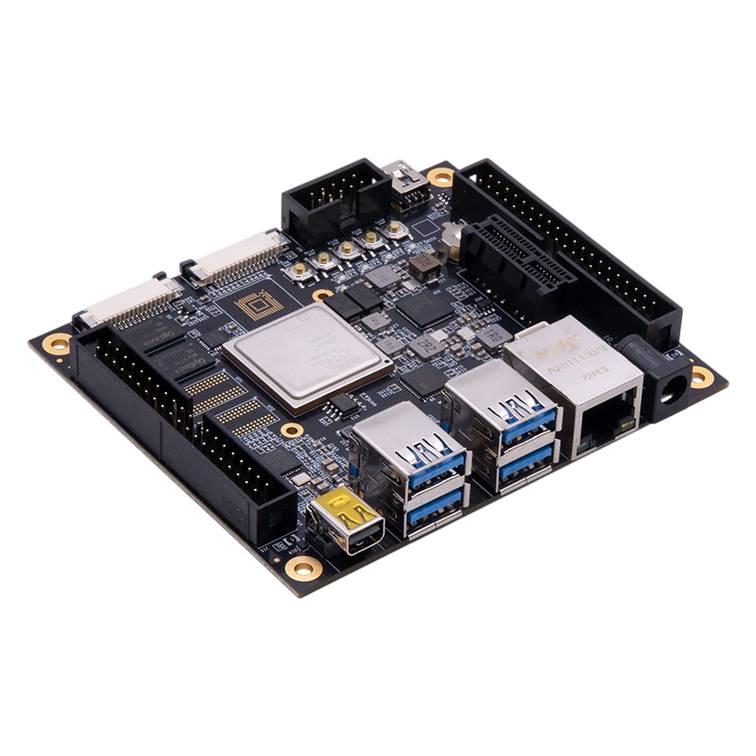

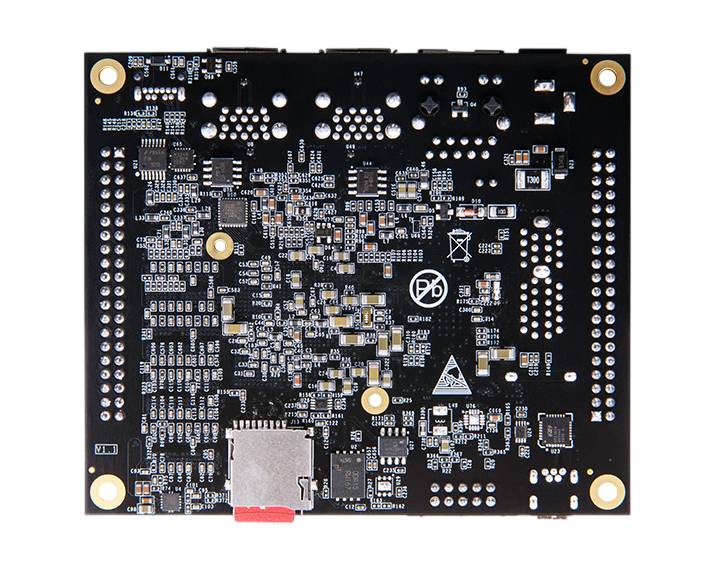

AXU2CGA - Development Board - AMD Zynq US+ MPSoC ZU2CG

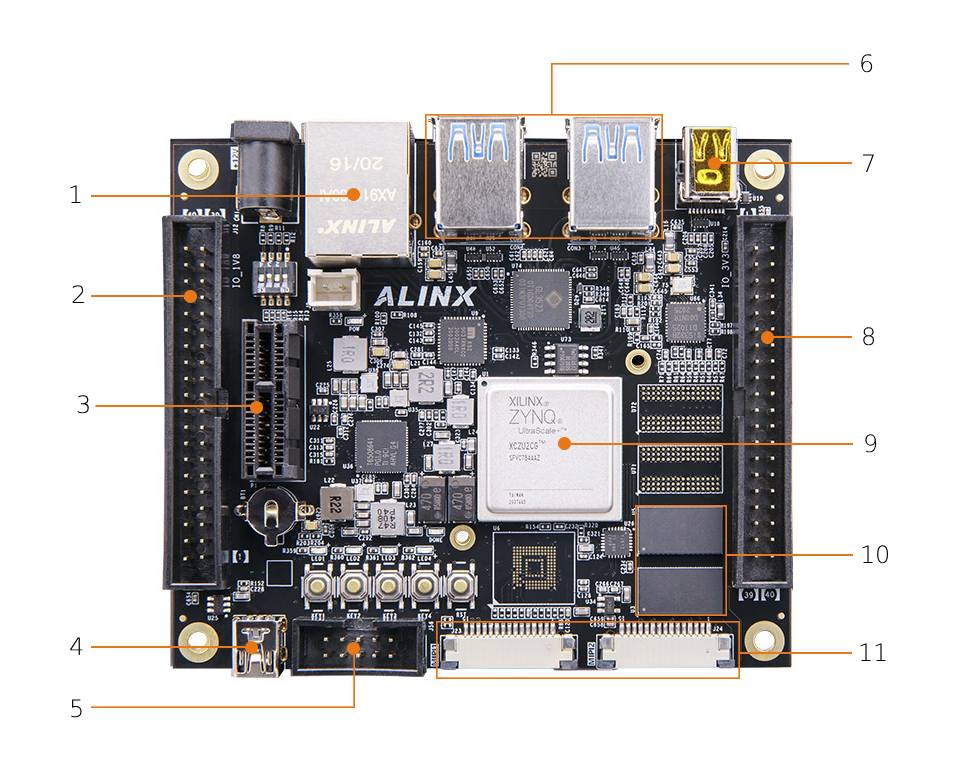

• AMD Zynq UltraScale+ MPSoC XCZU2CG : a combination of application processors, real-time cores, and FPGA programmable logic
• Dual-core ARM Cortex-A53 up to 1.2 GHz : Supports operating systems, user applications and advanced interfaces
• Dual-core ARM Cortex-R5F : real-time tasks and control functions
• 16nm FinFET+ programmable logic FPGA : hardware-assisted algorithm acceleration and parallel data processing
• 1 GB DDR4 SDRAM : fast operating memory of the PS processor part with a 32-bit bus
• 32 MB QSPI Flash : Stores bootloader, configuration, and system data
• PCIe Gen2 x1 : fast communication with a computer or host system
• Gigabit Ethernet : wired network transmission speeds up to 1000 Mbps
• Mini DisplayPort : digital image output from the processor part
• Two USB 3.0 and two USB 2.0 ports : support for peripherals and high-speed data transfer
• Two MIPI camera connectors : connecting imaging modules to the programmable part
• Two 40-pin expansion ports : 34 IO lines each for cooperation with external modules
• microSD slot : system boot and data storage
• UART and JTAG : diagnostic communication, programming and debugging
• Compact dimensions of 100 x 85 mm : extensive possibilities in a small board size

The heart of the platform is the AMD Zynq UltraScale+ MPSoC XCZU2CG-1SFVC784E . The system integrates two ARM Cortex-A53 cores for running operating systems and applications, and two Cortex-R5F cores for tasks requiring predictable response times. This combination allows for the separation of interface, communication, and data analysis functions from critical control operations. The programmable PL part is fabricated in 16nm FinFET+ technology and enables the creation of custom hardware blocks, interfaces, digital filters, and accelerators. The system offers approximately 103,000 logic cells, 47,000 look-up tables (LUTs), 94,000 flip-flops, and 240 multiplier-accumulator blocks. This allows it to perform parallel processing of images, signals, and data streams with low latency. The MPSoC architecture combines the flexibility of processor programming with the performance of dedicated hardware logic. AXU2CGA will therefore be useful in projects requiring simultaneous Linux support, real-time control and FPGA acceleration.
