AN3485 - RS232/RS422/RS485 communication module for FPGA and SoC boards
The ALINX AN3485 is an industrial communication module designed to expand FPGA and SoC boards with serial interfaces. It offers one RS232 channel, two RS485 channels, and two RS422 channels , supporting 3.3V TTL logic. A 40-pin expansion connector, screw terminals, 120Ω terminating resistors, and ±15kV ESD protection facilitate the development of reliable automation, control, and remote data transmission systems.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: AN3485 - RS232 / RS422 / RS485 communication module for FPGA and SoC boards
The ALINX AN3485 module allows you to connect an FPGA development board or SoC to devices using the RS232 , RS485, and RS422 standards . The MAX3232, MAX3485, and MAX3490 chips handle level conversion, while the 3.3V TTL signals are output to a 40-pin female connector . The RS232 interface uses a standard male DB9 connector and supports speeds up to 120 kbps . Two RS485 and two RS422 channels operate at speeds up to 500 kbps and are available on convenient screw-type connectors. Built-in 120 Ω termination resistors can be jumpered to help adapt the bus over longer distances. The RS485 and RS422 lines also feature ±15 kV ESD protection. A wide operating temperature range from -40°C to 85°C allows the module to be used in prototypes and industrial systems.

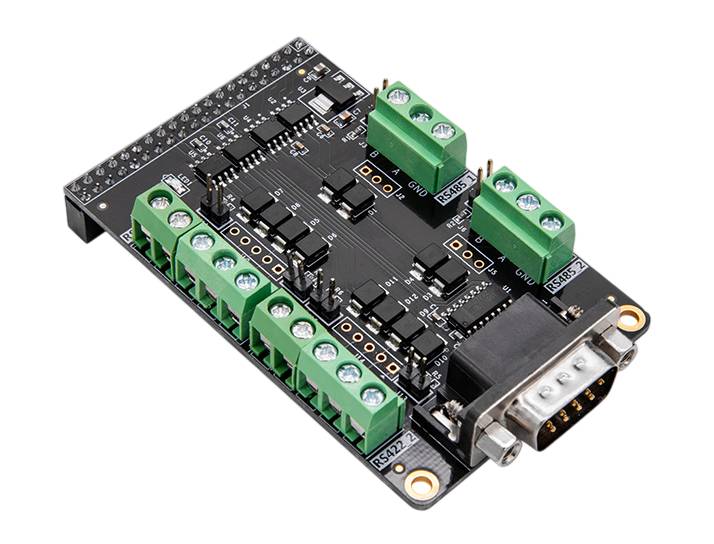

AN3485 - RS232 / RS422 / RS485 communication module for FPGA and SoC boards.

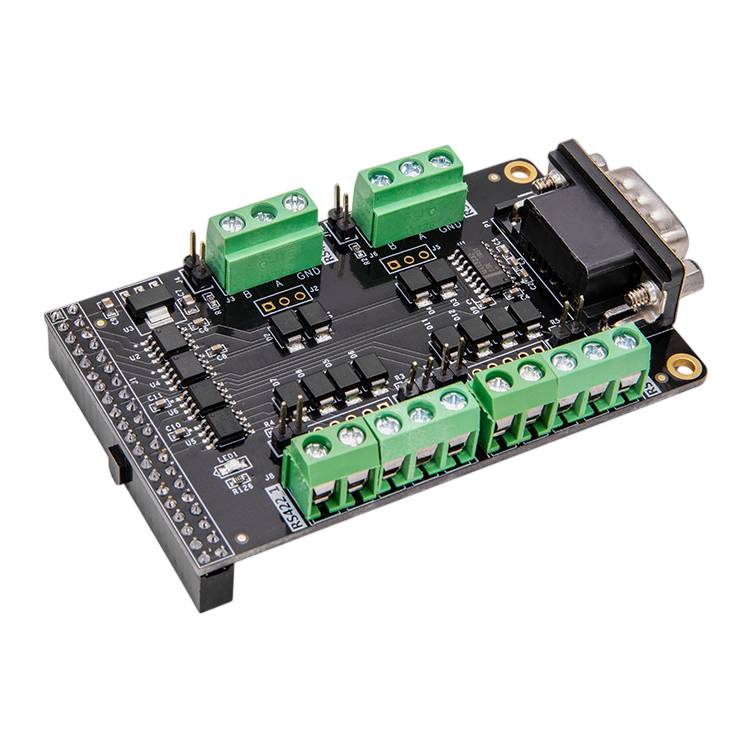

The AN3845 module includes one RS232 interface, two RS485 communication interfaces and two RS422 interfaces.
Main features of the ALINX AN3485 module
- Support for three communication standards: cooperation with devices equipped with RS232, RS485 and RS422 interfaces
- Five communication channels: one RS232 channel, two RS485 channels and two RS422 channels
- Level conversion circuits: MAX3232 for RS232, MAX3485 for RS485 and MAX3490 for RS422
- 3.3V TTL logic: direct signal exchange with FPGAs and ARM processors possible
- 40-pin expansion connector: quickly connect the module to a compatible development board
- Standard DB9 connector: convenient connection to a computer or device equipped with an RS232 port
- Screw connectors: stable connection of RS485 and RS422 bus cables
- 120 Ω Termination: Jumper-enabled resistors facilitate proper bus termination
- ESD protection ±15 kV: additional protection of RS485 and RS422 lines against electrostatic discharge
- Industrial temperature range: -40°C to 85°C operation
- Compact design: board dimensions approximately 81 x 51 mm
Technical specifications of the module
- Type: communication module for FPGA and SoC boards
- Supported standards: RS232, RS485, RS422
- RS232 interface chip: MAX3232
- RS485 interface chip: MAX3485
- RS422 interface chip: MAX3490
- Number of RS232 channels: 1
- Number of RS485 channels: 2
- Number of RS422 channels: 2
- RS485 transmission mode: half duplex
- RS422 transmission mode: full duplex
- Signal level on the development board side: TTL 3.3 V
- Module power supply via expansion connector: 5 V
- Maximum RS232 transmission speed: 120 kb/s
- Maximum RS485 transmission speed: 500 kb/s
- Maximum RS422 transmission speed: 500 kb/s
- RS232 connector: DB9 male
- RS485 connectors: 2 x 3-pin screw connectors
- RS422 connectors: 2 x 5-pin screw connectors
- Development board connector: 40-pin female
- RS485 termination resistors: 120 Ω, enabled via jumpers
- RS422 termination resistors: 120 Ω, enabled via jumpers
- RS485 and RS422 line protection: ESD ±15 kV
- Operating temperature: -40°C to 85°C
- Dimensions: approximately 81 x 51 mm
Contents of the set
- ALINX AN3485 communication module

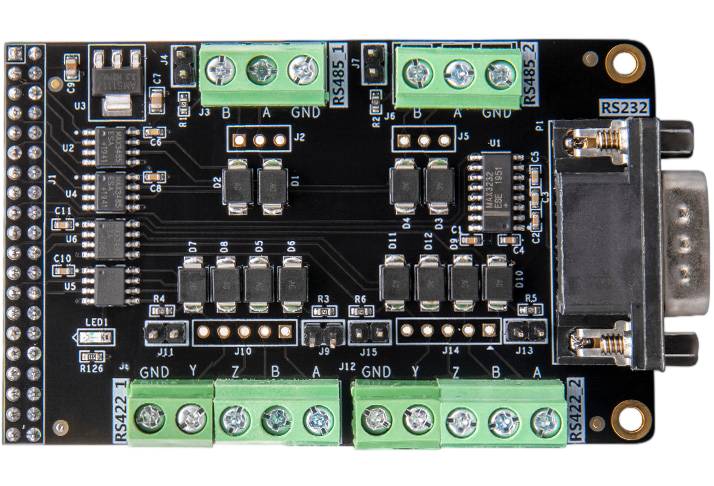

The AN3485 is designed for use on SoC and FPGA development boards.
Useful links
| Name | Value |
|---|---|
| Width | 10 cm |
| Height | 8 cm |
| Depth | 2.5 cm |
| Weight | 0.06 kg |
