Converter RS232 - UART with connector DB9 - MAX3232 3,3V/5V

Index: MOD-02030 EAN: 5904422365196
5
(5)
Ask a question

RS232 to UART serial interface converter with 9-pin D-SUB connector. The implementing circuit is the popular MAX3232.

Converter RS232 - UART with connector DB9 - MAX3232 3,3V/5V
€5.50
€4.47 tax excl.
Check quantity
Available
Shipping in 24 hours
Free shipping
30 days to return
PayPal payment
Check quantity
Manufacturer: MSX Elektronika

Product description: RS232 - UART converter with DB9 connector - MAX3232 3.3V/5V

The converter allows to connectRS232serial interfaceand UART- TTL voltage standard. On one side of the module has a D-SUB connector, on the other side there are2.54 mmholes witha raster of 2.54 mmto solder thegoldpin strips(included). The executive circuit is a popularMAX3232converter, cooperating with voltages 3.3 V and 5 V.

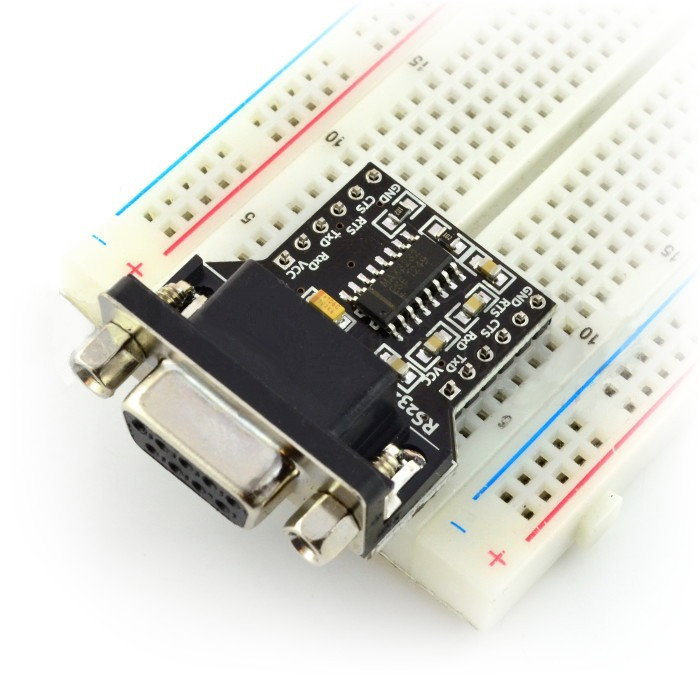

Konwerter RS232 - UART ze złączem DB9 wpięty w płytkę stykową

Thanks togoldpinconnectors, the module can be plugged intoa contact plateor connected withwires.

Specification:

  • Layout: MAX3232
  • Interface: RS232 - UART
  • Raster of exits: 2.54 mm

Converter - chip MAX3232
Converter - Interface UART - RS232
Package width 6 cm
Package height 1 cm
Package depth 9.5 cm
Package weight 0.013 kg
