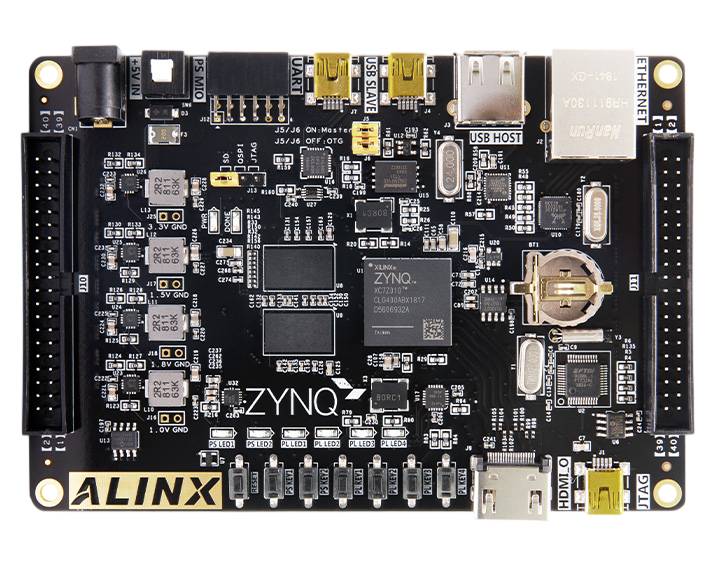

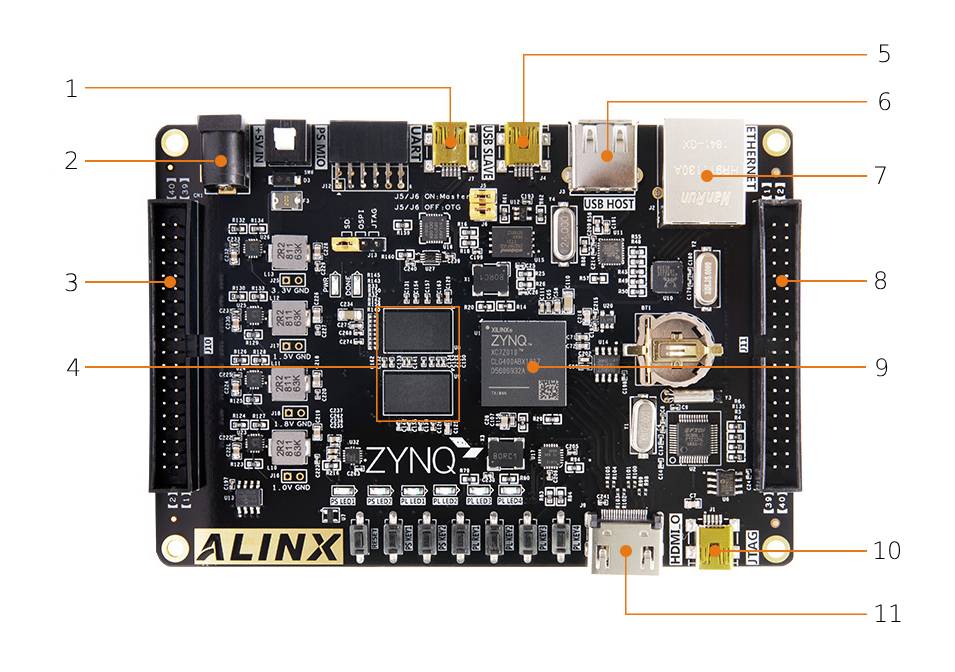

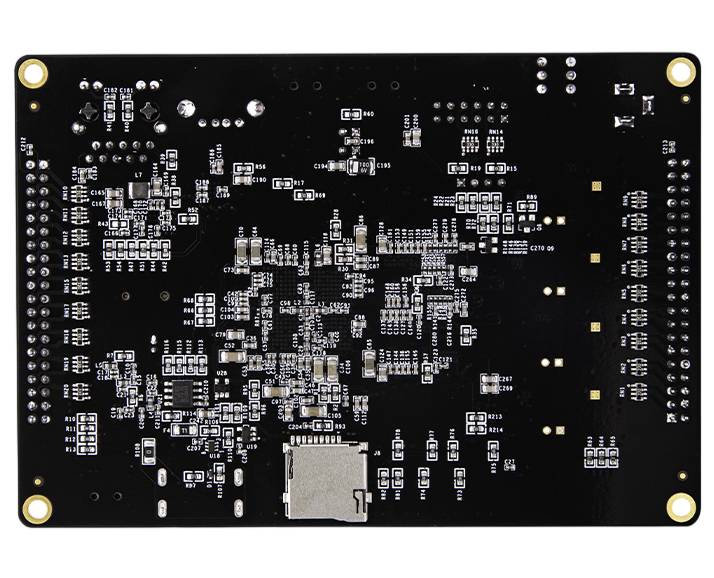

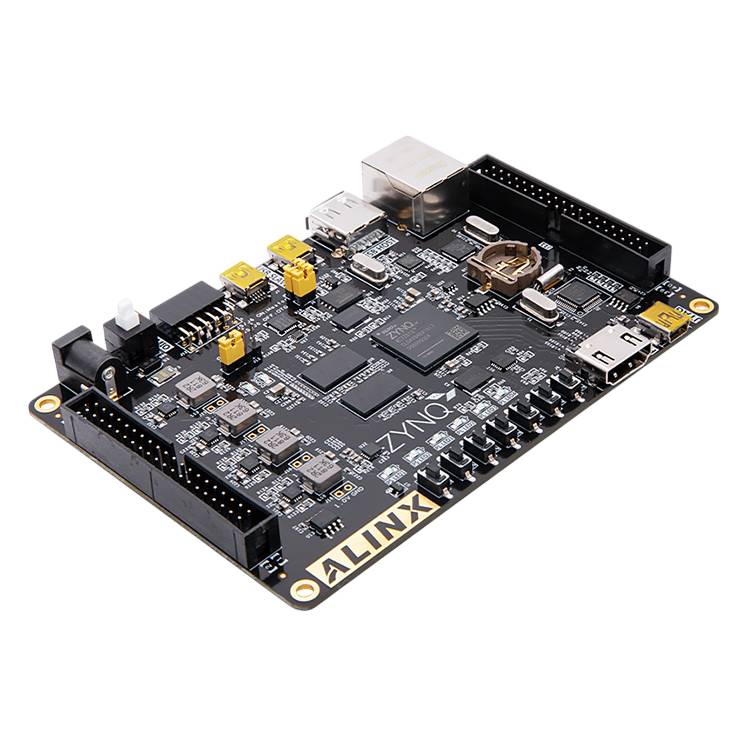

AX7010 - development board - AMD Zynq 7000 SoC XC7Z010

• AMD Zynq 7000 SoC XC7Z010 : a combination of a dual-core ARM Cortex-A9 processor and programmable FPGA logic
• Processor clock speed up to 667 MHz : enables operation of the operating system, control applications and communication
• 512 MB DDR3 SDRAM : fast RAM connected to the PS processor part
• 32 MB QSPI Flash memory : space for bootloader, system configuration and user data
• Gigabit Ethernet : a network interface for high-speed data transmission
• HDMI interface : image input or output possible, depending on the hardware configuration
• USB Host and USB Slave : cooperation with peripheral devices and computers
• USB UART : Serial Communication and System Diagnostics
• MicroSD slot : allows you to boot the system and store files
• Built-in JTAG interface : programming and debugging the Zynq chip
• Two 40-pin expansion ports : 34 IO lines each for connecting external modules
• DS1302 Real Time Clock : Maintaining date and time information
• LEDs and User Buttons : Quickly Test PS and PL Parts
• 5V power supply : single board power input

The heart of the AX7010 board is the AMD Zynq 7000 SoC XC7Z010 , which integrates a PS processor system and programmable logic PL. The PS part contains two ARM Cortex-A9 cores , memory controllers, and communication interfaces, allowing it to perform typical microprocessor tasks and run complex software. The PL part is based on the Artix-7 FPGA architecture and allows for the creation of custom digital systems operating in parallel. It can be responsible for fast image processing, signal generation, support for custom interfaces, or the implementation of algorithms requiring low latency. The combination of ARM and FPGA enables the division of tasks between the software and hardware layers , facilitating the construction of efficient real-time systems.
