Specification
- Microcontroller: Ultra Low Power STM32L152RET6
- Core: ARM Cortex M3 32-bit
- Clock frequency: 32 MHz
- Flash memory: 512 KB
- RAM memory: 80 KB
- Analog-to-digital converter (ADC): 12-bit, 40-channel
- Digital-to-analog converter (DAC): 12-bit, 2-channel
- Number of Timers: 11
- Built-in LCD driver of 8x40 segments
- Interfaces: 5x USART, 3x SPI of 16Mbit/s, 2x I2C, SDIO, USB Full Speed
- Two types of connectors:
- Connectors for shields compatible with Arduino Uno Rev3
- Standard pins STMicroelectronics Morpho enabling the access to the pins of the microcontroller
- The module is compatible with the system mbed (mbed.org)
- The debugger ST-Link/V2 is placed on the board with the possibility to work as a standalone device with the SWD output
- The possibility to power through USB connector
- Embedded three LEDs:
- 1 x for indication of supply voltage
- 1 x for indicating the connection
- 1 x at the user's disposal
- Two buttons:
- 1 x RESET
- 1 x at the user's disposal
- Three different interfaces via connector miniUSB (USB re-enumeration):
- Virtual COM port
- Mass memory
- Port for programming/debugging
- The module supports most of the popular environments, i.a.: IAR, Keil and the platforms based on GCC compiler
A detailed description can be found in thedocumentationand onthe website of the manufacturer.

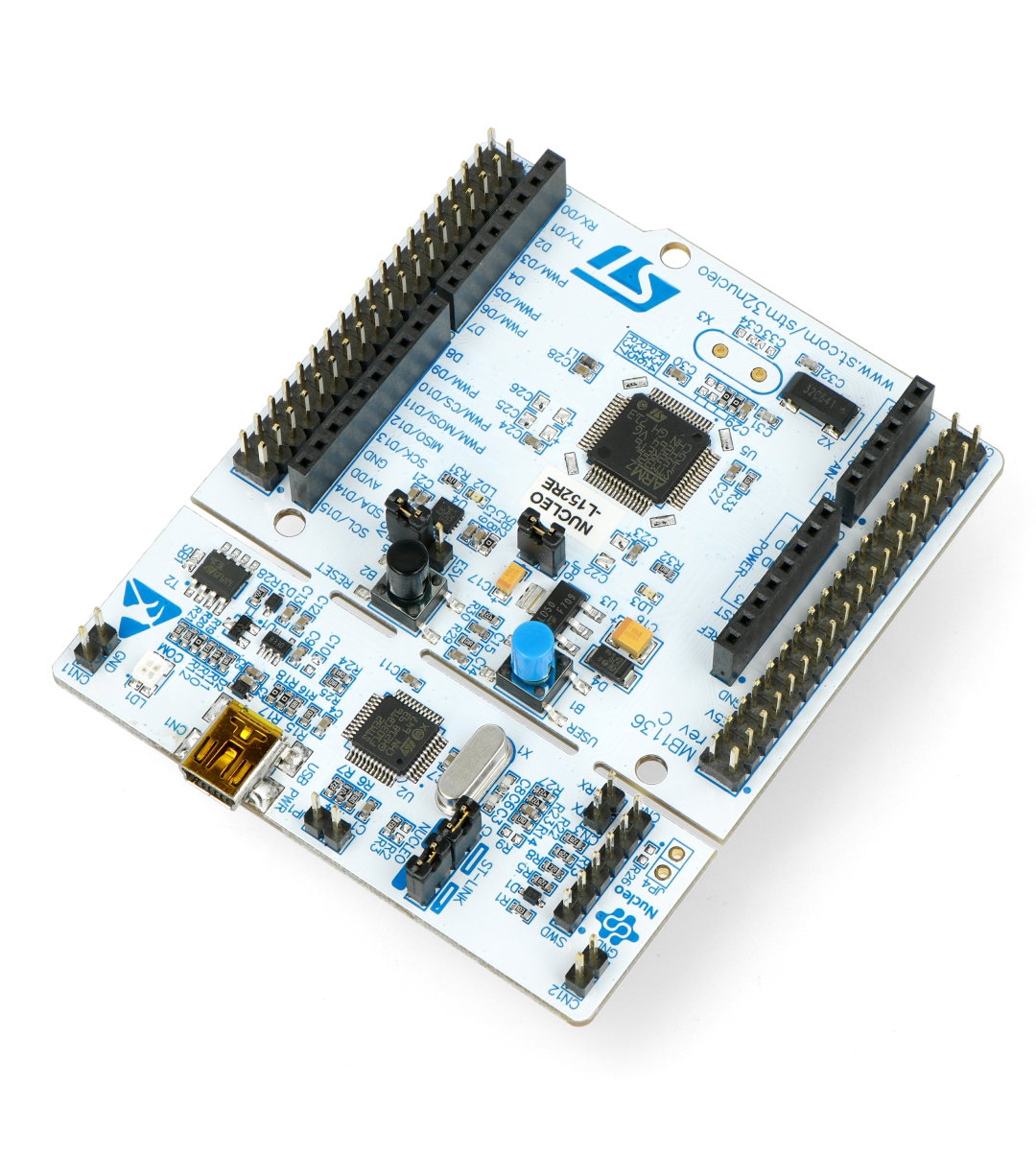

Nucleo allows for the implementation of projects, based on powerful microcontroller with 32-bit core ARM Cortex. The modules are compatible with Arduino shields and the compiler's system on-line mbed.org. Nukleo works with most of the popular development platforms, including Keil, IAR and environments based on the GCC compiler.
