Product description: STM32 NUCLEO-U575ZI-Q - STM32U575ZIT6Q ARM Cortex M33
The STM32 Nucleo-U575ZI-Q board with the STM32U575ZIT6Q microcontroller offers high performance at low power consumption. Equipped with an Arm Cortex M33 core with a maximum clock speed of up to 160 MHz, 2 MB of Flash memory and 786 KB of RAM, it is ideal for IoT applications. It has ST connectors Zio and ST Morpho , compatible with Arduino Uno V3 , allowing for expansion with additional modules. Built-in ST-LINK programmer/debugger simplifies programming and testing. Flexible power supply options (USB VBUS, SMPS or external sources) and IDE support ( IAR, MDK -ARM, STM32CubeIDE ) make the Nucleo-U575ZI-Q the perfect choice for professionals and hobbyists developing prototypes in the STM32 environment.
The manufacturer has prepared a detailed user guide that includes instructions on how to build and run a sample application.

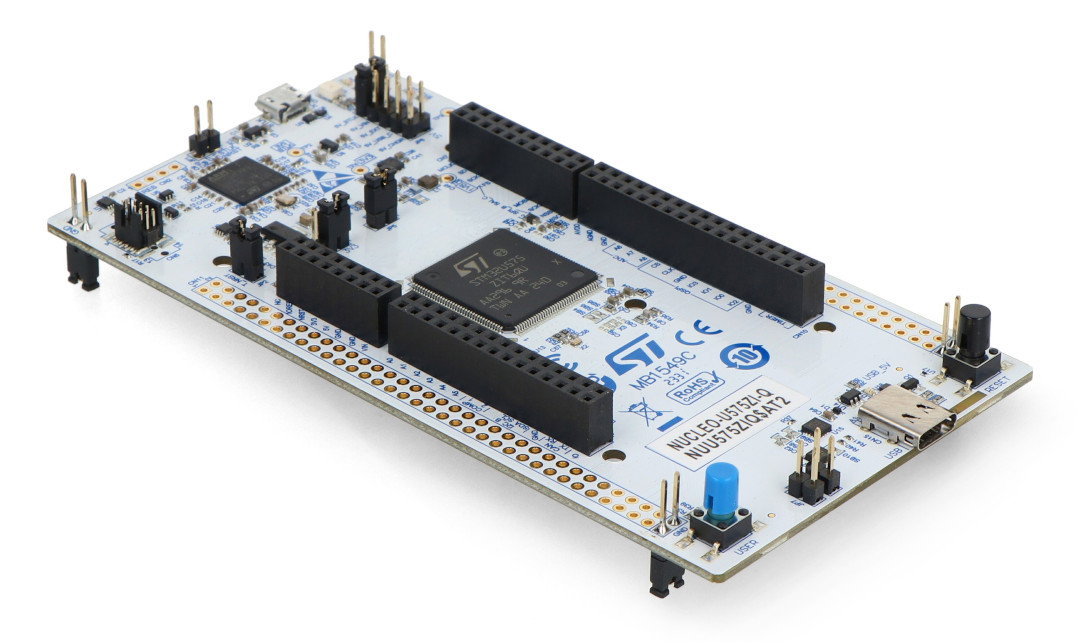

STM32 NUCLEO-U575ZI-Q - STM32U575ZIT6Q ARM Cortex M33.

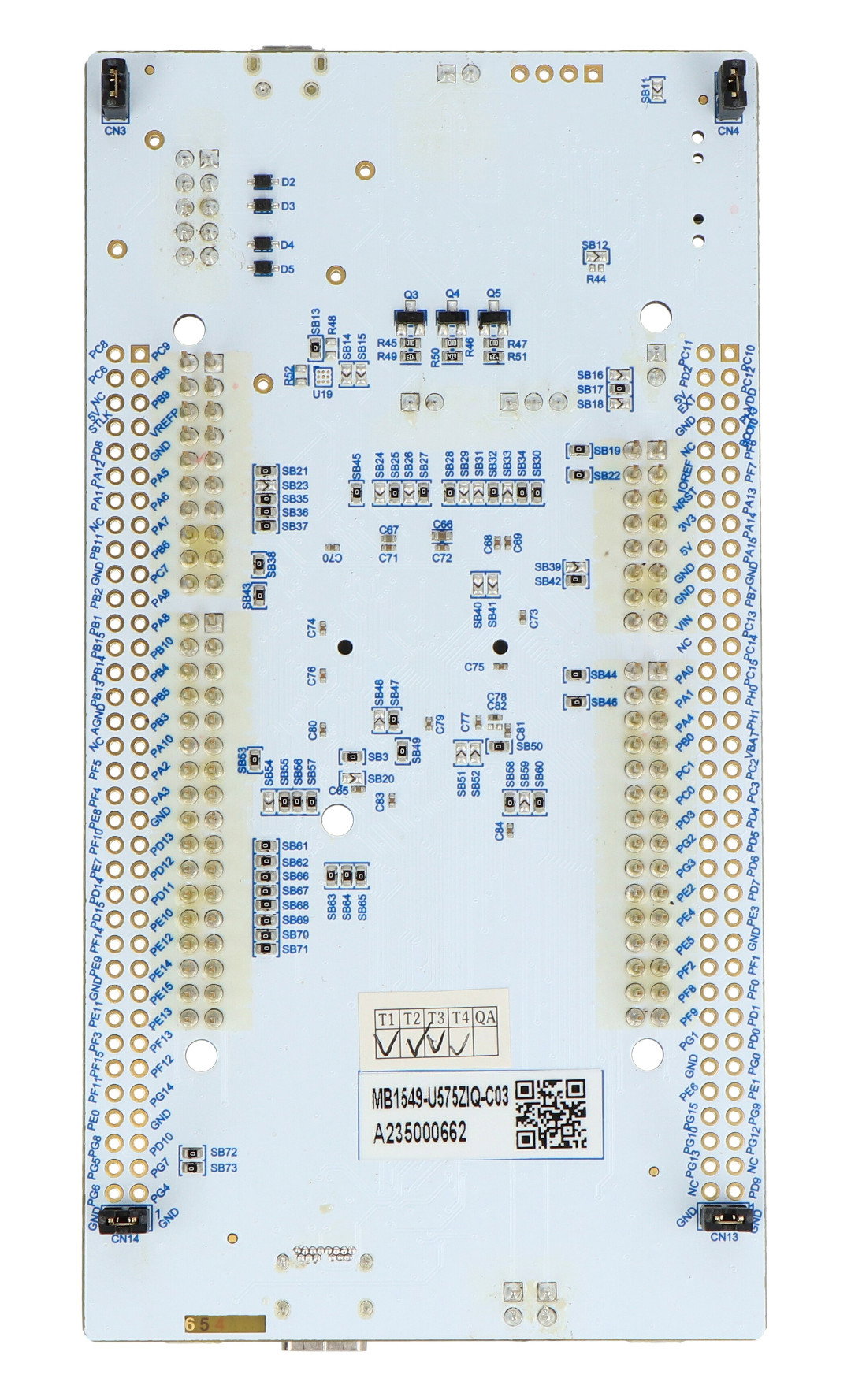

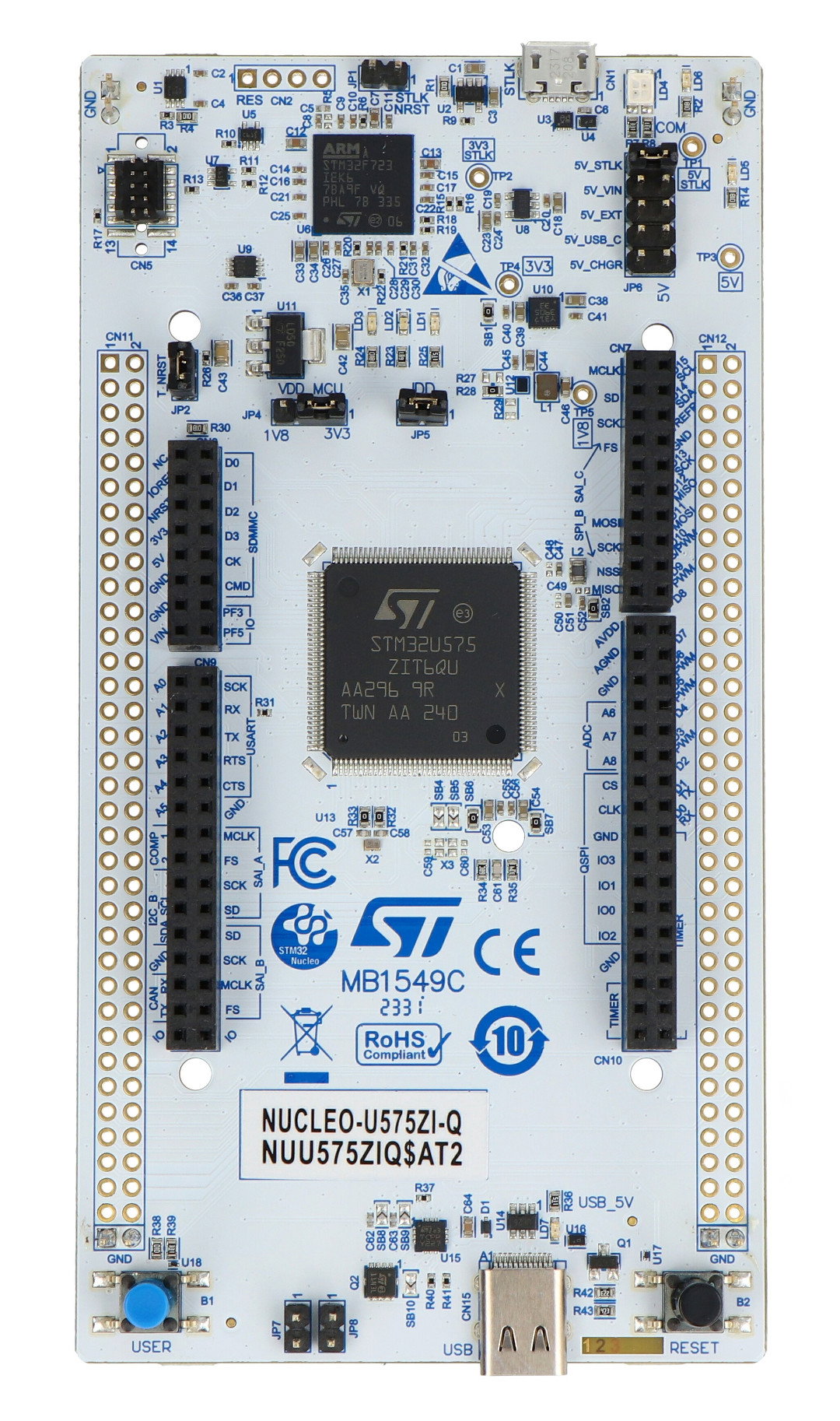

Board with STM32U575ZIT6WQ microcontroller.
Key Features of NUCLEO-U575ZI-Q
- Built-in STM32U5 microprocessor in LQFP144 package
- ST Zio connectors compatible with Arduino Uno V3 and ST Morpho, enabling easy connection of modules and shields, supporting the development of various applications
- ST-LINK debugger/programmer supporting Virtual COM Port mode, mass storage mode and full debugging without the need for an external programmer
- 32.768 kHz clock for low power functions
- Powered by ST-LINK USB VBUS, USB or external sources
- SMPS support (internal or external) for low power consumption in Run mode
- 3 LEDs and 2 buttons (user and reset)
- Support for STM32Cube libraries with ready-made code examples
- Compatibility with popular development environments (IDEs)
Module Applications
The STM32 Nucleo-U575ZI-Q board is the ideal tool for building and testing low-power applications such as IoT devices, monitoring systems, and sensors . The built-in SMPS makes the board perfect for projects where low power consumption is key. Thanks With a rich set of connectors and full support for development environments, the board is suitable for professional engineers and hobbyists creating prototypes in the fields of automation, smart homes and educational applications.
The system is based on the ARM Cortex M33 core.
Technical Specifications NUCLEO1Azcx1X3U575ZI1Azcx1X3Q
- Microcontroller: STM32U575ZI
- Core: Arm Cortex M33
- Maximum clock speed: 160 MHz
- Flash Memory: 2MB
- SRAM memory: 786 KB
- Power supply:
- Power options: ST-LINK USB VBUS, USB, external power
- SMPS support: yes (internal or external power supply)
- Connectors:
- ST Zio: Arduino Uno V3 Compatibility
- ST Morpho: Expansion Ports
- SWD: Programming and Debugging
- Debugger / programmer:
- ST-LINK: built-in with USB re-enumeration function
- Virtual COM Port Support: Yes
- Mass storage mode: yes
- Supported software:
- Libraries: STM32Cube, code examples
- IDE Compatibility: IAR Embedded Workbench, MDK-ARM, STM32CubeIDE
- Additional functions:
- Clock: 32.768 kHz (RTC)
- Communication interfaces: UART, I2C, SPI, CAN, USB
- Security Features: TrustZone for Secured Apps
- FPU Module: Floating Point Computation Support
- Diodes: 3 LEDs
- Buttons: 2 buttons (user and reset)
