TOOCAA NOVA 20W laser cutter + rotary module + Air Assist
The TOOCAA NOVA is a modern 20W laser engraver , designed for ease of use and a high level of safety. It offers an A4-sized work area of 297 x 210 mm and reaches a speed of up to 36,000 mm/min . The intelligent AI system enables automatic focusing, material identification, and selection of optimal operating parameters , eliminating the need for manual configuration. The kit also includes an Air Assist system and a rotation module , which expand the plotter's capabilities.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: TOOCAA NOVA 20 W laser plotter + rotary module + air pump
The TOOCAA NOVA is an advanced laser engraver with AI functions , equipped with a 20W module , and designed for convenient desktop use. Its compact dimensions and A4 workspace of 297 x 210 mm make it ideal for home, office, and workshop use. A fully enclosed Class 1 enclosure , combined with extensive protection systems, ensures a high level of safety during operation. The technologies used automatically detect the material type, adjust the focus, and select optimal parameters , eliminating the need for manual configuration. A built-in HD camera allows for live preview and precise project positioning. Control is via a touchscreen or TOOCAA Studio and LightBurn software , and communication is provided by USB Type-C and WiFi interfaces. The modular design allows for easy replacement of laser heads, increasing application flexibility. The kit also includes an Air Assist system and a rotation module , improving work quality and comfort.

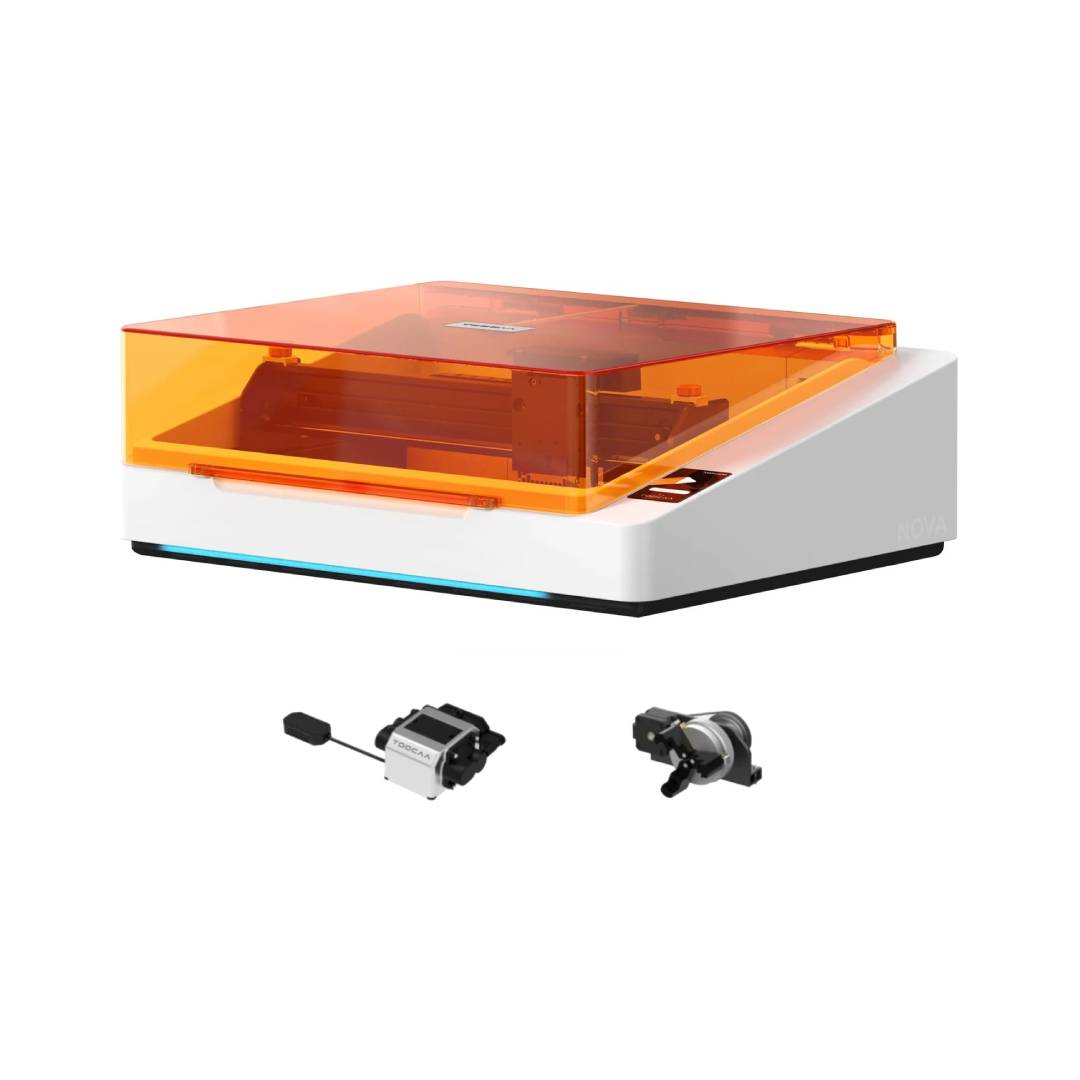

TOOCAA NOVA 20 W laser plotter + rotary module + air pump.
The built-in HD camera allows you to position the project on the material and view the work progress live.
AI and Live Preview for Precise Engraving
The TOOCAA NOVA 20 W utilizes modern AI-based solutions that significantly simplify project preparation. The system automatically recognizes materials using ID cards and selects optimal operating parameters , eliminating the need for manual configuration. The built-in 5MP HD camera offers real-time preview in "What You See Is What You Get" mode, allowing for precise design placement on the work surface. Precise positioning allows you to preview the final result before engraving begins. This solution streamlines workflow, shortens turnaround time, and reduces the risk of errors.

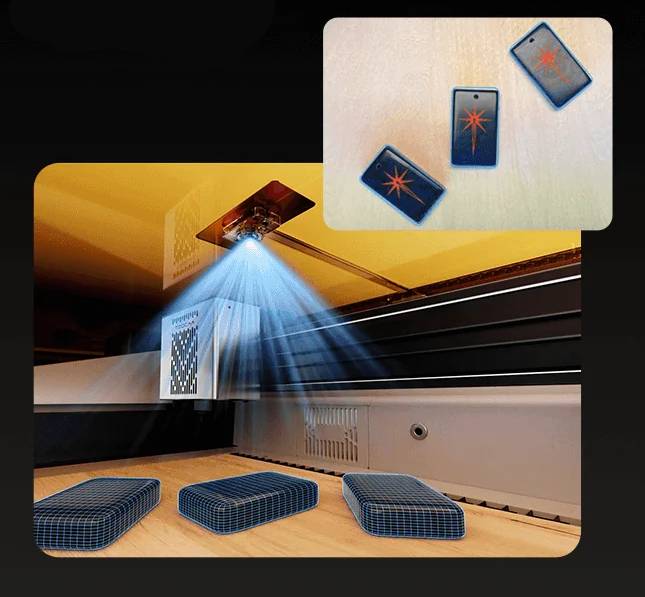

Intelligent material identification and automatic focus adjustment
TOOCAA NOVA automatically recognizes selected materials based on ID cards or system settings , allowing for quick adjustment of operating parameters such as power, speed, and engraving depth. The autofocus function automatically adjusts the height of the laser head relative to the surface of the processed material, ensuring optimal beam focus. This solution works well with both thin and thicker materials, such as wood or acrylic . For more demanding projects, a Advanced mode, allowing for manual material thickness setting. The high level of automation and 297 x 210 mm working area make operating the plotter simple and similar to using a traditional office printer.
Engraving at speeds up to 36,000 mm/min significantly reduces project implementation time and increases work efficiency.

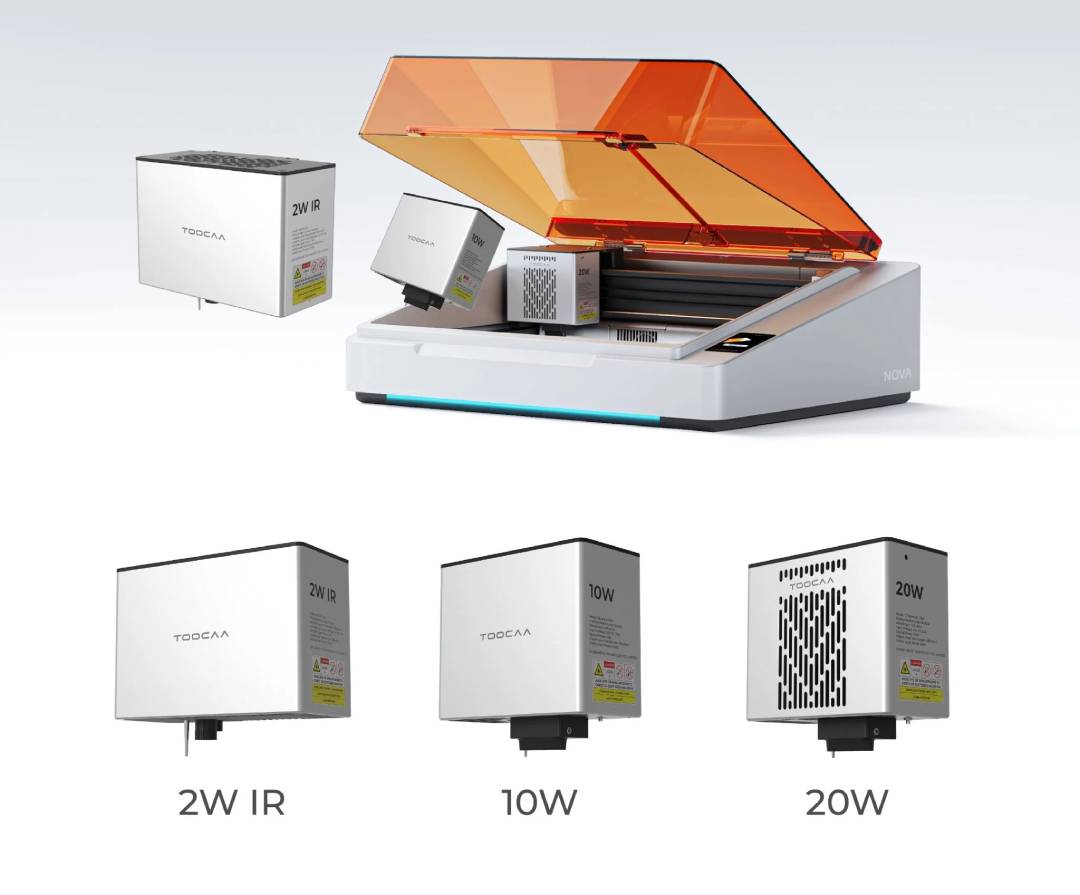

The interchangeable laser module supports 2W, 10W, and 20W IR options to accommodate a wide range of materials. Only the 20W module is included.
High performance and modular design
The TOOCAA NOVA achieves engraving speeds of up to 36,000 mm/min , allowing for the rapid completion of both single projects and larger production runs. The 20W laser module enables deep engraving and precise cutting of thicker materials in a single pass. The plotter utilizes interchangeable laser heads , making it easy to change configurations without having to replace the entire plotter. Available 10W, 20W, and 2W IR versions provide great versatility and allow you to tailor the equipment to your specific application. Additionally, the plotter supports 360° rotational engraving thanks to the included rotary module and a 90° X-axis design, allowing you to work with cylindrical elements without the need for additional stands.
Safe construction and comfortable communication
The TOOCAA NOVA is equipped with a closed SafeShell housing that meets Class 1 requirements , ensuring a high level of safety when working at home, at school, or in the workplace. The protection system includes a flame sensor, tilt detection, a lid lock, and a parental control function , ensuring user safety at every stage of the device's operation. A built-in filtration system, combined with the intelligent Air Assist system, effectively removes smoke and contaminants , helping to keep the lens and workstation clean. The plotter is compatible with TOOCAA Studio and LightBurn software and offers USB and Wi-Fi connectivity, allowing for convenient project transfer and work monitoring. Operation is possible both from a computer and directly on the built-in touchscreen . The low noise level of approximately 50 dB allows for comfortable use in a home environment. Additional features, such as a magnetic tool holder and a backlight that indicates the device's status, enhance the convenience of everyday work.
The low noise level of approximately 50 dB allows for comfortable use of the plotter at home.

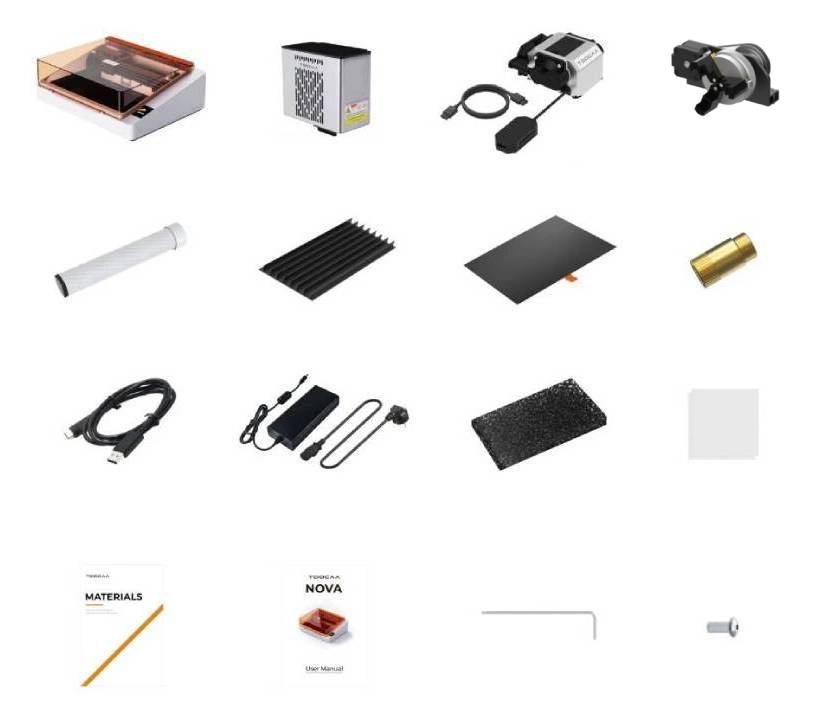

Elements included in the set.
Contents of the set
- TOOCAA NOVA laser engraving machine
- 20W laser module
- Rotation module
- Air Assist Kit
- Work panels x4
- Aluminum protective plate
- Pipe
- USB cable
- Power supply and power cord
- Filters, cloths and mounting accessories
- A4 test material
- User manual
Technical specifications of the TOOCAA NOVA laser plotter
| Laser type | diode |
|---|---|
| Laser wavelength | 455 ± 5 nm |
| Laser output power | 20 W |
| Spot size | 0.15 x 0.15 mm |
| Working field | 297 x 210 mm (A4) |
| Maximum engraving speed | 36,000 mm/min |
| Positioning accuracy | 0.01 mm |
| Repositioning accuracy | 0.01 mm |
| Supported materials | wood, plywood, MDF, bamboo, leather, fabrics, cardboard, acrylic (dark), lacquered metal, stainless steel, anodized aluminum, glass (dark), ceramics, stone, slate |
| Software | TOOCAA Studio, LightBurn |
| Supported systems | Windows, macOS |
| Communication | USB Type-C, WiFi |
| Interfaces | emergency button, expansion port, rotary module support |
| Security | flame detection, tilt detection, lid opening sensor, parental lock, laser module monitoring, air assist, overheating protection, emergency button |
| Input voltage | AC 100V to 240V, 50/60Hz, 2.5A |
| Operating voltage | 24V / 7.5A |
| Housing material | aluminum alloy, ABS, PC |
| Dimensions | 513 x 402 x 180 mm |
| Mass | 8.27 kg |
Useful links
| Name | Value |
|---|---|
| CNC - working field | 210 x 297 mm |
| Rodzaj pracy urządzenia | Cutting and engraving |
| Moc lasera | 10 W |
| CNC - Obszar roboczy | 210x297 mm |
| CNC - Rodzaj konstrukcji | Closed |
| CNC - Obsługiwane materiały | Basic |
| CNC - Typ lasera | LED |
| CNC - długość pola roboczego | 297 mm |
| CNC - szerokość pola roboczego | 210 mm |
| CNC - wielkość pola roboczego | Medium |
