TOOCAA NOVA 10W laser plotter + rotary module
The TOOCAA NOVA is a smart 10W laser engraver designed for easy and safe operation. It offers an A4 work area (297 x 210 mm) , a high engraving speed of up to 36,000 mm/min , and AI support that automates focus, material recognition, and work settings . Its enclosed SafeShell enclosure, built-in HD camera, and modular design make the TOOCAA NOVA intuitive and easy to configure, allowing you to create precise designs. The rotary module version allows for convenient engraving of cylindrical objects such as mugs.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: TOOCAA NOVA 10 W laser plotter + rotary module
The TOOCAA NOVA is a modern, AI-enabled laser engraver equipped with a 10W module, optimized for precision engraving and working with a wide range of materials. The device features a fully enclosed Class 1 enclosure with an extensive, multi-level security system, allowing for safe use at home, school, and in the office. The intelligent system automatically recognizes the material, focuses the beam, and selects operating parameters, eliminating the need for manual setup even for beginners. The compact design allows the TOOCAA NOVA to easily fit on a desk, while offering an A4 (297 x 210 mm) work area . The version with the rotary module allows for direct engraving of cylindrical objects such as mugs, bottles, or thermoses, without the need for additional stands. A built-in HD camera provides real-time preview and precise project positioning in "What You See Is What You Get" mode. The device can be operated both via an intuitive touchscreen and via TOOCAA Studio and LightBurn software , with USB or WiFi connectivity. The engraving machine's modular design allows for future laser head replacement with a different power option, adapting the device to your evolving needs—from precise personalization to more demanding projects.

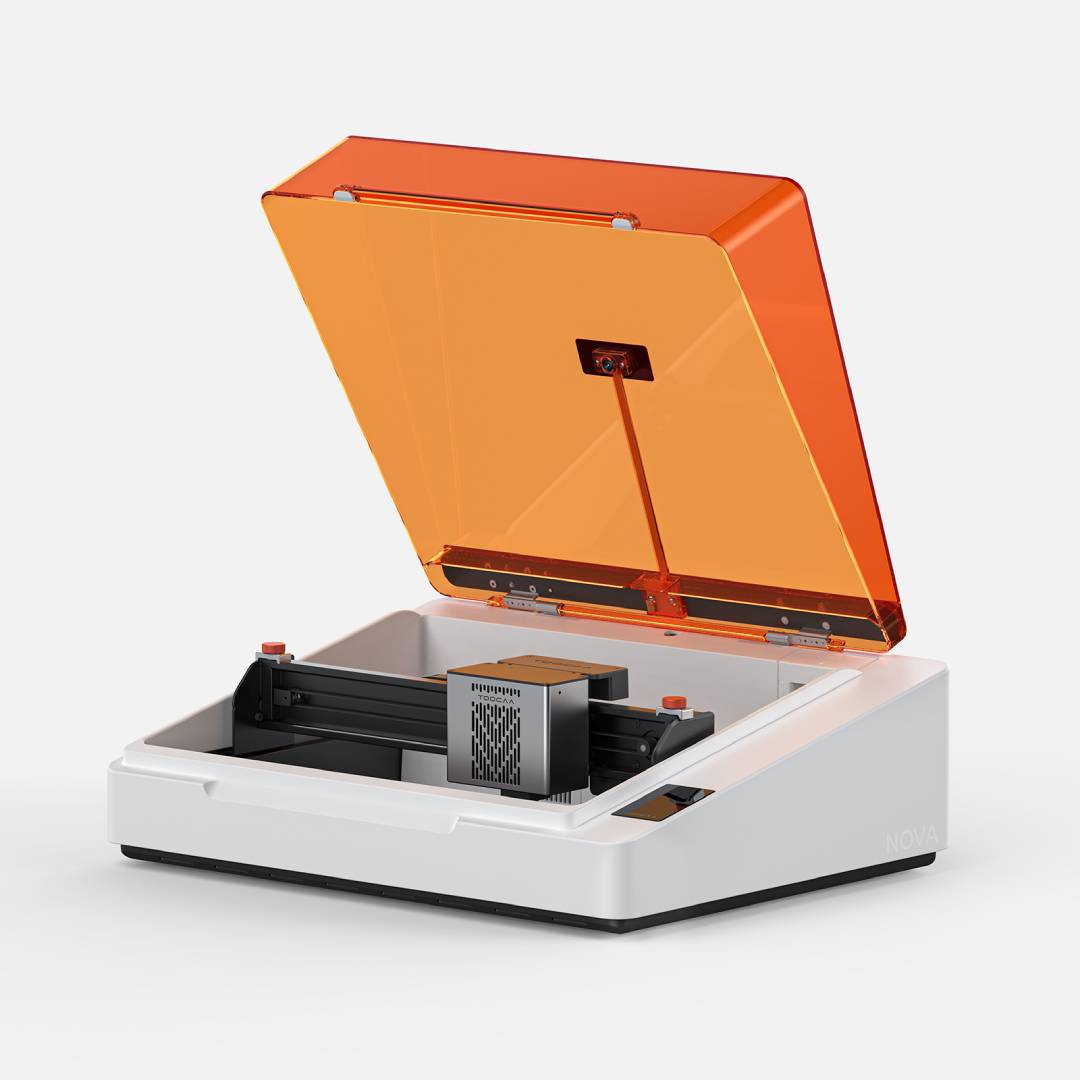

TOOCAA NOVA 10 W laser plotter + rotary module.
The built-in HD camera allows you to position the project on the material and view the work progress live.
AI support and precise HyberCam preview
TOOCAA NOVA utilizes artificial intelligence to automate the process of preparing a project for engraving. The system intelligently recognizes the material, selects optimal parameters , and eliminates the need for manual testing. A built-in 5MP HD camera provides a real-time preview of the work area , allowing for perfect graphic placement on the material using the "What You See Is What You Get" system. Advanced AI algorithms support background removal and engraving path optimization, significantly reducing file preparation time. High positioning accuracy ensures that the final result will be identical to what you see on your computer screen. This is an ideal solution for those who want to avoid wasting materials during trial runs.
Material Management and Intelligent Auto Focus System
This innovative approach to project management is demonstrated by a material ID card system that is automatically recognized by the device. After placing a dedicated card in a workspace measuring A4 (297 x 210 mm), the software automatically selects the optimal power and speed for the given material. Precise beam alignment is guaranteed by the Auto Focus function, which automatically adjusts the head height relative to the material surface , eliminating the need for manual measurements. For more demanding projects , an Advanced Focus mode is available, allowing manual height adjustments when working with soft or irregular objects. This high degree of automation makes operating the plotter almost as intuitive as using a traditional office printer.
Engraving at speeds up to 36,000 mm/min significantly reduces project implementation time and increases work efficiency.

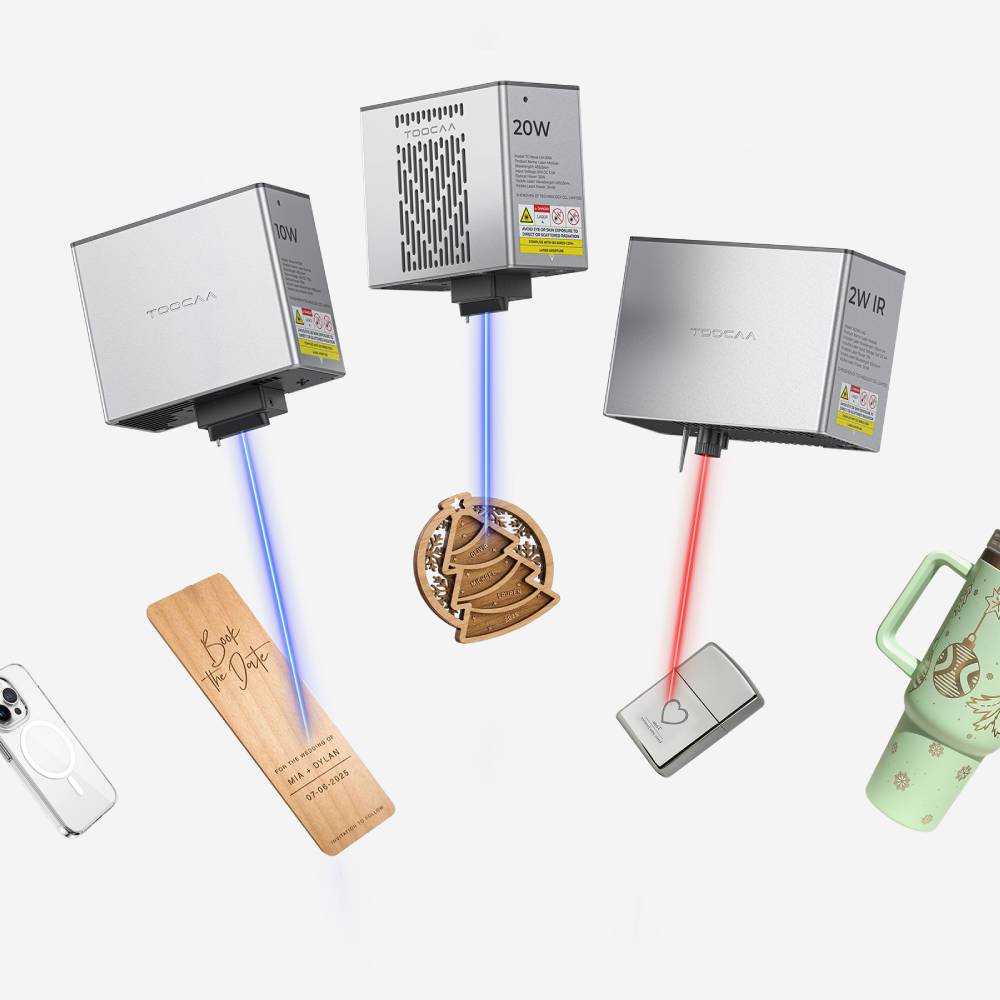

The interchangeable laser module supports 2W , 10W , and 20W IR options to accommodate a wide range of materials. Only the 10W module is included.
10W module precision and 360° rotational engraving
This model, equipped with a 10W module, offers exceptional precision thanks to a focused laser spot measuring just 0.08 x 0.13 mm , allowing for the finest details on wood, leather, and metal. Thanks to the included rotation module and the patented X-axis that rotates 90 degrees , the device enables instant engraving on glasses, water bottles, and other items without the need for additional extensions. The efficient PowerCore system allows for a working speed of up to 36,000 mm/min , allowing for the rapid production of personalized gifts. The plotter's modular design allows for easy future expansion with a more powerful 20W head or an IR module for deep metal marking.
Security and connectivity
The fully protective SafeShell enclosure meets rigorous Class 1 standards , meaning the device is completely safe for use at home, in the presence of children, or in educational institutions. The five-layer safety system includes flame detection, a tilt sensor, and automatic shutdown upon opening the lid or detecting overheating. Users have access to intuitive TOOCAA Studio software available in the browser, as well as full support for the professional LightBurn environment. Modern connectivity via WiFi and USB Type-C allows for wireless project transfer and remote monitoring of work progress. An integrated filtration system and the intelligent Air Assist air pump ensure smoke extraction, keeping the lens and workspace clean.

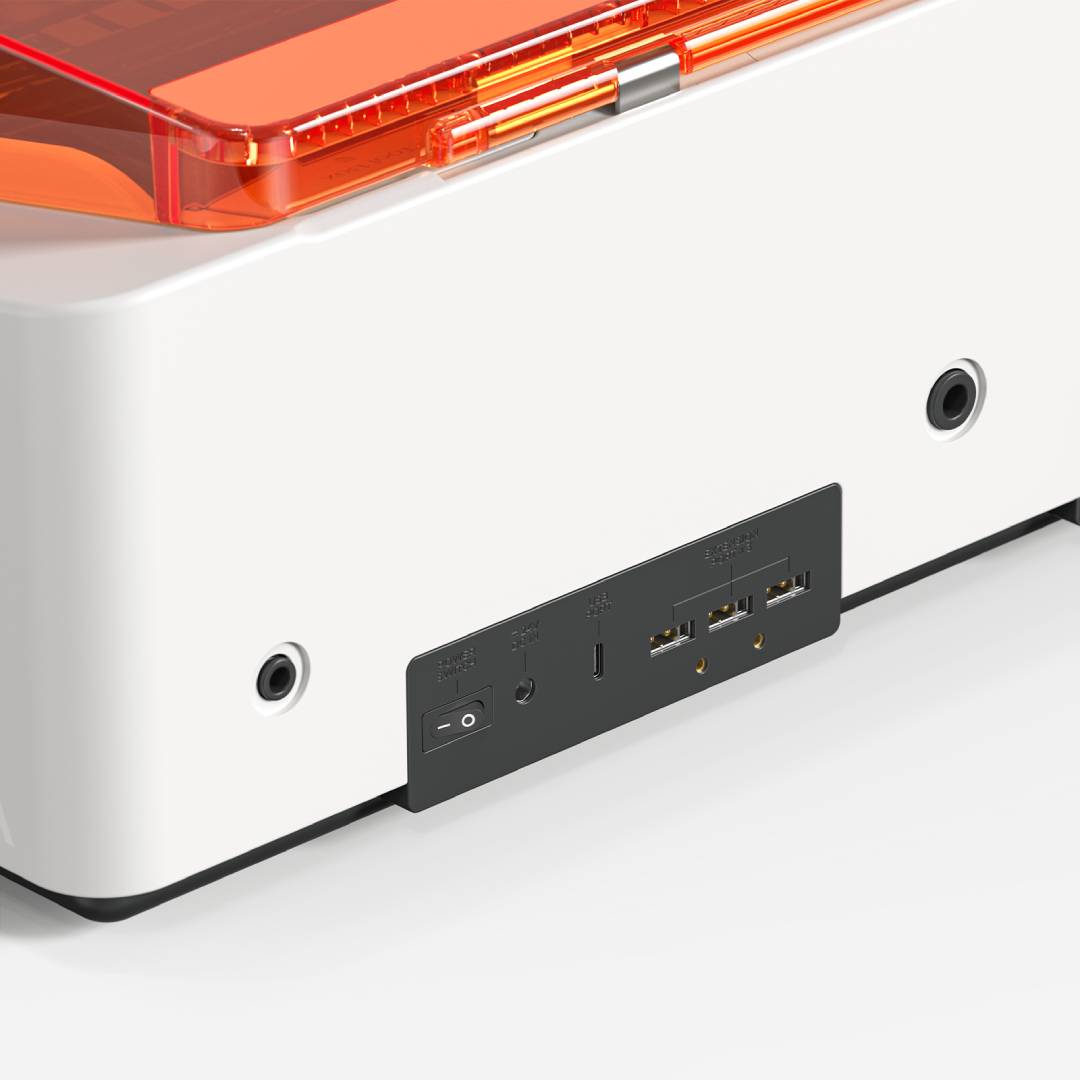

TOOCAA NOVA enables convenient connection of power, accessories and communication with the device via USB and expansion modules.

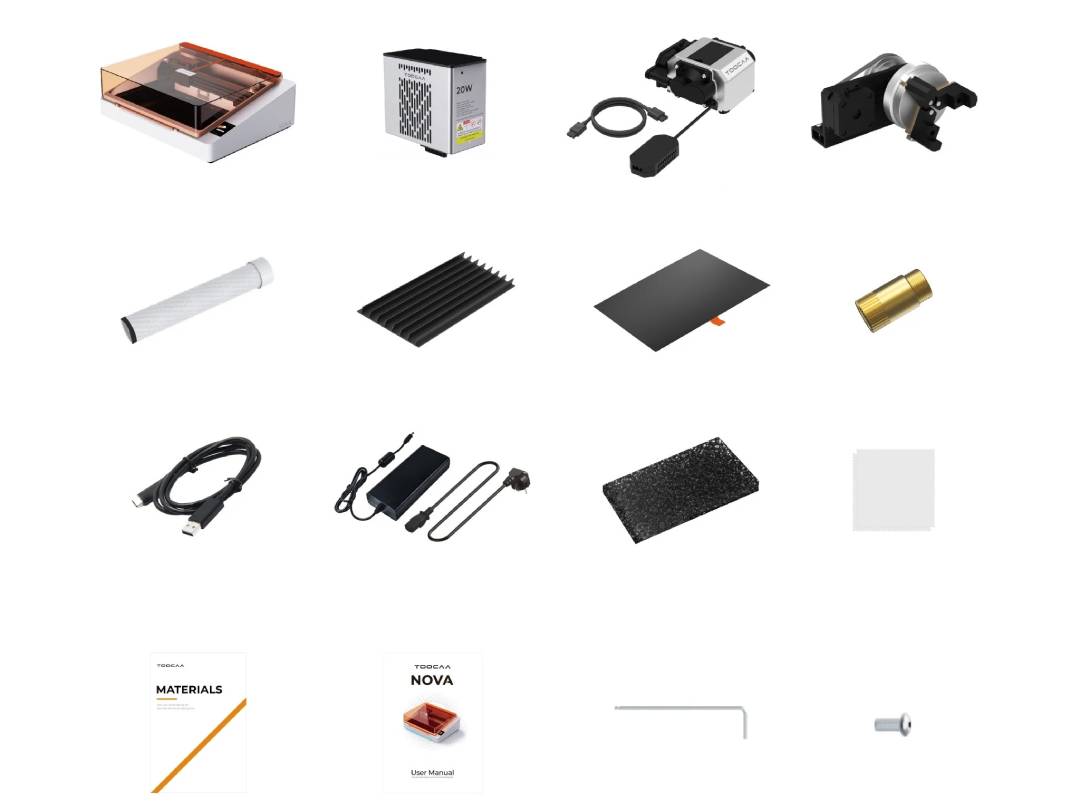

Elements included in the set.
Contents of the set
- TOOCAA NOVA laser engraving machine
- 10W laser module
- Rotation module
- Air Assist Kit
- Cutting work panels x4
- Aluminum protective plate
- Pipe + connector
- Lens holder
- USB cable
- Power supply and power cord
- Air filters x2
- Lint-free cloths x2
- A4 test material
- Allen key
- M3 screw x2
- User manual
Technical specifications of the TOOCAA NOVA laser plotter
| Laser type | diode |
|---|---|
| Laser wavelength | 455 ± 5 nm |
| Laser output power | 10 W |
| Spot size | 0.08 x 0.13 mm |
| Working field | 297 x 210 mm (A4) |
| Maximum engraving speed | 36,000 mm/min |
| Positioning accuracy | 0.01 mm |
| Repositioning accuracy | 0.01 mm |
| Single pass cutting (basswood plywood) | up to 6 mm |
| Supported materials | wood, plywood, MDF, bamboo, leather, fabrics, cardboard, acrylic (dark), lacquered metal, stainless steel, anodized aluminum, glass (dark), ceramics, stone, slate |
| Software | TOOCAA Studio, LightBurn |
| Supported systems | Windows, macOS |
| Communication | USB Type-C, WiFi |
| Interfaces | emergency button, expansion port, rotary module support |
| Security | flame detection, tilt detection, lid opening sensor, parental lock, laser module monitoring, air assist, overheating protection, emergency button |
| Input voltage | AC 100V to 240V, 50/60 Hz |
| Operating voltage | 24V |
| Housing material | aluminum alloy, ABS, PC |
| Dimensions | 513 x 402 x 180 mm |
| Mass | 8.27 kg |
Useful links
| Name | Value |
|---|---|
| CNC - working field | 210 x 297 mm |
| Rodzaj pracy urządzenia | Cutting and engraving |
| Moc lasera | 10 W |
| CNC - Obszar roboczy | 210x297 mm |
| CNC - Rodzaj konstrukcji | Closed |
| CNC - Obsługiwane materiały | Basic |
| CNC - Typ lasera | LED |
| CNC - długość pola roboczego | 297 mm |
| CNC - szerokość pola roboczego | 210 mm |
| CNC - wielkość pola roboczego | Medium |
| Width | 72 cm |
| Height | 24 cm |
| Depth | 70 cm |
| Weight | 18 kg |
