TOOCAA L2 40W laser plotter
The TOOCAA L2 is a powerful 40W diode laser plotter with a working area of 415 x 395 mm and a maximum engraving speed of up to 400 mm/s . This increased power enables fast, deep cutting and precise engraving of a wide range of materials, including wood, acrylic, leather, metal, ceramics, and glass. It supports TOOCAA Studio , LightBurn , and LaserGRBL , offering compatibility with Windows, macOS, and Linux. Its stable aluminum and acrylic construction, extensive safety systems, and high efficiency make the TOOCAA L2 40W an excellent choice for advanced users and small production facilities.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: TOOCAA L2 40 W laser plotter
The TOOCAA L2 is a high-end laser plotter designed for users who demand maximum power and precision. Thanks to its 40W diode laser , the device easily cuts thicker materials— up to 15mm of wood or MDF —and enables deep, clean engraving. A 415 x 395mm work area allows for the completion of even large projects, while a precise positioning mechanism (0.01mm) guarantees high-quality finishes. The aluminum and acrylic construction ensures stability and aesthetics, while also extending the device's lifespan. The plotter is compatible with TOOCAA Studio, LightBurn, and LaserGRBL software, and can be operated on Windows, macOS, and Linux systems. Advanced security systems, extensive detection options, and simple installation make this model an excellent solution for design studios, workshops, and small production facilities.
TOOCAA L2 40 W laser plotter
The TOOCAA L2 plotter has an effective smoke extraction system that effectively filters and removes harmful fumes and dust generated during engraving.
Advanced security systems
The TOOCAA L2 40W plotter is designed with user safety in mind. It meets Class 1 laser standards and is equipped with numerous sensors, including a fire detector, tilt detector, cover open detector, emergency button, and USB interlock . Combined with a physical LED power switch and emergency stop function, the system allows for safe and stable operation even in a home environment.
Effective removal of smoke and pollutants

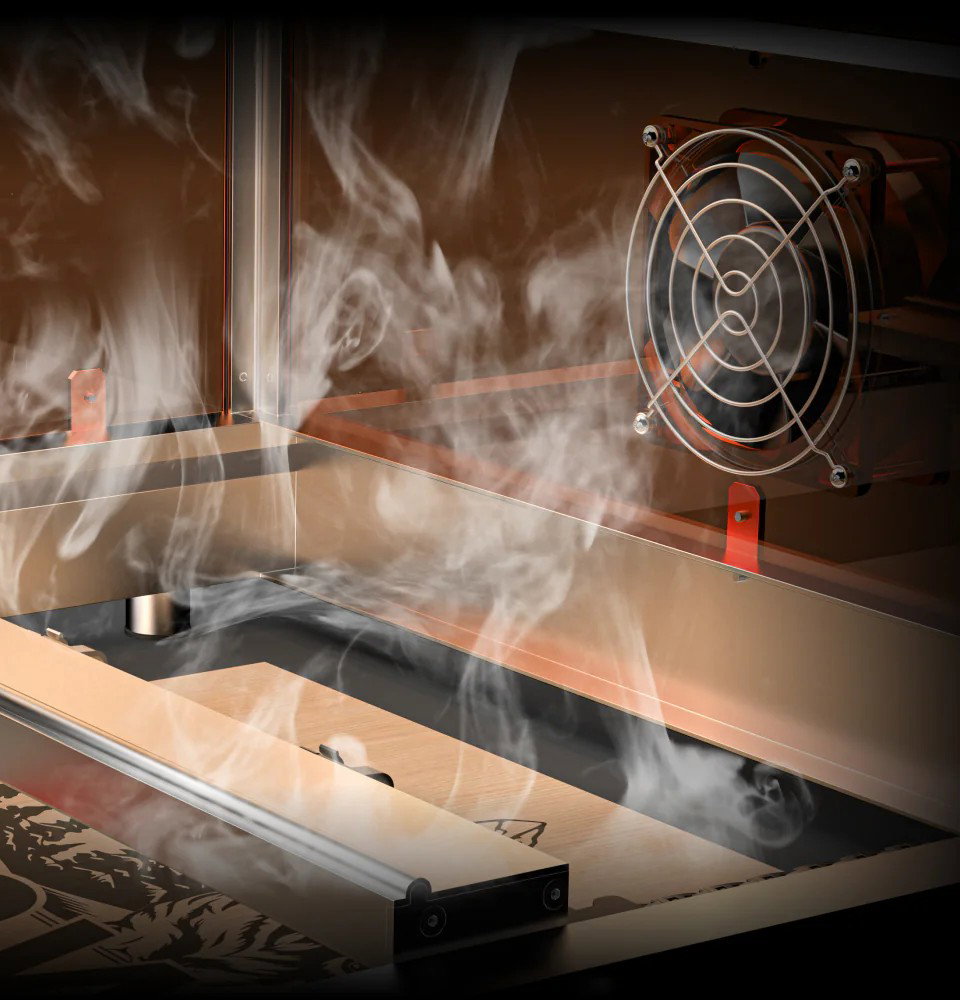

A fume extraction system with a fan and exhaust pipe removes harmful fumes generated during engraving and cutting. This ensures a safe, clean, and comfortable working environment . Improved filtration minimizes the risk of contaminants settling on lenses and mechanical components.
Simple installation and quick start
The device is pre-assembled, reducing setup time by up to 95% compared to traditional DIY kits. Connection is via USB Type-C or TF card , and file transfer requires no additional configuration. The intuitive startup procedure allows you to begin engraving in minutes.
Compatibility and versatility
TOOCAA L2 is compatible with Windows, macOS, and Linux , supporting popular file formats and Toocaa Studio, LightBurn, and LaserGRBL software. This makes it suitable for use in a variety of environments, from classrooms to prototyping and craft workshops. Its ability to work with a wide range of materials means that a single device can handle dozens of different projects.

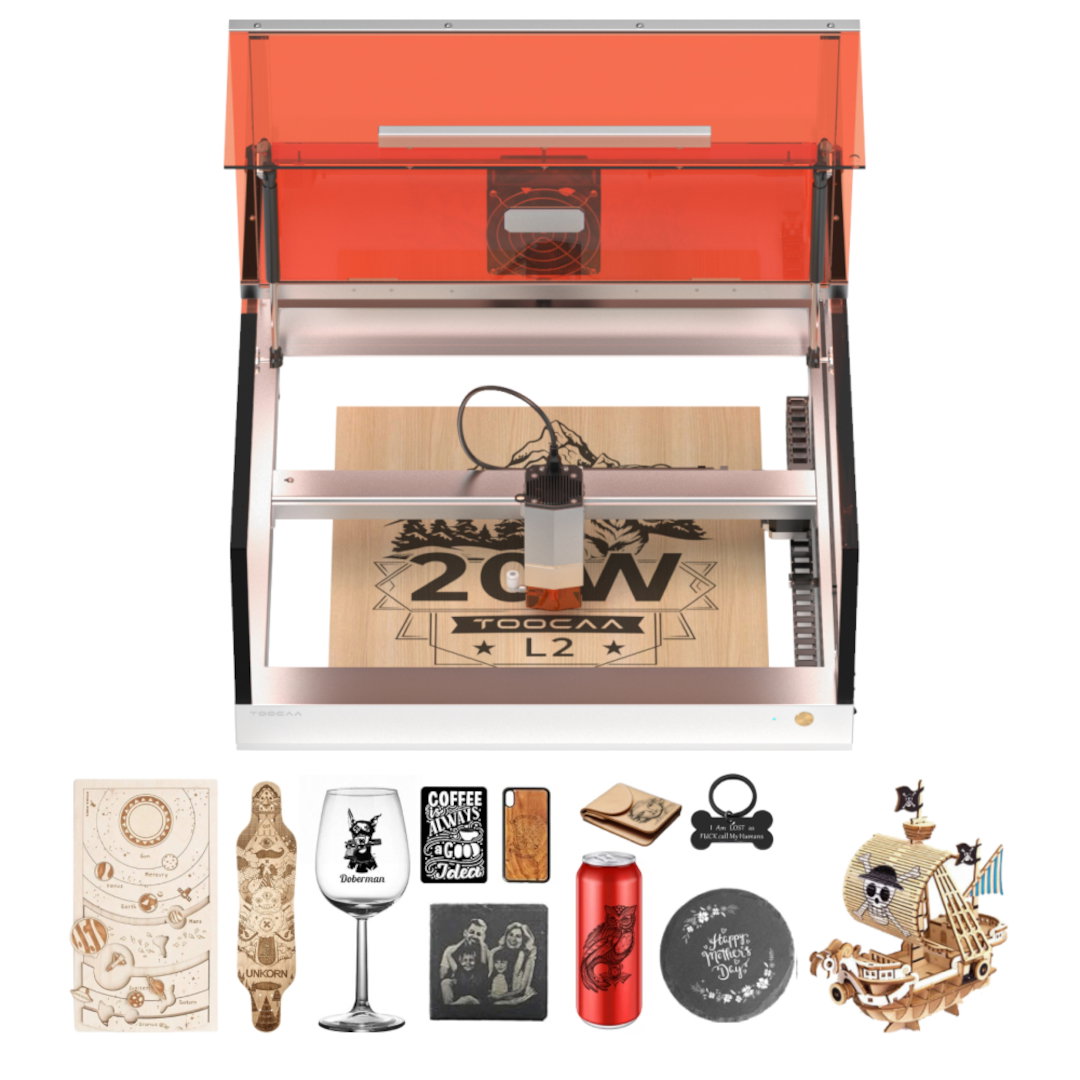

TOOCAA L2 offers a large working area (415 x 395 mm), which allows you to carry out medium-sized projects such as cutting acrylic, wood or leather accessories.

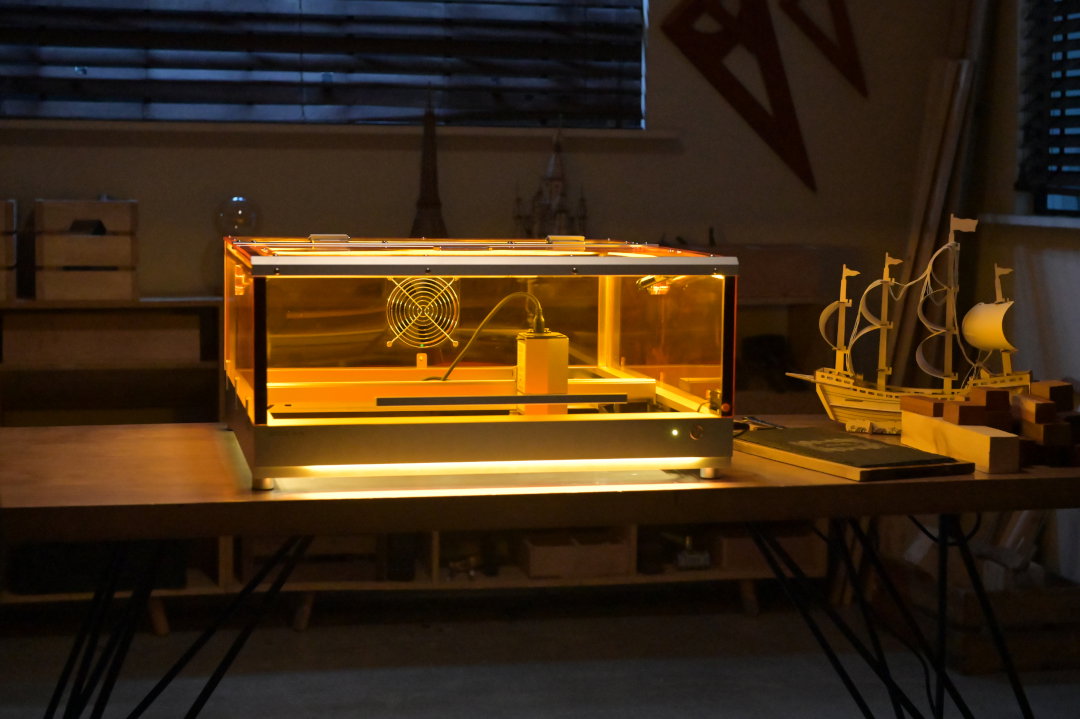

The LED strip shows the operating states of the plotter by displaying different colors.
Visual operation control and LED lighting
The plotter is equipped with a color LED strip that indicates the device's operating status. Additional workspace lighting makes it easier to observe cutting and engraving, even in low light. This solution not only improves comfort but also increases accuracy and quality.
Expandable - optional accessories
Thanks to compatibility with additional accessories , the TOOCAA L2 can gain even greater capabilities. The manufacturer offers, among others, a rotation module, a smoke purifier , and a smart camera . Expansion allows for increased cutting efficiency and a wider range of applications, for example, for processing cylindrical objects.
Kit contents
- TOOCAA L2 laser plotter
- 40W laser module
- Power supply and cables
- Fan and exhaust pipe
- TF card and USB disk
- Goggles
- Assembly equipment (screws, wrenches, tools)
- User manual
The plotter is compatible with Toocaa Studio and LightBurn software, as well as Windows, macOS and Linux systems.
Technical specifications of the TOOCAA L2 laser plotter
| Laser power | 40 W |
|---|---|
| Work area | 415 x 395 mm |
| Positioning resolution | 0.01 mm |
| Repeatability of positioning | 0.02 mm |
| Engraving speed | up to 400 mm/s |
| Maximum cutting depth (linden wood) | 15 mm |
| Laser wavelength | 450 ± 5 nm |
| Spot size | 0.13 x 0.15 mm |
| Laser class | Class 1 |
| Supported materials (engraving) | wood (linden, pine, maple, beech, walnut, bamboo), MDF, acrylic, leather, fabrics, painted metal, stainless steel, anodized aluminum, dark glass, stone, ceramics, marble, jade, slate |
| Supported materials (cutting) | wood (linden, pine, maple, beech, walnut, bamboo), MDF, acrylic, leather, fabrics, cardboard, plastic, dark acrylic (blue excluded) |
| Supported software | Toocaa Studio, LightBurn, LaserGRBL |
| Supported operating systems | Windows, macOS |
| File transfer | TF card, USB Type-C |
| Security and detection | flame detector, machine tilt detector, intelligent guard with lock, USB interlock, optional emergency button |
| Extensions/Ports | emergency stop port, universal expansion port, Z-axis port |
| Input voltage | 24V / 10A |
| Input voltage | from 100 V to 240 V, 50/60 Hz |
| Total power | 240 W |
| Construction material | aluminum + acrylic |
| Dimensions | 645 x 617 x 306 mm |
| Mass | 13 kg |
Useful links
| Name | Value |
|---|---|
| Rodzaj pracy urządzenia | Cutting and engraving |
| Moc lasera | 40 W |
| CNC - Rodzaj konstrukcji | Closed |
| CNC - Obsługiwane materiały | Advanced |
| CNC - Typ lasera | LED |
| CNC - długość pola roboczego | 415 mm |
| CNC - szerokość pola roboczego | 395 mm |
| CNC - wielkość pola roboczego | Big |
| Width | 72 cm |
| Height | 71 cm |
| Depth | 23 cm |
| Weight | 20 kg |
