Step-Down Voltage Regulator D24V6F12 - 12V 0,6A - Pololu 2109

Index: PLL-01347 EAN: 5904422373054

Step-down converter with 12 V output voltage. Maximum current up to 600 mA. Supply voltage in the range 14 V - 42 V.

Step-Down Voltage Regulator D24V6F12 - 12V 0,6A - Pololu 2109
€14.08
€11.45 tax excl.
Available
Check quantity
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: Pololu

Product Description: Polol D24V6F12 - step-down 12V 0.6A step-down converter

A step-down converter used to supply systems operating at 12 V. The system is designed for a wide range of input voltages from 3.8 V to up to 42 V (the minimum value depends on thedrop-out voltage).The module allows for current consumption of up to 600 mA, which is sufficient to supply typical integrated circuits. We also offer versions with otheroutputvoltagesand lowercurrent capacity up to 300 mA.

24V6F12 inverter outputs

The module has four outputs:

  • VIN- input voltage from the range 14 V to 42 V, please pay attention to the drop-out value and shortvoltagepulses, which can damagethe system
  • GND- ground potential
  • VOUT -output voltage
  • SHDN -providing a low state (logical zero) causes the system to switch to a low energy consumption state (about 20 uA). In order to start the system it is necessary to provide high state (logical one - voltage above 2.3 V). If the output will not be used, it can be connected to the neighboring VIN pin.

The connectors are properly signed on the board. Outputs' Raster is 2.54 mm (popular goldpin connectors). The module can be plugged into acontactboard,connected with wiresor soldered intoa dedicated PCB.

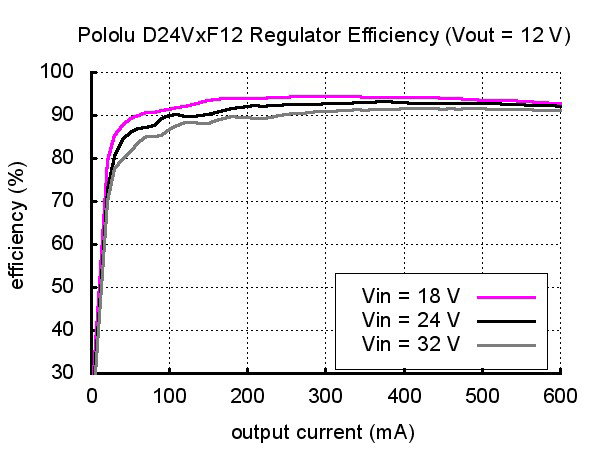

Inverter system efficiency

Efficiency is defined as the ratio of output power to input power (Power out)/(Power in). This is a very important parameter when working with portable energysources(batteries and accumulators), where the time of operation on one charging cycle counts. The efficiency of this pulse system is about 80 % - 90 %.

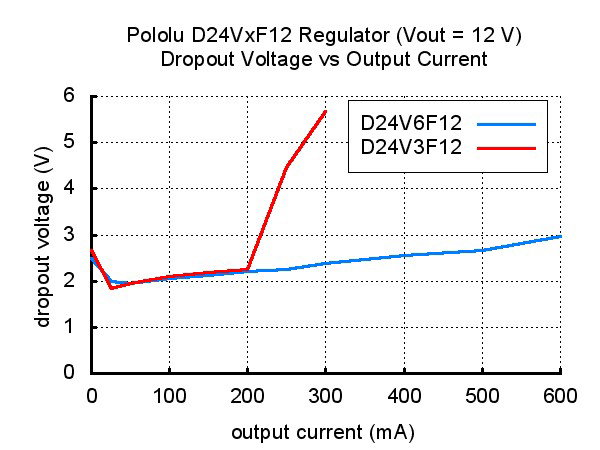

Voltage drop-out

The parameter referred to in the documentation asvoltag drop-outthennecessary for the proper functioning of the system,minimum difference between input and output voltage.For example, if the drop-out is 1 V and the desired output voltage is 5 V, the supply voltage should be higher than 6 V. The figures below show the drop-out voltage value for D24VxFx inverters.

Dangerous voltage pulses

When connecting the power supply to the module, dangerous, short, high amplitude eclectic impulses (so-called pins) may appear, which may permanently damage the system. According to Polol's tests, for voltages above 20V, the pins may have an amplitude of over 42V. In order to protect against this undesirable phenomenon it is recommended to solder a capacitor of at least 33uF as close as possible to the pins powering the converter.

Polol 24V6F12 inverter specification

  • Input voltage: 14* V to 42 V
  • Output voltage: 12 V
  • Maximum input current: 600 mA
  • Efficiency of 80 - 90 %
  • Switching frequency 550 kHz
  • Dimensions: 12 x 10 x 3 mm
  • Weight (without connectors): 0.5 g

* minimum value depending on drop-out voltage

Length 12 mm
Width 10 mm
Height 3 mm
Voltage to 14.0 V
Voltage from 42 V
Voltage output from 12.0 V
Output voltage to 12.0 V
Nominal output voltage 12.0 V
Current 0.6 A
Stabilizer - Type2 switching
Stabilizer - Type step-down
