Step-Down Voltage Regulator D24V6F5 - 5V 0,6A - Pololu 2107
Converter, type step down with an output voltage of 5 V. The maximum current up to 600 mA. Supply voltage ranges from 6 V to 42 V.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Pololu Step-Down Voltage Regulator D24V6F5 - 5V 0,6A
Converter, type step-down is used to power the systems operating with voltage 5 V. The advantage of the system is the wide input voltage ranging from 3.8 V to 42 V (the minimum value depends on thevoltage drop-out). The module allows for current consumption up to 600 mA, it is sufficient value to power average integrated circuits. In our offer, we have also versions of 3.3 Vand with the lower current efficiency of up to300 mA.
Breakouts of D24V6F5 voltage regulator
The module has four leads:
- VIN: - the input voltage from range of 6.0 V to 42 V, it is necessary to pay attention to the value of drop-out and to short voltage pulsesthat can damage the system
- GND: - the ground potential
- VOUT: - output voltage
- SHDN - indicating thelow status (logical zero) causes the system to low energy consumption (approx. 20 uA). To run the system, you must indicate the high state (logical one - voltage above 2.3 V). If the lead is not being used, you can combine it with an adjacent VIN pin.
Botland is an official distributor of Pololu electronics and robotics parts. Countless robots hold at least one component of this brand in their build. Our team guarantees that all Pololu products presented here are original.
System performance of voltage regulator

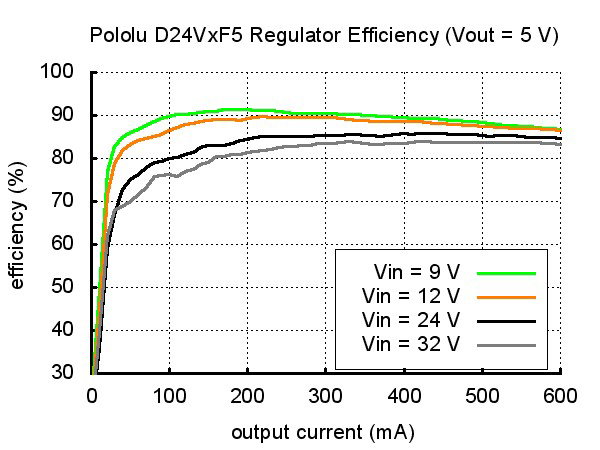

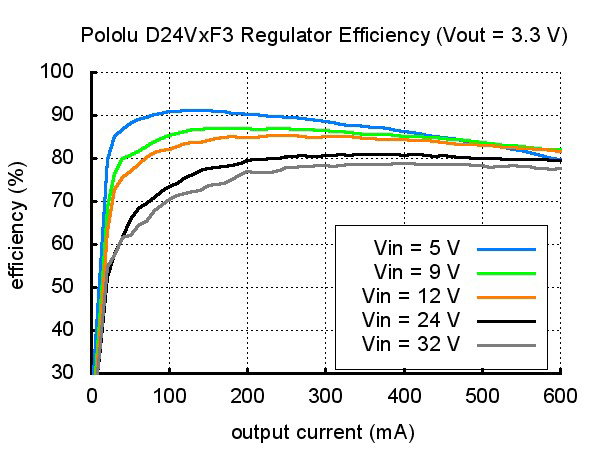

Performance is defined as the ratio of output power to input power (Power out)/(Power in). This is a very important parameter for working with portablesourcesof energy (batteries and accumulators) when working time on one cycle of charging, is very important. The performance of the pulse system is about 80 % - 90 %.
Voltage drop-out

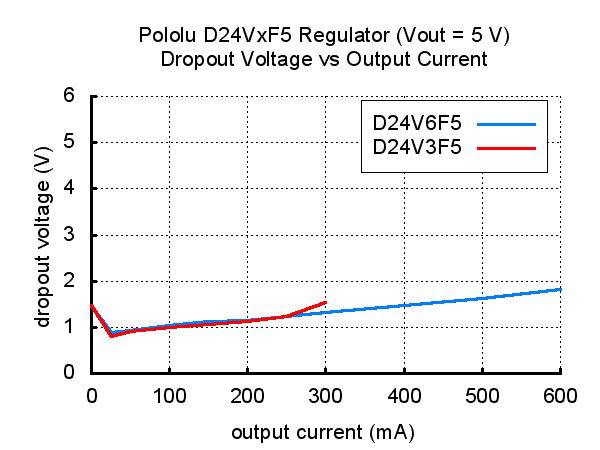

The parameter, stated in the documentation as adrop-out voltage, isnecessary for the proper operation of the system,the minimum difference between input and outputvoltage.For example, if drop-out is 1 V, and preferable output voltage is 5 V, the supply voltagemust be higher than 6V. The figures below show the value of voltage drop-out for converters D24VxFx.
Hazardous voltage pulses
When connecting power to the module, there can appear dangerous, electrical short pulses of high amplitude (so-called pins) which can damage the system. Test of Pololucompany states that for voltages above 20V pins can have an amplitude excessing 42V. In order to protect against this undesirable phenomenon, recommended is soldering the capacitor with value of at least 33uF, as close as possible to the power pins of the converter.
Specification of Pololu D24V6F5 voltage regulator
- Input voltage: 6* V to 42 V
- Output voltage: 5 V
- Maximum input current: 600 mA
- An efficiency level of 80 - 90 %
- The switching frequency is 550 kHz
- Dimensions: 12 x 10 x 3 mm
- Weight (without connectors): 0.5 g
Useful links
| Name | Value |
|---|---|
| Length | 12 mm |
| Width | 10 mm |
| Height | 3 mm |
| Voltage to | 6.0 V |
| Voltage from | 42 V |
| Voltage output from | 5.0 V |
| Output voltage to | 5.0 V |
| Nominal output voltage | 5.0 V |
| Current | 0.6 A |
| Stabilizer - Type2 | switching |
| Stabilizer - Type | step-down |
| Width | 7.5 cm |
| Height | 0.7 cm |
| Depth | 8.5 cm |
| Weight | 0.002 kg |
