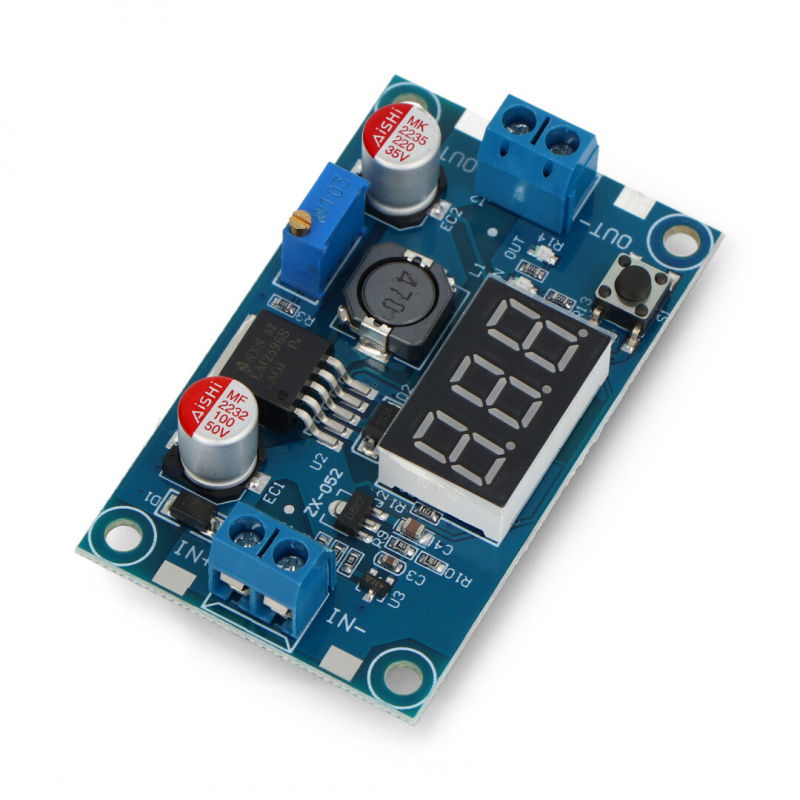

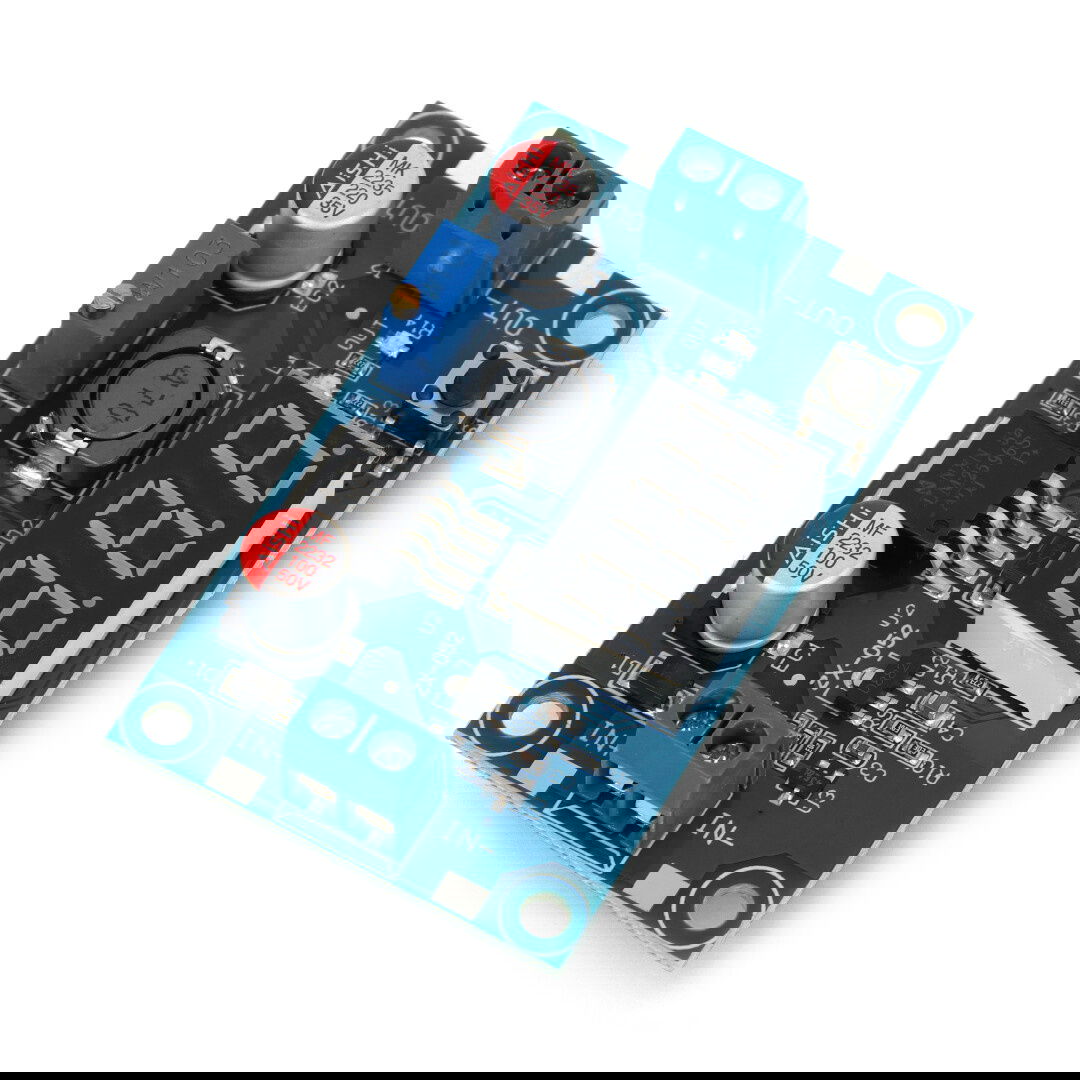

Product description: LM2596S 3.2V-35V 3A step-down converter with display
Module with LM2596S step-down switching converter . Input voltage from 3.2 V to 35 V. Maximum continuous output current 3 A. Output voltage adjustable from 3.2 V to 35 V.
LM2596S converter specifications
- Input voltage: 3.2 V to 50 V
- Output voltage: 3.2 V to 35 V (lower than input)
- Maximum continuous output current: 3 A (with cooling, up to 2 A without heatsink)
- LM2596S driver ( documentation )
- Efficiency: less than 90% (depending on power consumption)
- Switching frequency: 150 MHz
- Four mounting holes with a diameter of 3 mm
- Display showing output or input voltage (selection by button)
- Board dimensions: 65 x 39 x 12 mm
- Weight: 23 g
How to use
The module has four terminals as screw connectors:
| Pin | Description |
|---|---|
| IN+ | Input voltage - positive pole. |
| IN- | Input voltage - negative pole (ground). |
| OUT+ | Output voltage - positive pole. |
| OUT- | Output voltage - negative pole (ground). |
The output voltage is adjustable from 3.2 V to 35 V using a potentiometer. Note that this is a step-down circuit, so the output voltage cannot exceed the input voltage.
