Description: Step-down Voltage Inverter LM2596 - 3.2V-35V 3A

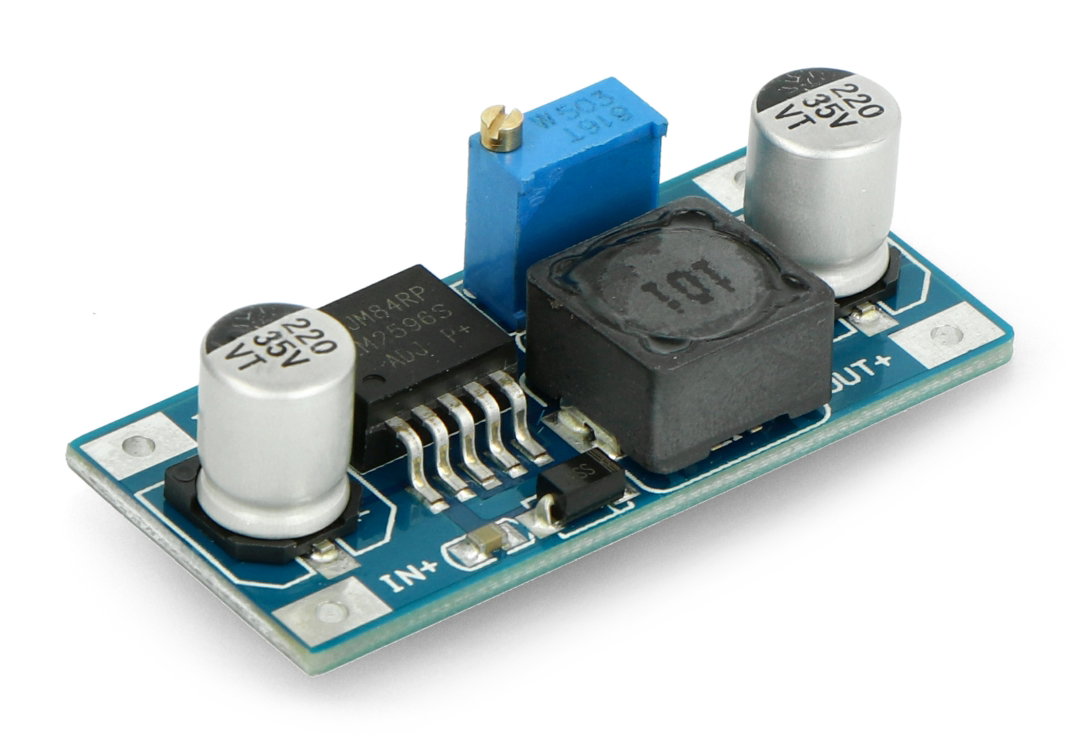

Module with pulse inverter step-down LM2596. Input voltage from 3.2 V to 35 V Maximum continuous output current of 3 A. The output voltage is adjustable from 3.2 V to 35 V.
| The product is assembled manually, may contain cracks and flaws, however, these operational parameters are fully retained. |
Method of application

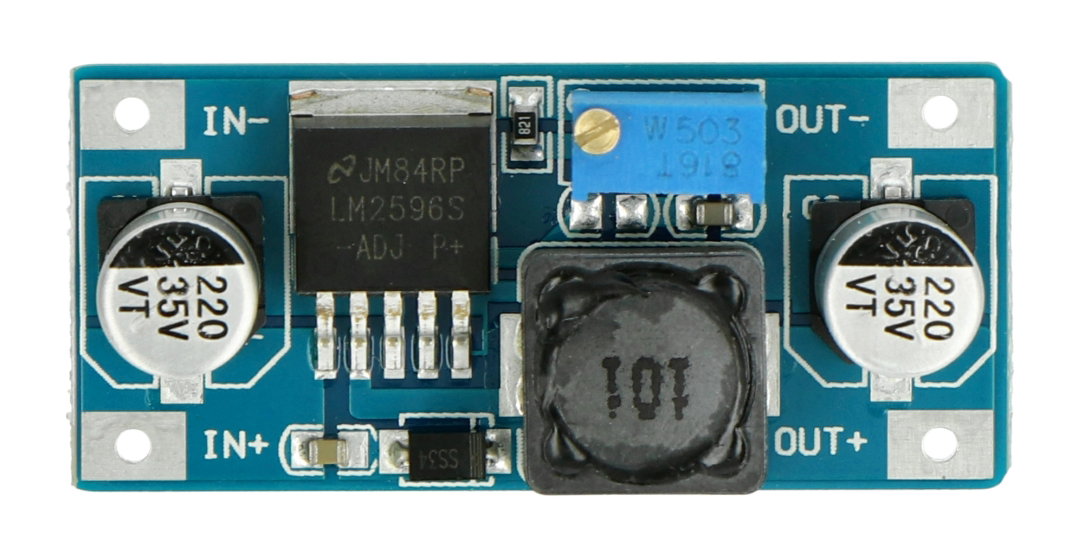

The module has four I/Os to solder the wires:
| Pin | Description |
|---|---|
| IN+ | Input voltage - the positive pole. |
| IN- | Input voltage - the negative pole (mass). |
| OUT+ | The output voltage - the positive pole. |
| OUT- | Output voltage - the negative pole (mass). |
Output voltage is selected from the range of 3.2 V to 35 V by a potentiometer. You should note that this system is lowering the voltage so the output voltage can not be higher than the input voltage.
Specification of Step-down Voltage Inverter LM2596 - 3.2V-35V 3A
- Input voltage: from 3.2 V to 35 V
- Maximum continuous output current: 3 A (with cooling, to 2 A without radiator)
- Driver LM2596 (documentation)
- Efficiency: up to 90 % (depending on power consumption)
- Switching frequency: 150 kHz
- Tile sizes: 44 x 20 x 13 mm
- Weight: 11 g
