Product description: 3.3V adjustable step-down converter - 25V 5A - DFRobot DFR0205.
Inverter module for converting input voltagefrom 3.6 V to 25 V, to output voltagefrom 3.3 V to 25 V. The current capacity for 5 V is 5 A.The input voltage must be higher than the output voltage.
Step-down converter - adjustable.

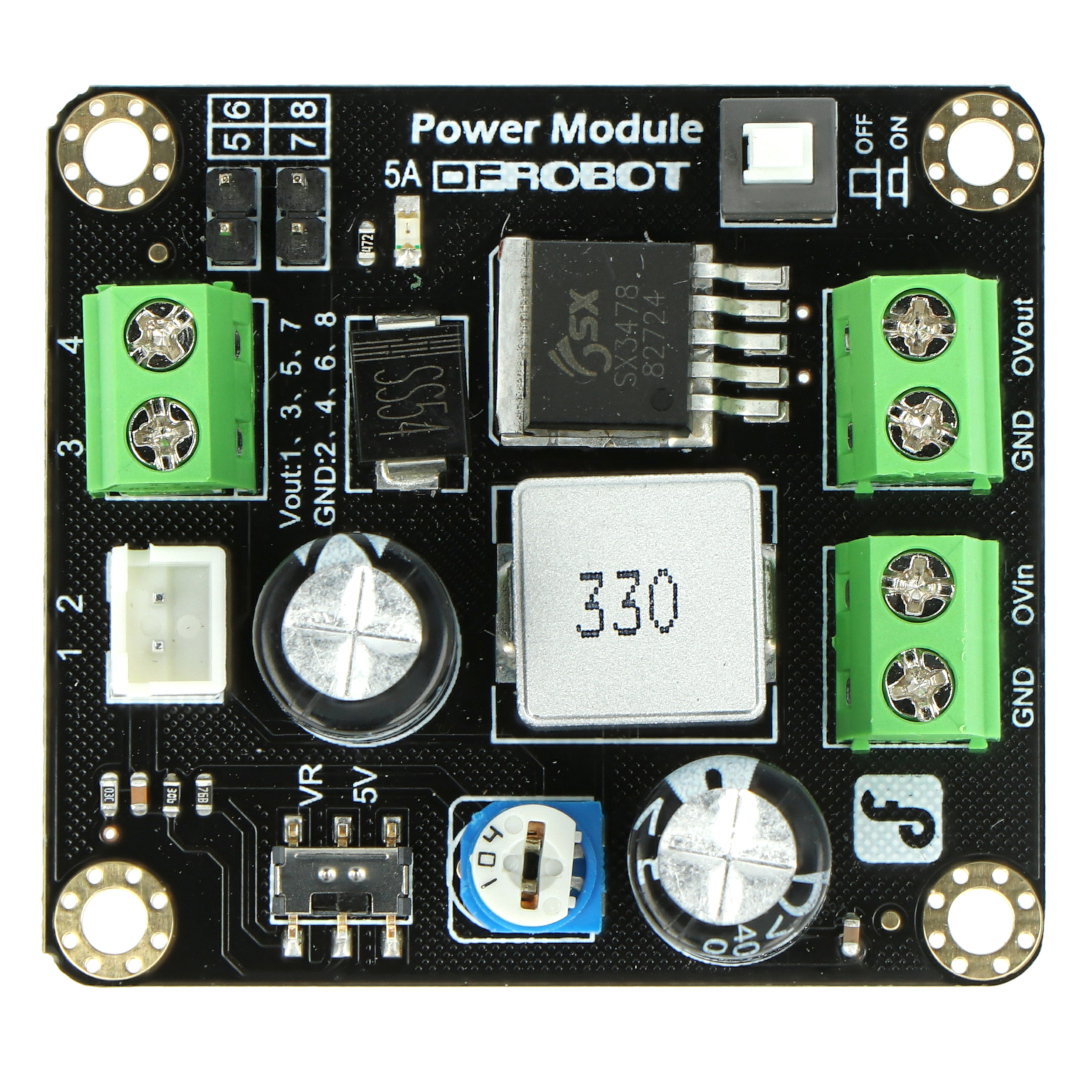

The module has three different output interfaces, such as goldpin, ARK connectors and JST 2-pin raster 2.54 mm. On the python there is a power switch and a potentiometer to set the output voltage, as well as a switch for 5 V or set by the potentiometer.
Module outputs

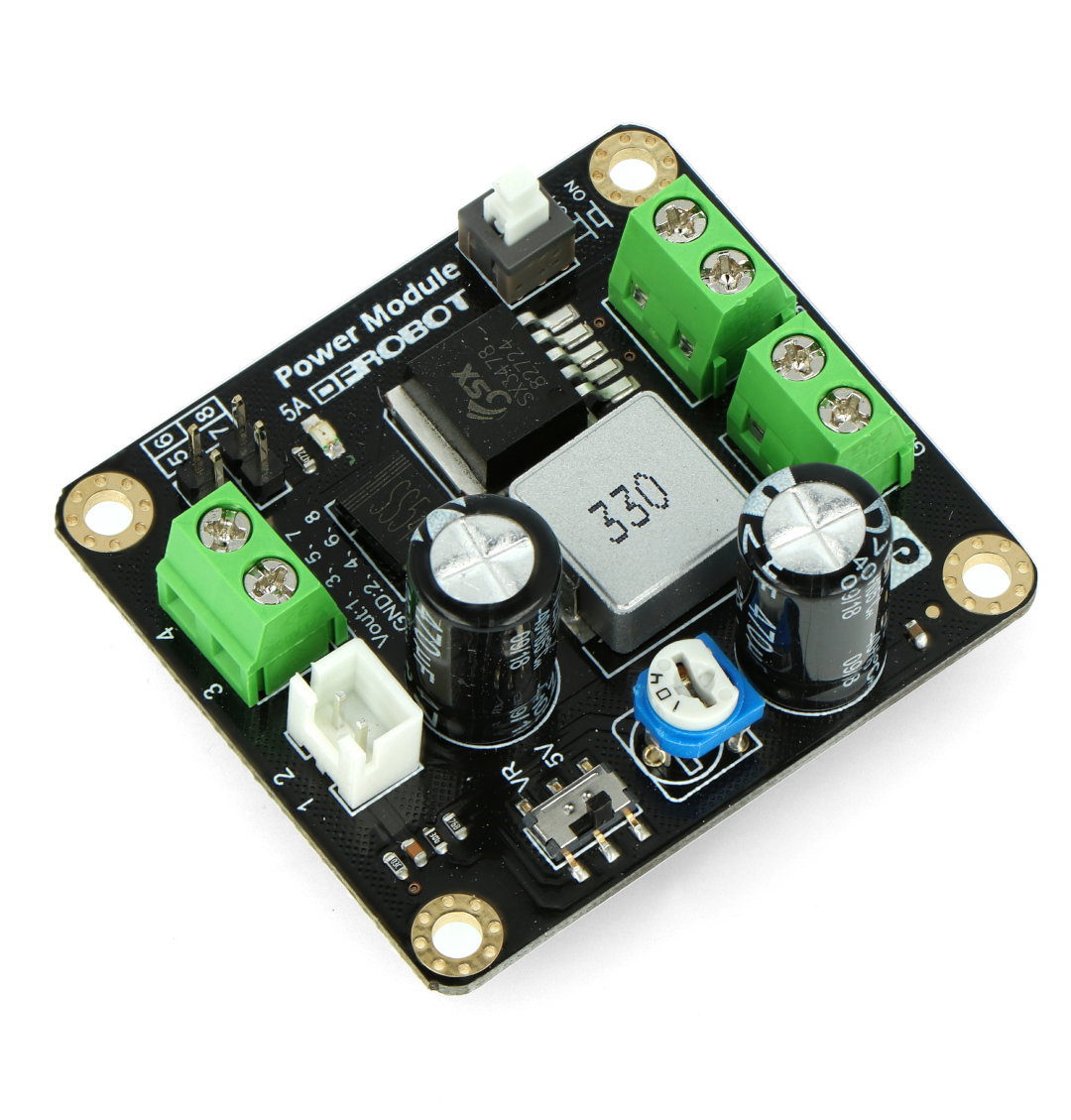

The board is equipped with three different output interfaces: goldpin, ARK and JST connectors.
| Pin | Description |
|---|---|
| 1, 2 | JST connector 2.54 mm - output voltage interface (Vout: 1, GND: 2) |
| 3, 4 | ARK connectors - output voltage interface (Vout: 3, GND: 4). |
|
5, 6 7, 8 |
Goldpin connectors - output voltage interface (Vout: 5, 7; GND: 6, 8). |
|
OFF ON |
Module power switch. |
|
GND OVout |
Original output voltage - ARK connector. |
|
GND OVin |
Original nInput voltage - ARK connector. |
|
Potentiometer |
Potentiometer to adjust output voltage from 3.3 V to 25 V |
|
Switch |
Slider switch for voltage selection: 5 V or set by potentiometer. |
DFRobot specification
- Input voltage: 3.6 V to 25 V
- Output voltage: adjustable from 3.3 V to 25 V
- Output current: 5 A for 5 V
- Maximum output power: 25 W
- Switching frequency: 350 kHz
- Three different output interfaces:
- ARK connectors
- goldpin
- JST connector raster 2.54 mm
- One interface for the original output voltage
- Dimensions: 50 x 46 x 20 mm
