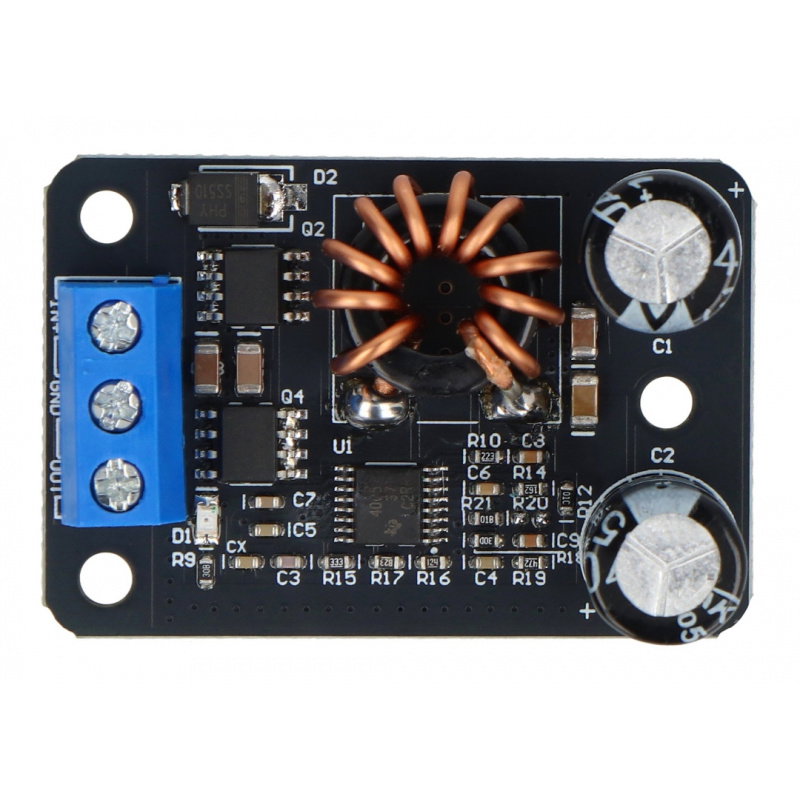

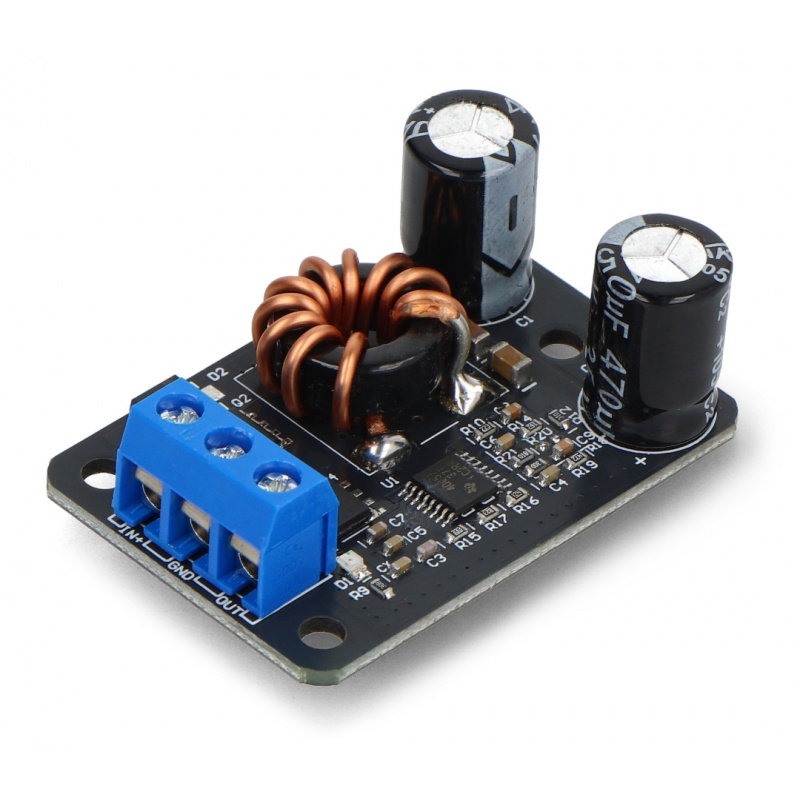

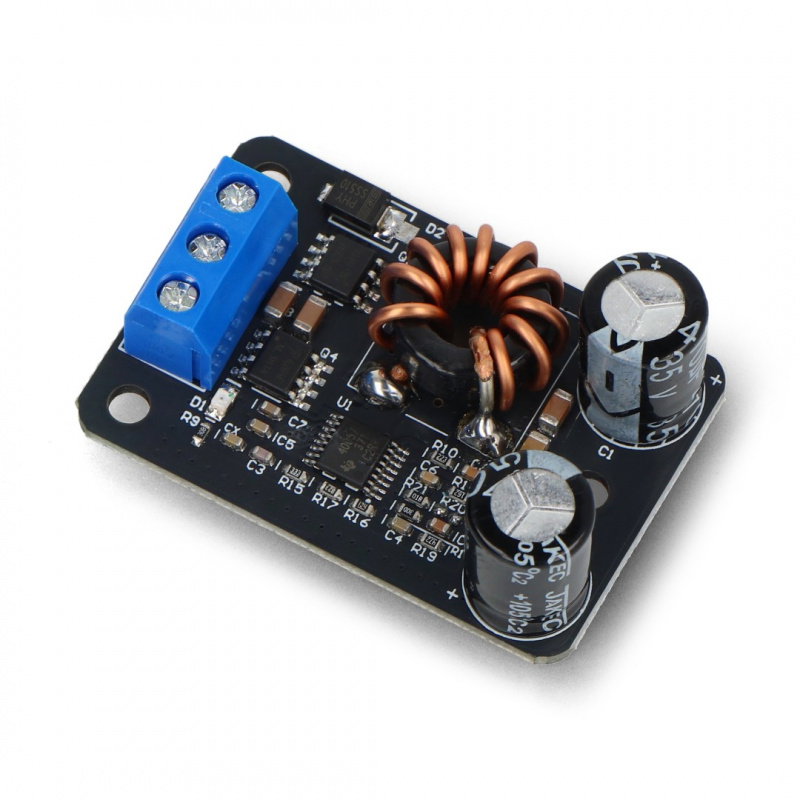

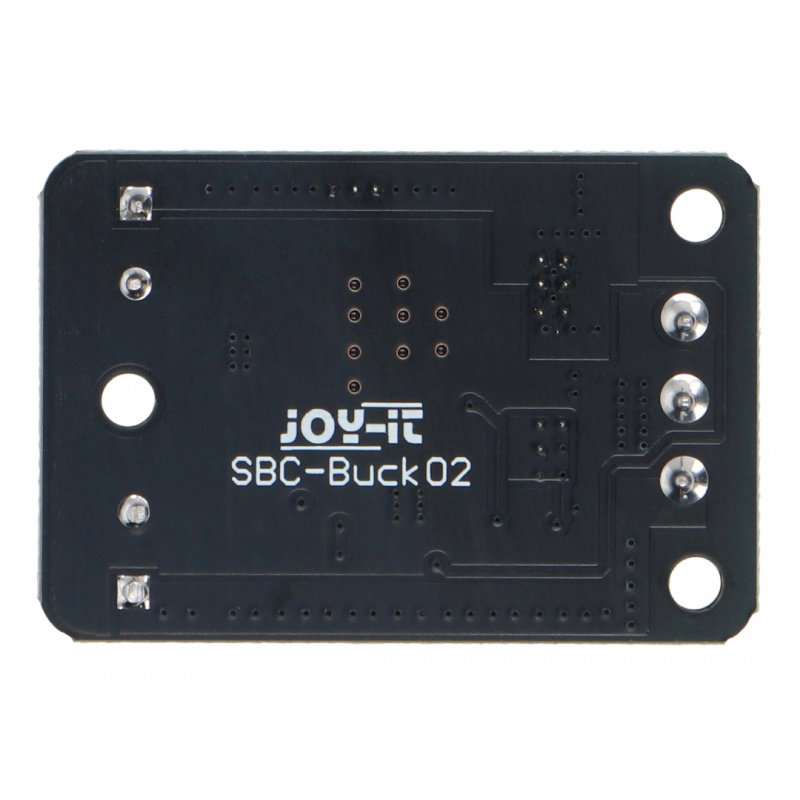

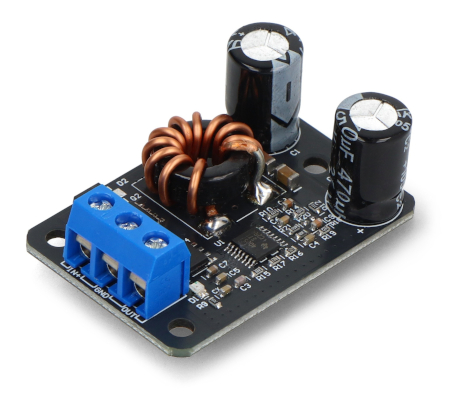

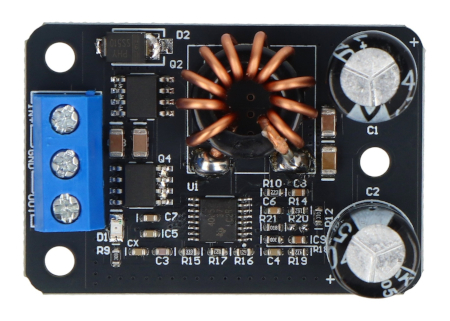

Product description: Step-down converter 9V - 35V to 5V 5A
The DC voltage converter module is a practical solution for stabilizing the power supply of devices requiring a 5V supply. The device allows for reducing the input voltage from 9V to 35V DC to a stable 5V DC level, making it suitable for a wide range of electronics applications. The converter offers a maximum output current of 5A and a maximum output power of 25W , allowing it to power many popular 5V modules and devices. It is suitable for powering microcontrollers, communication modules, SBC computers, IoT devices, and other projects requiring a stable 5V supply .
Step-down converter 9 V - 35 V to 5 V 5A.
The DC voltage converter module is a practical solution designed to stabilize the power supply of devices requiring 5 V.Special features
- Wide input voltage range: Supports voltage from 9V to 35V DC
- Stable output voltage: convert to 5V DC
- Output current up to 5 A: ability to power devices requiring a higher current load
- Up to 25W output power: suitable for many electronics applications and embedded systems
- Input current up to 3.5 A: a parameter that facilitates the selection of the appropriate power source
- Compact design: easy integration into electronic designs, enclosures, and mobile installations
- Easy installation: 3-pin screw connector makes it easy to connect the wires
Technical specifications
- Model: Step-down converter with 5V output
- Input voltage: 9V to 35V DC
- Maximum input current: 3.5 A
- Output voltage: 5V DC
- Maximum output current: 5 A
- Maximum output power: 25 W
- Conversion type: step-down
- Connector: 3-pin screw connector
- Dimensions: 31 x 46 x 19 mm
- Weight: 17 g
The compact design facilitates the integration of the module in housings, industrial installations and mobile systems. Useful links |
