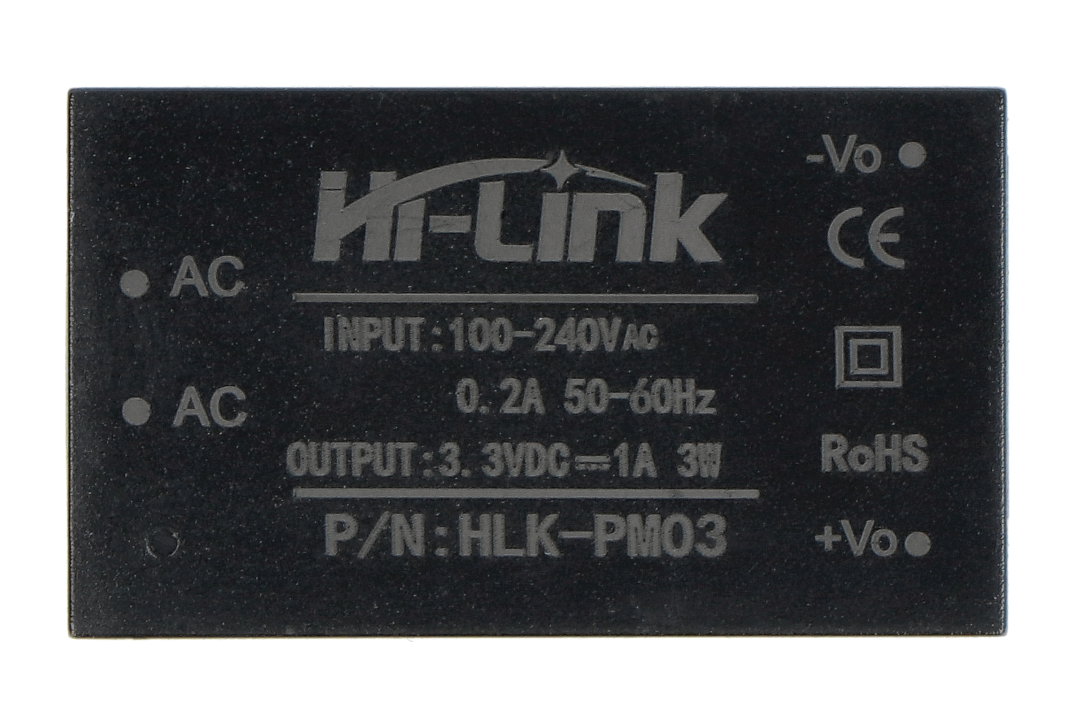

Hi-Link Power Supply HLK-PM03 100V-240VAC / 3.3VDC - 1A
The HLK-PM03 power supply from Hi-Link converts mains voltage (AC) from 100 V to 240 V into 3.3 V direct current (DC) with a current capacity of 1 A. It is ideal for powering projects straight from a 230V mains socket where there is insufficient space for a traditional power supply.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Hi-Link HLK-PM03 100V-240VAC / 3,3VDC - 1A power supply
The HLK-PM03power supply from Hi-Link converts mains voltage (AC) from 100V to 240V to DC 3.3V with a current capacity of 1A. It is ideal for powering projects straight from a 230V mains socket where there is insufficient space for a traditional power supply.
HLK-PM03 Hi-Link Power Supply 100 V - 240 V AC / 3.3 V DC - 1 A.
Specification
- Input voltage: from 100 V to 240 V AC
- Output voltage: 3.3V DC
- Maximum input current: 0.2 A
- Output current: 1 A - momentary: up to 1.2 A
- Efficiency at 220 V supply and full load: up to 70%
- Reliability: MTBF up to 100000 h
- Voltage stabilization: ± 0,2 %
- Current stabilization: ± 0,5 %
- Noise: up to 70 % mVp-p
- Overcurrent protection: 150 % to 200 % of rated maximum load
- Short-circuit protection
- Low No-load current mode: less than 0,1 W
- Operation temperature: from -20 °C to 60 °C
- Storage temperature: from -40 °C to 80 °C
- Relative humidity: 5 % to 95
- Dimensions: 34 x 20 x 15 mm
Useful links
| Name | Value |
|---|---|
| Length | 34 mm |
| Width | 20 mm |
| Height | 15 mm |
| Voltage to | 230 V AC |
| Voltage from | 230 V AC |
| Voltage nominal | 230 V AC |
| Voltage output from | 3.3 V |
| Output voltage to | 3.3 V |
| Nominal output voltage | 3.3 V |
| Nominal power | 3 W |
| Current | 1 A |
| Stabilizer - Type2 | switching |
| Stabilizer - Type | step-down |
| Power supply - type | mounting |
| Power supply - Plug | pin |
| Width | 6 cm |
| Height | 1.5 cm |
| Depth | 8 cm |
| Weight | 0.022 kg |
