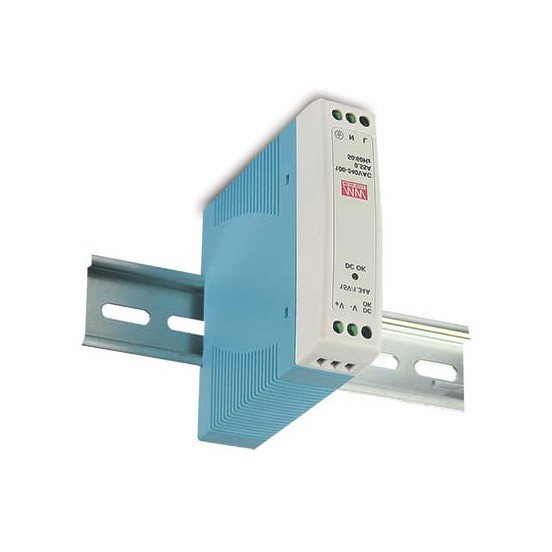

Power supply Mean Well MDR-10-12 for DIN rail - 12V / 0.84A / 10W
12 V with a DC OK signal in a 22.5 mm housing: Mean Well MDR-10-12 industrial DIN rail power supply.
- Current up to 0.84 A, power 10 W
- Input 85-264 V AC
- Hold-up time 120 ms at 230 V AC
We could not load the price.
The promotional price does not combine with quantity discounts.
12 V power supply with DC OK signal, one module wide
Mean Well MDR-10-12 is an industrial DIN rail power supply 22.5 mm wide. It delivers 12 V and up to 0.84 A, which is 10 W, so it can power a sensor, a small controller, a communication module or a relay with a 12 V coil in a control cabinet.
In addition to +V and -V, the output terminals carry a DC OK signal, which tells the controller that the output voltage is correct. The power supply works from mains of 85 V to 264 V AC, has a protective earth terminal and is cooled without a fan. Every unit undergoes a full-load test at the manufacturer.

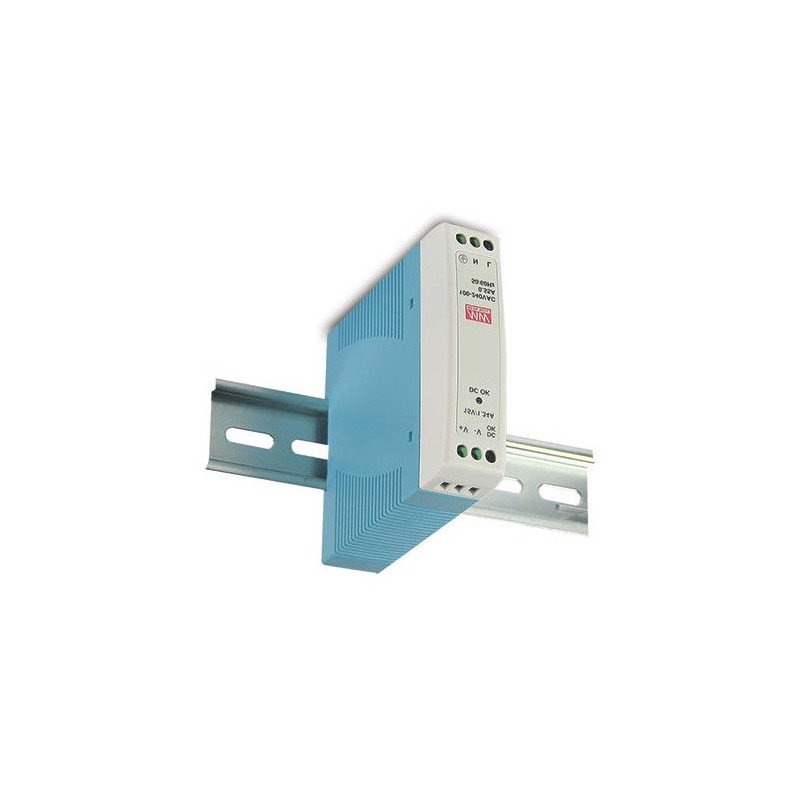

Mean Well MDR-10-12 power supply on a DIN rail
12 V / 0.84 A
rated power 10 W
22.5 mm
width of the DIN rail housing
DC OK
correct output voltage signal
120 ms
hold-up time at 230 V AC
A good choice for you?
A good choice if:
- you need a low-power 12 V power supply in a narrow housing
- you want the controller to know whether the power supply is working (DC OK signal)
- you mount the power supply in a cabinet with a TS35 rail
Consider another option if:
- you need more current at 12 V: see the Mean Well MDR-20-12 power supply (1.67 A)
- you power 5 V electronics: choose the Mean Well MDR-10-5 power supply
Technical specifications
| Parameter | Value |
|---|---|
| Type | industrial switching power supply for DIN rail |
| Output voltage | 12 V DC |
| Output current | 0-0.84 A |
| Rated power | 10 W |
| Ripple and noise | max. 120 mVp-p |
| Input voltage | 85-264 V AC or 120-370 V DC |
| Efficiency | typically 81% |
| No-load power consumption | below 0.75 W |
| DC OK signal | 9-13.5 V / 40 mA |
| Protection | overload (above 105% of power), short circuit, overvoltage (13.8-16.2 V) |
| Hold-up time | 120 ms at 230 V AC, full load |
| Operating temperature | -20 °C to +70 °C (derating above approx. 60 °C) |
| Cooling | natural, fanless |
| Mounting | DIN rail TS35/7.5 or TS35/15 |
| Connectors | screw terminals: L, N, FG, +V, -V, DC OK |
| Dimensions | 22.5 x 90 x 100 mm |
| Weight | 150 g |
| Manufacturer warranty | 3 years |
| Manufacturer | Mean Well |
Did you know?
Every unit is run before shipping
Mean Well states that every power supply in the MDR-10 series undergoes a burn-in test under full load before it goes on sale. Such a test catches faulty components, which usually fail in the first hours of operation.
Source: Mean Well: MDR-10 datasheet
Frequently asked questions
What is the DC OK output for?
It is a signal of 9 V to 13.5 V at up to 40 mA that appears when the output voltage is correct. You connect it to a controller input so that it can detect a power supply failure.
Can I change the output voltage?
No. The MDR-10-12 delivers a fixed 12 V. If you need a different voltage, choose the 5 V or 24 V version of this series.
Do I need to connect the earth?
Yes. The power supply has an FG terminal for the protective earth conductor and should be connected to it according to the manufacturer's instructions.
Useful links
| Name | Value |
|---|---|
| Voltage output from | 12.0 V |
| Output voltage to | 12.0 V |
| Nominal output voltage | 12.0 V |
| Nominal power | 10 W |
| Current | 0.84 A |
| Power supply - type | for DIN rail |
| Power supply - Plug | ARK screw |
| Width | 10.6 cm |
| Height | 11.4 cm |
| Depth | 2.8 cm |
| Weight | 0.152 kg |
