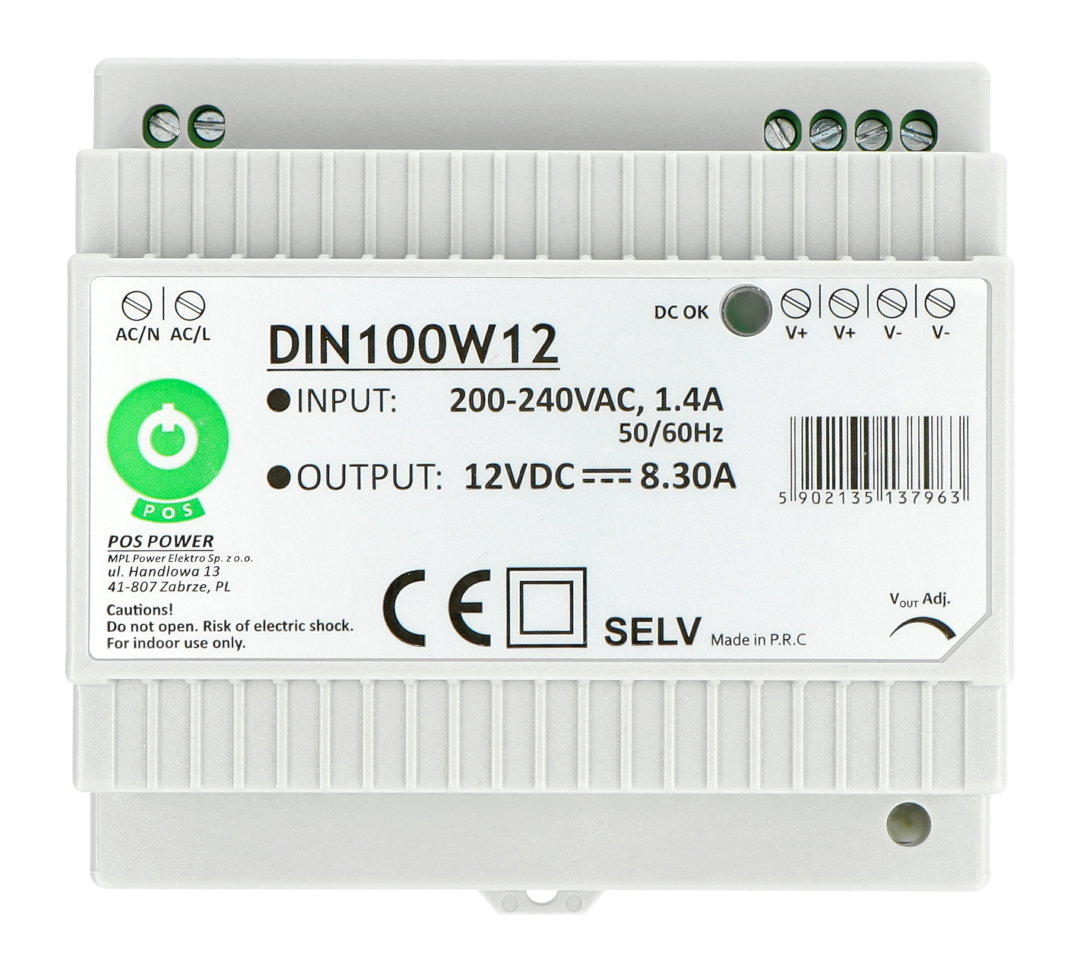

DIN100W12 power supply for DIN rail - 12V/8,3A/100W

Index: ZAS-06395 EAN: 5902135137963

DIN rail mounted power supply unit. Input voltage from 200 V to 240 V AC. Output voltage is 12 V. Output current up to 8,3 A.

€20.59
€16.74 tax excl.
Available, 24 hours shipping!
Check quantity
Shipping in 24 hours
30-day returns
PayPal payment
Manufacturer: OEM

Product description: DIN100W12 DIN rail mounted power supply - 12 V / 8.3 A / 100 W

DIN rail mounted power supply unit. The input voltage of the power supply is 200 V to 240 V AC and the output voltage is 12 V. Output current up to 8.3 A.

Power supply specification

  • Supply voltage:
    • AC 200 V to 240 V
  • Type: Switch Mode
  • Output voltage: 12 V DC
  • Output current: 8.3 A
  • Power: 100 W
  • DIN rail mounted
  • Connections in the form of screw terminals
  • Signalling the correct output voltage: DC OK LED
  • Dimensions: 92 x 98 x 56 mm
  • Weight: 290 g

DIN100W12 DIN rail mounted power supply - 12 V / 8.3 A / 100 W.

Voltage output from 12.0 V
Output voltage to 12.0 V
Nominal output voltage 12.0 V
Nominal power 100 W
Current 8.3 A
Power supply - type for DIN rail
Power supply - Plug ARK screw
