DIN15W12 power supply for DIN rail - 12V/1,25A/15W

Index: ZAS-06388 EAN: 5902135137895

DIN rail mounted power supply unit. Input voltage from 200 V to 240 V AC. Output voltage is 12 V. Output current up to 1.25 A.

€8.22
€6.69 tax excl.
Waiting for confirmation of delivery date
Temporarily unavailable
30-day returns
PayPal payment
Manufacturer: OEM

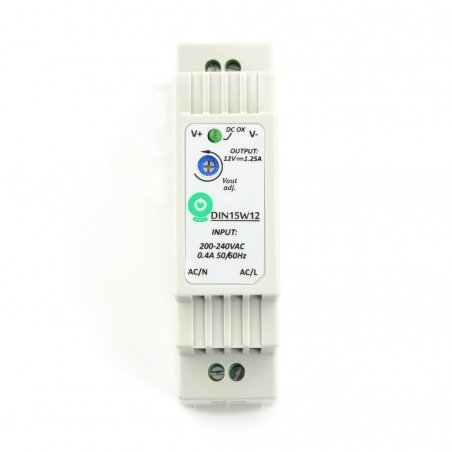

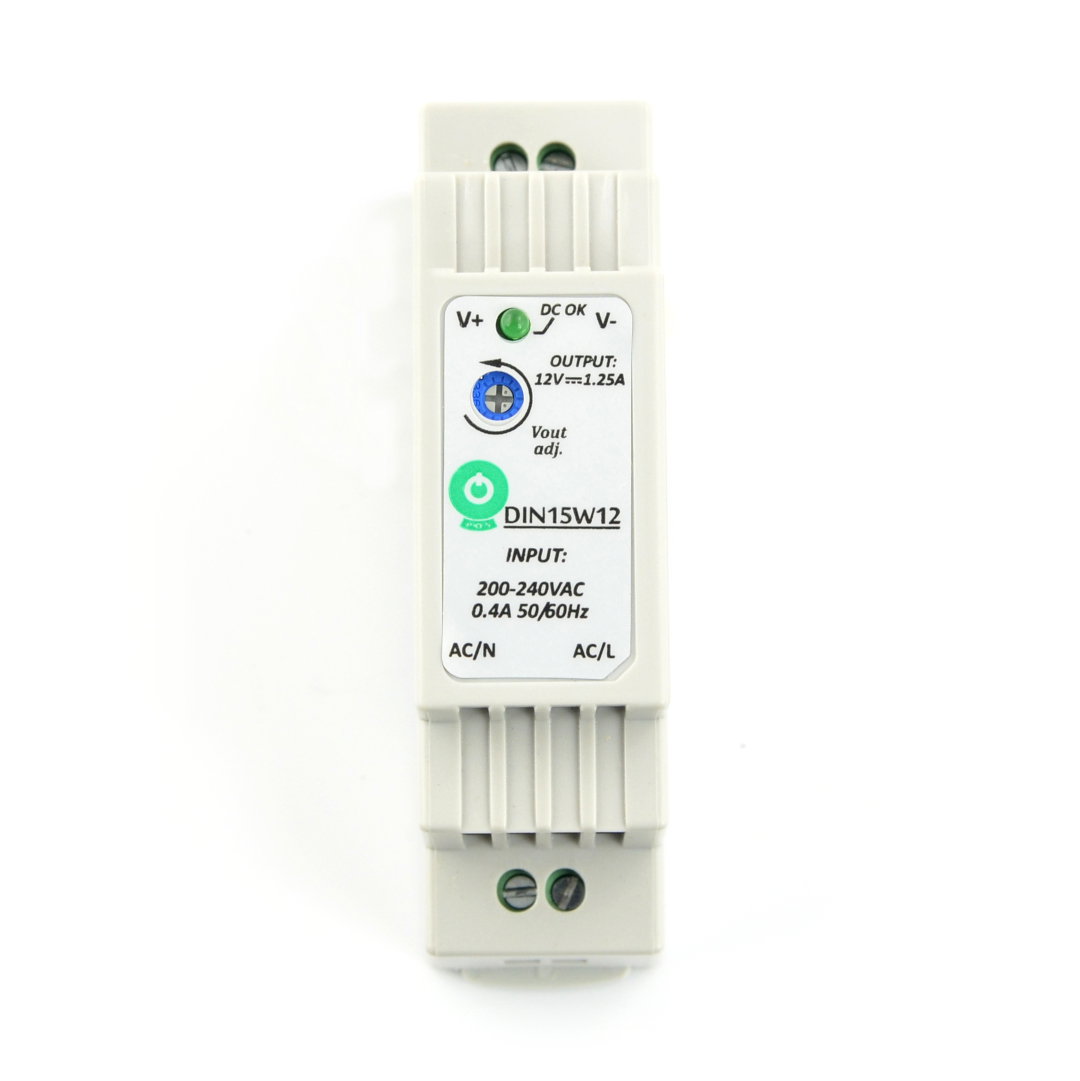

Product description: DIN rail mounted power supply DIN15W12 - 12 V / 1,25 A / 15 W

DIN rail mounted power supply unit. The input voltage of the power supply is 200 V to 240 V AC and the output voltage is 12 V. Output current up to 1.25 A.

Power supply specification DIN15W12

  • Supply voltage:
    • AC 200 V to 240 V
  • Type: Switch Mode
  • Output voltage: 12 V DC
  • Output current: 1.25 A
  • Power: 15 W
  • DIN rail mounted
  • Connections in the form of screw joints
  • Signalling the correct output voltage: DC OK LED
  • Potentiometer for output voltage adjustment
  • Dimensions: 92.5 x 56 x 25 mm
  • Weight: 100 g

Details in the documentation.

Zasilacz DIN15W12 na szynę DIN - 12 V / 1,25 A / 15 W.

DIN15W12 DIN rail power supply - 12 V / 1.25 A / 15 W.

Voltage output from 12.0 V
Output voltage to 12.0 V
Nominal output voltage 12.0 V
Nominal power 15 W
Current 1.2 A
Power supply - type for DIN rail
Power supply - Plug ARK screw
