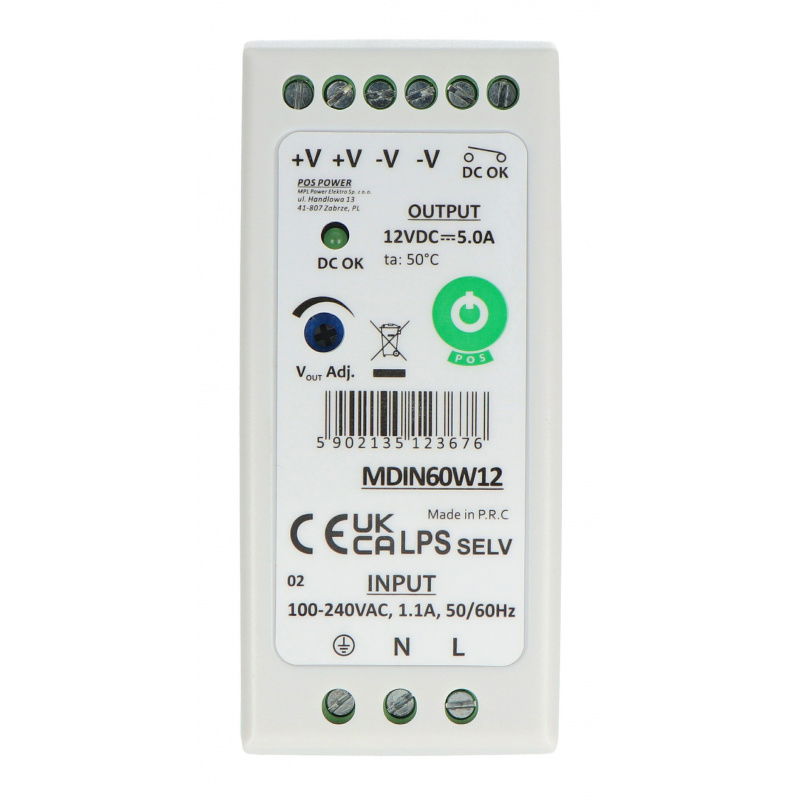

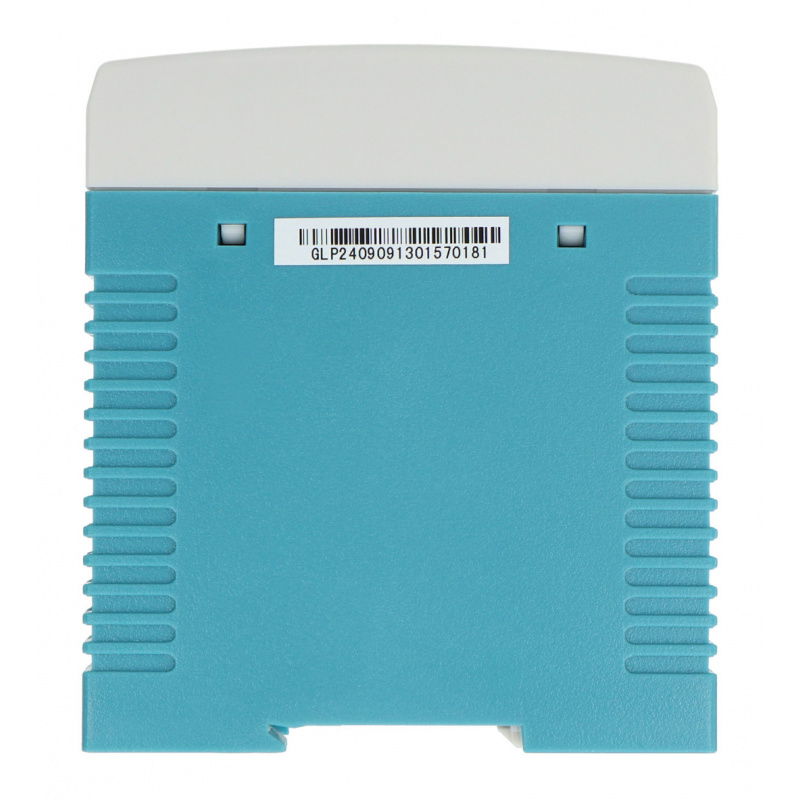

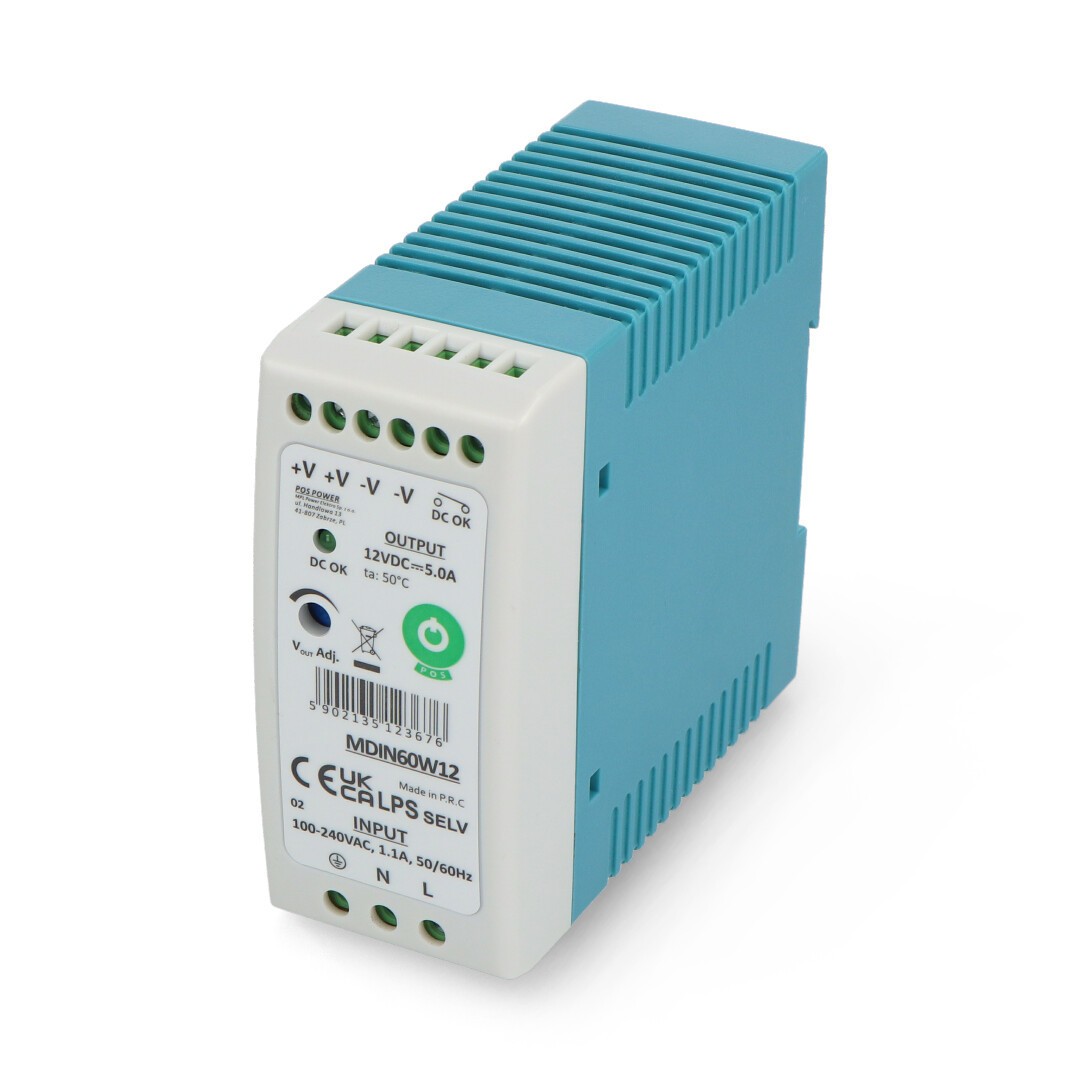

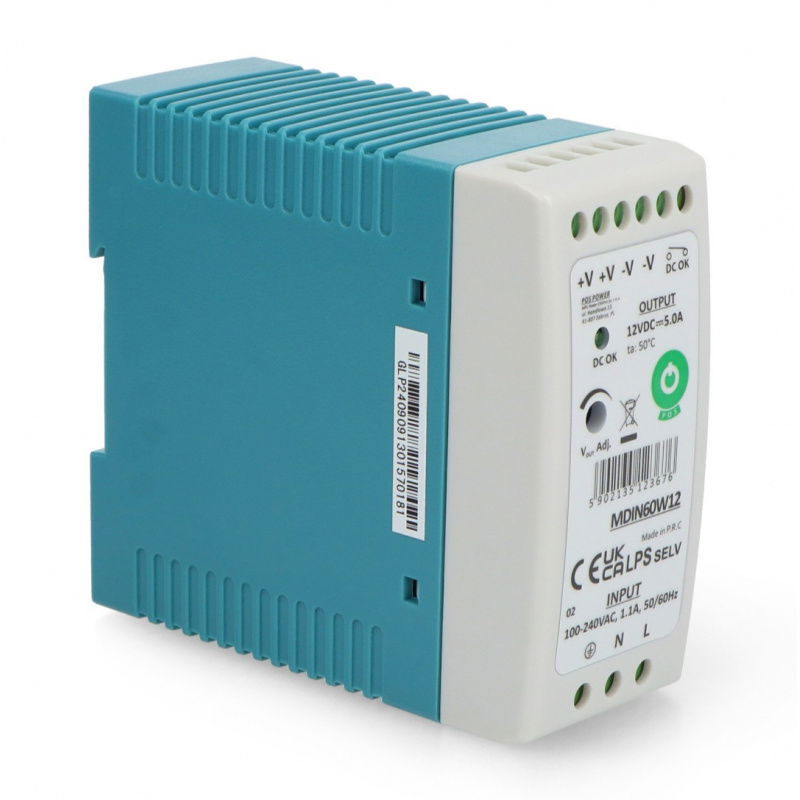

Power supply MDIN60W12 for DIN rail - 12V / 5A / 60W
DIN rail mounted power supply. Input voltage: 100 V to 240 V AC. Output voltage is 12 V. Output current is 5 A. Rated power is 60 W.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: MDIN60W12 DIN rail power supply - 12V / 5A / 60W
DIN rail mounted power supply . Input voltage: 100 V to 240 V AC. Output voltage is 12 V. Output current is 5 A. Rated power is 60 W.
MDIN60W12 power supply for DIN rail - 12 V / 5 A / 60 W.
Specification
- Supply voltage: AC 100 V to 240 V
- Type: constant voltage
- Output voltage: 12V DC
- Output current: 5 A
- Power: 60 W
- Efficiency: over 82%
- DIN rail mounted
- Terminals in the form of screw connections
- Correct output voltage indication: DC contact OK
- Protection: overload / short circuit / overvoltage / thermal
- Dimensions: 40 x 90 x 100 mm
- Weight: 300 g
Details in the documentation .
MDIN60W12 DIN rail power supply - 12 V/5 A/60 W
The MDIN60W12 power supply is a model offering high current efficiency of 5 A and power of 60 W at an output voltage of 12 V AC. This type of device can be used, for example, to power more energy-intensive installation elements, such as home automation controllers connected to motors (used, for example, for roller shutters or garage doors).
The MDIN60W12 DIN rail power supply is designed for mounting on a standard 35 mm rail and works with a voltage of 100-240 V AC. Thanks to the presence of universal screw connectors, the power supply can be easily connected to various devices and installations.
Efficient and safe DIN rail power supply
The offered DIN rail power supply is characterized by very high efficiency and efficiency exceeding 82%. In addition, it is very safe and stable in use, among others thanks to the use of a number of safety systems that protect against too high voltage, excessive temperature increase, overloads or short circuits.
In our offer you will also find many other models of DIN rail power supplies and other types of chargers and other power devices. In addition, we offer a wide selection of batteries, accumulators, power banks, solar chargers, cables, adapters and other products related to powering electronic devices.
| Name | Value |
|---|---|
| Voltage output from | 12.0 V |
| Output voltage to | 12.0 V |
| Nominal output voltage | 12.0 V |
| Nominal power | 60 W |
| Current | 5 A |
| Power supply - type | for DIN rail |
| Power supply - Plug | ARK screw |
| Width | 10.5 cm |
| Height | 4 cm |
| Depth | 11 cm |
| Weight | 0.308 kg |
