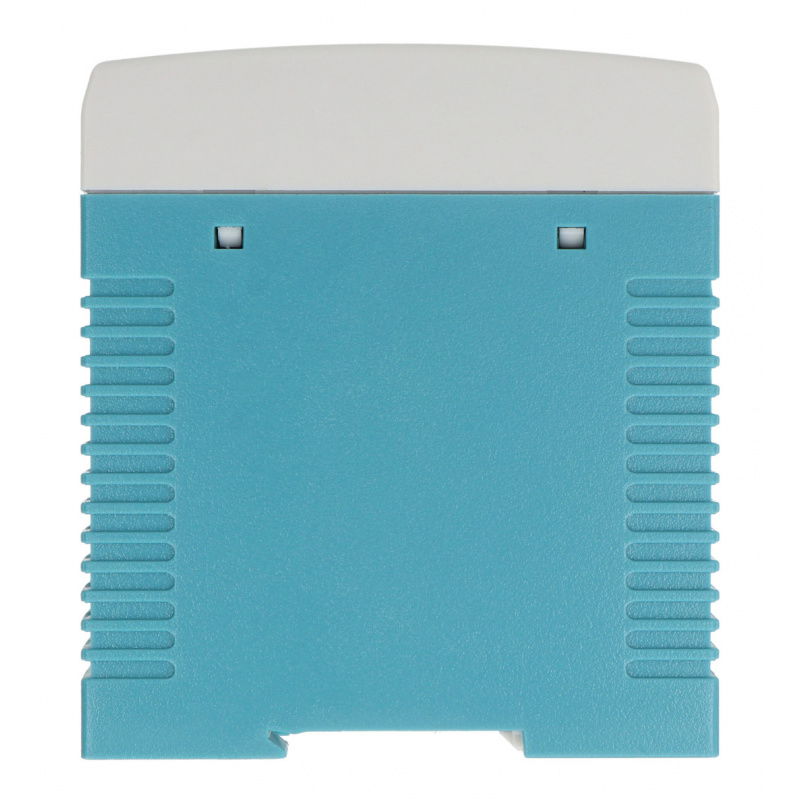

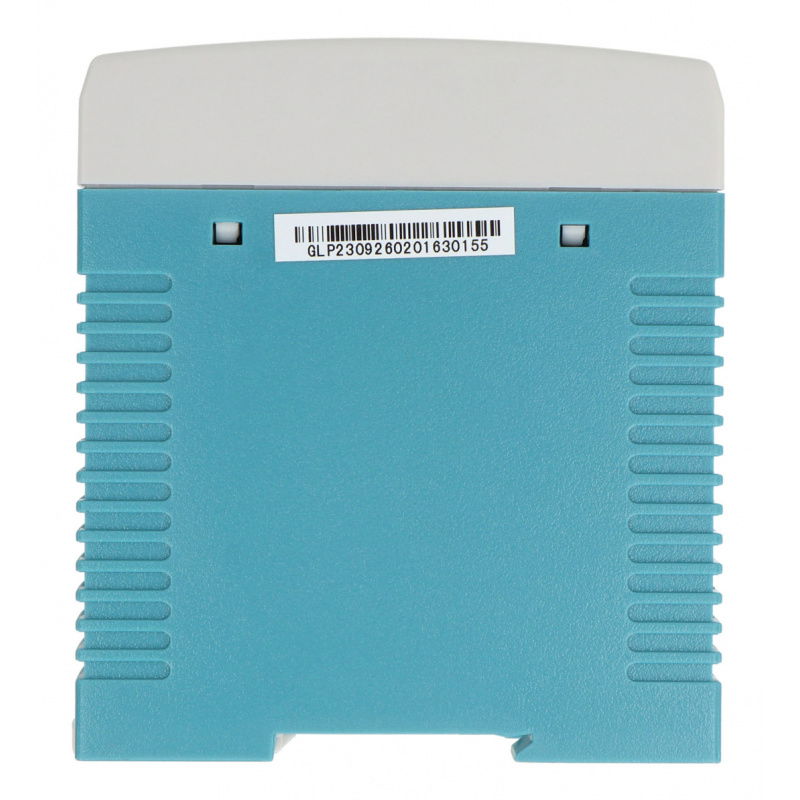

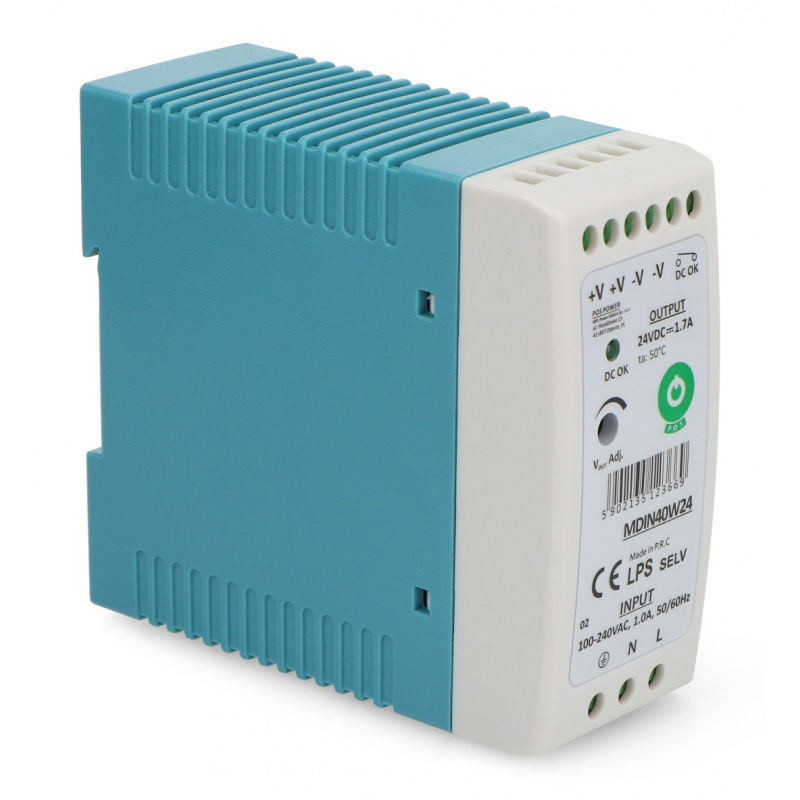

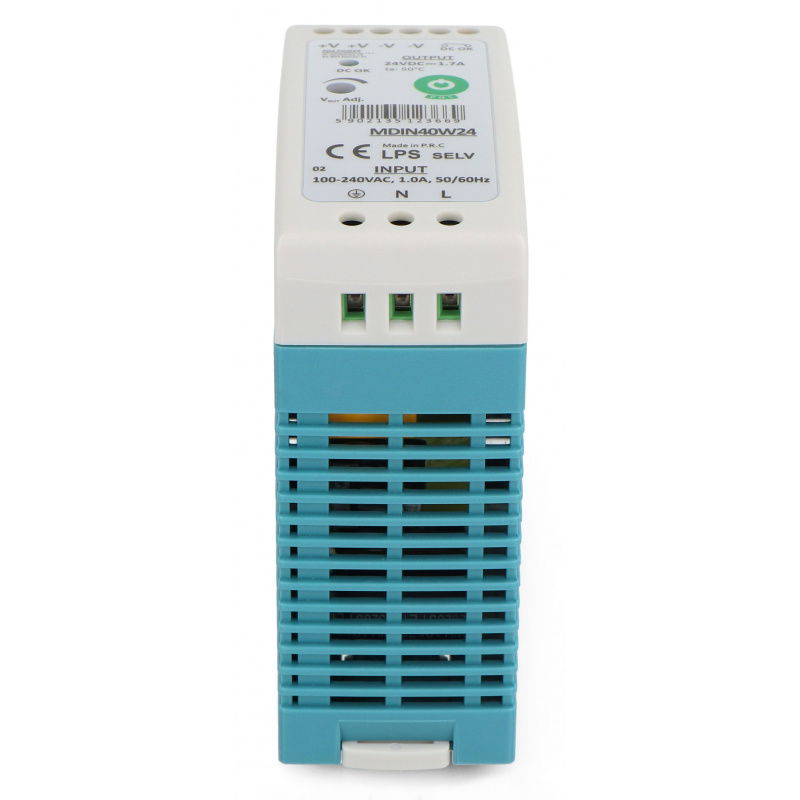

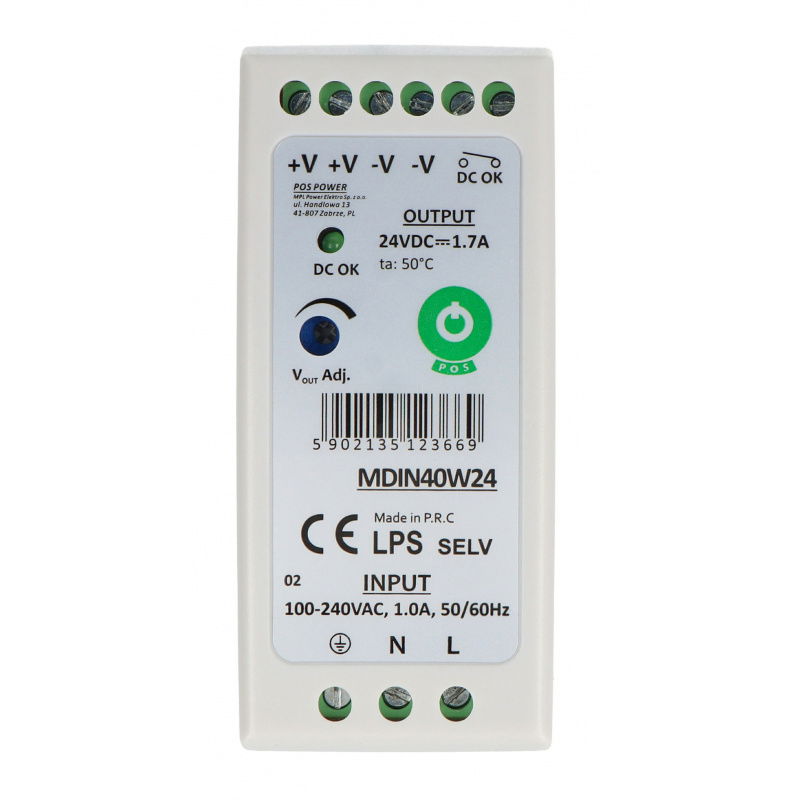

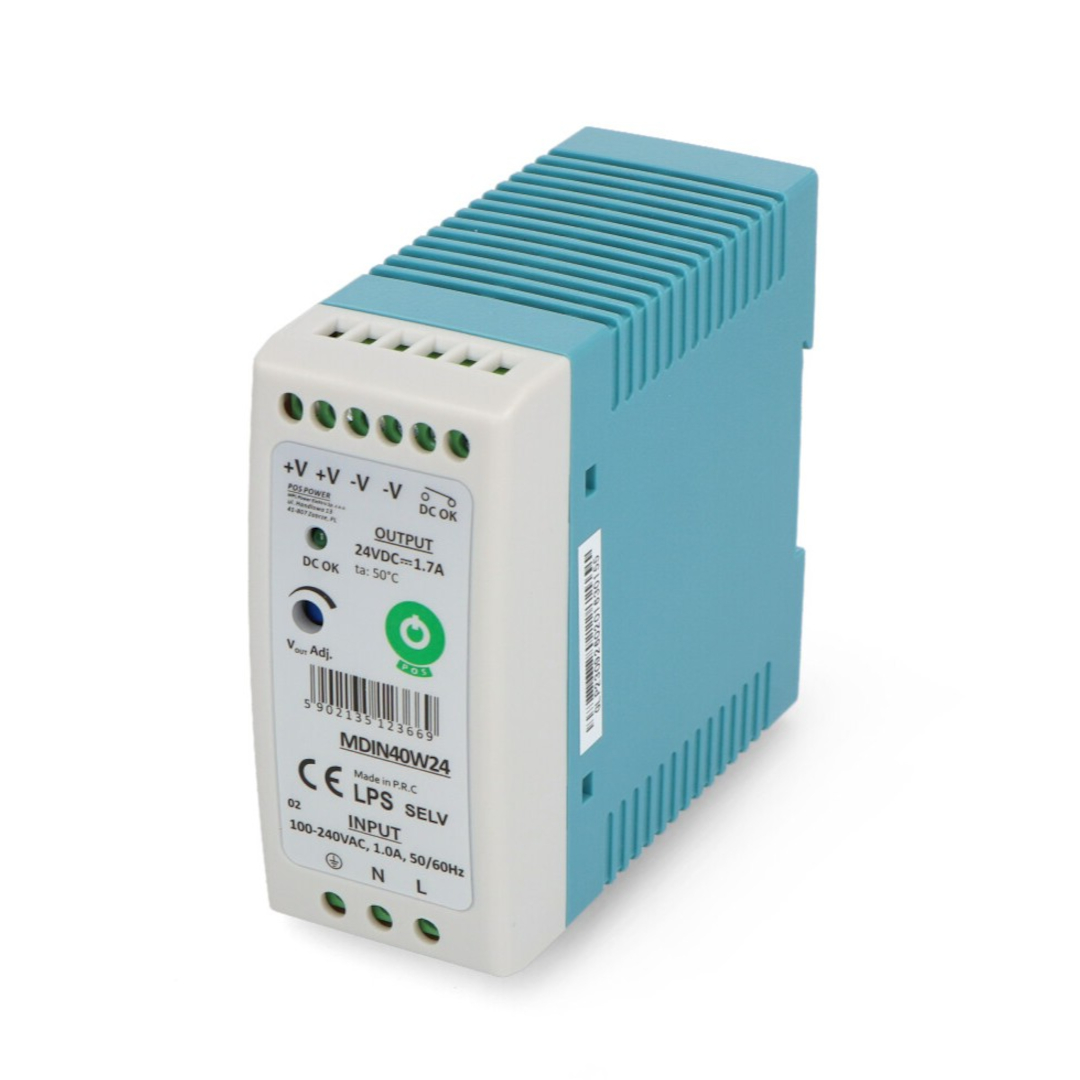

Power supply MDIN40W24 for DIN rail - 24V / 1.7A / 40W

Index: WAK-11423 EAN: 5902135123669

DIN rail mounted power supply. Input voltage: 100 V to 240 V AC. Output voltage is 24 V. Output current is 1.7 A. Rated power is 40 W.

Power supply MDIN40W24 for DIN rail - 24V / 1.7A / 40W
€12.00
€9.76 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: OEM

Product description: MDIN40W24 DIN rail power supply - 24V / 1.7A / 40W

DIN rail mounted power supply . Input voltage: 100 V to 240 V AC. Output voltage is 24 V. Output current is 1.7 A. Rated power is 40 W.

MDIN40W24 DIN rail power supply - 24V / 1.7A / 40W MDIN40W24 DIN rail power supply - 24 V / 1.7 A / 40 W.

Specification

  • Supply voltage: AC 100 V to 240 V
  • Type: constant voltage
  • Output voltage: 24V DC
  • Output current: 1.7 A
  • Power: 40 W
  • Efficiency: over 82%
  • DIN rail mounted
  • Terminals in the form of screw connections
  • Correct output voltage indication: DC contact OK
  • Protection: overload / short circuit / overvoltage / thermal
  • Dimensions: 40 x 90 x 100 mm
  • Weight: 280 g

Details in the documentation .

MDIN40W24 DIN rail power supply - 24 V / 1.7 A / 40 W

The universal DIN rail power supply is mounted on a standard 65 mm mounting bracket. The device offers a voltage of 24 V DC and an output current of 1.7 A, and its nominal power is 40 W. The DIN rail power supply is designed to work with a voltage in the range of 100-240 V AC.

The offered DIN rail power supply is equipped with a number of safeguards that protect it against the effects of exposure to too high voltage, excessive temperature increase, overload or short circuit.

Practical DIN rail power supply

The 24 V/1.7 A/40 W DIN rail power supply is equipped with screw connectors, which are used by many devices and installations. Thanks to this, the device can be used to power lighting or building automation, for example.

In our assortment you will also find other DIN rail power supplies that are adapted to work with various installations and devices and offer various power parameters. In addition, we offer a wide selection of accessories for power supplies, including cables, adapters, extension cords and many other products in this category.

Voltage output from 24.0 V
Output voltage to 24.0 V
Nominal output voltage 24.0 V
Nominal power 40 W
Current 1.7 A
Power supply - type for DIN rail
Power supply - Plug ARK screw
Package width 10.5 cm
Package height 4.5 cm
Package depth 11 cm
Package weight 0.3 kg
