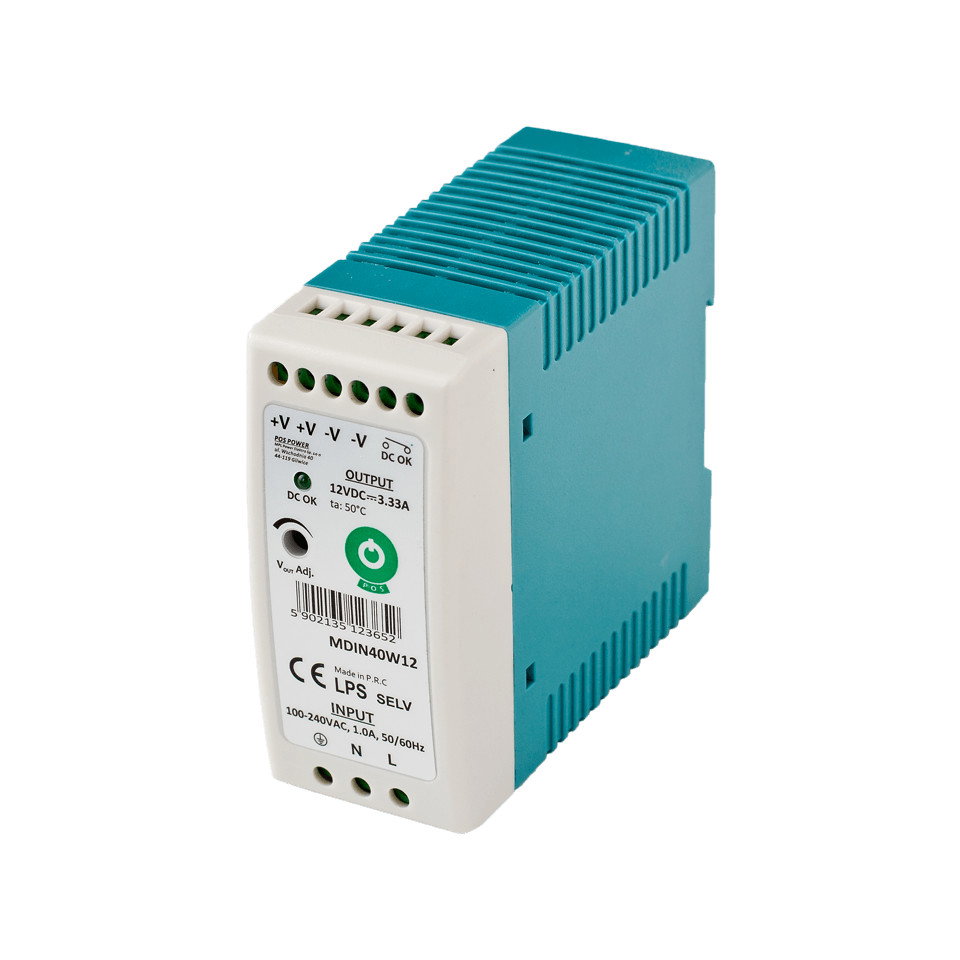

Product description: MDIN40W12 DIN rail mounted power supply - 12 V / 3,33 A / 40 W.
DIN rail mounted powersupply. Input voltage: from 90 V to 264 V AC. Output voltage is 12 V. The output current is 3.33 A. The nominal power is 40 W.
MDIN40W12 DIN rail power supply - 12 V / 3,33 A / 40 W.
Specifications
- Input voltage: AC from 90 V to 264 V
- Type: constant voltage
- Output voltage: 12 V DC
- Output current: 3,33 A
- Power: 40 W
- Efficiency: over 80%
- DIN rail mounted
- Connections in the form of screw terminals
- Signalling the correct output voltage: DC contact OK
- Protection: overload / short-circuit / overvoltage / thermal protection
- Dimensions: 40 x 90 x 100 mm
- Weight: 280 g
Details in the documentation.
