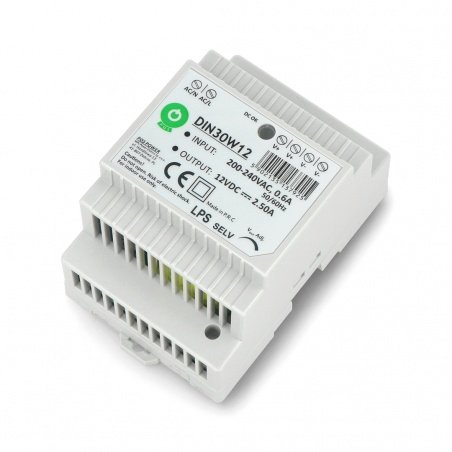

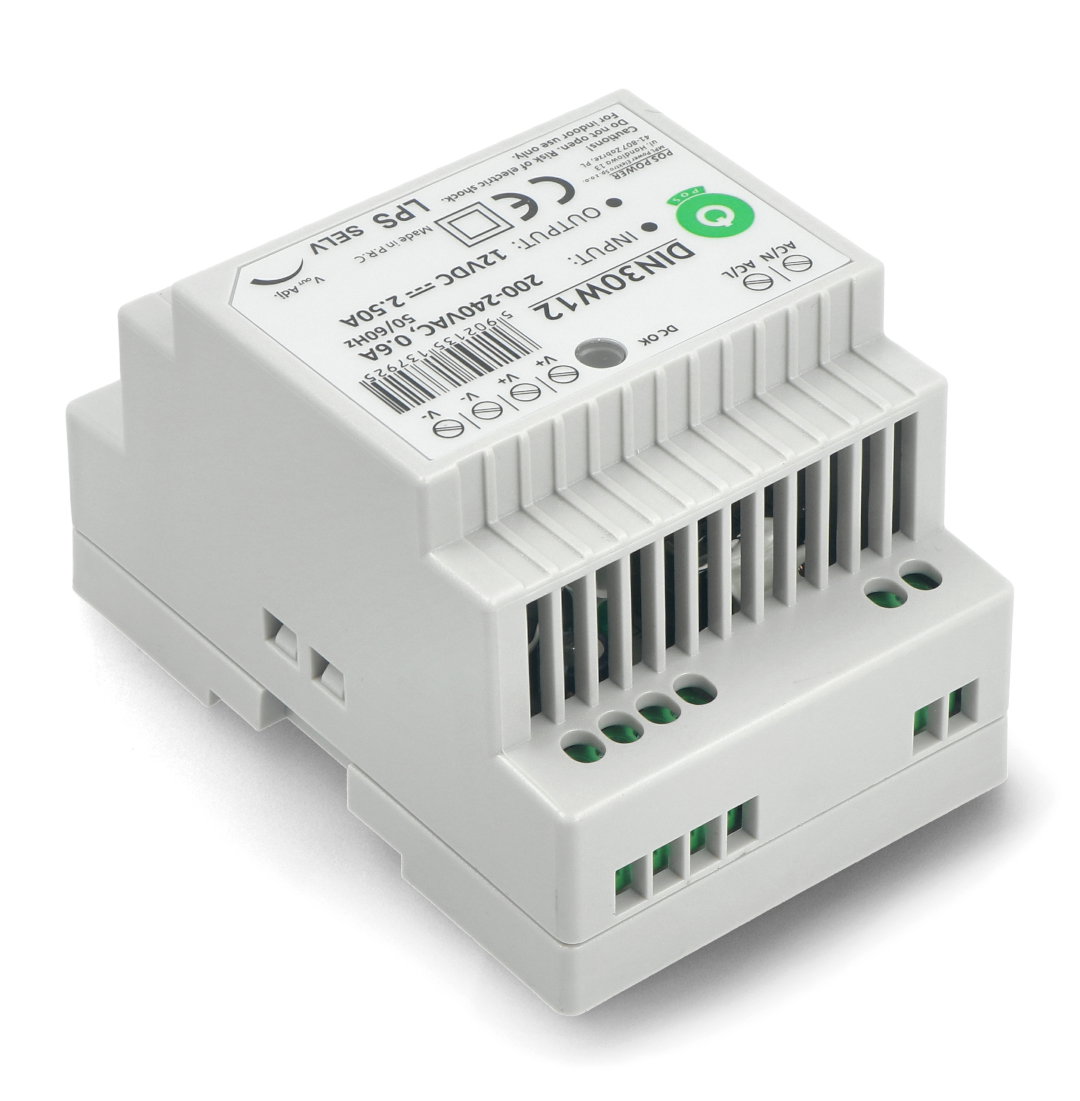

DIN30W12 power supply for DIN rail - 12V/2,5A/30W

Index: ZAS-06393 EAN: 5902135137925
DIN rail mounted power supply unit. Input voltage from 100 V to 240 V AC. Output voltage is 12 V. Output current up to 2,5 A.
DIN30W12 power supply for DIN rail - 12V/2,5A/30W
€13.00
€10.57 tax excl.
Available
Shipping in 24 hours
PayPal payment
Manufacturer: OEM

Product description: DIN rail mounted power supply DIN30W12 - 12 V / 2,5 A / 30 W

DIN rail mounted power supply unit. The input voltage of the power supply is 100 V to 240 V AC and the output voltage is 12 V. Output current up to 2,5 A.

Specifications of the DIN30W12 power supply

  • Supply voltage:
    • AC from 100 V to 240 V
  • Type: Switch Mode
  • Output voltage: 12 V DC
  • Output current: 2.5 A
  • Power: 30 W
  • DIN rail mounted
  • Connections in the form of screw joints
  • Signalling the correct output voltage: DC OK LED
  • Dimensions: 93 x 77 x 56 mm
  • Weight: 220 g

Details in the documentation.

DIN30W12 DIN rail mounted power supply - 12 V / 2.5 A / 30 W.

Voltage output from 12.0 V
Output voltage to 12.0 V
Nominal output voltage 12.0 V
Nominal power 30 W
Current 2.5 A
Power supply - type for DIN rail
Power supply - Plug ARK screw
Package width 11.2 cm
Package height 6.1 cm
Package depth 7 cm
Package weight 0.21 kg
