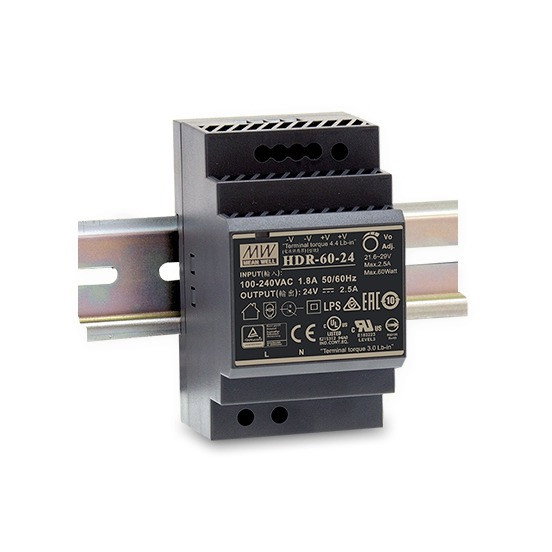

Power supply Mean Well HDR-60-24 for DIN rail - 24V / 2.5A / 60W
24 V and 60 W in a housing 3 modules wide: Mean Well HDR-60-24 DIN rail power supply for modular distribution boards.
- Input 85-264 V AC, adjustable output 21.6-29 V
- Current up to 2.5 A, efficiency typically 90%
- Fanless cooling, operation from -30 °C to +70 °C
We could not load the price.
The promotional price does not combine with quantity discounts.
A 24 V power supply that fits in the distribution board next to the circuit breakers
Mean Well HDR-60-24 is a switching power supply for DIN rail, 52.5 mm wide, which is three modules, with a stepped housing shape designed for modular distribution boards. The power supply sits in the same row as circuit breakers and relays. It delivers 24 V and up to 2.5 A, which is 60 W of rated power, for PLC controllers, relays, sensors and home automation modules.
The power supply works with an AC input voltage from 85 V to 264 V and a DC input voltage from 120 V to 370 V. You set the output voltage with a potentiometer in the range from 21.6 V to 29 V, and an LED signals the operating status. Cooling is natural, without a fan, and the efficiency is typically 90%.

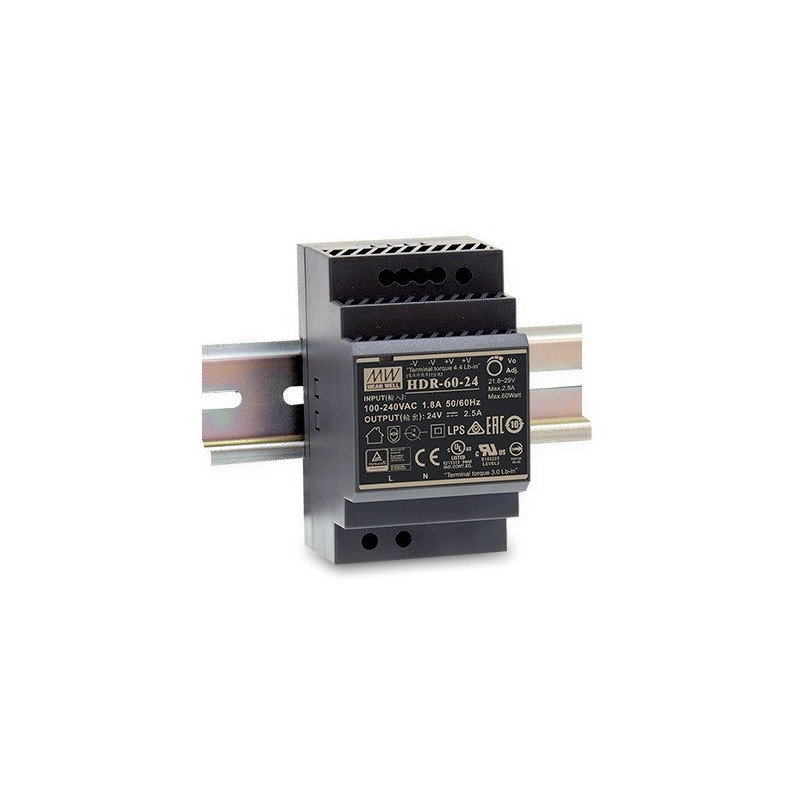

Mean Well HDR-60-24 power supply on a DIN rail
24 V / 2.5 A
rated power 60 W
52.5 mm
width equal to 3 modules on the DIN rail
85-264 V AC
input voltage, also 120-370 V DC
-30 °C to +70 °C
operating temperature, fanless cooling
A good choice for you?
A good choice if:
- you need 24 V for automation in a modular distribution board
- you power several relays, sensors or a PLC controller with a total consumption of up to 2.5 A
- you want a fanless power supply that runs quietly
Consider another option if:
- a lower power is enough: see the Mean Well MDR-20-24 power supply, 24 W
- you need more power: choose the MDIN100W24 power supply, 100 W
Technical specifications
| Parameter | Value |
|---|---|
| Type | switching power supply for DIN rail |
| Output voltage | 24 V DC, adjustable 21.6-29 V |
| Output current | 0-2.5 A |
| Rated power | 60 W |
| Ripple and noise | max. 150 mVp-p |
| Input voltage | 85-264 V AC (47-63 Hz) or 120-370 V DC |
| Efficiency | typically 90% |
| No-load power consumption | below 0.3 W |
| Insulation class | II, limited power source (LPS) |
| Protections | overload (105%-160% of power), short circuit, overvoltage (30-36 V) |
| Operating temperature | -30 °C to +70 °C (derating above approx. 45 °C, down to 50% at 70 °C) |
| Cooling | natural, fanless |
| Mounting | DIN rail TS35/7.5 or TS35/15 |
| Connectors | screw terminals: L, N, +V (2x), -V (2x) |
| Standards | EN 62368-1, EN 61558-2-16, EMC EN 55032 class B |
| Dimensions | 52.5 x 90 x 54.5 mm |
| Weight | 190 g |
| Manufacturer warranty | 3 years |
| Manufacturer | Mean Well |
Did you know?
A manufacturer that makes only power supplies
Mean Well has been operating since 1982 and, according to company data, earns 99% of its revenue from standard power supplies sold under its own brand. Its headquarters and main factory are in New Taipei, Taiwan.
Source: Mean Well: Group Overview
Frequently asked questions
Can I set a voltage other than 24 V?
Yes. You can set the output voltage with the potentiometer on the housing in the range from 21.6 V to 29 V. The output power should still not exceed 60 W.
What happens in the event of a short circuit or overload?
The power supply limits the current, and with a large voltage drop it switches to hiccup mode. Once the cause is removed, it resumes operation on its own, without being switched on again.
Does the power supply fit a home distribution board?
Yes. It is three modules wide and has a stepped shape that fits typical modular distribution boards with a cover. You mount it on a TS35 rail.
Useful links
| Name | Value |
|---|---|
| Voltage output from | 21.6 V |
| Output voltage to | 29.0 V |
| Nominal output voltage | 24.0 V |
| Nominal power | 60 W |
| Current | 2.5 A |
| Power supply - type | for DIN rail |
| Power supply - Plug | ARK screw |
| Width | 6 cm |
| Height | 10 cm |
| Depth | 7 cm |
| Weight | 0.22 kg |
