Product description: Power supply MDIN100W24 for DIN rail - 24 V / 4 A / 100 W
Switch-over power supply designed for mounting on aDINrail. The input voltage ofthe power supplyis from100 Vto240 V AC. The output voltage is 24 V. The output current is4 A. Rated power is100 W. Please ensure that the power supply is adequately ventilated during use. Installation is quick and easy with a simple snap-on system on standard DIN rails.

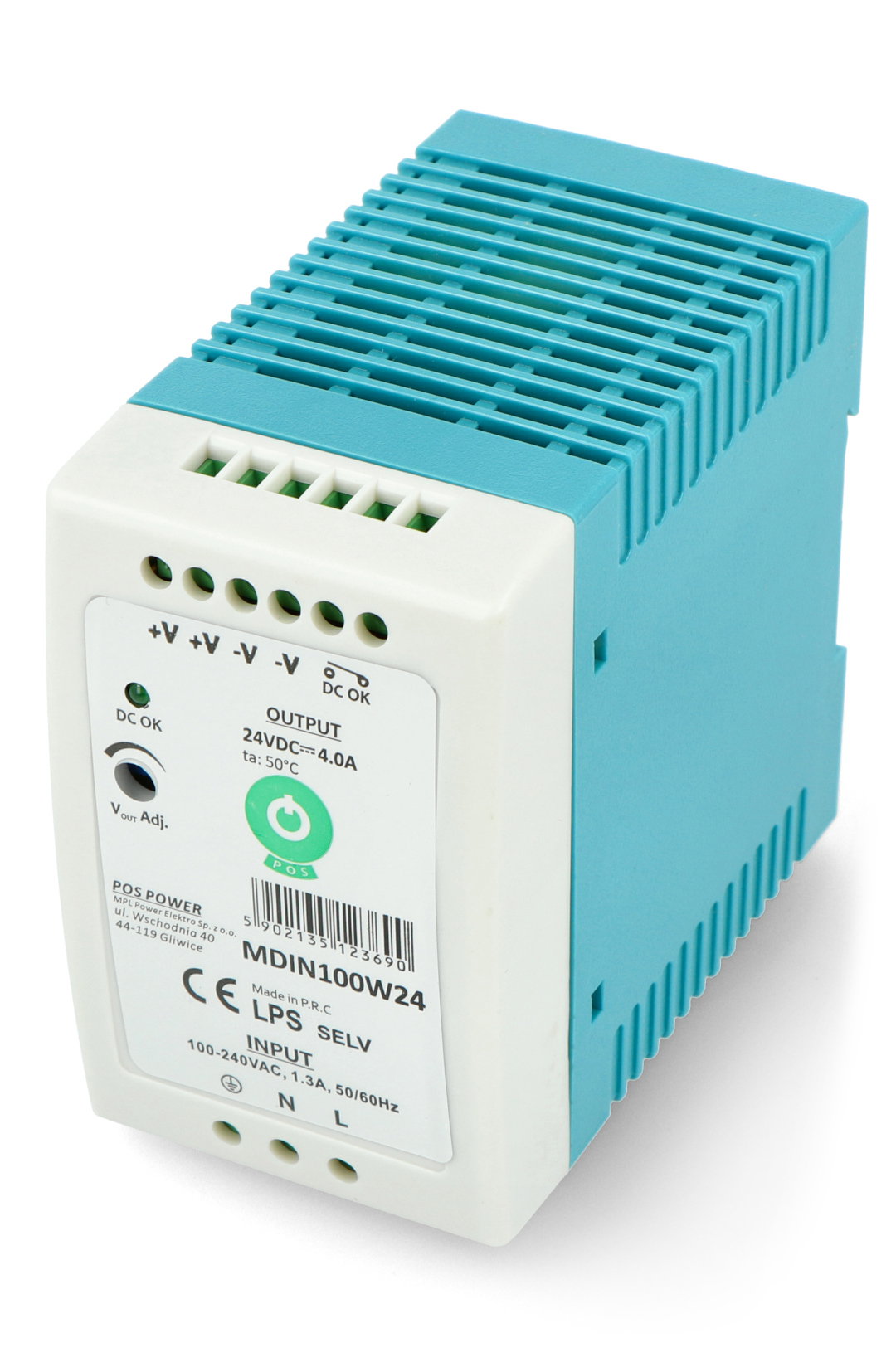

MDIN100W24 power supply for DIN rail - 24 V / 4 A / 100 W.
Specifications of the DIN rail power supply
- Power supply type: impulse
- Power: 100 W
- Input voltage: 100 V to 240 V AC, 1.3 A, 50/60 Hz
- Output current: 4 A
- Output voltage: 24 V
- Efficiency: 85%
- Degree of protection: 1st class
- Can be mounted directly on a DIN rail (TS35/7.5 or TS35/15)
- Closed design, contact-protected screw connections
- Overvoltage protection
- Short circuit protection
- Overload protection
- Protection against overheating
- LED indicator and DC signal OK
- Operating temperature range: -20°C to 50°C
- Dimensions: 100 x 90 x 55 mm
- Weight: 410 g
