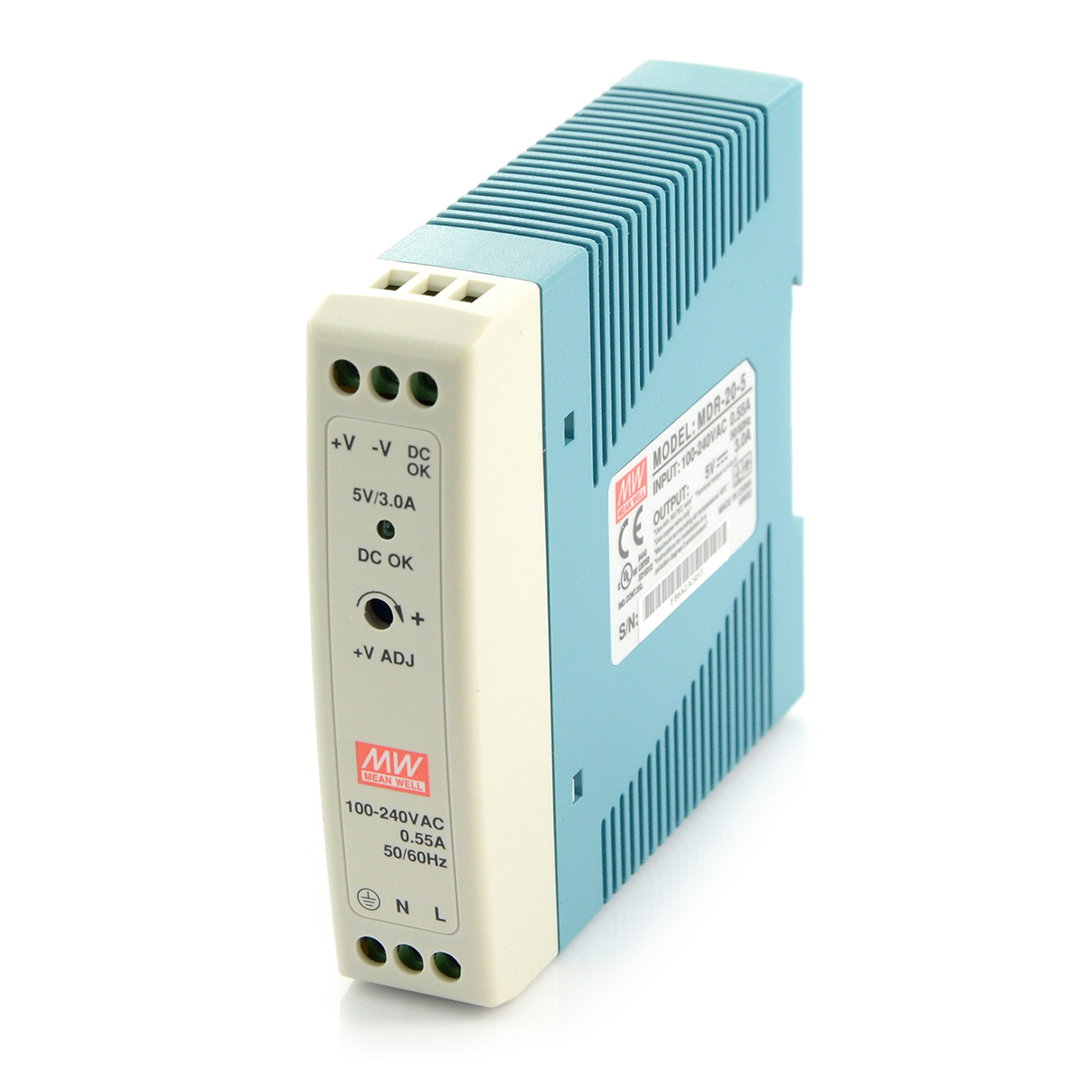

Power supply Mean Well MDR-20-5 for DIN rail - 5V/3A/15W
DIN rail mounted power supply unit. Input voltage from 100 V to 240 V AC. Output voltage is 5 V. Output current up to 3 A.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: Power supply Mean Well MDR-20-5 for DIN rail - 5V/3A/15W
DIN rail mountedpower supply. Input voltage: from 100V to 240V AC. Output voltage is equal to 5 V. Output current up to 3 A.
Power supply specification Mean Well MDR-20-5
- Input voltage: AC from 100 V to 240 V
- Type: impulse
- Output voltage: 5 V DC
- Output current: 3 A
- Power: 15 W
- Efficiency: over 76 %
- DIN rail mounted
- Connections in the form of screw terminals
- Signalling the correct output voltage: DC contact OK
- Dimensions: 22.5 x 90 x 100 mm
- Weight: 160 g
Details in the documentation.
Mean Well power supply MDR-20-5.
| Name | Value |
|---|---|
| Voltage output from | 5.0 V |
| Output voltage to | 5.0 V |
| Nominal output voltage | 5.0 V |
| Nominal power | 15 W |
| Current | 4 A |
| Power supply - type | for DIN rail |
| Power supply - Plug | ARK screw |
| Width | 10.3 cm |
| Height | 11.3 cm |
| Depth | 2.6 cm |
| Weight | 0.108 kg |
