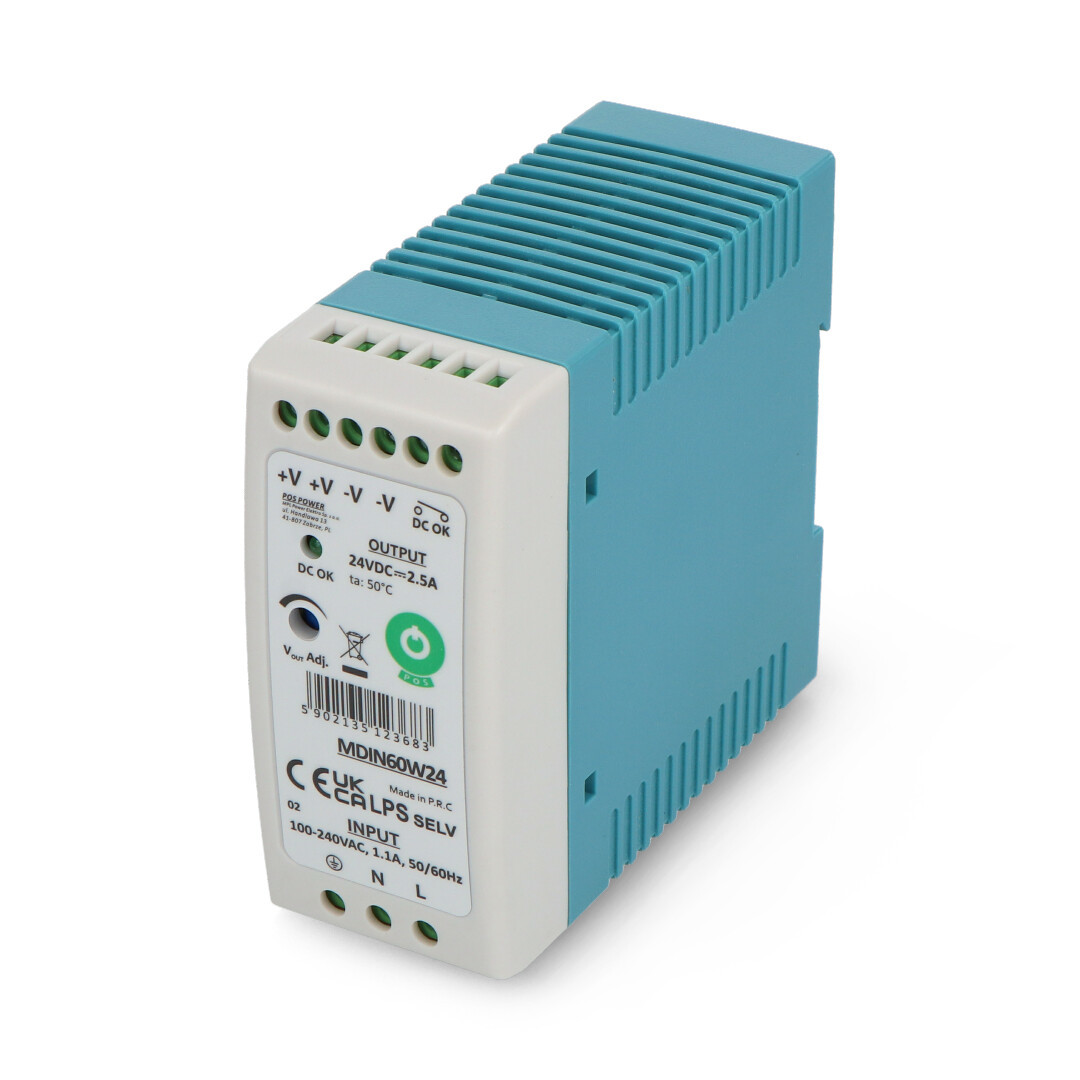

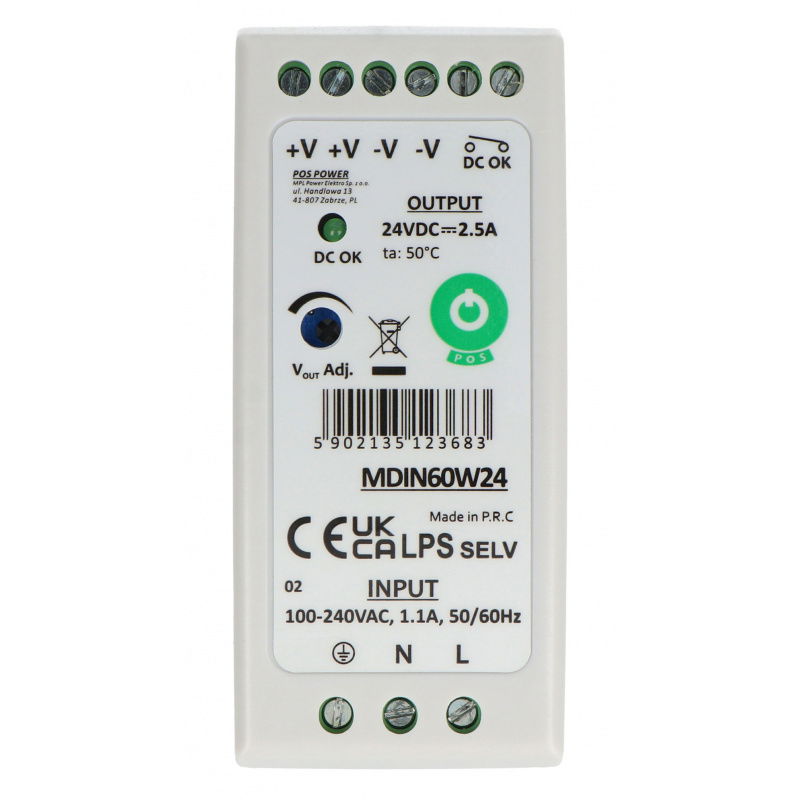

Power supply MDIN60W24 for DIN rail - 24V / 2.5A / 60W
DIN rail mounted power supply. Input voltage: 100 V to 240 V AC. Output voltage is 24 V. Output current is 2.5 A. Rated power is 60 W.
We could not load the price.
The promotional price does not combine with quantity discounts.
Product description: MDIN60W24 DIN rail power supply - 24 V / 2.5 A / 60 W
DIN rail mounted power supply . Input voltage: 100 V to 240 V AC. Output voltage is 24 V. Output current is 2.5 A. Rated power is 60 W.
MDIN60W24 power supply for DIN rail - 24 V / 2.5 A / 60 W.
Specification
- Supply voltage: AC 100 V to 240 V
- Type: constant voltage
- Output voltage: 24V DC
- Output current: 2.5 A
- Power: 60 W
- Efficiency: over 82%
- DIN rail mounted
- Terminals in the form of screw connections
- Correct output voltage indication: DC contact OK
- Protection: overload / short circuit / overvoltage / thermal
- Dimensions: 40 x 90 x 100 mm
- Weight: 300 g
Details in the documentation .
MDIN60W24 DIN rail power supply - 24 V/2.5 A/60 W

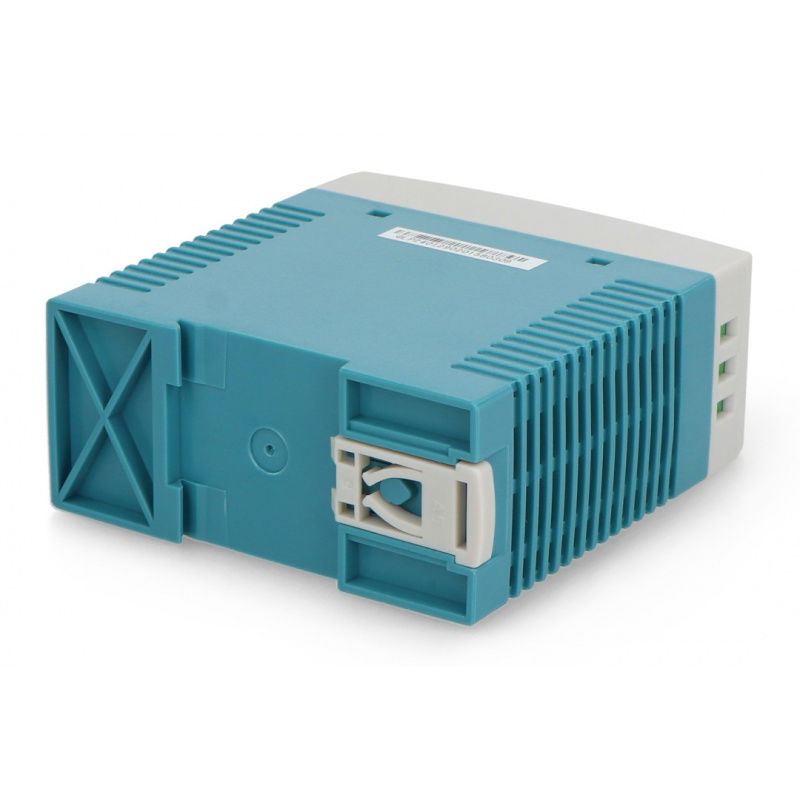

The offered DIN rail power supply is a model designed for mounting on a standard 35 mm wide bracket. The device is designed to work with a wide range of output voltages from 100 V to 240 V AC.
The MDIN60W24 DIN rail power supply offers a stable output voltage of 24 V and a current output of 2.5 A at a rated power of 60 W. The device can be used to power various installations and devices, such as lighting elements or building automation systems (relays, sensors, controllers, etc.).
Practical and universal DIN rail power supply
The 24 V/2.5 A DIN rail power supply will prove useful in many applications, and connecting devices to it is very easy thanks to the presence of standard screw connectors. The model is characterized by high efficiency and efficiency exceeding 82%, in addition, the power supply has short-circuit, overvoltage, overload and thermal protection.
In our shop you will also find other models of DIN rail power supplies, as well as other types of power devices, including wall power supplies, solar chargers, power banks and power adapters. We also offer a large selection of batteries, accumulators, cables, adapters and other accessories.
| Name | Value |
|---|---|
| Voltage output from | 24.0 V |
| Output voltage to | 24.0 V |
| Nominal output voltage | 24.0 V |
| Nominal power | 40 W |
| Current | 2.5 A |
| Power supply - type | for DIN rail |
| Power supply - Plug | ARK screw |
| Width | 10.5 cm |
| Height | 4.5 cm |
| Depth | 11.5 cm |
| Weight | 0.3 kg |
