Product description: Waterproof power supply for LED strips and tapes GPV-100-12 - 12V / 8.3A / 100W
Waterproof, stabilized mains power supply for powering LED strip. Supply voltage: 100 V to 240 V. Output voltage: 12 V DC. Output current: 8.3 A. Connector: flying wires with stripped insulation.
Power Supply Specifications
- Supply voltage: AC 100 V to 240 V
- Output voltage: 12V DC
- Output current: 8.3 A
- Power: 100 W
- Protection class: IP67
- Connector: free wires with insulation removed
- Stabilized power supply, mains power supply, waterproof
- Cable length: 25 cm on each side
- Power supply dimensions: 190 x 52 x 38 mm
- Weight: 570 g
Power Supply Terminals
- AC Input:
- Brown Wire: AC Power 100V to 240V
- Blue wire: ground
- DC output:
- Red wire: DC 12V power supply
- Black wire: ground

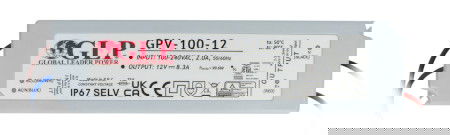

Power supply for LED strips and tapes GPV-100-12.
Waterproof power supply for LED strips and tapes GPV-100-12 - 12V / 8.3A / 100W
The described device is a stabilized power supply, which is designed to supply power to LED strips and tapes. It can be used for both indoor and outdoor lighting installations.
Its characteristic feature is its small size. This in turn translates into the possibility of discreet installation in virtually any place. The mounting power supply has wires that are led out, which are marked with colors. Thanks to this, you can count on the ease of connecting the power supply,

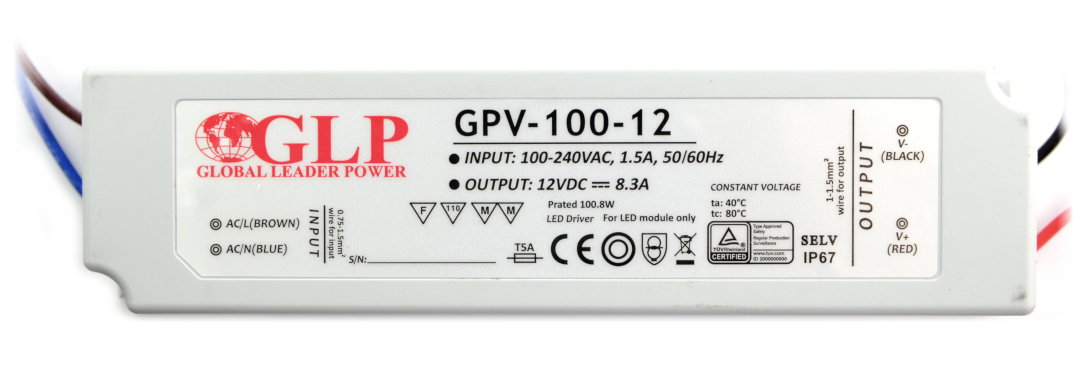

Waterproof power supply for LED strips and tapes GPV-100-12 - 12V / 8.3A / 100W - detailed information
The device has an IP67 protection class. As a result, on the one hand it is waterproof, and on the other hand it is protected against dirt and dust. In addition, the user has no problem accessing important elements of the power supply. All you need to do is use a wire for this purpose.
The device housing contains all the important information, which minimizes the risk of incorrect connection. They concern both the parameters and the method of connecting the input and output. The stabilized power supply is used to power light sources with a power of up to 100W.
