Product description: Power supply for LED strips and tapes waterproof GPV-75-12 - 12V / 6A / 72W
Waterproof, stabilized power supply for powering LED strips. Supply voltage: 100 V to 240 V. Output voltage: 12 V DC. Output current: 6 A. Connector: free wires with removed insulation.
Power supply for LED strips and tapes GPV-75-12.
Specification of the power supply
- Supply voltage: AC from 100 V to 240 V
- Output voltage: 12 V DC
- Output current: 6 A
- Power: 72 W
- Protection class: IP67
- Connector: free wires with removed insulation
- Stabilized power supply, AC power supply, waterproof
- Cable length: 25 cm on each side
- Power supply dimensions: 162 x 43 x 34 mm
- Weight: 370 g

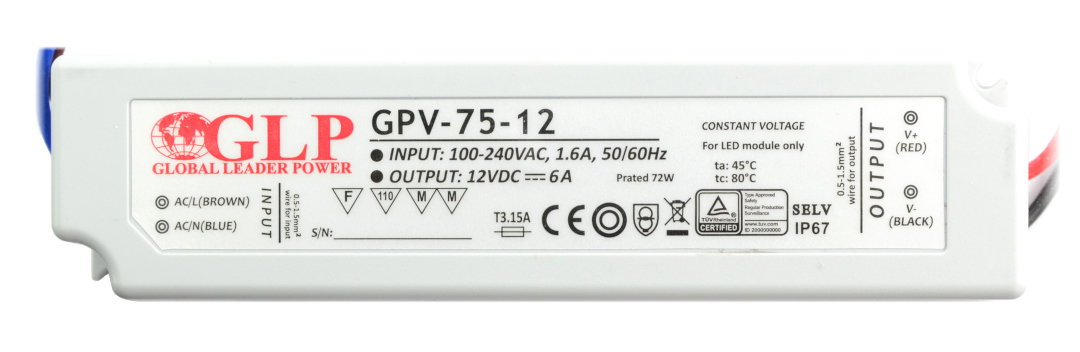

Power supply pinouts
- AC input:
- Brown wire: AC power 100 V to 240 V
- Blue wire: ground
- DC output:
- Red wire: 12 V DC power supply
- Black wire: Ground
