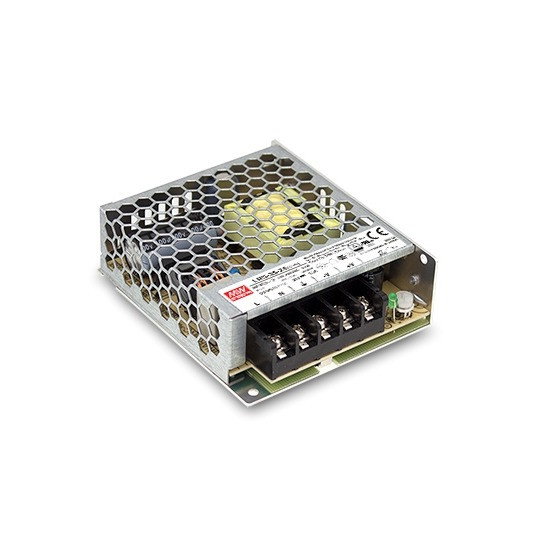

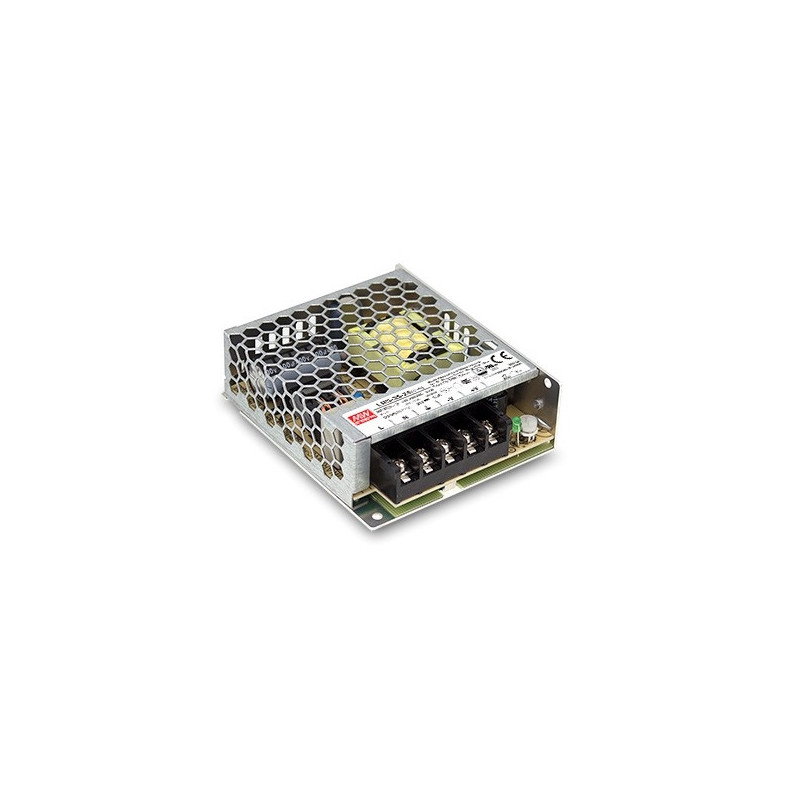

Mean Well LRS-35-24 power supply - 24V / 1.5A / 36W
24 V and 36 W in a housing 30 mm high: Mean Well LRS-35-24 enclosed power supply for installation inside devices.
- Adjustable output 21.6-28.8 V, current up to 1.5 A
- Withstands a mains surge of up to 300 V AC for 5 s
- No-load consumption below 0.2 W
We could not load the price.
The promotional price does not combine with quantity discounts.
Flat 24 V power supply for installation inside a device
Mean Well LRS-35-24 is an enclosed power supply in a perforated metal housing 30 mm high that delivers 24 V and up to 1.5 A, which is 36 W. It fits into flat device housings, vending machines and control cabinets. You fasten it with M3 screws to the base or to the wall of the enclosure.
The power supply works from mains of 85 V to 264 V AC and withstands a mains surge of up to 300 V AC for 5 seconds. With no load it draws less than 0.2 W, has a typical efficiency of 88%, and you can set the output voltage with a potentiometer from 21.6 V to 28.8 V.
Mean Well LRS-35-24 power supply open-frame type
24 V / 1.5 A
rated power 36 W
30 mm
housing height
300 V AC
mains surge withstood for 5 s
< 0.2 W
no-load power consumption
A good choice for you?
A good choice if:
- you are building a 24 V device and need a power supply for installation inside it
- you have little height available, since the housing is only 30 mm
- your device draws up to 1.5 A
Consider another option if:
- you prefer DIN rail mounting: see the Mean Well MDR-20-24 power supply
- you need a high-power 5 V power supply: choose the Mean Well LRS-100-5 power supply
Technical specifications
| Parameter | Value |
|---|---|
| Type | enclosed switching power supply in a metal housing |
| Output voltage | 24 V DC, adjustable 21.6-28.8 V |
| Output current | 0-1.5 A |
| Rated power | 36 W |
| Ripple and noise | max. 150 mVp-p |
| Input voltage | 85-264 V AC or 120-373 V DC |
| Efficiency | typically 88% |
| No-load power consumption | below 0.2 W |
| Protection | overload (110%-150% of power), short circuit, overvoltage (28.8-33.6 V) |
| Surge withstand | 300 V AC for 5 s |
| Operating temperature | -30 °C to +70 °C (derating above 50 °C) |
| Cooling | natural, fanless |
| Mounting | M3 holes in the base and side of the housing |
| Connectors | screw terminals: L, N, FG, -V, +V |
| Dimensions | 99 x 82 x 30 mm |
| Weight | 210 g |
| Manufacturer warranty | 3 years |
| Manufacturer | Mean Well |
Did you know?
Over 260 distributors
Mean Well sells power supplies through more than 260 authorized distributors worldwide and employs about 2,500 people. Besides its headquarters in Taiwan, it has branches in China, the USA, the Netherlands, India and Turkey, among others.
Source: Mean Well: Group Overview
Frequently asked questions
Does the power supply need a fan in the enclosure?
No. The LRS-35-24 is cooled by natural air circulation. Leave some free space around the housing, and above 50 °C limit the load.
How do I connect the power supply?
Connect the 230 V mains to terminals L and N, the protective earth conductor to FG, and your device to +V and -V. You trim the output voltage with the potentiometer next to the terminals.
Is it suitable for household appliances?
Yes. The manufacturer states compliance with the EN 60335-1 and EN 61558 standards, which cover household appliances and transformers.
Useful links
| Name | Value |
|---|---|
| Voltage output from | 21.6 V |
| Output voltage to | 28.8 V |
| Nominal output voltage | 24.0 V |
| Nominal power | 36 W |
| Current | 1.5 A |
| Power supply - type | mounting |
| Power supply - Plug | ARK screw |
| Width | 9 cm |
| Height | 10.5 cm |
| Depth | 3.7 cm |
| Weight | 0.205 kg |
