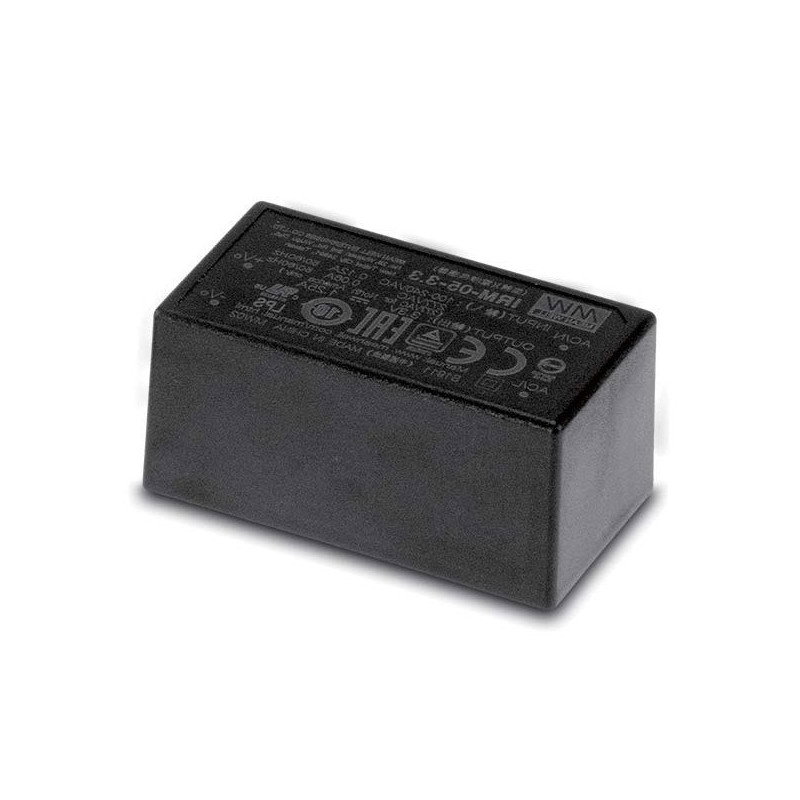

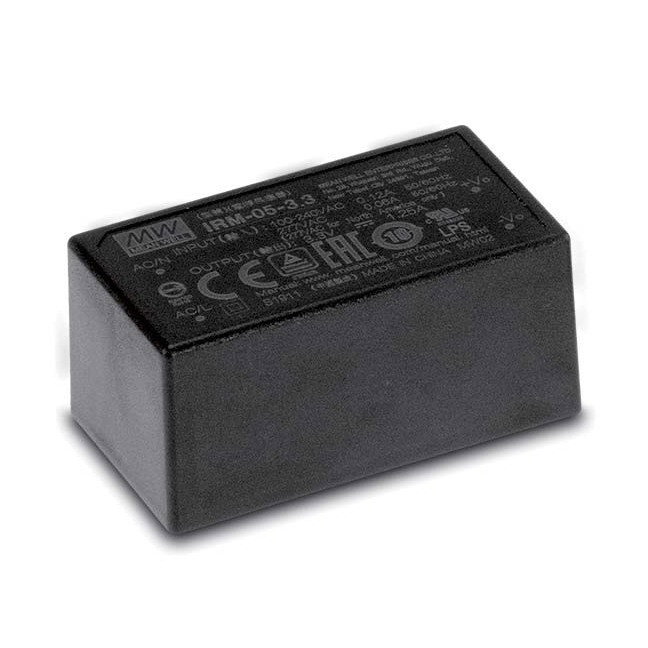

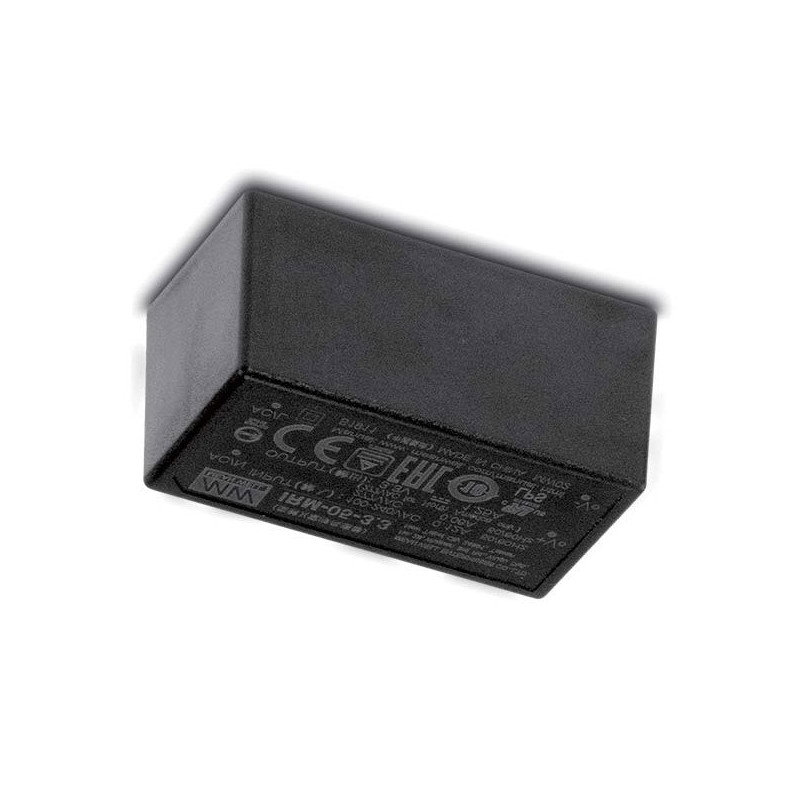

Mean Well IRM-05-5 PCB-mount power supply - 5V / 1A / 5W
5 V from 230 V mains on a PCB: Mean Well IRM-05-5 power supply module with a power of 5 W.
- 85-305 V AC input, current up to 1 A
- Class B emissions without a filter
- No-load consumption below 0.1 W
We could not load the price.
The promotional price does not combine with quantity discounts.
5 V from the mains straight on the PCB
Mean Well IRM-05-5 is an AC-DC power supply in the form of a module that you solder directly to the PCB and produces a stable 5 V at up to 1 A. It works from a mains voltage of 85 V to 305 V AC, so it will power a microcontroller, a WiFi module or sensors in a device powered from a wall socket.
The module has a case made of 94V-0 flame-retardant plastic, potted with silicone, which helps dissipate heat and protects the electronics from dust and vibration. It meets the class B emission standard without an additional filter, has insulation class II and draws less than 0.1 W with no load.
Mean Well IRM-05-5 power supply PCB-mount type
5 V / 1 A
rated power 5 W
45.7 x 25.4 mm
PCB footprint
85-305 V AC
input voltage
< 0.1 W
no-load power consumption
A good choice for you?
A good choice if:
- you are designing a device powered from 230 V mains with 5 V electronics
- you need a small power supply for a PCB
- your device has to stay in standby for a long time at minimal current draw
Consider another option if:
- you prefer a ready-made power supply with screw terminals: see Mean Well RS-15-5 power supply
- you need a 5 V power supply for DIN rail: choose Mean Well MDR-10-5 power supply
Technical specifications
| Parameter | Value |
|---|---|
| Type | AC-DC power supply for PCB mounting (potted module) |
| Output voltage | 5 V DC |
| Output current | 0-1 A |
| Rated power | 5 W |
| Ripple and noise | max. 200 mVp-p |
| Input voltage | 85-305 V AC or 120-430 V DC |
| Efficiency | typically 71% |
| No-load power consumption | below 0.1 W |
| Protections | overload (115%-260% of power), short-circuit, overvoltage (5.75-6.75 V) |
| Insulation class | II, limited power source (LPS) |
| Emissions | class B without additional components |
| Operating temperature | -30 °C to +85 °C (power derating above 50 °C) |
| Case | 94V-0 plastic, silicone-potted |
| Soldering | wave soldering up to 265 °C for 5 s, hand soldering up to 390 °C for 3 s |
| Pins | PCB pins: AC/L, AC/N, -V, +V (1 mm diameter) |
| Dimensions | 45.7 x 25.4 x 21.5 mm |
| Weight | 33 g |
| Manufacturer's warranty | 3 years |
| Manufacturer | Mean Well |
Did you know?
Silicone-potted
The inside of the IRM-05 module is potted with silicone. According to the manufacturer, this improves heat dissipation and vibration resistance up to 5G, and the plastic case with a 94V-0 flammability rating is self-extinguishing once the flame is removed.
Source: Mean Well: IRM-05 datasheet
Frequently asked questions
Do I need an additional interference filter?
No. The manufacturer states that the module meets the EN 55032 emission standard in class B without additional components. The final device still has to be checked for electromagnetic compatibility.
How do I solder the module?
You can wave-solder the module at up to 265 °C for a maximum of 5 seconds, or hand-solder it with an iron at up to 390 °C for a maximum of 3 seconds.
Can I power it with DC voltage?
Yes, the module also works with DC voltage from 120 V to 430 V DC.
Useful links
| Name | Value |
|---|---|
| Voltage output from | 5.0 V |
| Output voltage to | 5.0 V |
| Nominal output voltage | 5.0 V |
| Nominal power | 5 W |
| Current | 1 A |
| Power supply - type | mounting |
| Power supply - Plug | pin |
| Weight | 0.03 kg |
