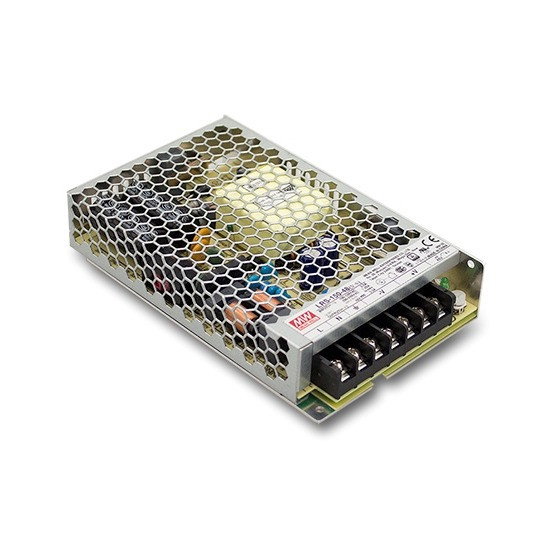

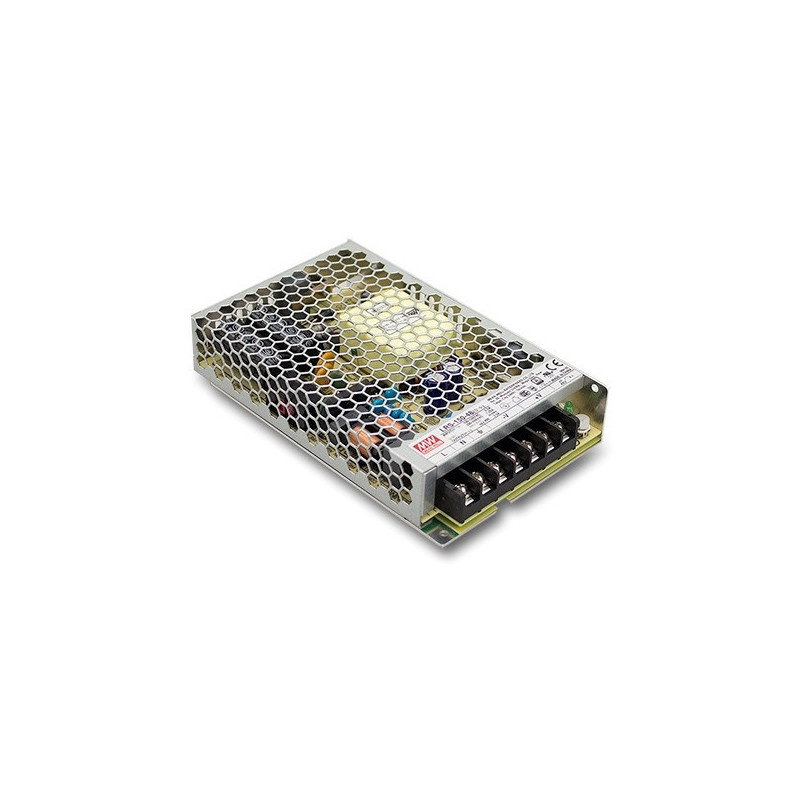

Mean Well LRS-150-24 power supply - 24V / 6.5A / 156W
24 V and 156 W with thermal protection: Mean Well LRS-150-24 enclosed power supply.
- Current up to 6.5 A, adjustable 21.6-28.8 V
- Input voltage selector switch 115/230 V AC
- Case 30 mm high
We could not load the price.
The promotional price does not combine with quantity discounts.
156 W at 24 V with thermal protection
Mean Well LRS-150-24 is a 24 V enclosed power supply with an output current of up to 6.5 A and a power of 156 W in a metal case measuring 159 x 97 x 30 mm. The case is 30 mm high, so it fits into flat machine housings, automation equipment and control cabinets.
In addition to short-circuit, overload and overvoltage protection, the power supply shuts down when it overheats. Typical efficiency is 89%, and you can set the output voltage from 21.6 V to 28.8 V. You select the input voltage range with the input voltage selector switch on the case: 115 V or 230 V AC.
Mean Well LRS-150-24 power supply open-frame type
24 V / 6.5 A
rated power 156 W
4 protections
short circuit, overload, overvoltage, temperature
89%
typical efficiency
30 mm
case height
A good choice for you?
A good choice if:
- you need about 150 W at 24 V for installation in a device
- you want a power supply that shuts down when it overheats
- you have little height available
Consider another option if:
- about 100 W is enough for you: see MDIN100W24 power supply for DIN rail
- you need a 5 V power supply: choose Mean Well LRS-100-5 power supply
Technical specifications
| Parameter | Value |
|---|---|
| Type | enclosed switching power supply in a metal case |
| Output voltage | 24 V DC, adjustable 21.6-28.8 V |
| Output current | 0-6.5 A |
| Rated power | 156 W |
| Ripple and noise | max. 200 mVp-p |
| Input voltage | 85-132 V AC or 170-264 V AC (selector switch), 240-370 V DC |
| Efficiency | typically 89% |
| No-load power consumption | below 0.5 W |
| Protections | overload (110%-140% of power), short-circuit, overvoltage (28.8-33.6 V) |
| Thermal protection | yes, output shutdown |
| Surge withstand | 300 V AC for 5 s |
| Operating temperature | -30 °C to +70 °C (power derating above 50 °C) |
| Cooling | natural convection, no fan |
| Mounting | M3 holes in the base and side of the case |
| Connectors | screw terminals: L, N, FG, -V, +V |
| Dimensions | 159 x 97 x 30 mm |
| Weight | 420 g |
| Manufacturer's warranty | 3 years |
| Manufacturer | Mean Well |
Did you know?
Headquarters in an industrial park
Mean Well's global headquarters is located in the New Taipei industrial park in Taiwan. The company employs about 2,500 people worldwide and has been growing for more than four decades.
Source: Mean Well: Group Overview
Frequently asked questions
What is the switch on the case for?
You use the switch to select the input voltage range: 115 V or 230 V AC. In Europe, set it to 230 V.
Can I power it with DC voltage?
Yes, with 240 V to 370 V DC when the selector switch is set to 230 V.
What happens when it overheats?
The power supply shuts down its output. To make it work again, switch the power off and on again after it has cooled down.
Useful links
| Name | Value |
|---|---|
| Voltage output from | 21.6 V |
| Output voltage to | 28.8 V |
| Nominal output voltage | 24.0 V |
| Nominal power | 156 W |
| Current | 6.5 A |
| Power supply - type | mounting |
| Power supply - Plug | ARK screw |
| Width | 10.5 cm |
| Height | 13.5 cm |
| Depth | 3.8 cm |
| Weight | 0.414 kg |
