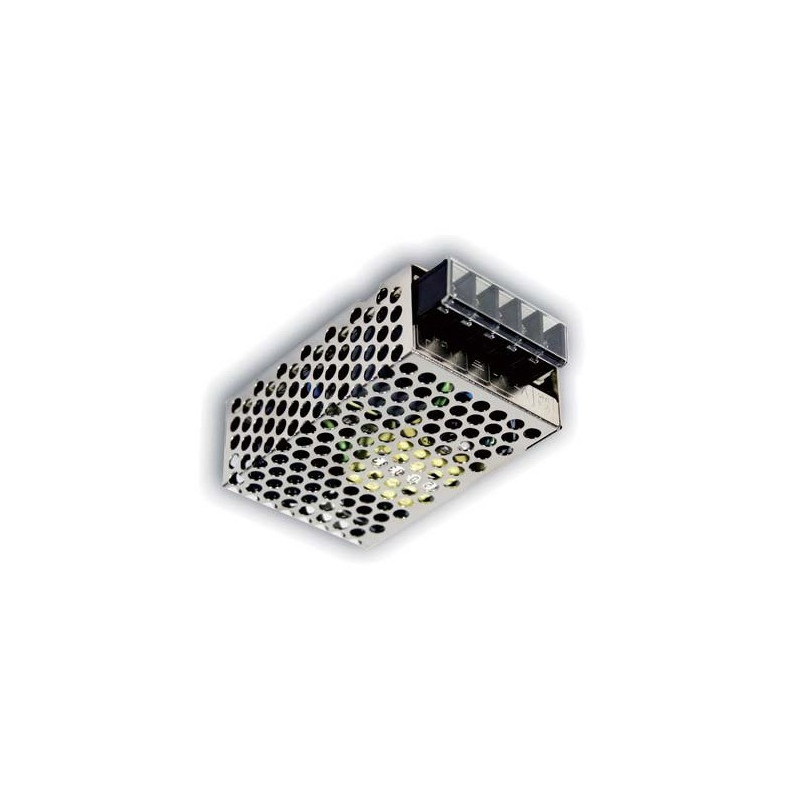

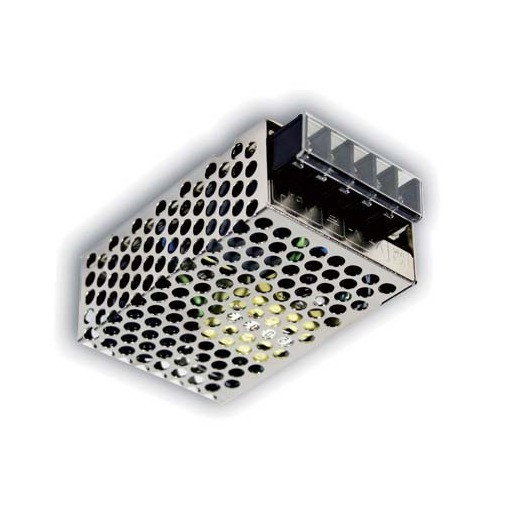

Mean Well RS-25-12 power supply - 12V / 2.1A / 25W
12 V and 25 W in a 78 x 51 x 28 mm case: compact Mean Well RS-25-12 enclosed power supply.
- Current up to 2.1 A, adjustable 10.8-13.2 V
- Capacitors rated for up to 105 °C
- Withstands a mains surge of up to 300 V AC for 5 s
We could not load the price.
The promotional price does not combine with quantity discounts.
Small 12 V power supply with capacitors rated up to 105 °C
Mean Well RS-25-12 is a compact 12 V enclosed power supply with an output current of up to 2.1 A and a power of 25.2 W in a metal case measuring 78 x 51 x 28 mm. It fits into small devices, control panels and electronics enclosures.
The manufacturer uses electrolytic capacitors rated for up to 105 °C, which extends their service life in a warm enclosure. The power supply works from mains of 88 V to 264 V AC, withstands a surge of up to 300 V AC for 5 seconds, and you can set the output voltage from 10.8 V to 13.2 V.
Mean Well RS-25-12 power supply open-frame type
12 V / 2.1 A
rated power 25.2 W
78 x 51 x 28 mm
case dimensions
81.5%
typical efficiency
< 0.5 W
no-load power consumption
A good choice for you?
A good choice if:
- you need a small 12 V power supply for installation in a device
- your device draws up to 2 A
- you care about durable capacitors in a warm enclosure
Consider another option if:
- you power 5 V electronics: see Mean Well RS-25-5 power supply
- you prefer DIN rail mounting: choose Mean Well MDR-20-12 power supply
Technical specifications
| Parameter | Value |
|---|---|
| Type | enclosed switching power supply in a metal case |
| Output voltage | 12 V DC, adjustable 10.8-13.2 V |
| Output current | 0-2.1 A |
| Rated power | 25.2 W |
| Ripple and noise | max. 120 mVp-p |
| Input voltage | 88-264 V AC or 125-373 V DC |
| Efficiency | typically 81.5% |
| No-load power consumption | below 0.5 W |
| Protections | overload (110%-180% of power), short-circuit, overvoltage (13.8-16.2 V) |
| Surge withstand | 300 V AC for 5 s |
| Operating temperature | -20 °C to +70 °C (power derating above 50 °C) |
| Cooling | natural convection, no fan |
| Mounting | M3 holes in the base and side of the case |
| Connectors | screw terminals: L, N, FG, -V, +V |
| Dimensions | 78 x 51 x 28 mm |
| Weight | 200 g |
| Manufacturer's warranty | 3 years |
| Manufacturer | Mean Well |
Did you know?
Capacitors for hot conditions
In the RS-25 series, Mean Well uses only electrolytic capacitors rated for up to 105 °C. They are what most often determines the lifespan of a switching power supply, because they lose capacitance with age, and high temperature speeds up this process.
Source: Mean Well: RS-25 datasheet
Frequently asked questions
Can I power a Raspberry Pi or Arduino with it?
Not directly, because it provides 12 V. For 5 V boards, use a step-down converter or choose the 5 V version of this power supply.
How do I adjust the output voltage?
With the potentiometer marked +V ADJ near the terminals you can set the voltage from 10.8 V to 13.2 V.
Does the power supply have an operation indicator?
Yes, an LED near the terminals lights up when the power supply is working.
Useful links
| Name | Value |
|---|---|
| Voltage output from | 10.8 V |
| Output voltage to | 13.2 V |
| Nominal output voltage | 12.0 V |
| Nominal power | 25.2 W |
| Current | 2.1 A |
| Power supply - type | mounting |
| Power supply - Plug | ARK screw |
| Width | 10.8 cm |
| Height | 5.7 cm |
| Depth | 3.4 cm |
| Weight | 0.18 kg |
