Description

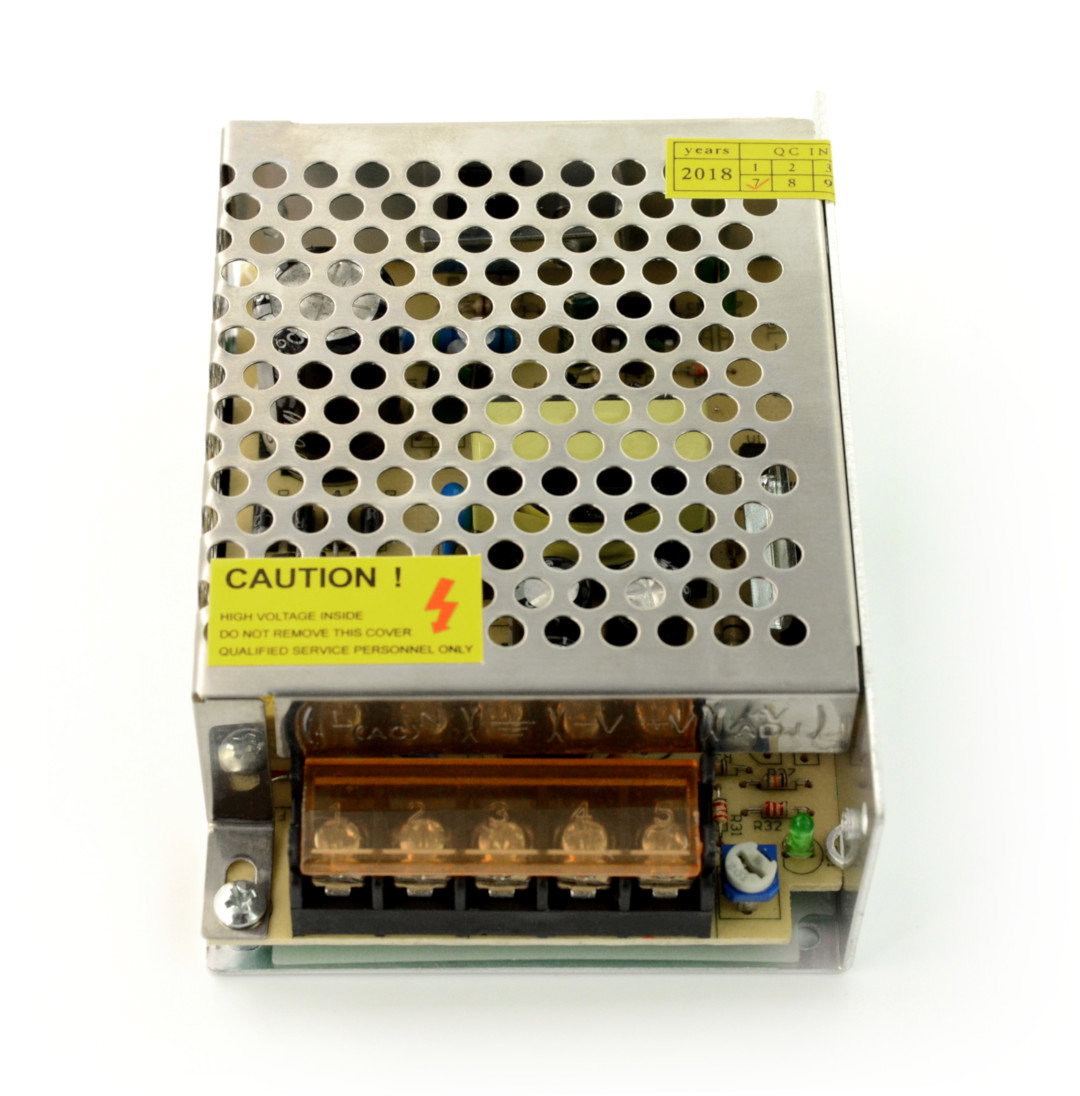

50 W power supply designed to supply lighting based on LED technology, e.g. tapes, lights, panels, RGB controllers and the other devices from 10.5 V to 14 V. The voltage can be adjusted using a potentiometer. The maximum current efficiency is 4.2 A, which for example allows you to power a 10 m LED strip with a consumption of 4.8 W / m. In addition to supplying LED lighting, the power supply can be successfully used for industrial automation systems, machine control, etc.
The correct power supply for LED strip is selected by multiplying the length of the string, expressed in meters, with the power of the strip. To achieve reliable operation it is better to choose a power supply with a stock of at least 10% of the capacity.
Specification
- Supply voltage: 100 V AC to 265 V AC
- Efficiency: 80 %
- Output current: 4.2 A
- Maximum power: 50 W
- Adjust voltage from 10.5 to 14 Volts
- Output connector: Screw
- Delay time: 50 MS
- The start time and rise time: 1000ms, 30ms
- Mechanical timer: No
- Protection class: IP20
- Protection: OVP, OCP, OPP, OTP, SCP
- Power connector: Screw
- The ferrite filter: Yes
- Operating temperature: 5 °to 50 ° C
- Storage temperature: -40 to +80 °C
- Compatibility: CET, RoHS, REACH
- Dimensions: 110 x 78 x 37mm
- Weight: 179 g
